Extend your TV/monitor with additional HDMI connections – Switch conveniently between the signal sources without replugging
- Switch conveniently between 3 signal sources via remote control, on the device itself or via automatic recognition.
- Additional HDMI connections for your output device - 3 signal sources via just 1 HDMI connection/cable on the screen
- Power supply via Micro USB cable (included)
- Max. resolution: 4K/60Hz
- Video bandwidth: 18 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.2
- Supports Consumer Electronic Control (CEC)
- Supports Deep Color (36-bit)
- HDMI 2.0

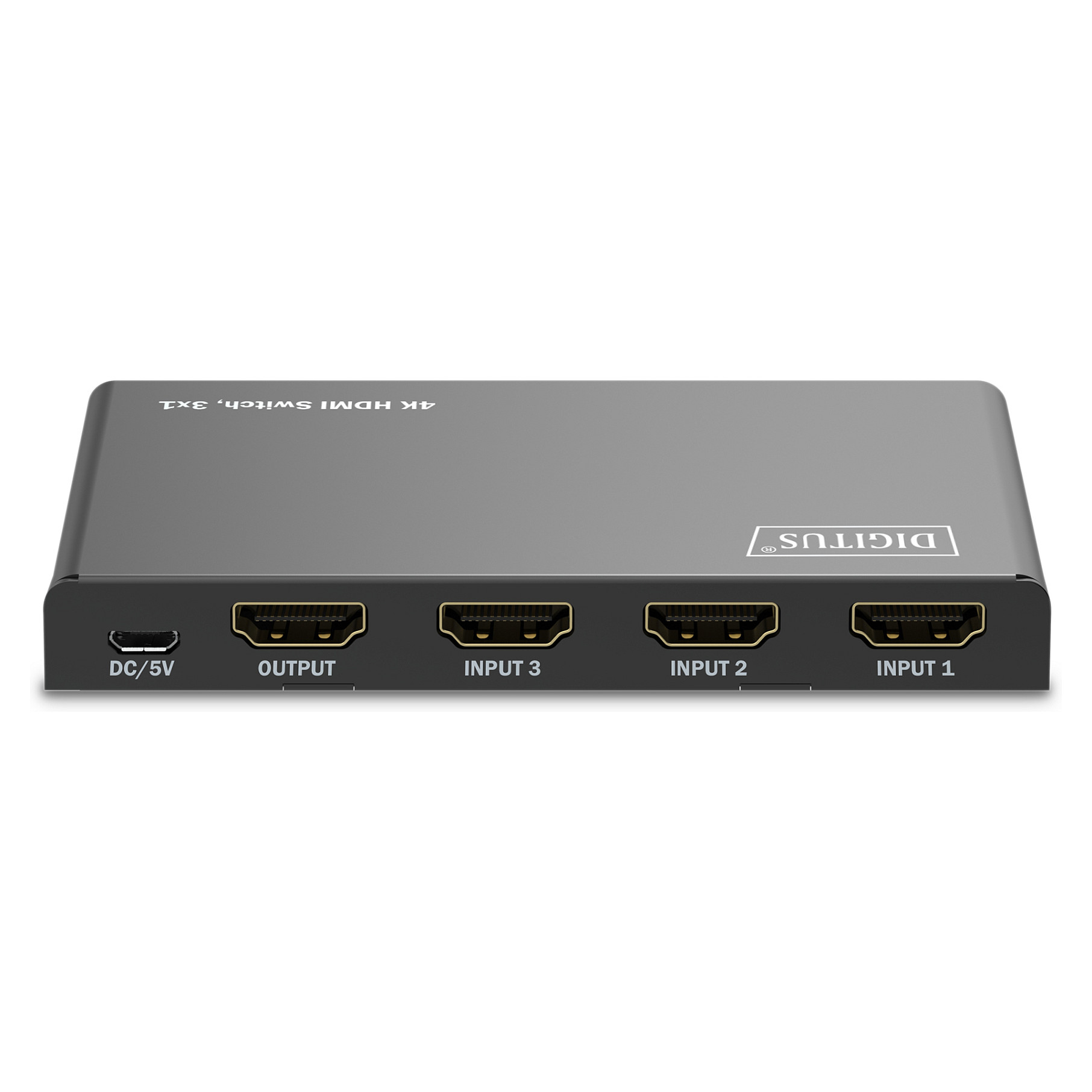

The DIGITUS® 4K HDMI Switch, 3x1 offers additional HDMI connections for your output display - 3 signal sources can be connected using just 1 HDMI connection on the screen. The video changeover switch is supplied with power via the Micro USB cable, e.g. via the source device or a USB charging adapter. Switch conveniently between the signal sources via remote control, on the device itself or via automatic recognition. Perfectly suited for use with wall installation of TV - only a HDMI cable is required to connect the sources.
Ports & interfaces
Video port type: HDMI
HDMI ports quantity: 4
HDMI version: 2.0
HDMI in: 3
Number of HDMI outputs: 1
USB port type: Micro-USB
DC-in jack: Yes
Features
Material: Metal
Product colour: Black
Consumer Electronics Control (CEC) support: Yes
High Dynamic Range (HDR) supported: Yes
HDCP: Yes
Bandwidth: 18 Gbit/s
LED indicators: Status
Maximum resolution: 3840 x 2160 pixels
Cable length: 0.75 m
HD type: 4K Ultra HD
Colour depth: 36 bit
Dolby technologies: DTS, Dolby Digital
HDCP version: 2.3
Power
Power consumption (typical): 5 W
Weight & dimensions
Width: 56 mm
Depth: 112 mm
Height: 14 mm
Weight: 145 g
Packaging data
Package width: 123 mm
Package depth: 179 mm
Package height: 45 mm
Package weight: 310 g
Packaging content
Quantity per pack: 1 pc(s)
Remote control included: Yes
Cables included: USB
Operational conditions
Operating temperature (T-T): 0 - 70 °C
