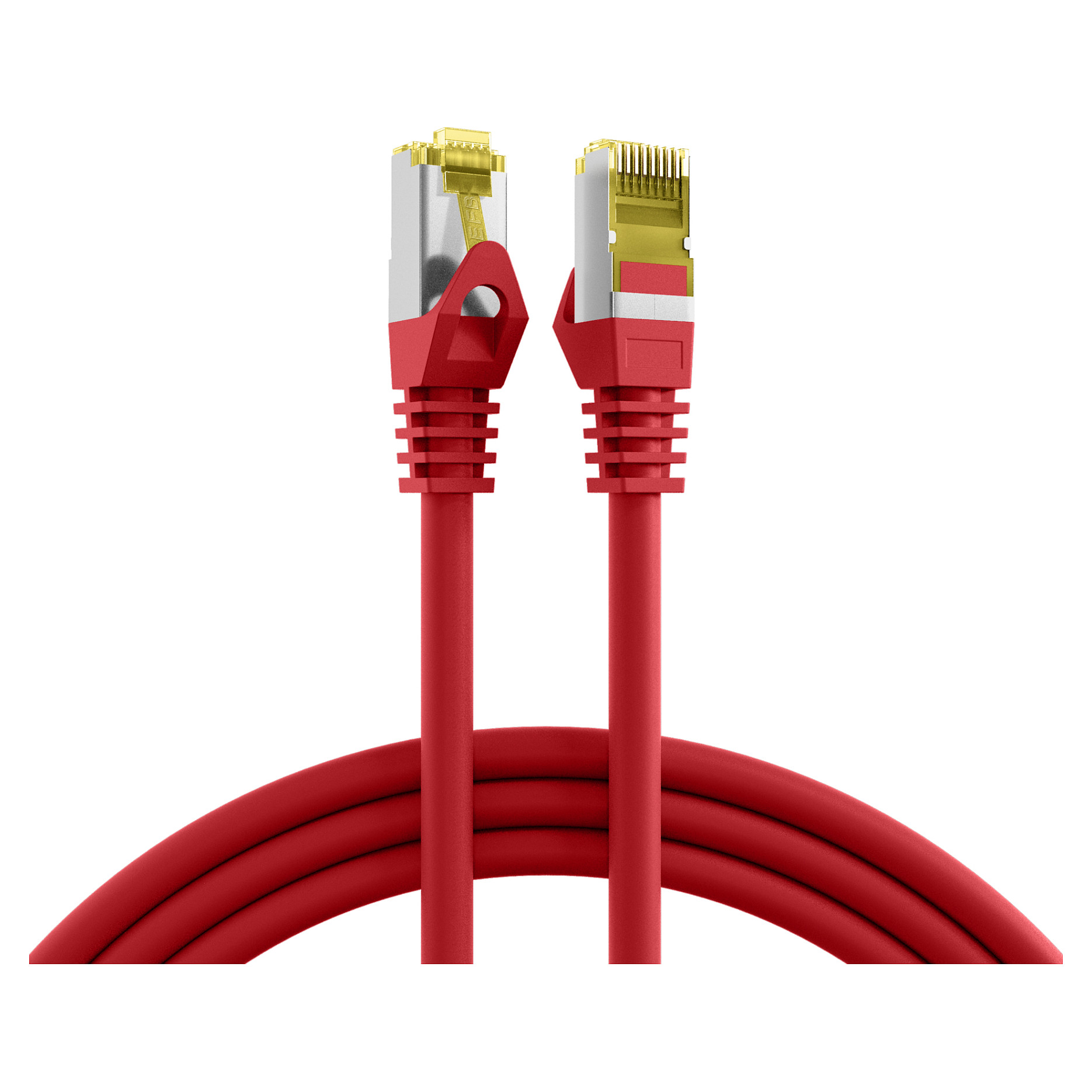

The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range -20 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500 MHz.

Features
Product colour: Red
Cable length: 0.15 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Connector shielding: Yes
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Twisted pair coupling type: 4x2
Cabling technology: 10GBase-T
Ethernet interface type: 10 Gigabit Ethernet
Networking standards: IEEE 802.3bt
AWG wire size: 26/27
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Bend radius (min): 3.25 cm
International Protection (IP) code: IP20
Plug and Play: Yes
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Sustainability
Doesn't contain: Halogen
Certificates
Compliance certificates: CE, Telecommunicatios Industry Association (TIA)
Weight & dimensions
Outer diameter: 6.5 mm
Packaging content
Quantity per pack: 1 pc(s)
