MONITORS

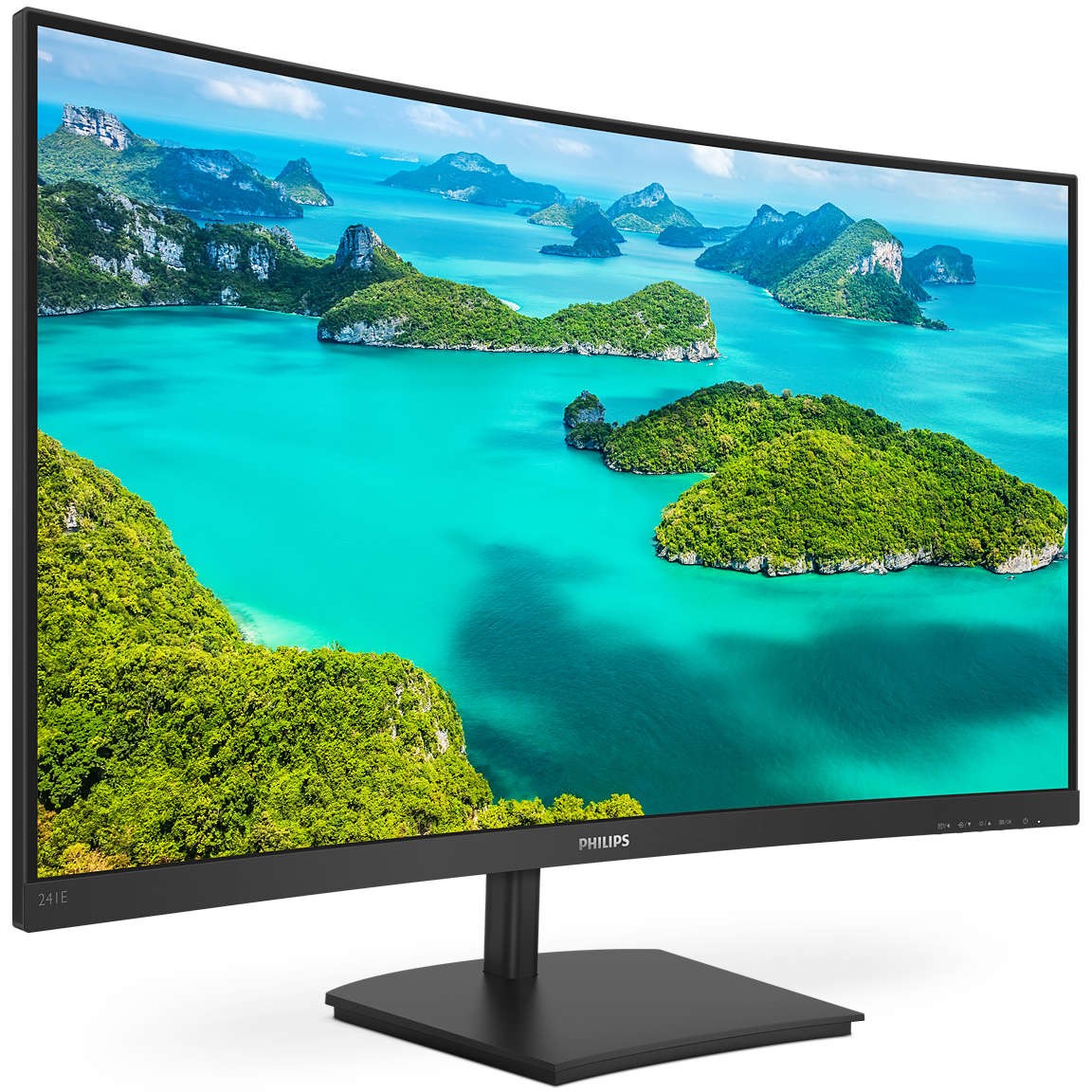

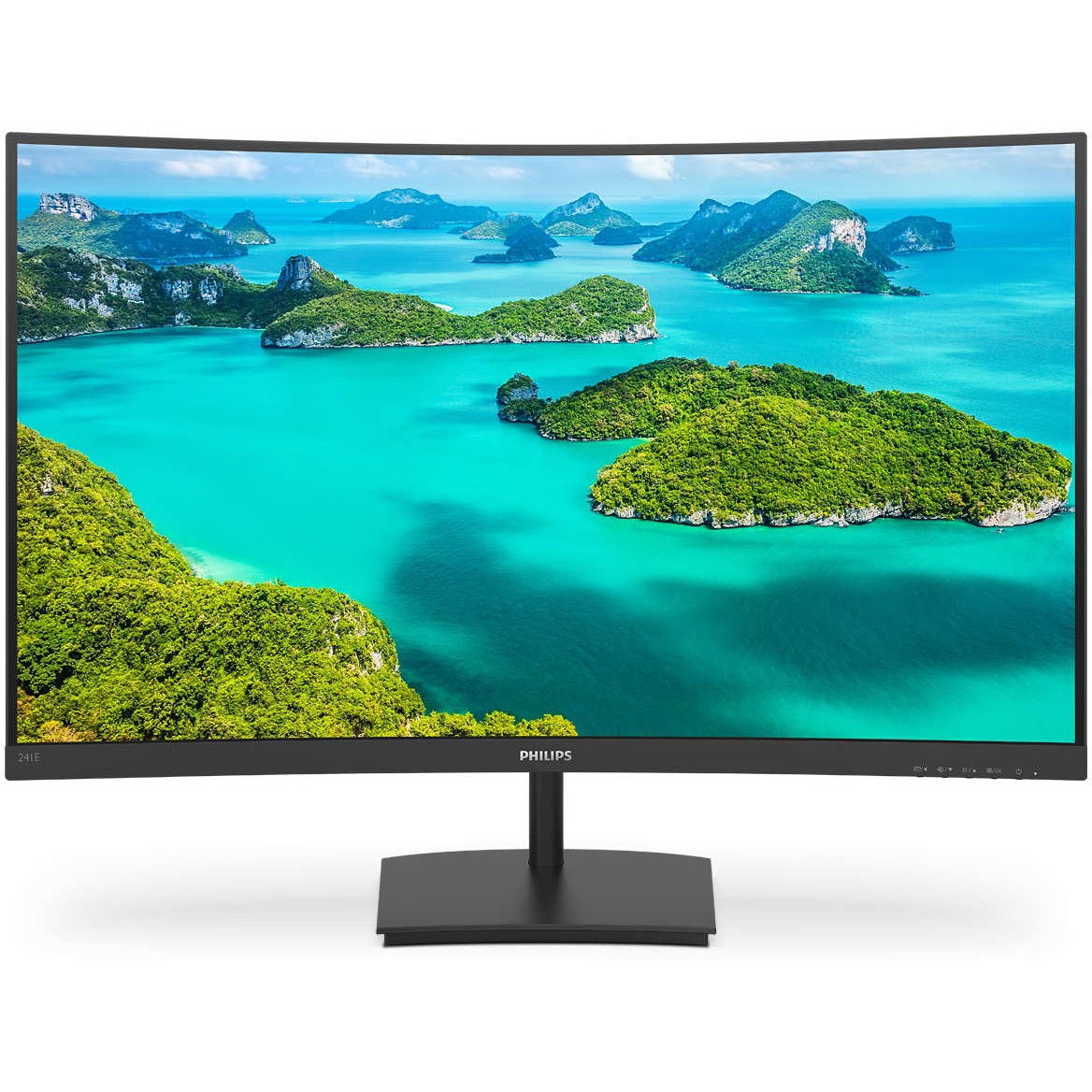

The 24" curved E line display offers a truly immersive experience in a stylish design. Experience crisp Full HD visuals and smooth action with AMD FreeSync™ technology.

Display
Display diagonal: 59.9 cm (23.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Backlight type: W-LED
Display brightness (typical): 250 cd/m²
Response time: 4 ms
Feature: Anti-glare screen
Screen shape: Curved
Screen curvature rating: 1500R
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Aspect ratio: 16:9
Contrast ratio (typical): 3000:1
Maximum refresh rate: 75 Hz
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.272 x 0.272 mm
Pixel density: 93 ppi
Horizontal scan range: 30 - 85 kHz
Vertical scan range: 48 - 76 Hz
Viewable size. horizontal: 52.1 cm
Viewable size. vertical: 29.3 cm
Digital horizontal frequency: 30 - 85 kHz
Digital vertical frequency: 48 - 76 Hz
Display diagonal (metric): 59.9 cm
Feature: DDC/CI
Haze rate: 25%
Surface hardness: 3H
Colour gamut standard: sRGB
Colour gamut: 87%
sRGB coverage (typical): 100.78%
NTSC coverage (typical): 83.87%
Feature: Display sRGB
Performance
Feature: AMD FreeSync
Component video sync: Separate sync. Sync-on-green (SOG)
Feature: Flicker-free technology
Feature: Low Blue Light technology
Design
Market positioning: Home
Product colour: Black
Front bezel colour: Black
Feature: Detachable stand
Feet colour: Black

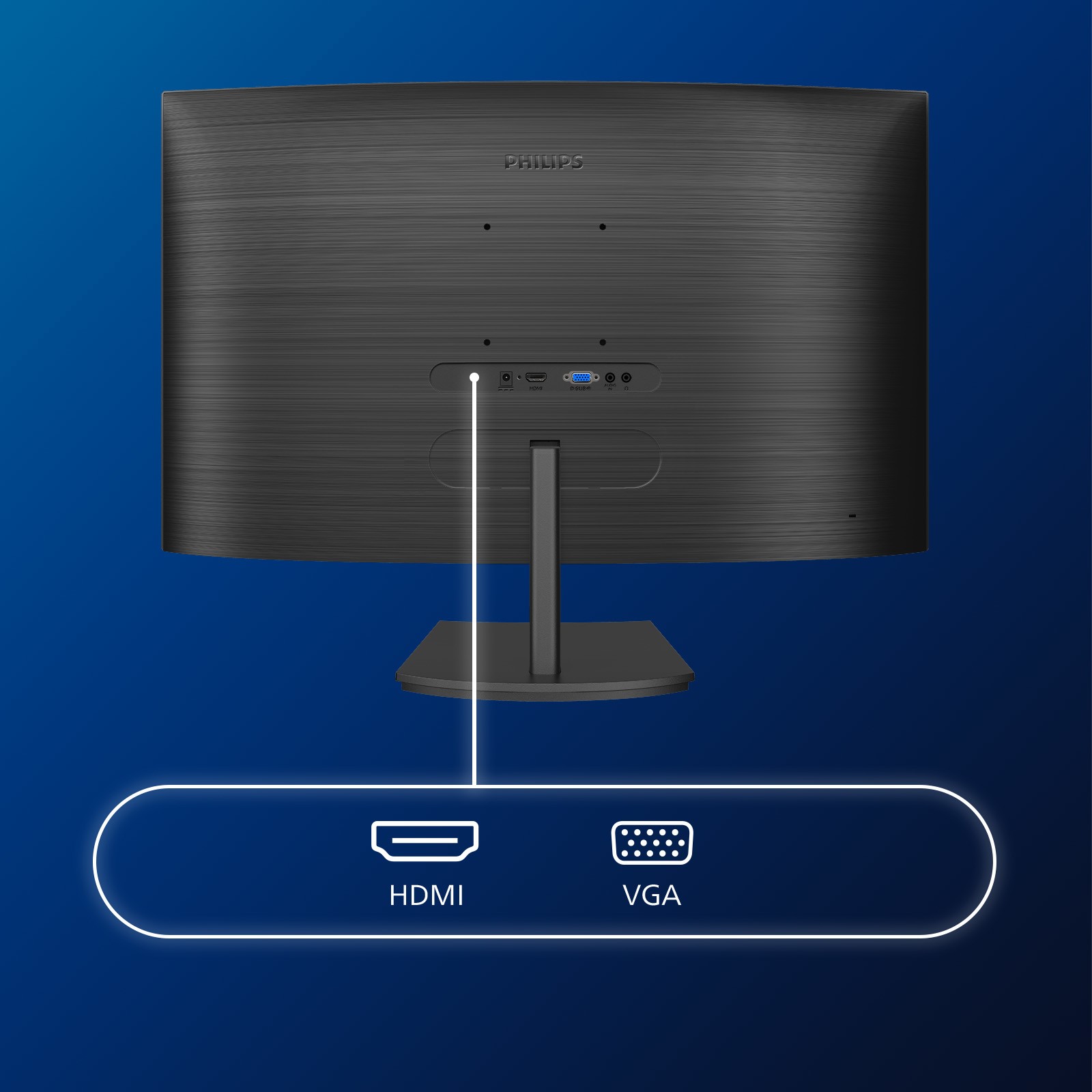

Ports & interfaces
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
Feature: Audio output
Feature: DC-in jack
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: -5 - 20°
Feature: On Screen Display (OSD)
Number of OSD languages: 21
Feature: Plug and Play
LED indicators: Operation. Stand-by
Power
Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 20 kWh
Power consumption (typical): 27.9 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power supply type: External
European Product Registry for Energy Labelling (EPREL) code: 405280
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 3658 m
Non-operating altitude: 0 - 12192 m
Weight & dimensions
Width (with stand): 536 mm
Depth (with stand): 202 mm
Height (with stand): 413 mm
Weight (with stand): 3.14 kg
Width (without stand): 536 mm
Depth (without stand): 66 mm
Height (without stand): 322 mm
Weight (without stand): 2.46 kg
Packaging data
Package width: 595 mm
Package depth: 154 mm
Package height: 475 mm
Package weight: 4.97 kg
Package type: Box
Packaging content
Feature: Stand included
Cables included: HDMI. AC
Feature: Manual
Sustainability
Doesn't contain: Mercury. PVC/BFR
Other features
Exterior finish type: Textured
Picture enhancement: SmartImage game
Recyclable packaging material: 100%
Regulatory Approvals: CB| CE Mark| CU-EAC| EAEU RoHS| TUV/ISO9241-307| TUV-BAUART
Heavy metals free: Hg (mercury). Pb (lead)
Feature: LowBlue mode
Compliance certificates: RoHS
Mean time between failures (MTBF): 50000 h
Certification: CB. CE Mark. CU-EAC. EAEU RoHS. TUV/ISO9241-307. TUV-BAUART
Logistics data
Harmonized System (HS) code: 85285210
