| Product Type |
Motherboard - micro ATX |
| Chipset Type |
AMD A520 |
| Processor Socket |
Socket AM4 |
| Max Processors Qty |
1 |
| Compatible Processors |
Ryzen (supports 3rd Generation Ryzen) |
| Max Size |
128 GB |
| Technology |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4466 MHz (O.C.) |
| Supported RAM Integrity Check |
Non-ECC, ECC |
| Registered or Buffered |
Unbuffered |
| Features |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Allocated RAM Size |
16 GB |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALC1200 |
| Compliant Standards |
High Definition Audio, Premium Blu-ray audio support |
| Network Controller |
Realtek RTL8111H |
| Network Interfaces |
Gigabit Ethernet |
| Expansion Slots |
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2 |

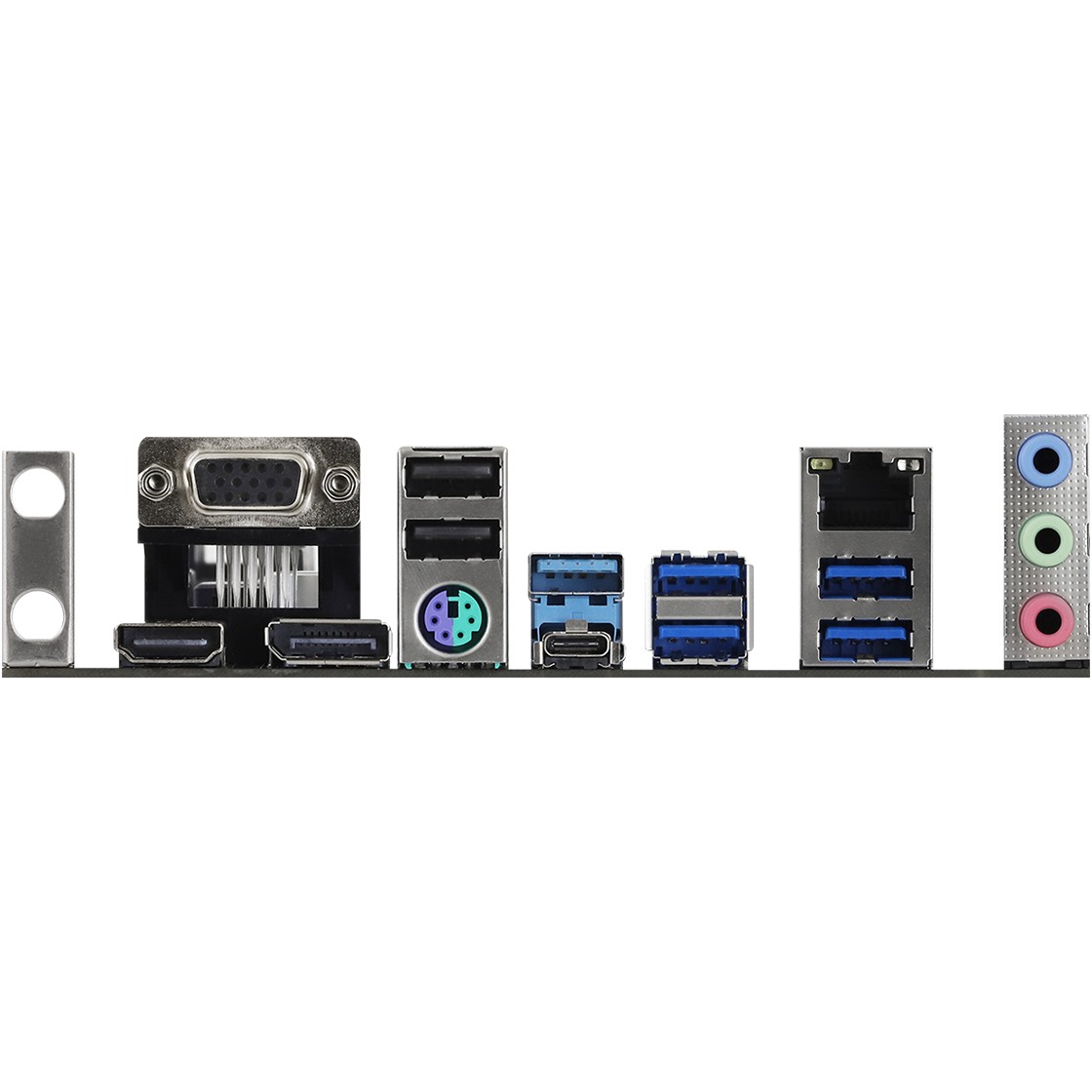

| Interfaces |
1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 5 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen1 |
| Internal Interfaces |
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type |
AMI |
| BIOS Features |
JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Hardware Monitoring |
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up |
Wake on LAN (WOL) |
| Hardware Features |
8 Phase Power Design, ASRock Instant Flash, All-Solid Capacitor motherboard Design, 15µ Gold Contact, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, Nahimic Audio Enhacer, ASRock Live Update, ASRock Ultra M.2, Premium 50A Power Choke, PCB Isolate Shielding, 2oz Copper PCB, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink |
| Included Accessories |
I/O back plate, 2 x M.2 screws |
| Cables Included |
2 x Serial ATA cable |
| Software Included |
Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome RGB |
| Compliant Standards |
FCC, EuP Ready, ErP Ready |
| Width |
24.4 cm |
| Depth |
24.4 cm |
| Service & Support |
Limited warranty - 3 years |
