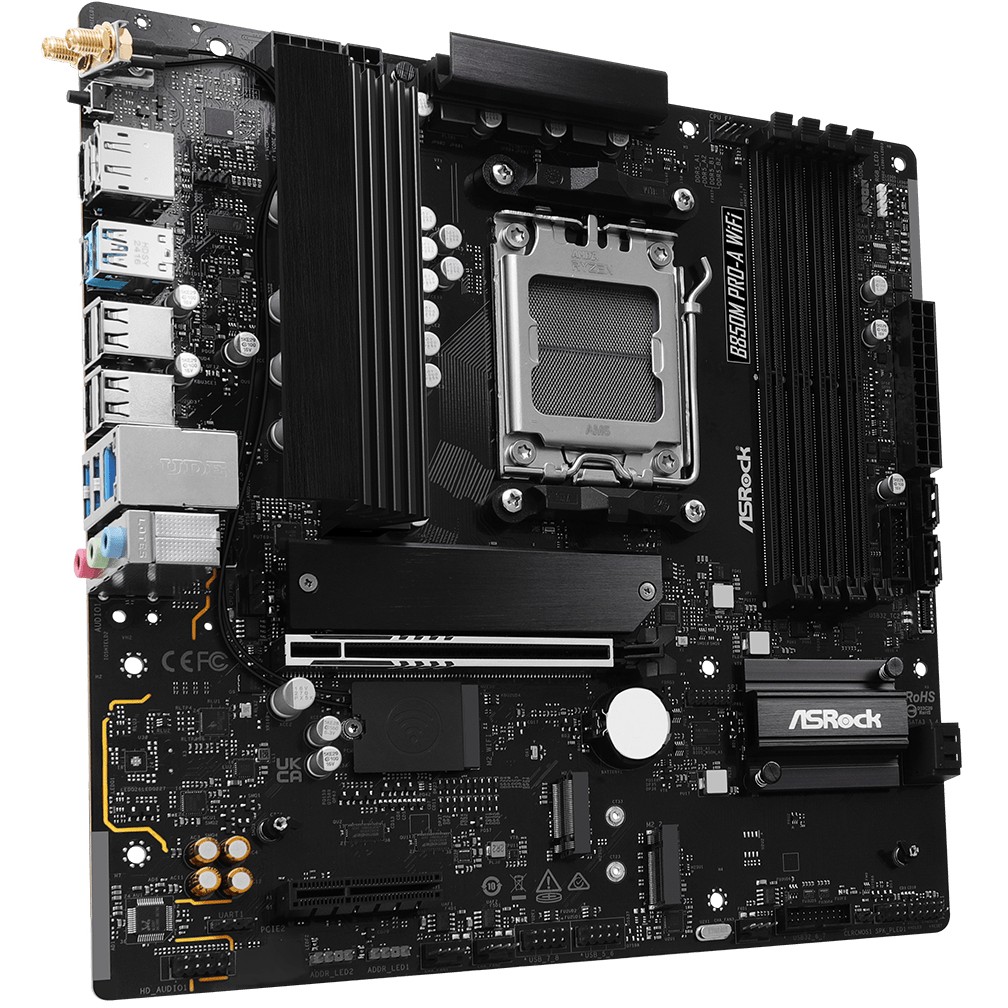

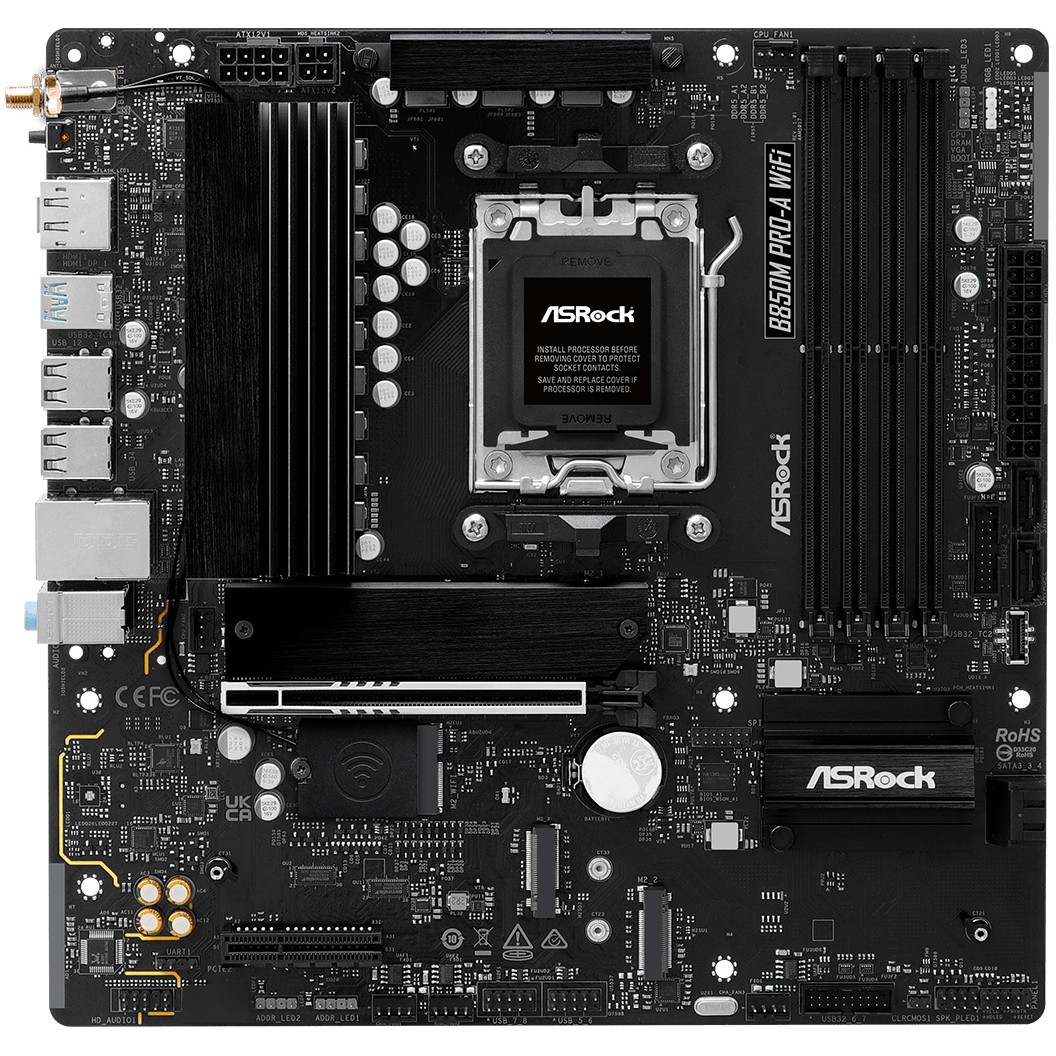

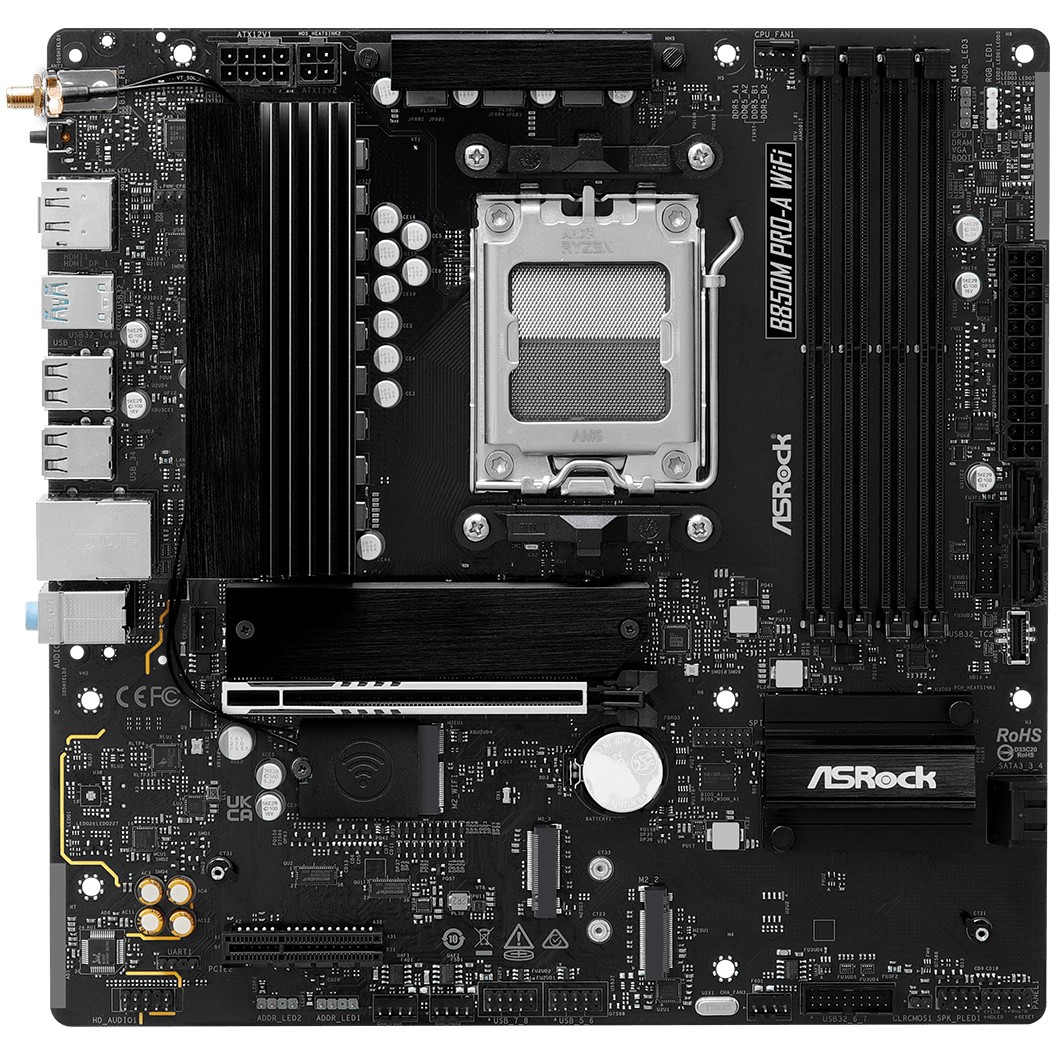

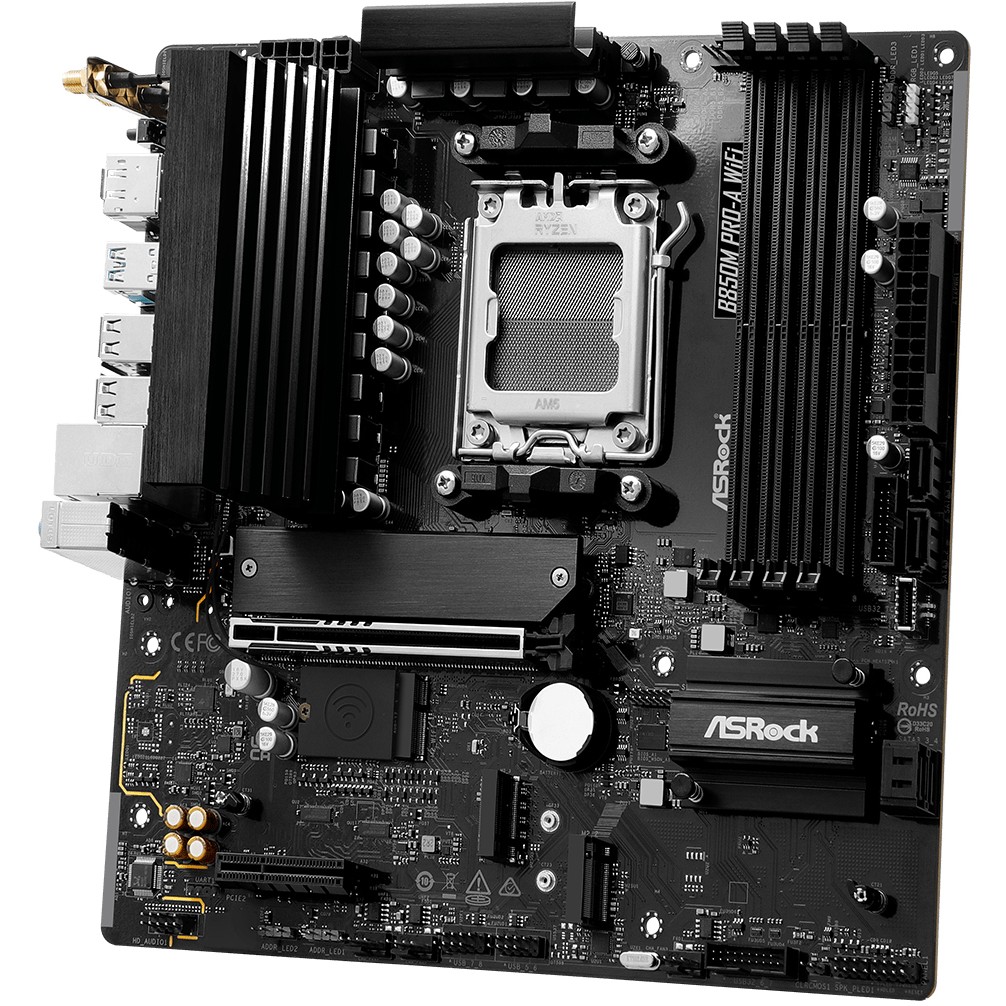

AM5 ASROCK B850M Pro A WiFi
Product code: 11170522 // MPN: 90-MXBR90-A0UAYZ // EAN: 4711581490376
€155,70 (inc. VAT)
Available from 4 to 10 days (30 pcs available)
Similar products
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, Bluetooth 5.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x M.2 socket (for wireless module) 3 x M.2 socket (2280 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 |

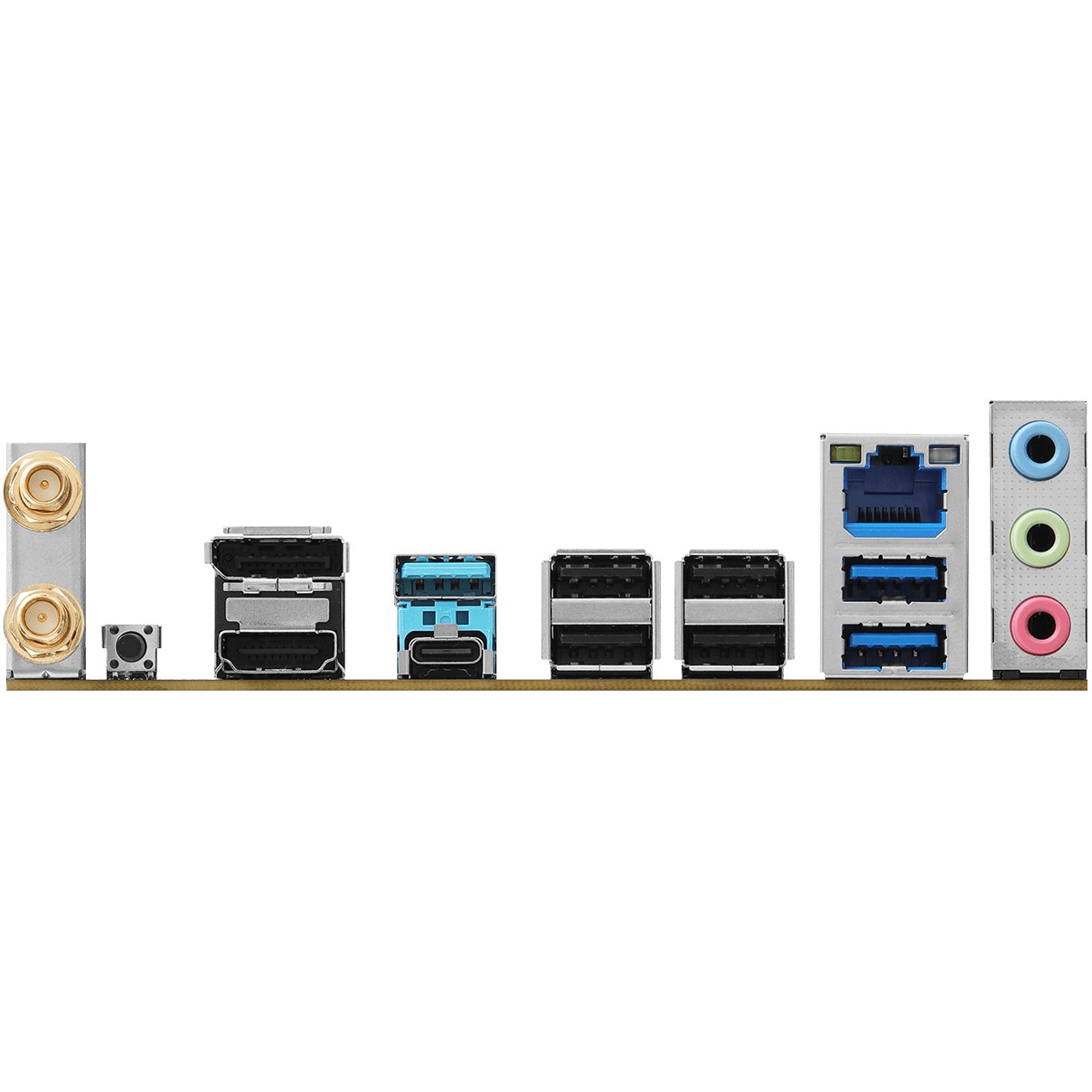

| Interfaces | 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock EZ Mode, ASRock Instant Flash, ASRock Full HD UEFI, ASRock Auto Driver Installer, 8+2+1 Phase Power Design, Dr.MOS MOSFET, VRM heatsink design, DIY Friendly Design, aluminium heatsink design, ASRock FAN-Tastic Tuning, Nahimic Audio Enhacer, ASRock Polychrome RGB, pre-mounted I/O shield |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 1 x M.2 screw, ASRock WiFi 2.4/5/6 GHz aerial |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| All in one: | |
| Brand: | ASRock |
| Gaming: |
