| Product Type |

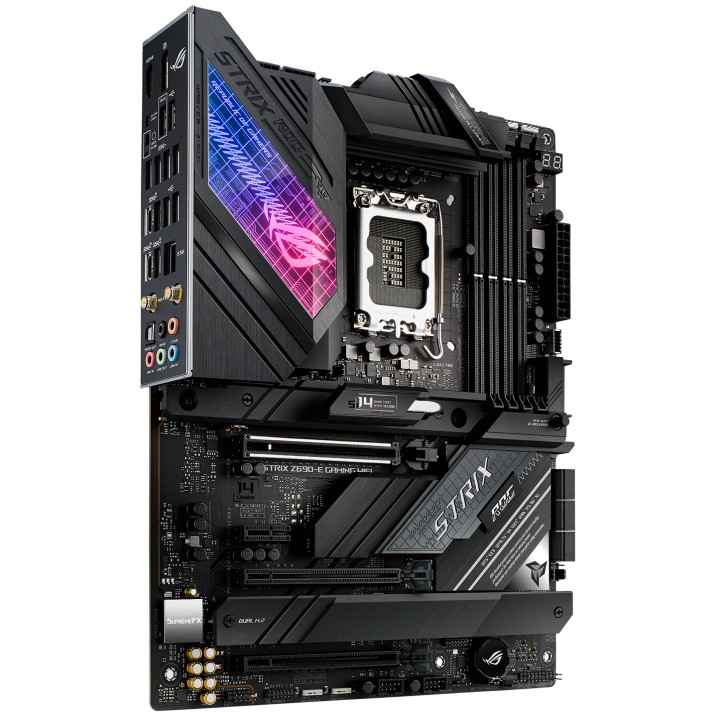

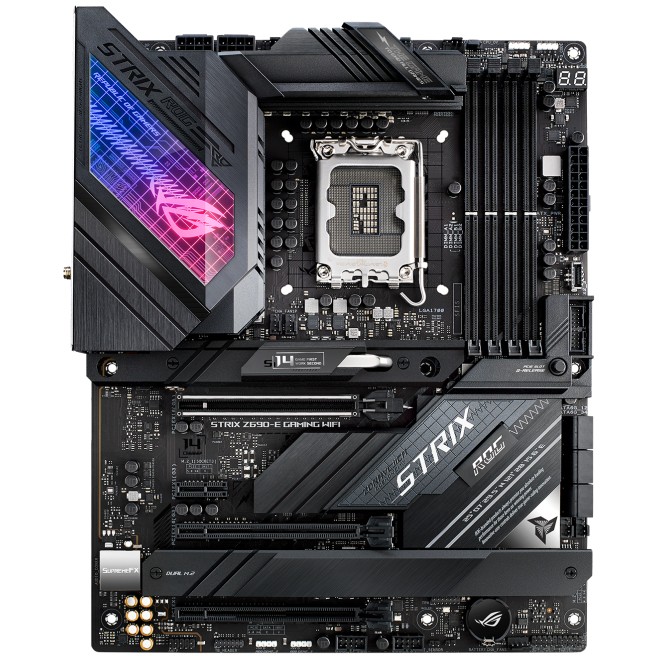

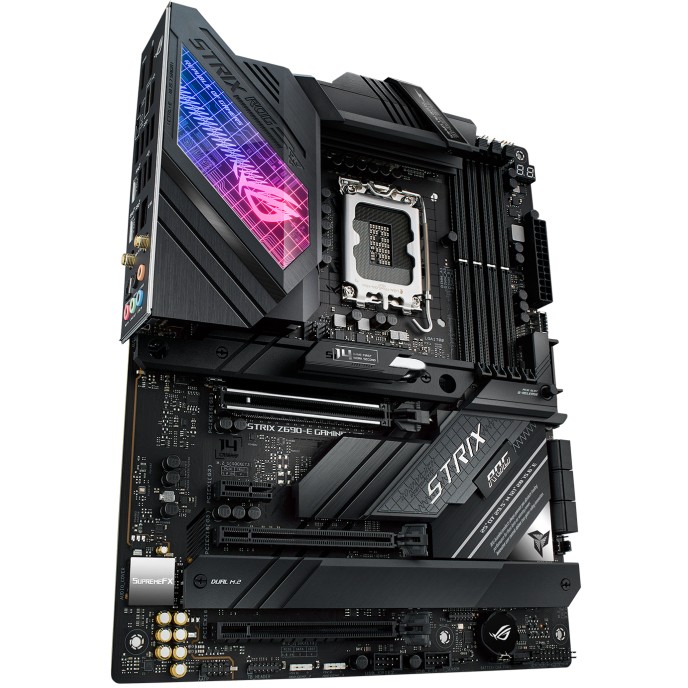

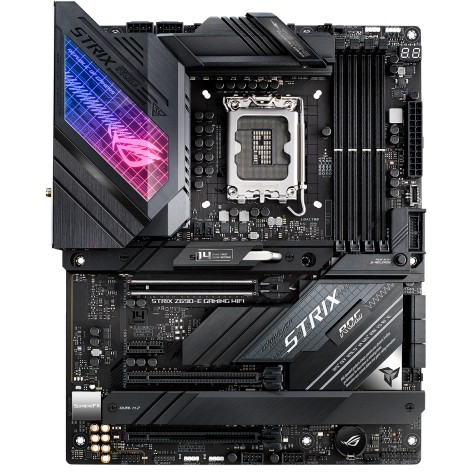

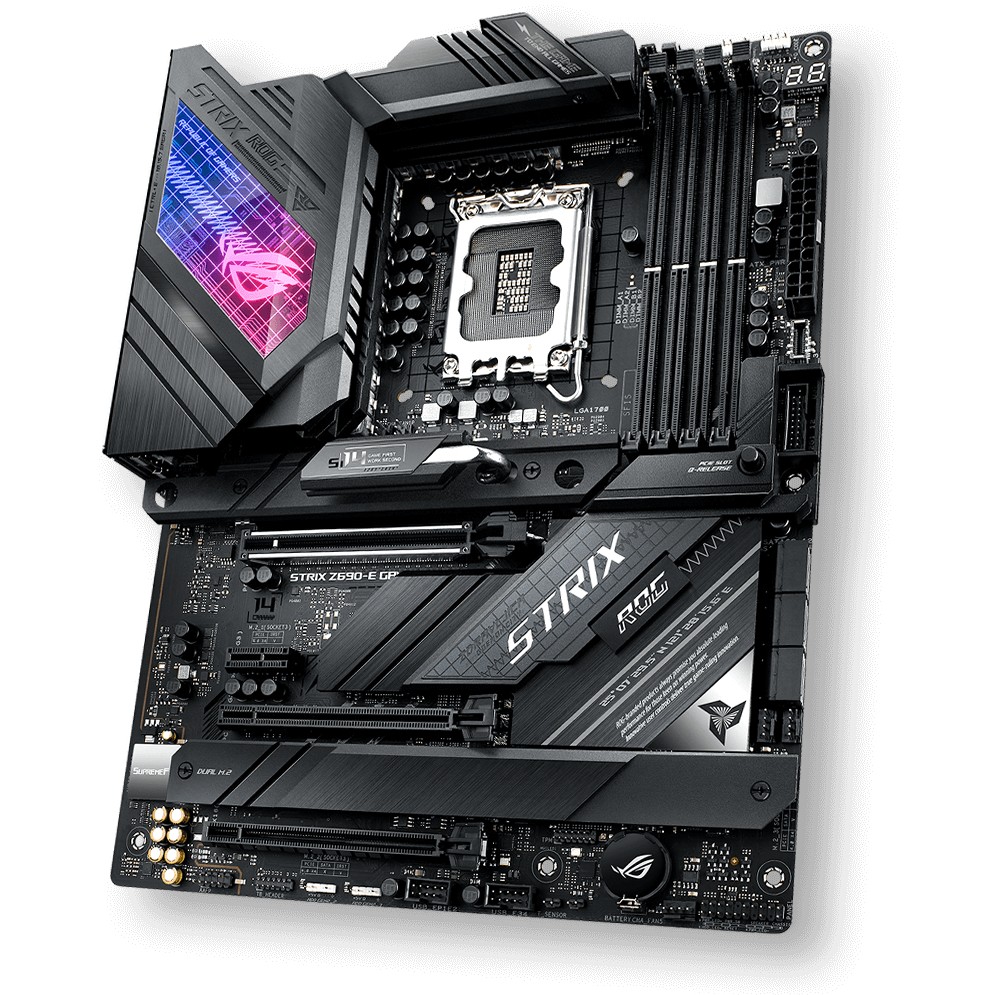

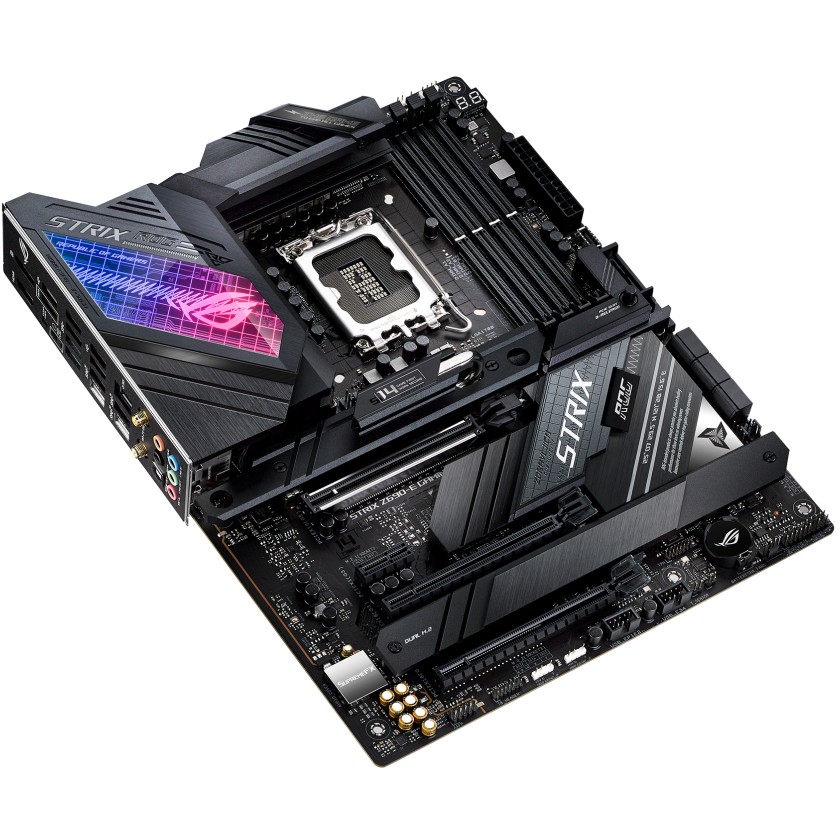

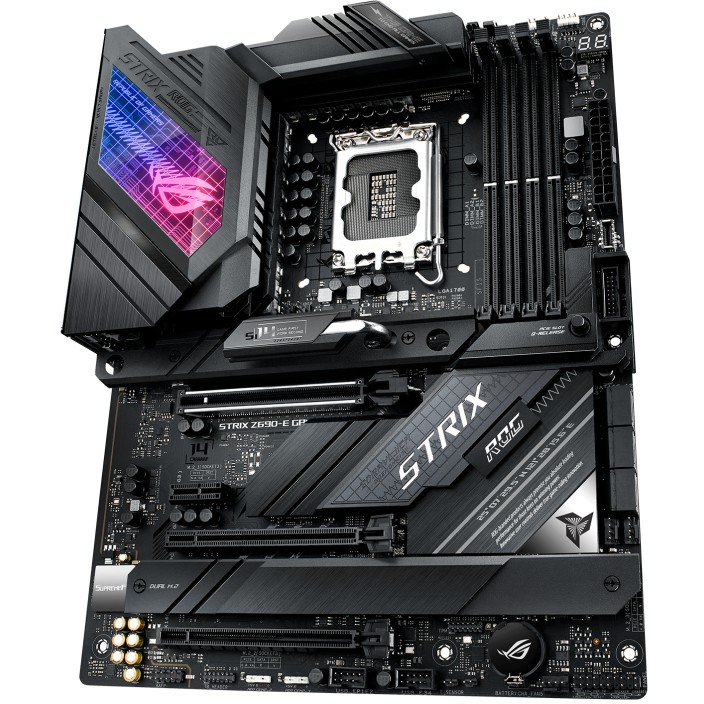

Motherboard - ATX |
| Chipset Type |
Intel Z690 |
| Processor Socket |
LGA1700 Socket |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size |
128 GB |
| Technology |
DDR5 |
| Bus Clock |
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.) |
| Supported RAM Integrity Check |
Non-ECC |
| Registered or Buffered |
Unbuffered |
| Features |
Dual channel memory architecture |
| Type |
HD Audio (8-channel) |
| Audio Codec |
SupremeFX (ALC4080) |
| Compliant Standards |
High Definition Audio, DTS Sound Unbound |
| Network Interfaces |
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax/az |
| Expansion Slots |
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features |
Intel Rapid Storage Technology |
| Interfaces |

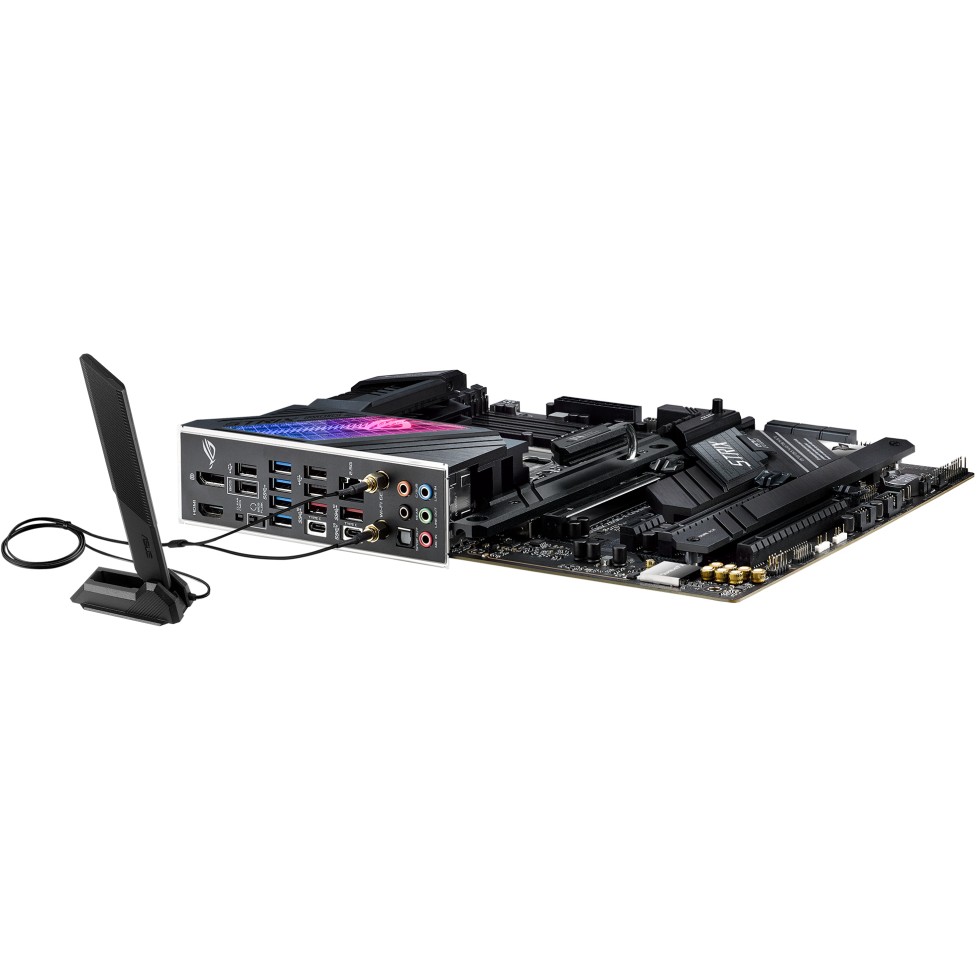

1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces |
4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| BIOS Type |
AMI |
| BIOS Features |
BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
| Hardware Features |
Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS SafeSlot, Sonic Studio III, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, FlexKey button, ASUS ProCool II, 18+1 Phase Power Design, Savitech SV3H712 amplifier, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, Windows 11 compatible |
| Included Accessories |
Cable ties, 2 x M.2 screws, ROG VGA holder, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch, ROG HYPER M.2 CARD |
| Cables Included |
4 x Serial ATA cable |
| Software Included |
Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, MyAsus |
| Width |
30.5 cm |
| Depth |
24.4 cm |
