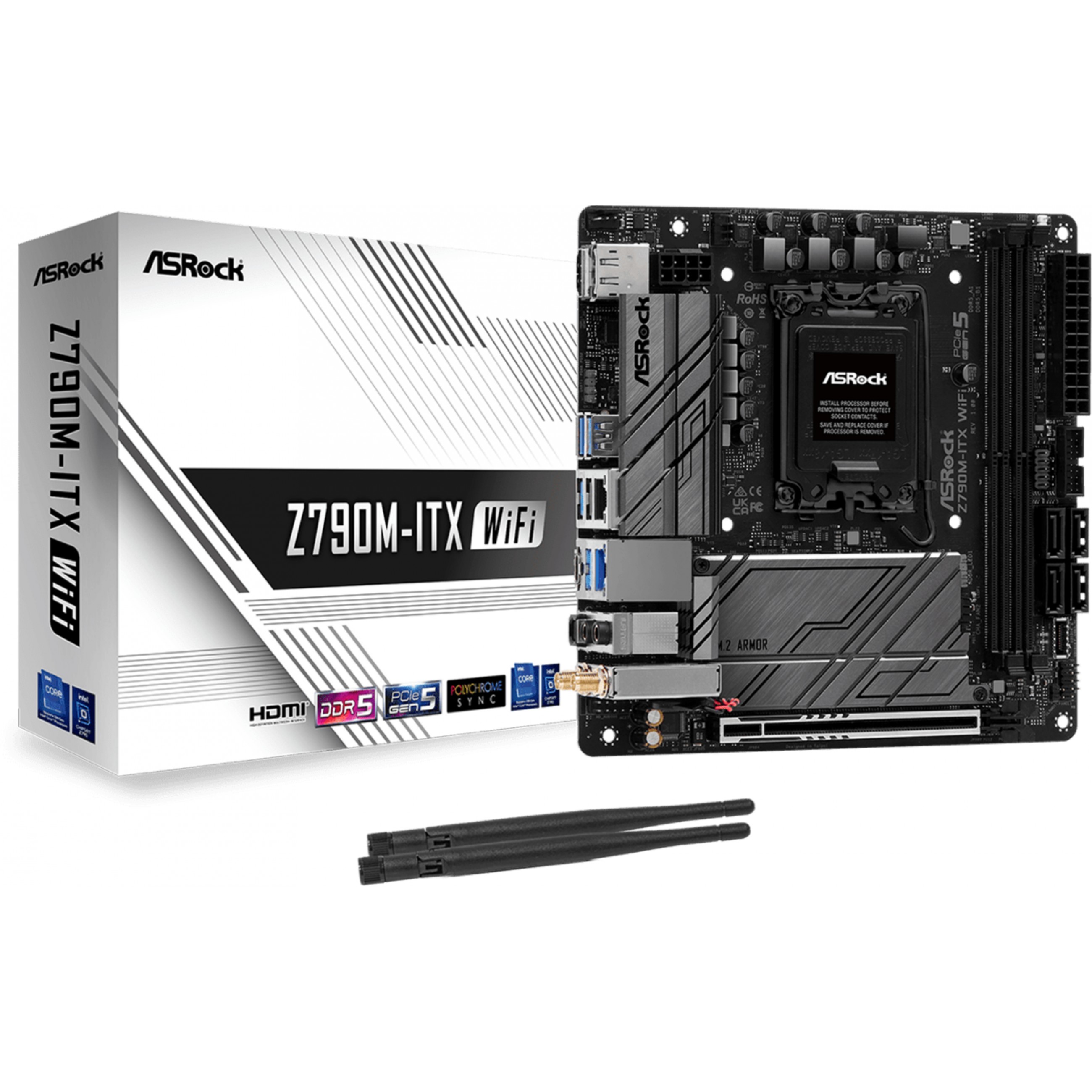

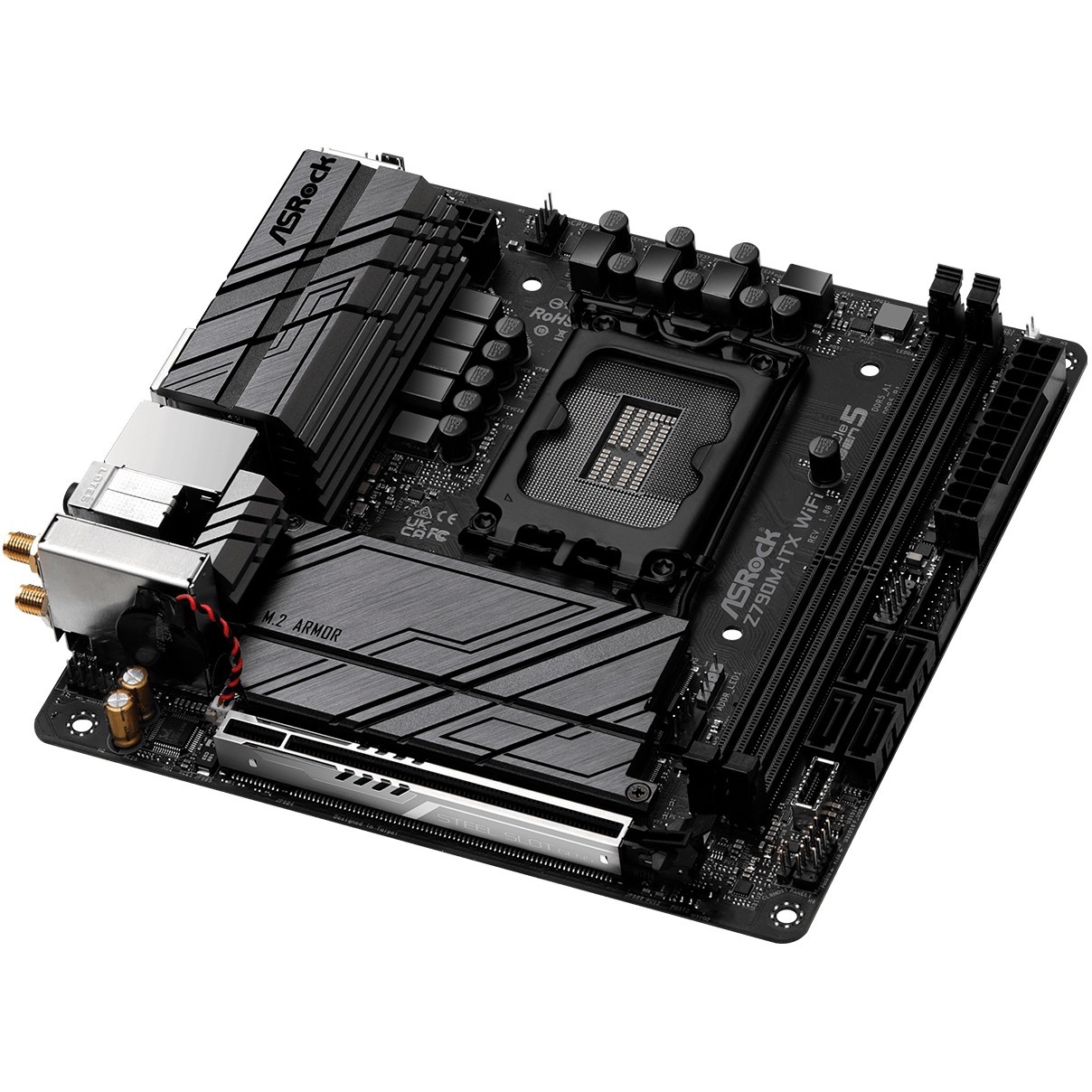

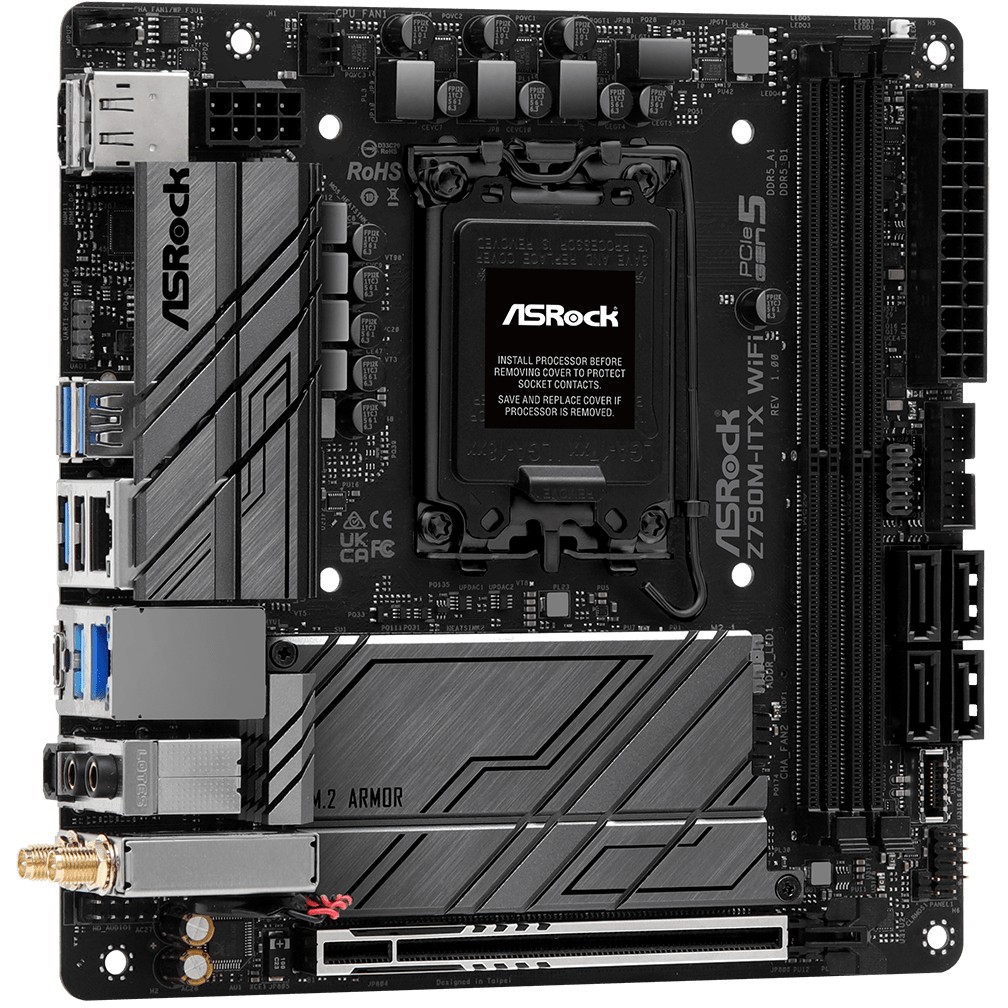

1700 ASRock Z790M-ITX Wifi
Product code: 11177622 // MPN: 90-MXBKE0-A0UAYZ // EAN: 4710483941054
€221,60 (inc. VAT)
Available from 4 to 10 days (19 pcs available)
Similar products
New entry
ROG STRIX B850-A GAMING WIFI7 NEO (AMD.AM5.DDR5.ATX)
Code: 21661122
€429,55
Available from 4 to 10 days| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5600 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel I219V |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |

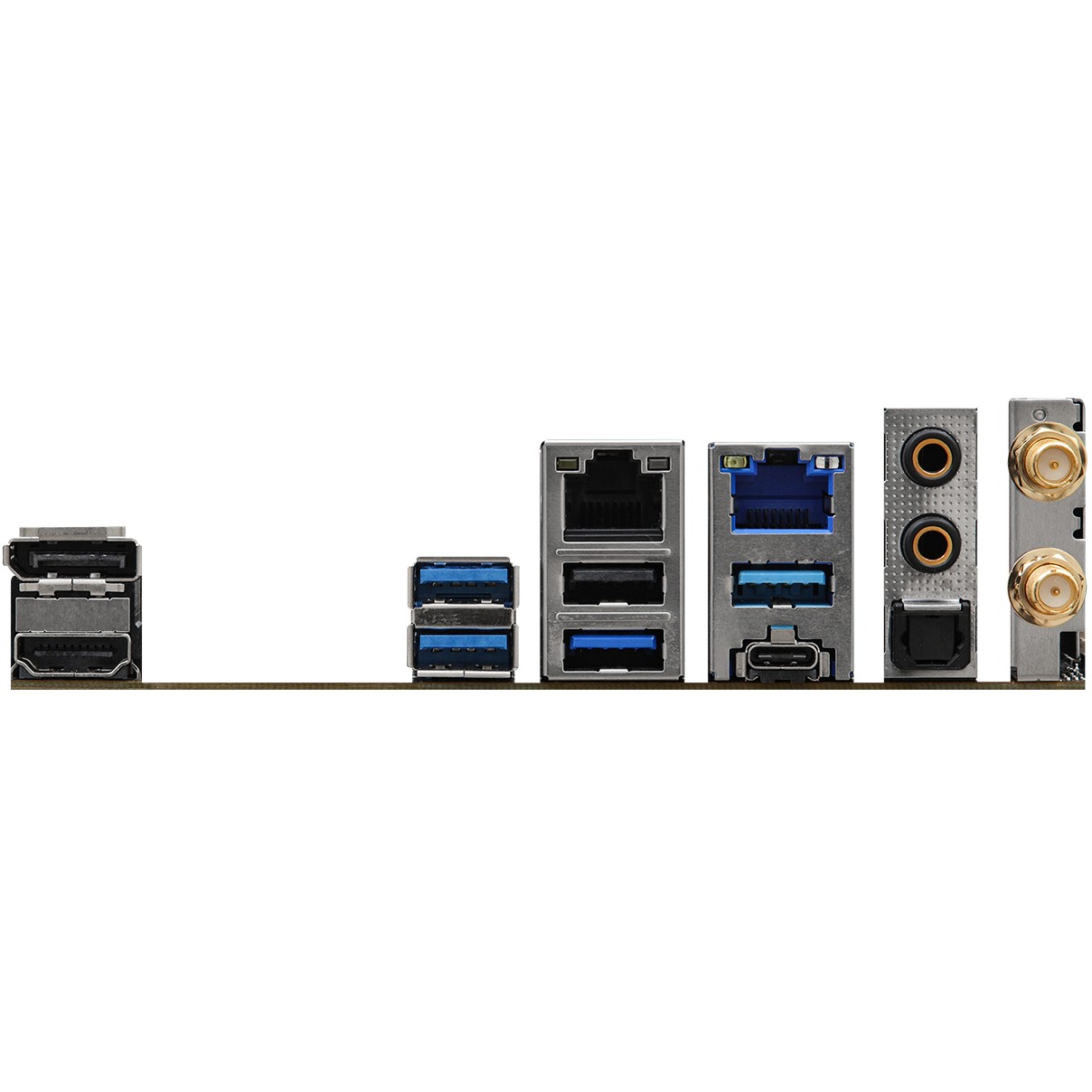

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x Embedded DisplayPort (eDP) - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, 8 Layer PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, ASRock EZ Mode, Nichicon 12K Black Caps, ASRock Steel Slots, Hi-Density Power Connectors, Water Pump Header, Intel Turbo Boost Max Technology 3.0, Surface Mount Technology (SMT), Intel Hybrid Technology, ASRock Auto Driver Installer, ASRock 13.3" Side Panel Kit support, 7+1+1 Phase Power Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x M.2 screws, IO shield, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock XFast LAN, ASRock Polychrome SYNC |
| Compliant Standards | EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, RED 2014/53/EU, UKCA, FCC Part 15 Subpart B |
| Width | 17 cm |
| Depth | 17 cm |
| All in one: | |
| Brand: | ASRock |
| Gaming: |
