Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 256 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4400.4800.5200.5600.6000.6200.6400.6600.6666.6800.7000.7200.7600.7800.8200.8400.8600 MHz
Supported memory clock speed (max): 8600 MHz
Maximum internal memory: 256 GB
Supported memory module capacities: 1GB. 2GB. 4GB. 8GB. 12GB. 24GB. 32GB
Feature: Unbuffered memory
Maximum internal memory per slot: 64 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
Feature: RAID support
RAID levels: 0. 1. 10
Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 6
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 2
Feature: TPM connector
Number of water pump connectors: 2
Feature: RGB LED pin header
Number of RGB LED pin headers: 5

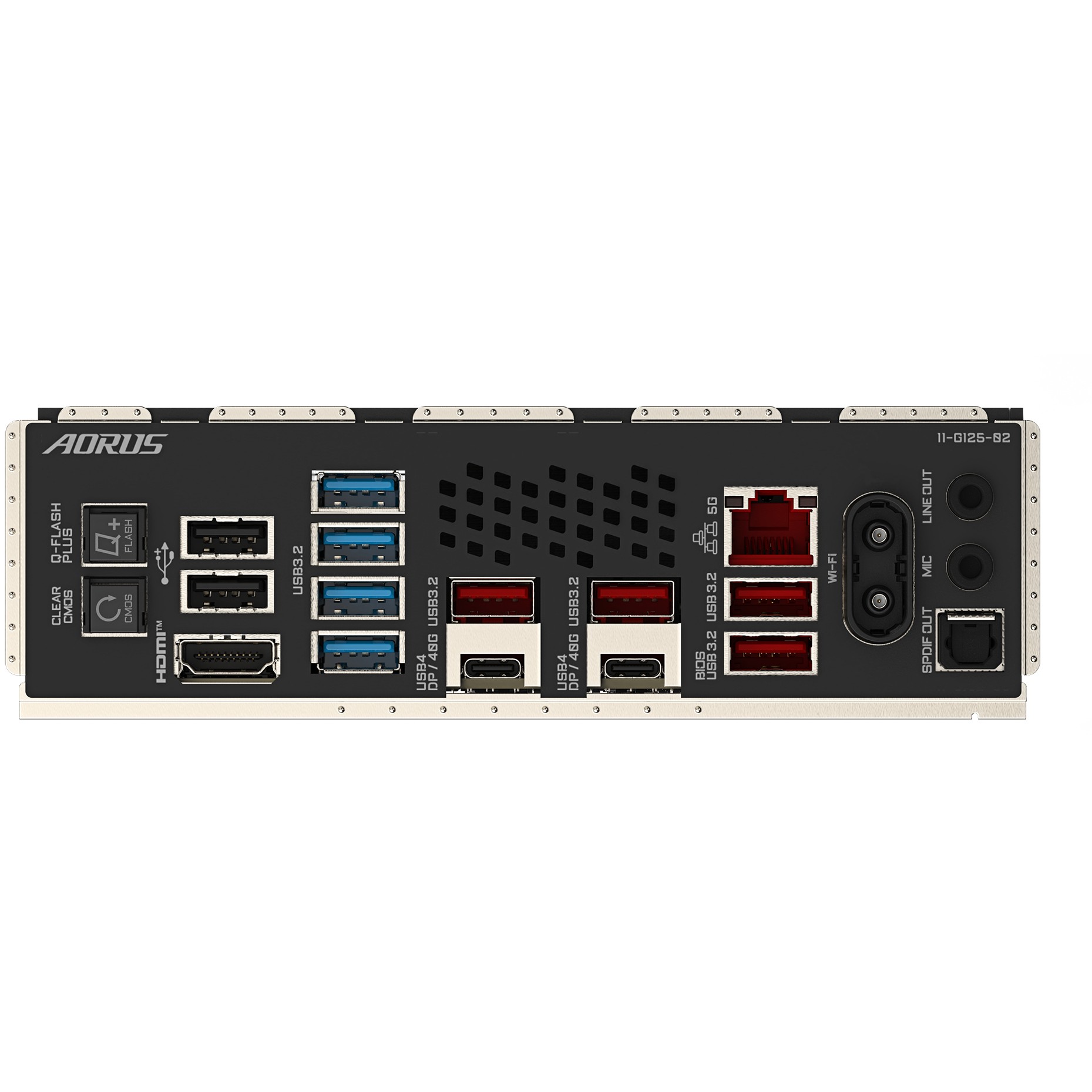

Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB4 Gen 2x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in
Feature: S/PDIF out port
WiFi-AP antenna jack: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
LAN controller: Realtek RTL8126
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Qualcomm QCNCM865
Feature: Bluetooth
Bluetooth version: 5.3
Features
Motherboard chipset: AMD X870
Audio chip: Realtek ALC1220
Audio output channels: 7.1 channels
Product colour: Black
PC health monitoring: Fan. Temperature. Voltage
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x4 slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
4th M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Feature: Clear CMOS button
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 345 mm
Package depth: 294 mm
Package height: 80 mm
Package weight: 2.97 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Packaging content
Feature: Batteries included
Feature: Antenna included
Feature: Screws included
Other features
Weight: 2.54 kg
Technical details
Warranty period: 3 year(s)
