MOTHERBOARDS

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS. AERO. and GIGABYTE. Featuring innovative designs and advanced features. these boards offer exceptional performance and reliability. Whether you're a gamer. content creator. or professional. our series cater to your needs. ensuring uncompromising quality and cutting-edge

Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Maximum internal memory supported by processor: 256 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 5600.5800.6000.6200.6400.6600.6800.7000.7200.7400.7600.7800.7900.7950.8000.8200.8266.8400.8600 MHz
Supported memory clock speed (max): 8800 MHz
Maximum internal memory: 256 GB
Supported memory module capacities: 1GB. 2GB. 4GB. 8GB. 12GB. 16GB. 24GB. 32GB. 40GB. 48GB. 64GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of HDDs supported: 7
Number of storage drives supported: 4
Feature: RAID support
RAID levels: 0. 1. 5. 10
Graphics
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: ATX Power connector (24-pin)
Feature: EPS power connector (8-pin)
Feature: TPM connector
Feature: 12V power connector
Feature: RGB LED pin header

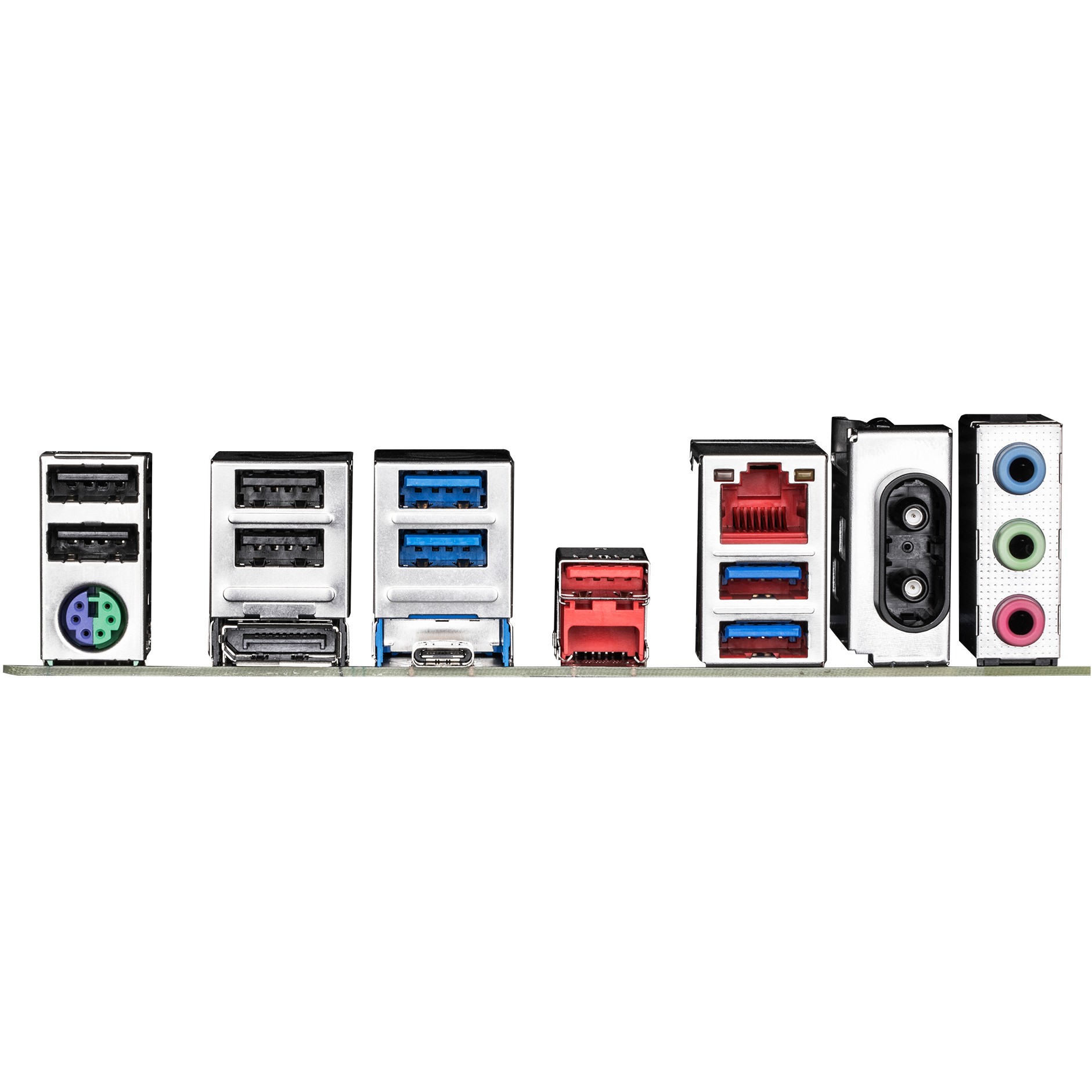

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 2
Feature: Microphone in
Feature: S/PDIF out port
Thunderbolt ports quantity: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E (802.11ax). Wi-Fi 7 (802.11be)
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Bluetooth
Bluetooth version: 5.3
Features
Motherboard chipset: Intel Z890
Audio output channels: 7.1 channels
Product colour: Black
PC health monitoring: Fan. Temperature. Voltage
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Feature: Clear CMOS button
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.02 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Packaging content
Feature: Batteries included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Other features
Weight: 1.78 kg
Technical details
Warranty period: 3 year(s)
