MOTHERBOARDS

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS. AERO. and GIGABYTE. Featuring innovative designs and advanced features. these boards offer exceptional performance and reliability. Whether you're a gamer. content creator. or professional. our series cater to your needs. ensuring uncompromising quality and cutting-edge

Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel® Core™ Ultra (Series 1). Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 5600.6400.9066 MHz
Supported memory clock speed (max): 9066 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Maximum internal memory per slot: 64 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0. 1. 5. 10
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Feature: HDCP
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 1
Feature: TPM connector
Serial port headers: 1
Number of water pump connectors: 3
Feature: RGB LED pin header
Number of RGB LED pin headers: 4

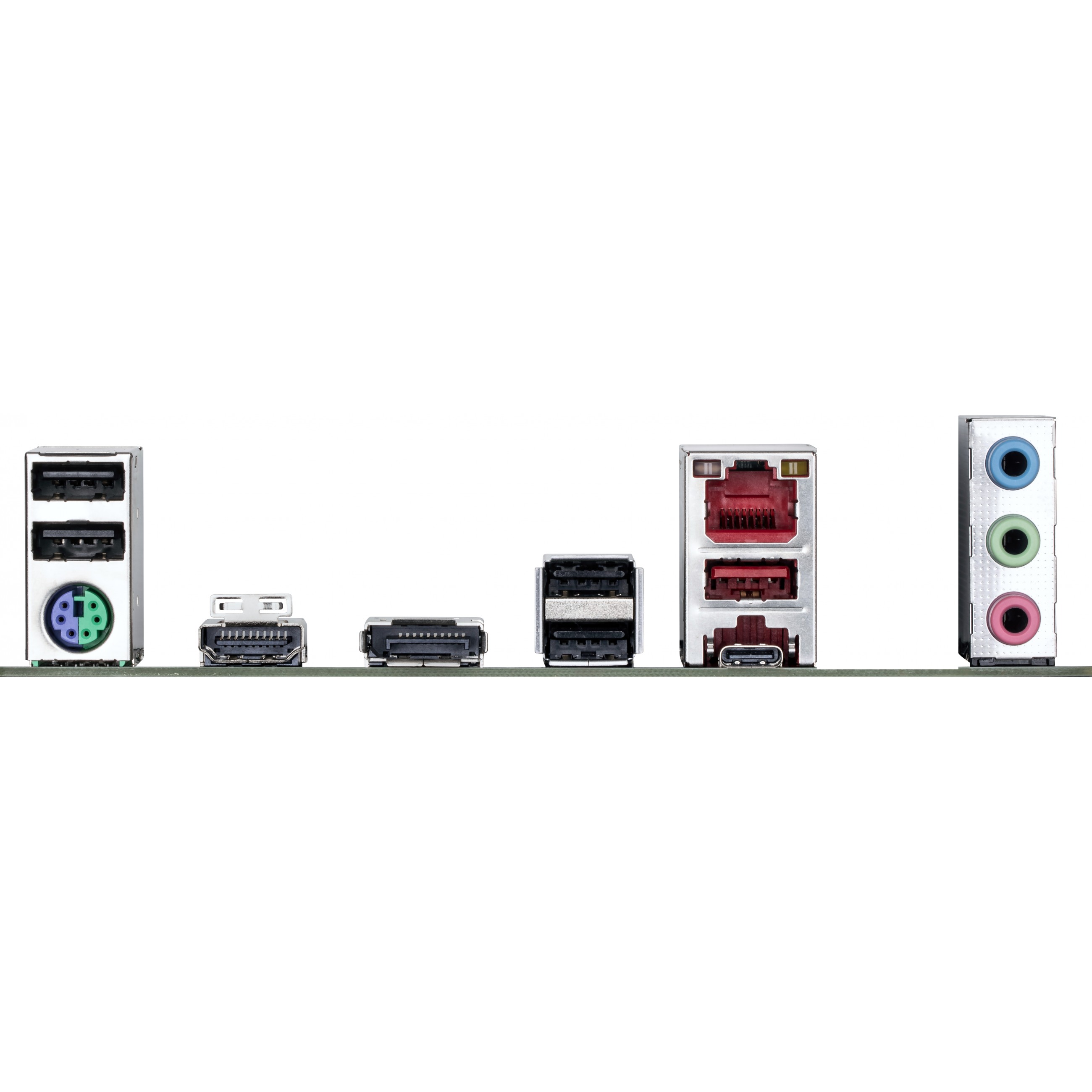

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 2.1
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Features
Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Dark brown
PC health monitoring: Fan. Temperature. Voltage. Water cooling
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64. Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots: 4
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Packaging content
Feature: Batteries included
Feature: Screws included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Other features
Weight: 2 kg
Technical details
Warranty period: 3 year(s)
