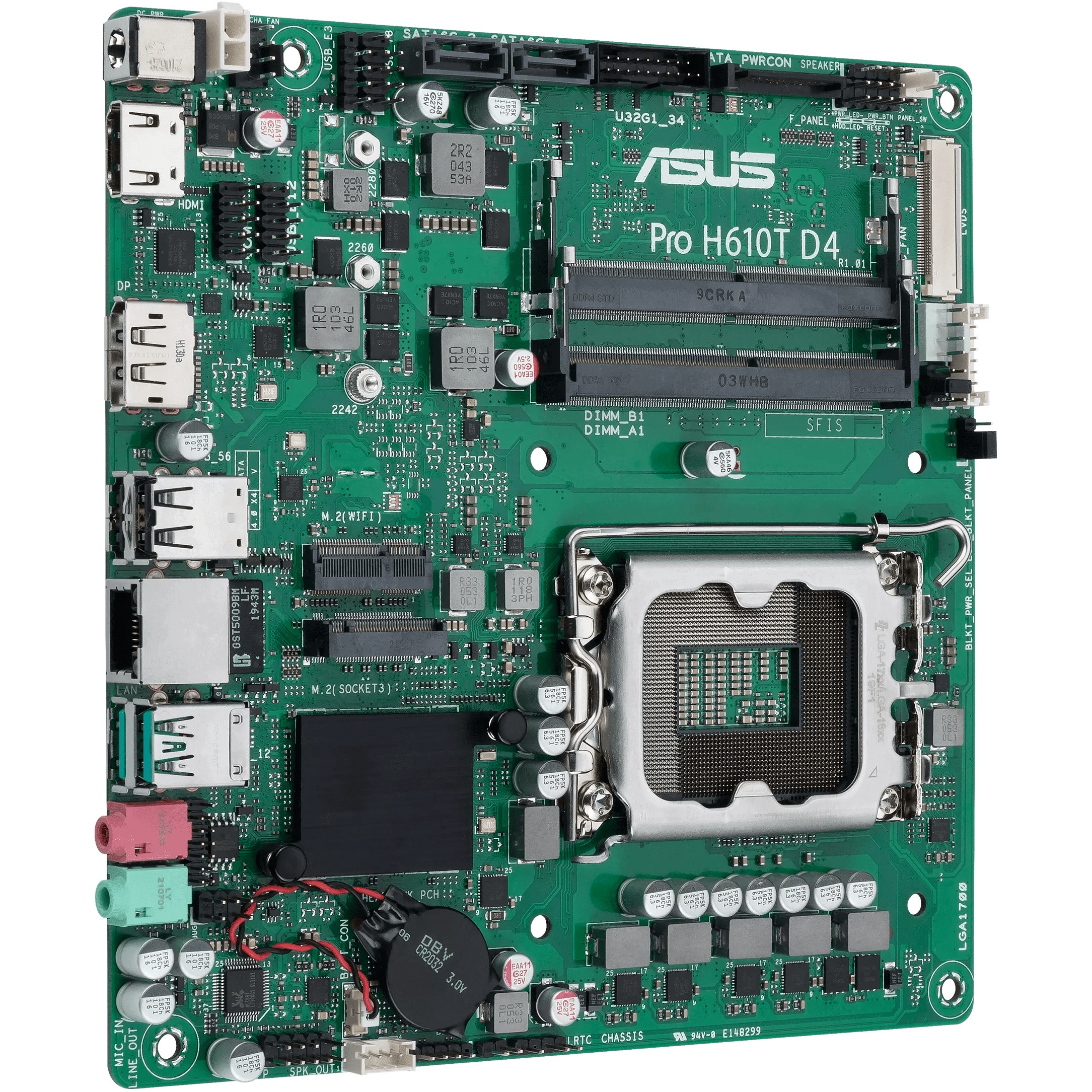

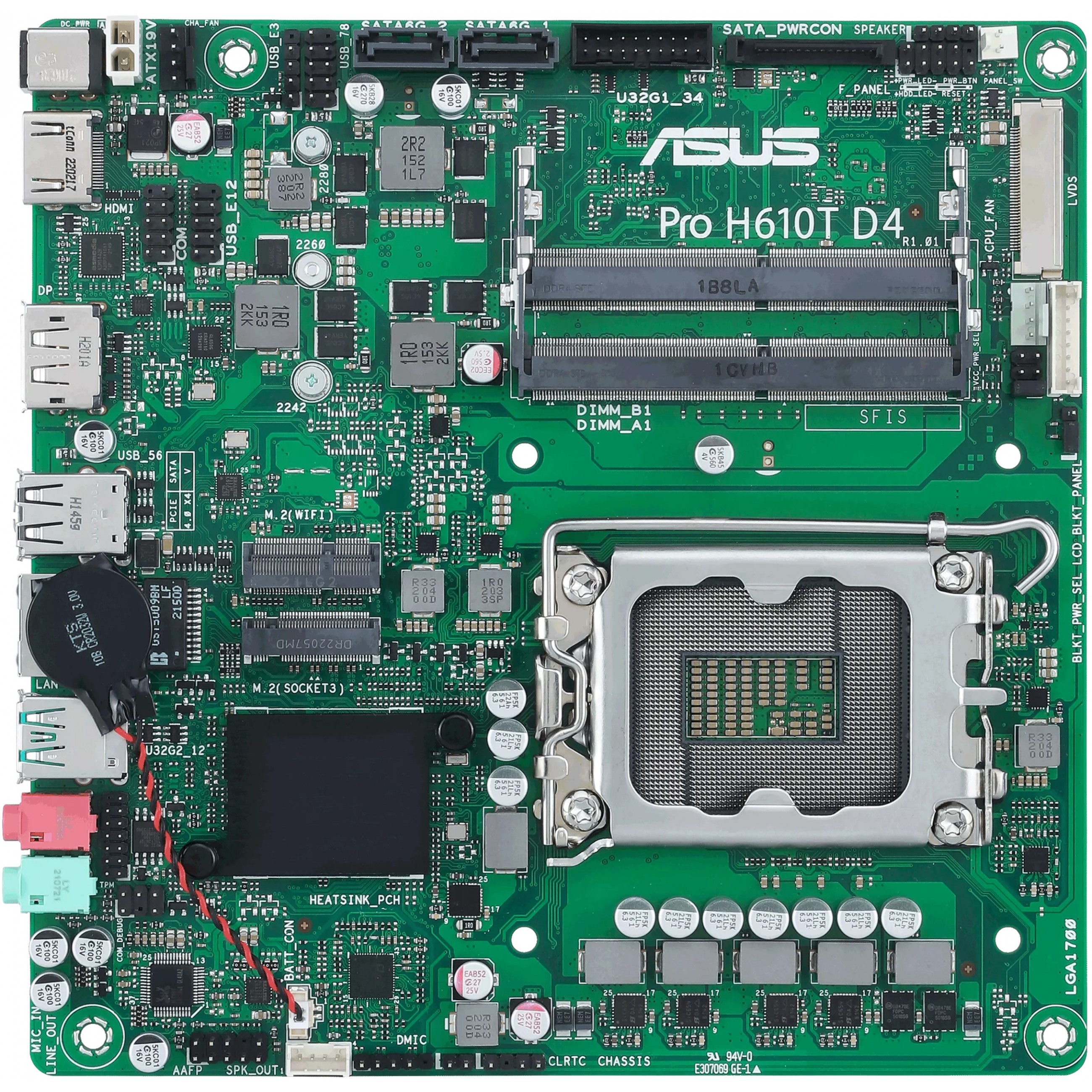

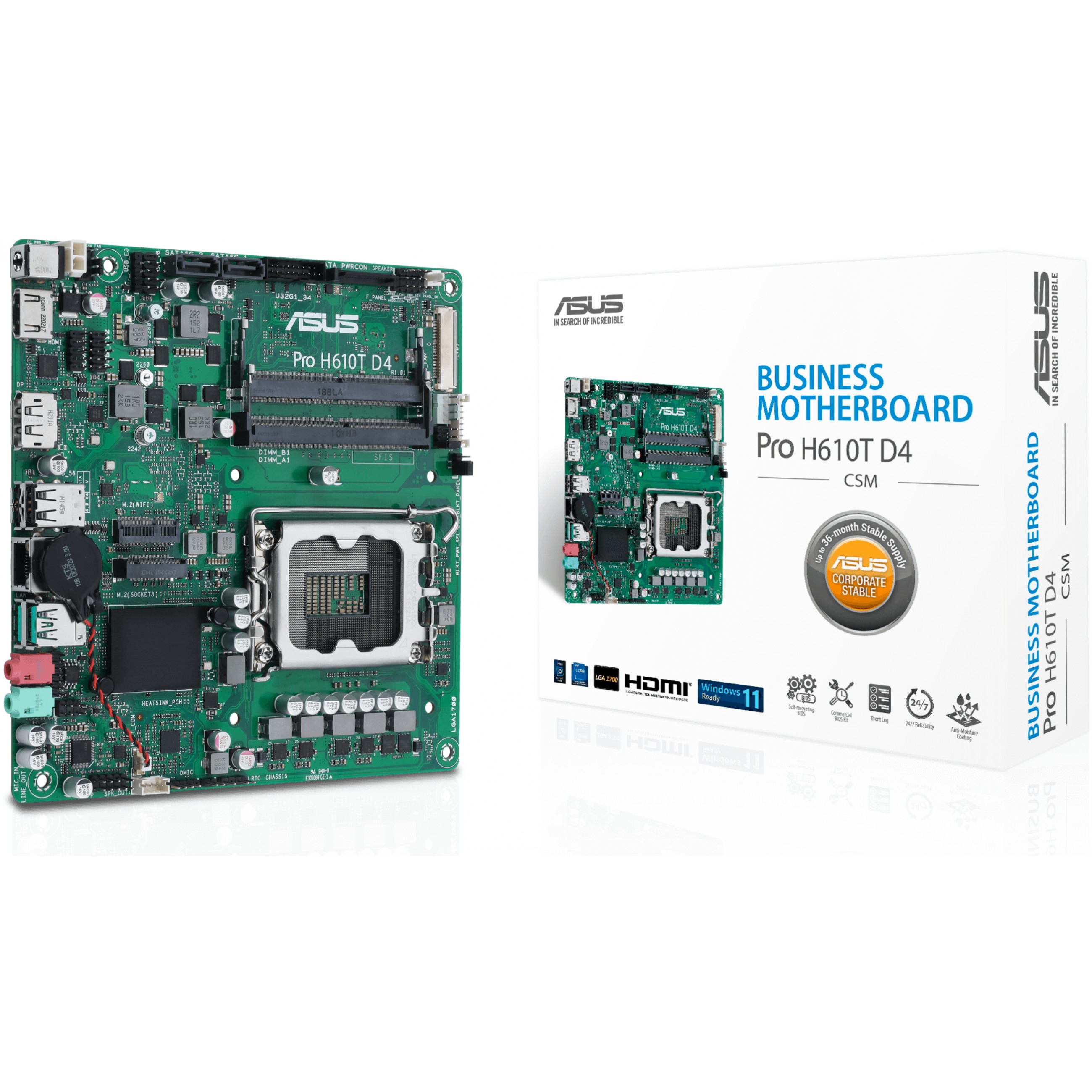

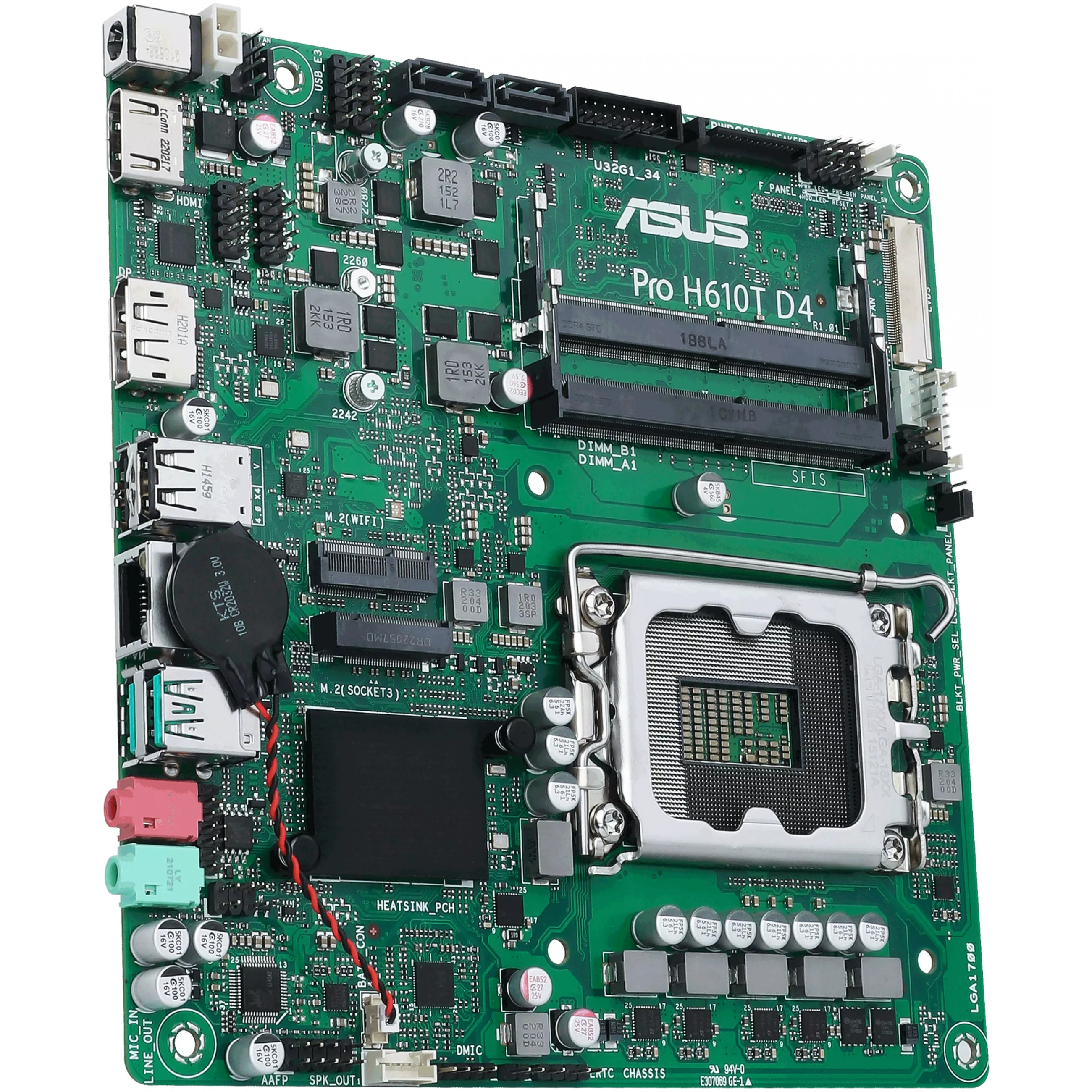

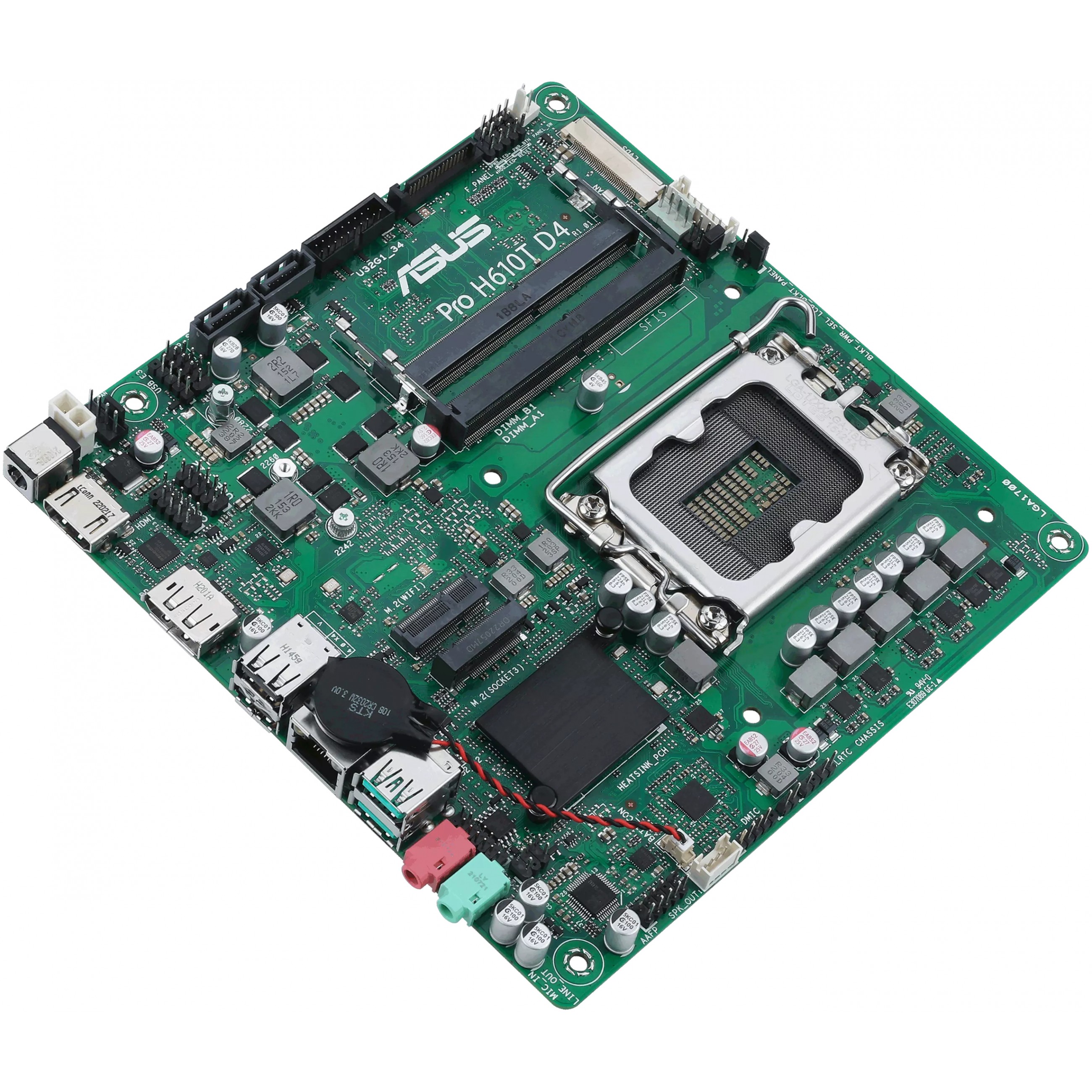

1700 ASUS PRO H610T CSM mITX D4
Product code: 11196422 // MPN: 90MB1AM0-M0EAYC // EAN: 4711081679851
€179,00 (inc. VAT)
Available from 4 to 10 days (10 pcs available)
Similar products
| Product Type | Motherboard - Thin mini ITX |
| Chipset Type | Intel H610 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x SO-DIMM 260-pin ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |

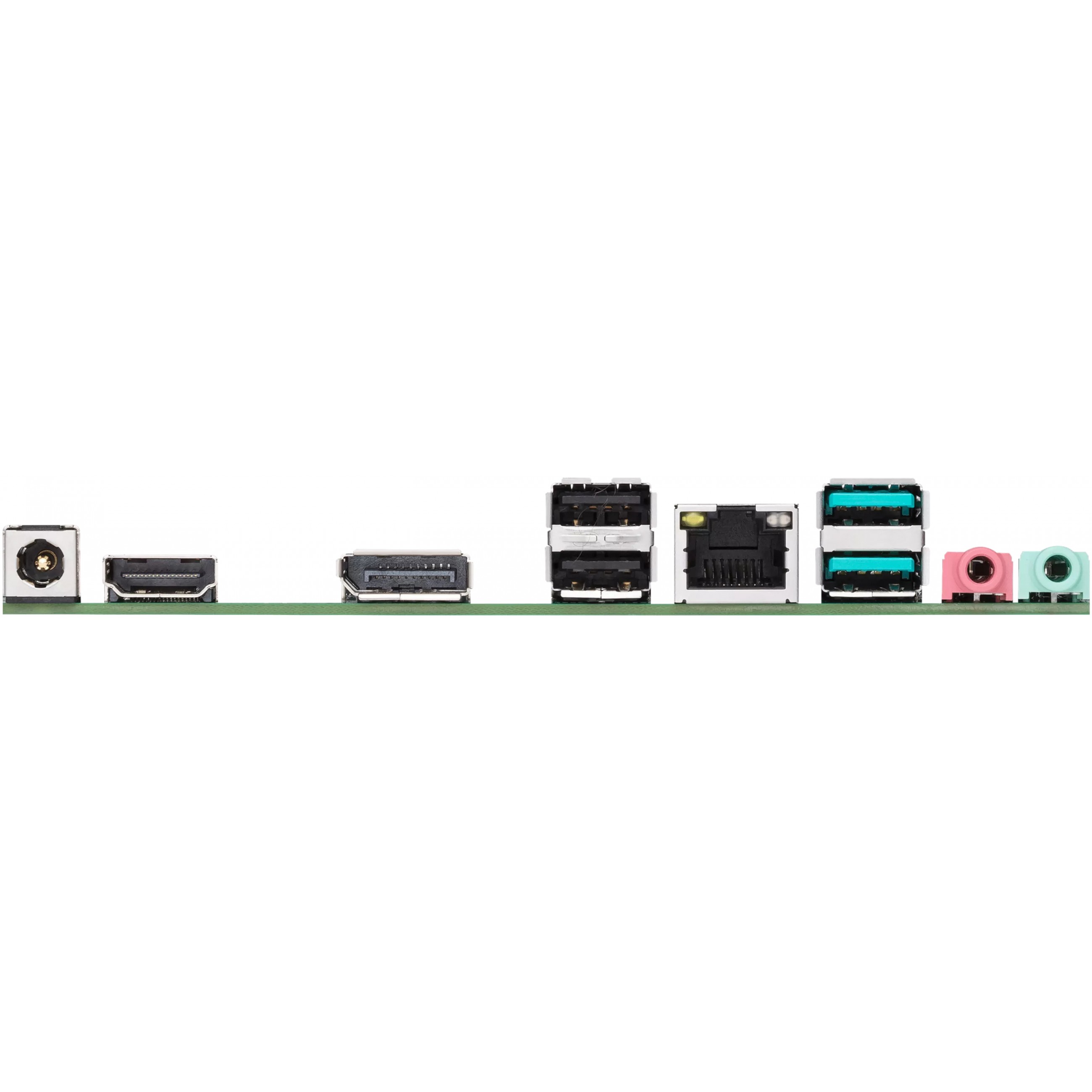

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 5 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 2 x speaker - header ¦ 1 x LVDS - header |
| Power Connectors | 2-pin power connector, DC-in power connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, Q-LED, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), LANGuard, Intel Turbo Boost Max Technology 3.0, ASUS Control Center Express (ACC Express) |
| Miscellaneous | Miscellaneous |

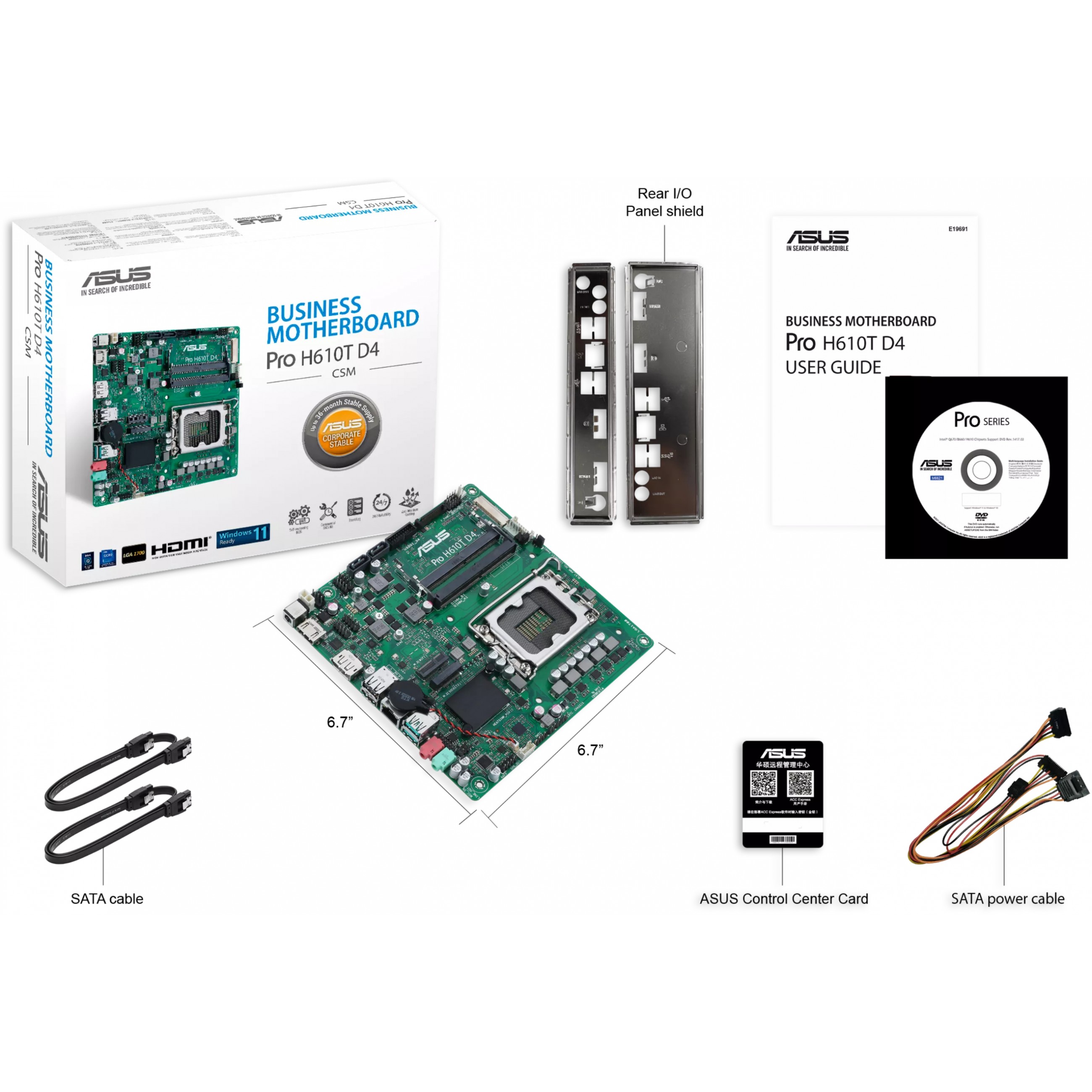

| Included Accessories | ACC Express Activation Key Card, 2 x IO shields |
| Cables Included | 2 x Serial ATA cable ¦ 1 x Serial ATA power cable |
| Software Included | Drivers & Utilities |
| Compliant Standards | FCC, RoHS, NIST SP800-147 |
| Width | 17 cm |
| Depth | 17 cm |
| Brand: | Asus |
