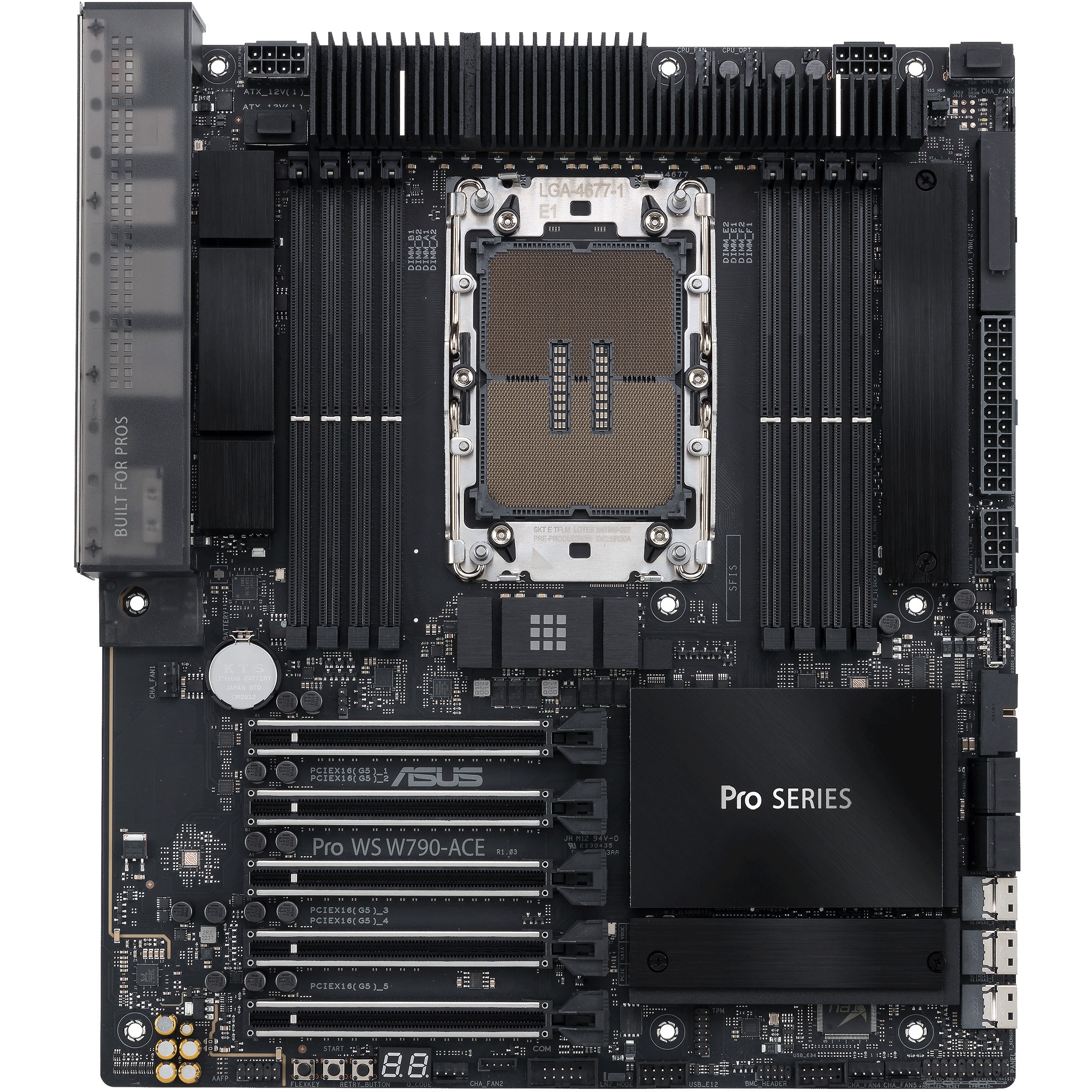

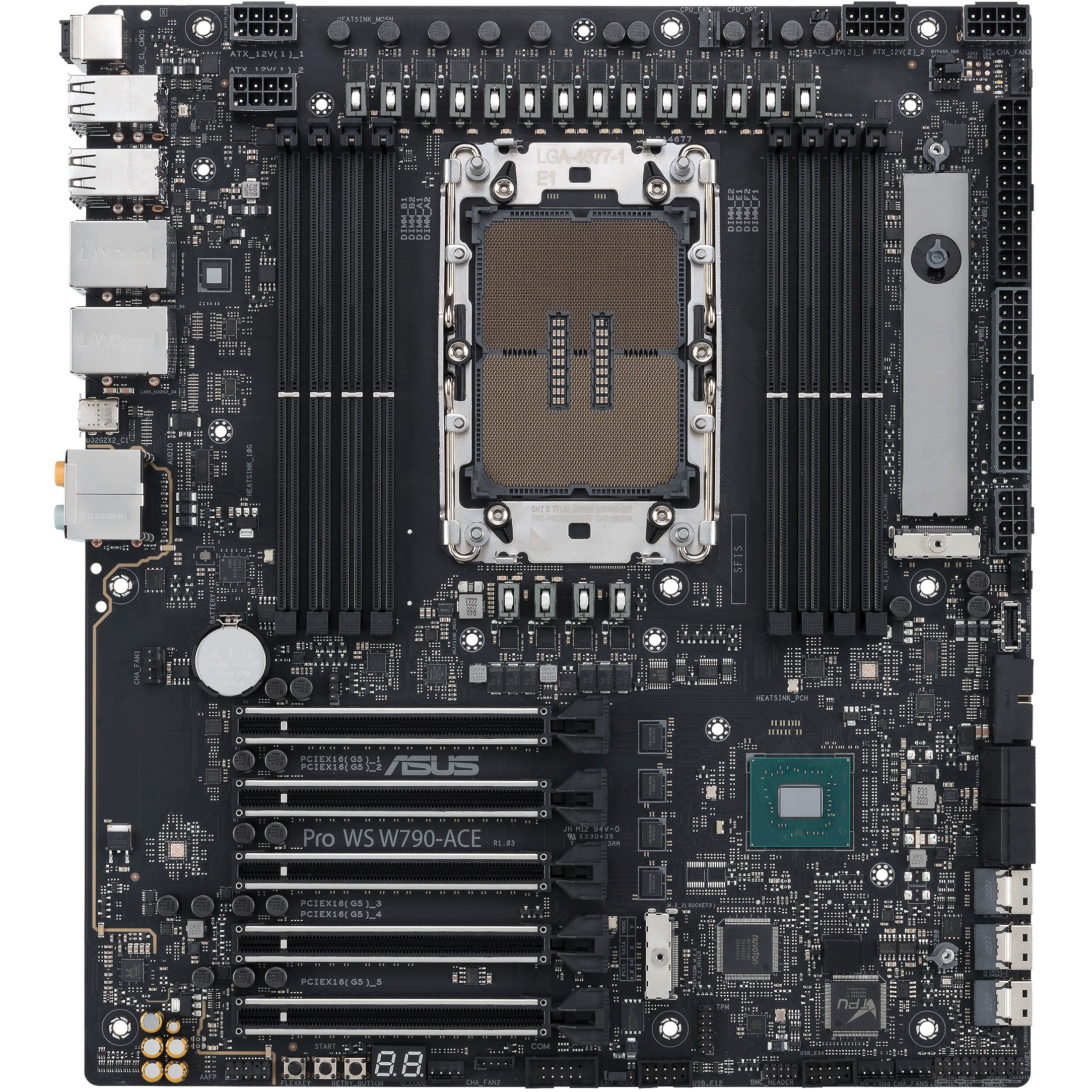

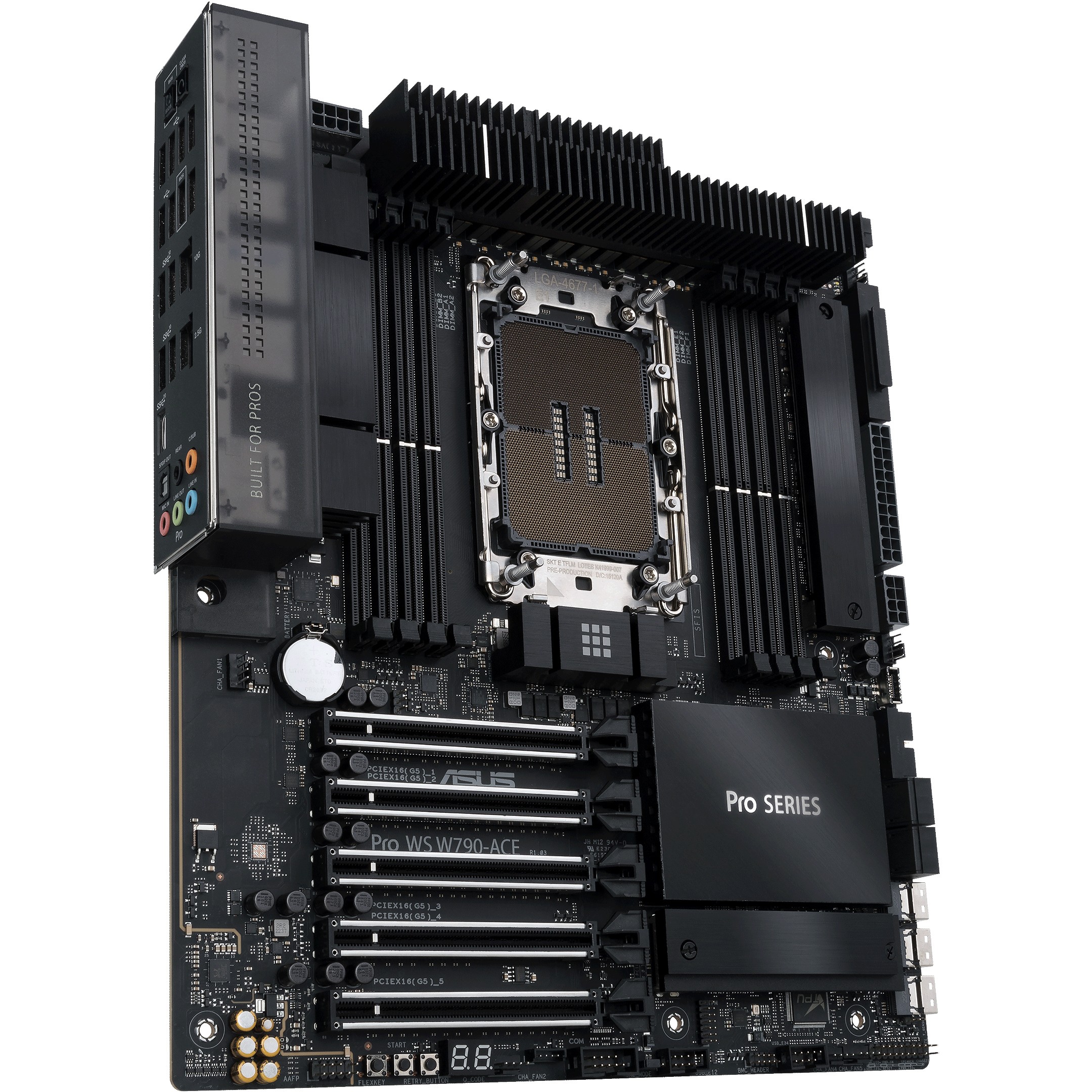

| Product Type |

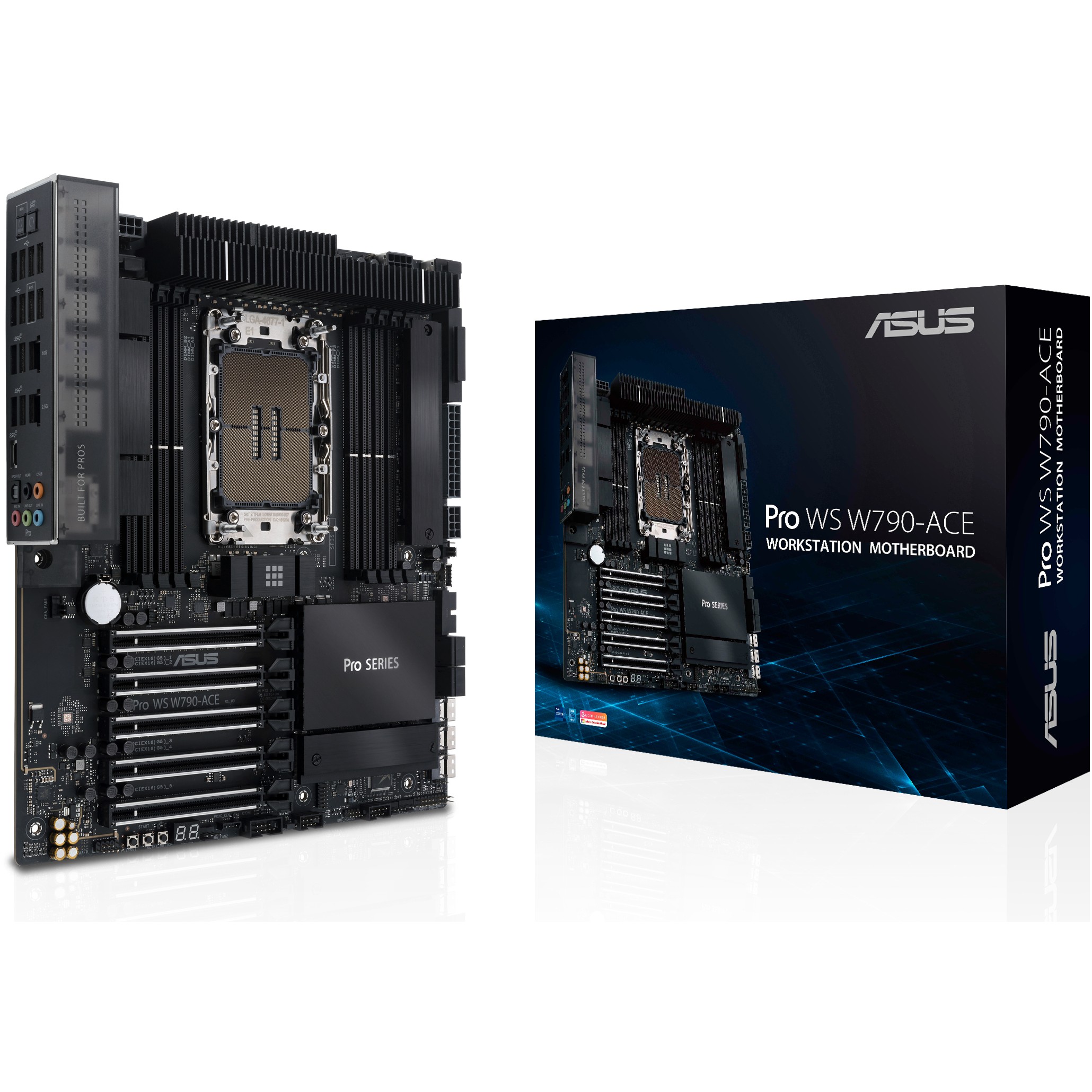

Motherboard - SSI CEB |
| Chipset Type |
Intel W790 |

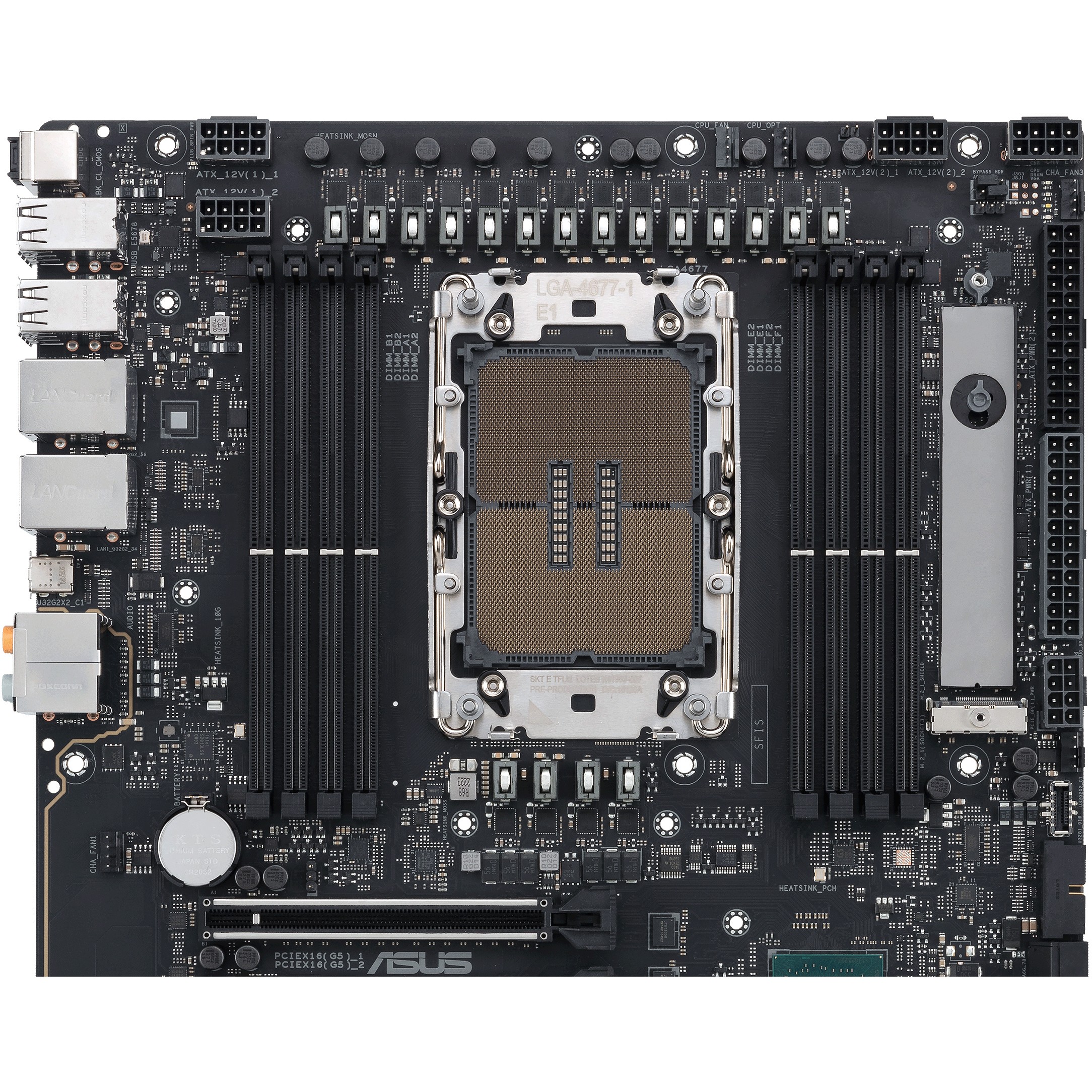

| Processor Socket |
LGA4677 Socket-E |
| Max Processors Qty |
1 |
| Compatible Processors |
Xeon W |
| Supported RAM |
Supported RAM |
| Max Size |
2048 GB |
| Technology |
DDR5 |
| Bus Clock |
5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.) |
| Supported RAM Integrity Check |
ECC |
| Registered or Buffered |
Registered |
| Features |
Intel Extreme Memory Profiles (XMP), quad channel memory architecture |
| Audio |
Audio |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALCS1220A |
| Compliant Standards |
High Definition Audio |
| LAN |
LAN |
| Network Interfaces |
10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Expansion / Connectivity |
Expansion / Connectivity |

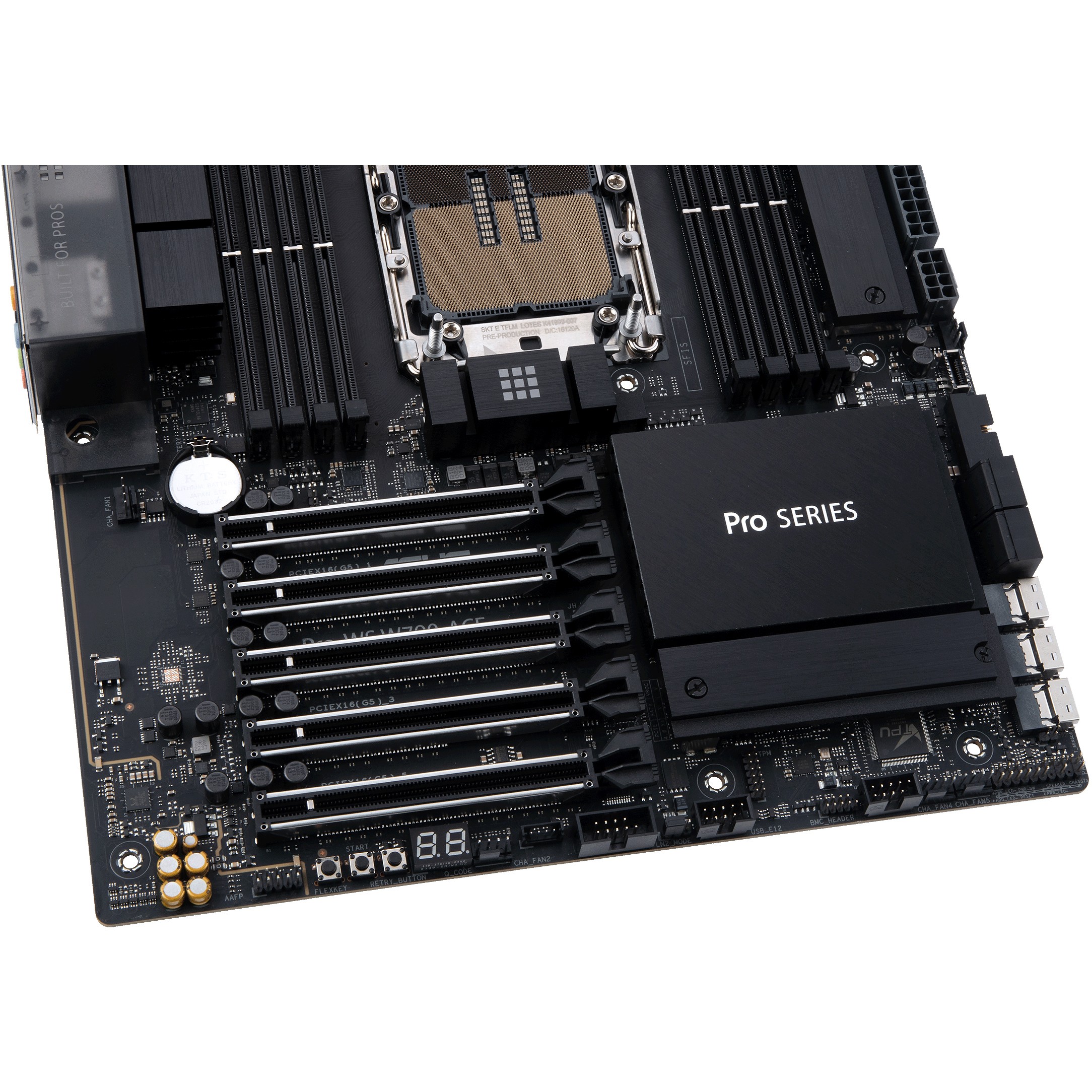

| Expansion Slots |
1 x CPU ¦ 8 x DIMM 288-pin ¦ 3 x PCIe 5.0 x16 ¦ 2 x PCIe 5.0 x16 (x8 mode) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 1 x PCIe 3.0 x4 (SlimSAS) ¦ 2 x PCIe 4.0 x4 (SlimSAS) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x SlimSAS ¦ PCIe 3.0 -connectors: 2 x SlimSAS |
| Interfaces |

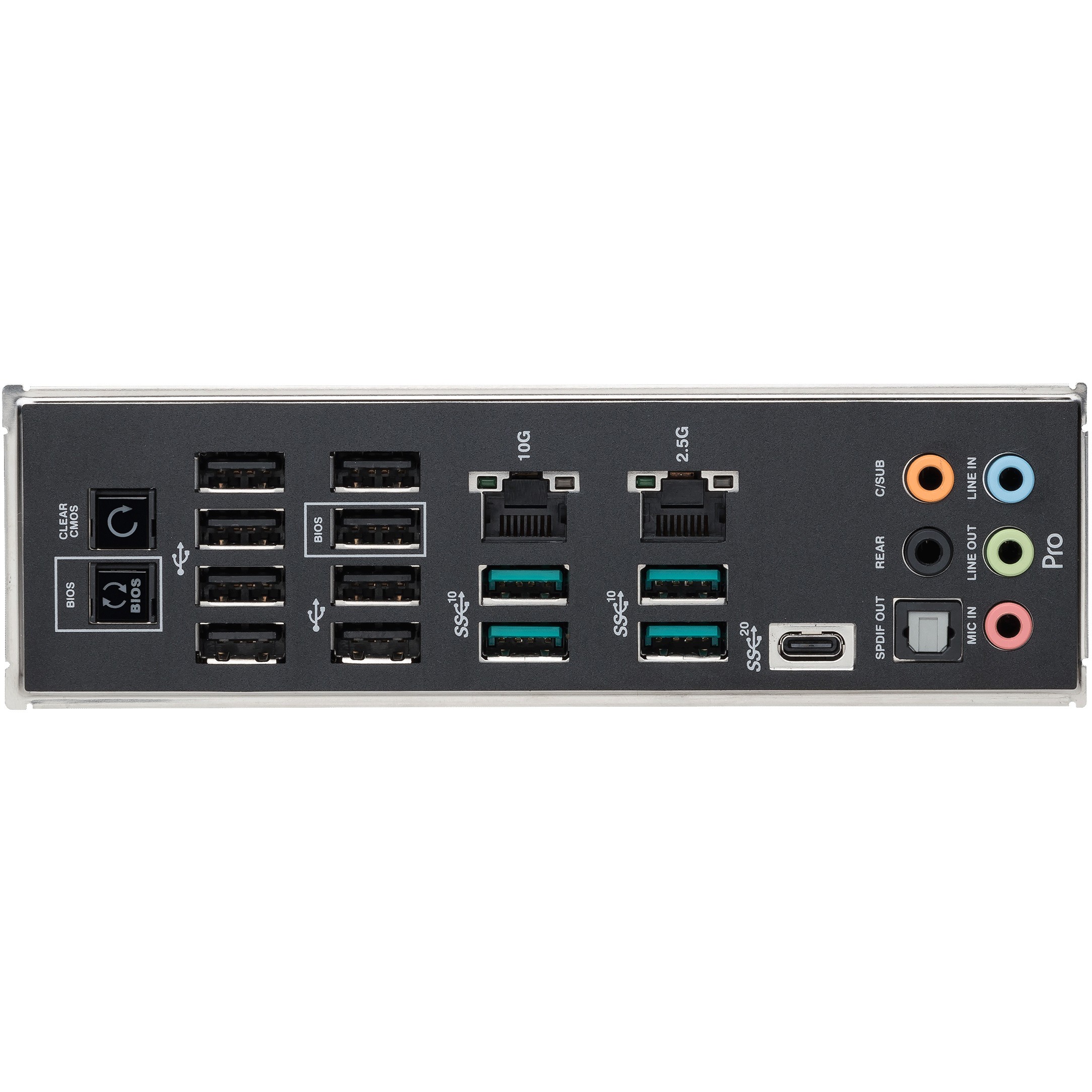

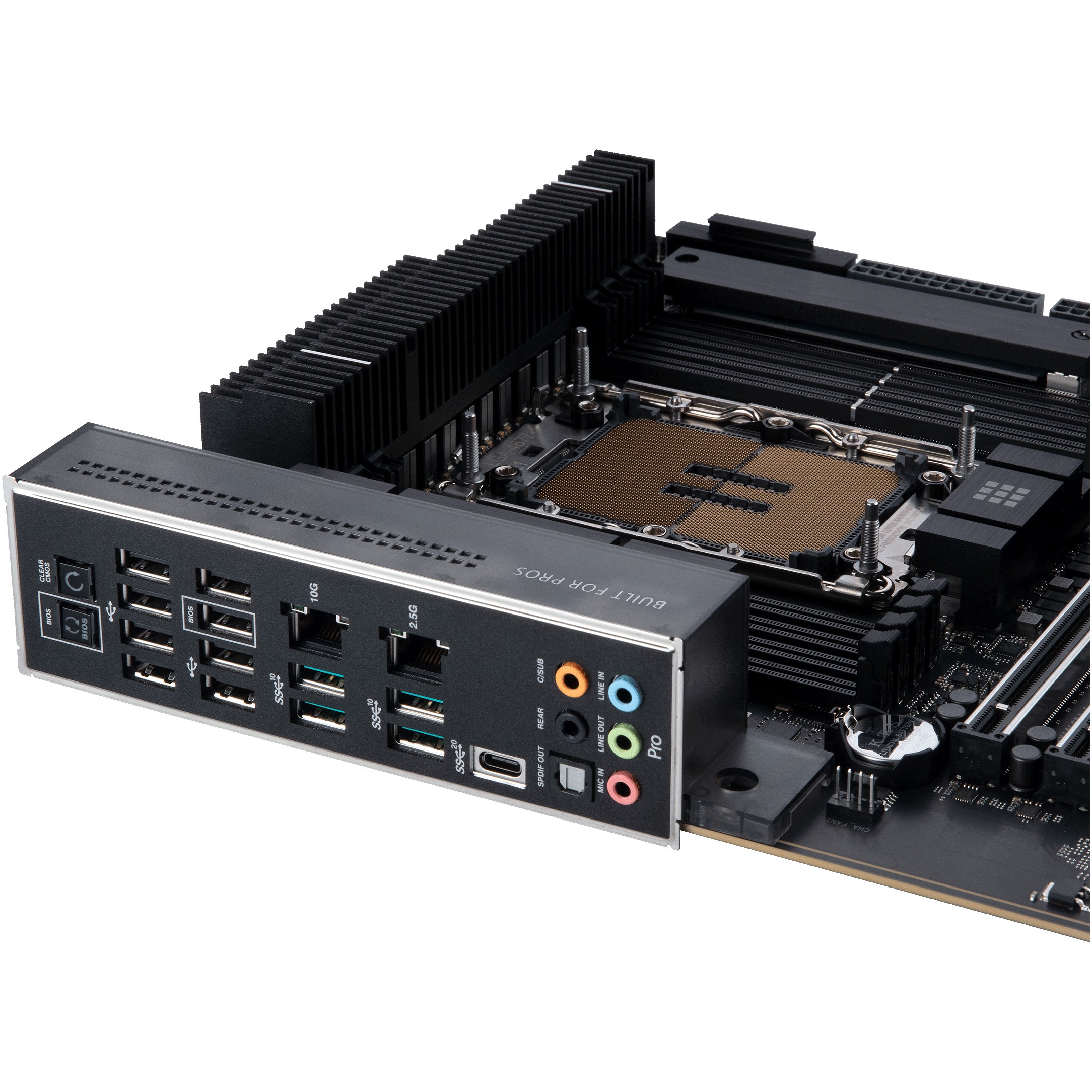

1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 8 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) |
| Internal Interfaces |
1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors |
2 x 24-pin main power connectors, 4 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Features |
Features |
| BIOS Type |
AMI |
| BIOS Features |
ASUS EZ Flash, UEFI BIOS |
| Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
| Hardware Features |
ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, ASUS DIGI+ VRM, Q-Code, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, overcurrent protection, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS 5X Protection III, ASUS SafeDIMM, Intel VROC support, M.2 heatsink, Water Pump Header, 12+1+1 Phase Power Design, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, FlexKey button, ASUS ProCool II, M.2 Q-Latch, ReTry button, Start button, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, M.2 heatsink backplate, Intel Volume Management Device (VMD) |
| Miscellaneous |
Miscellaneous |
| Included Accessories |

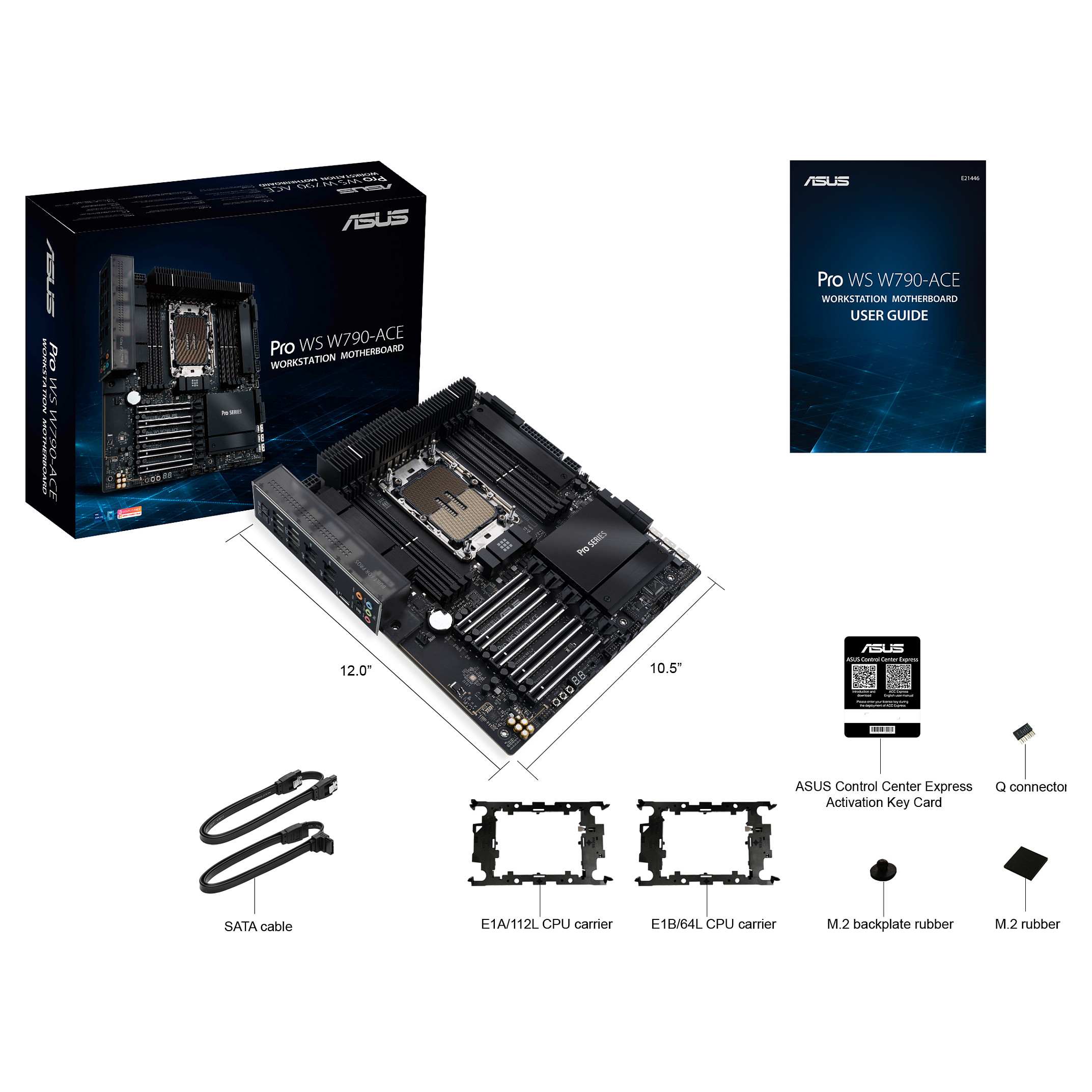

Q-Connector, 1 x M.2 rubber package, ACC Express Activation Key Card, M.2 backplate rubber package, CPU guard for LGA 4677 E1A, CPU guard for LGA 4677 E1B |
| Cables Included |
2 x Serial ATA cable |
| Software Included |
ASUS CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), Adobe Creative Cloud (free trial) |
| Width |
30.5 cm |
| Depth |
26.67 cm |
