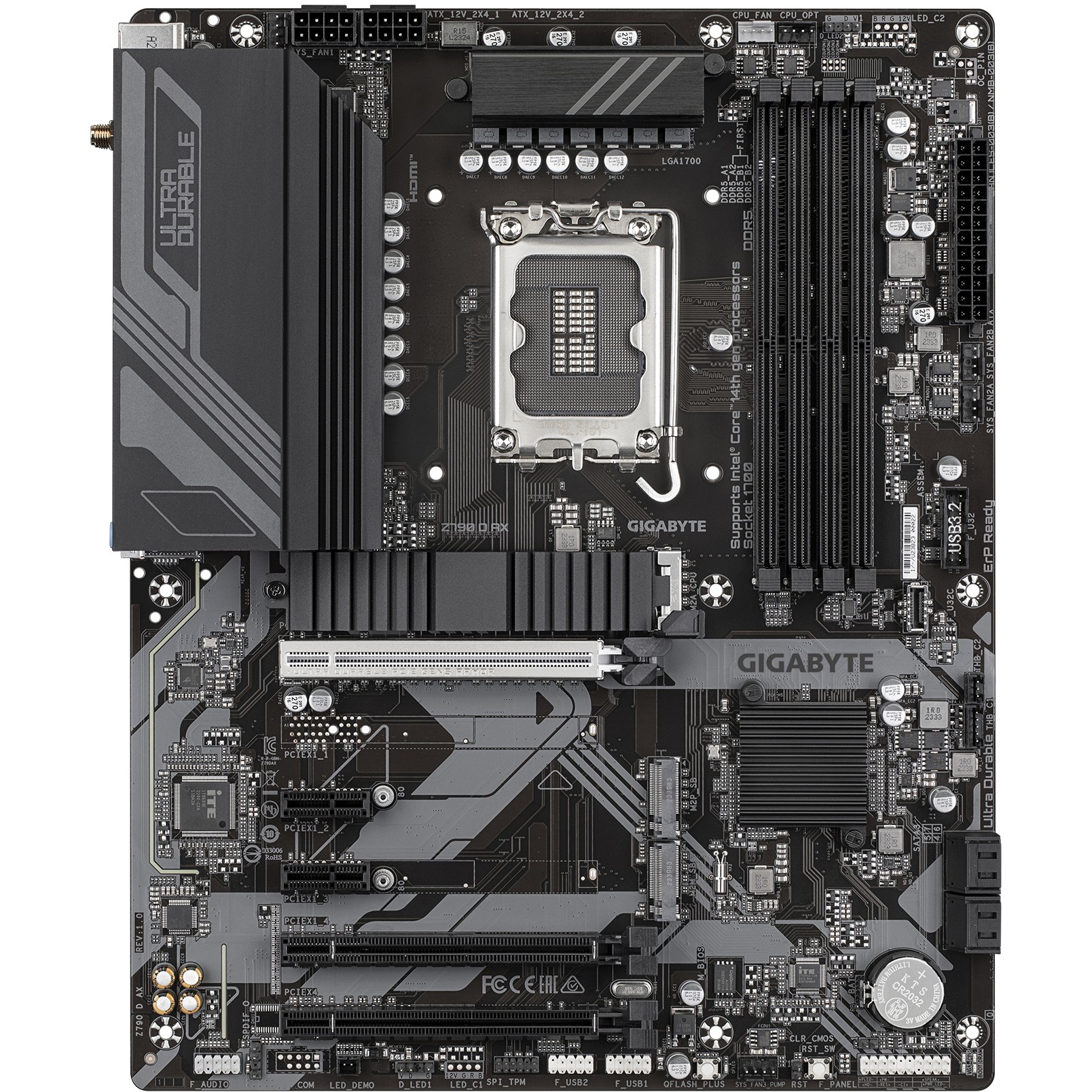

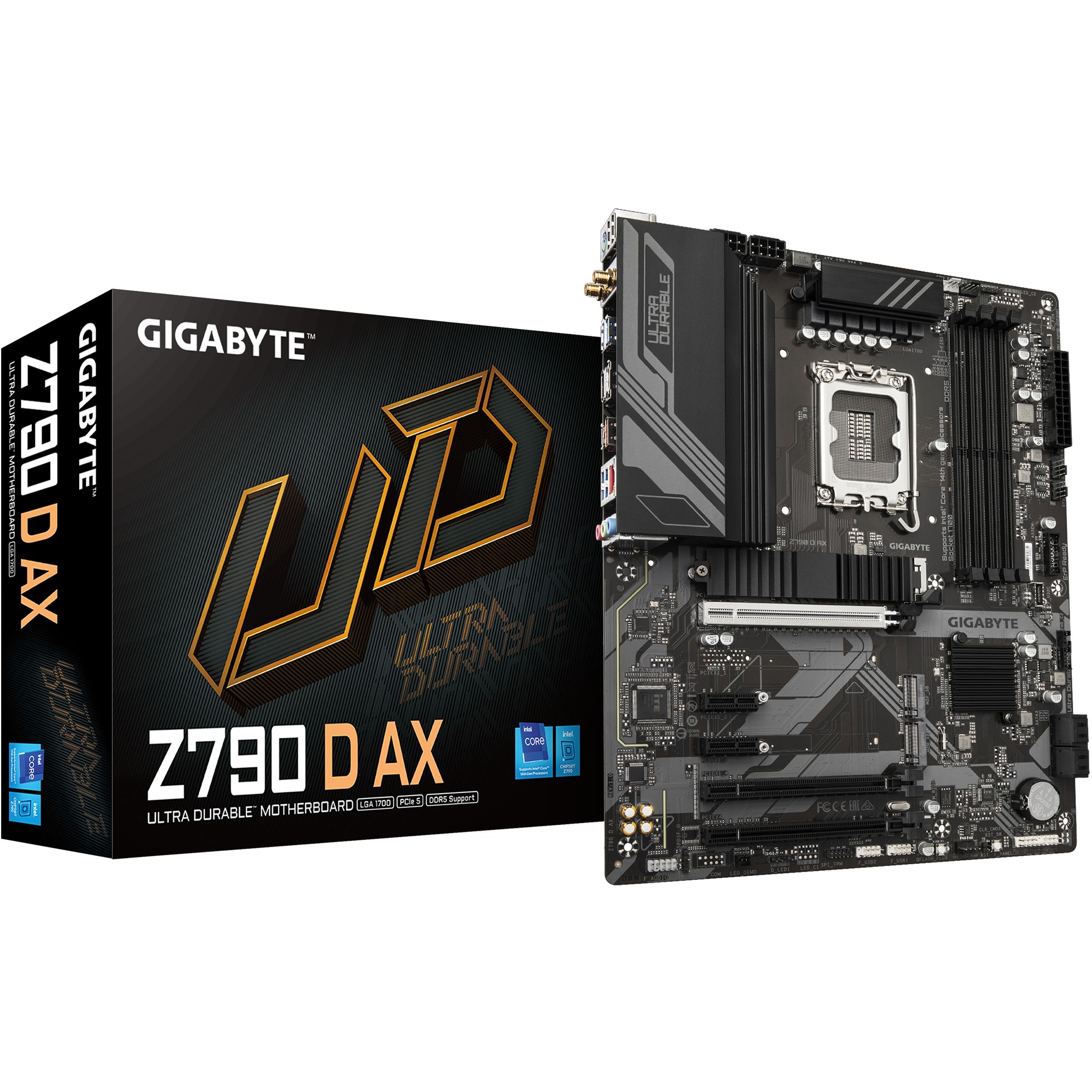

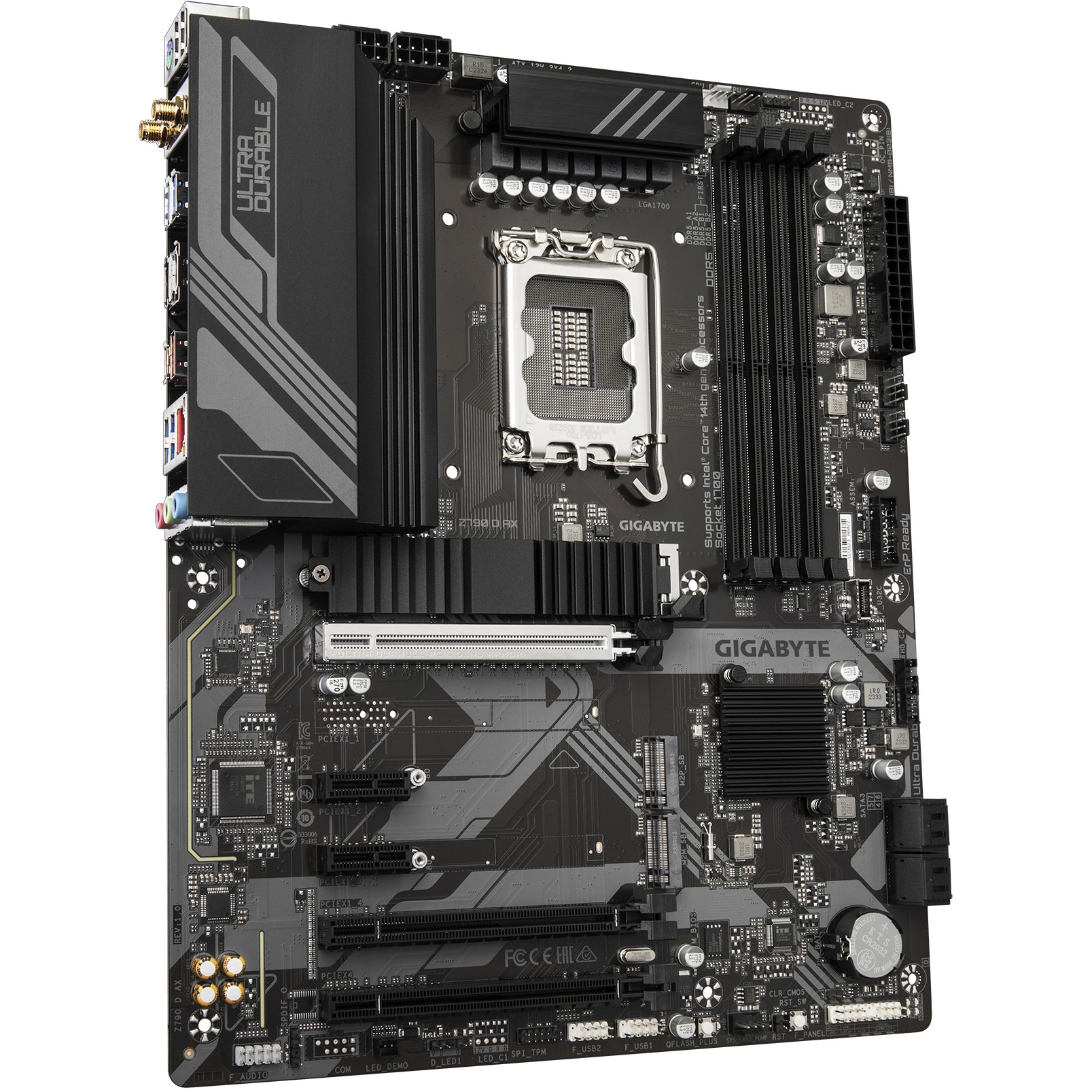

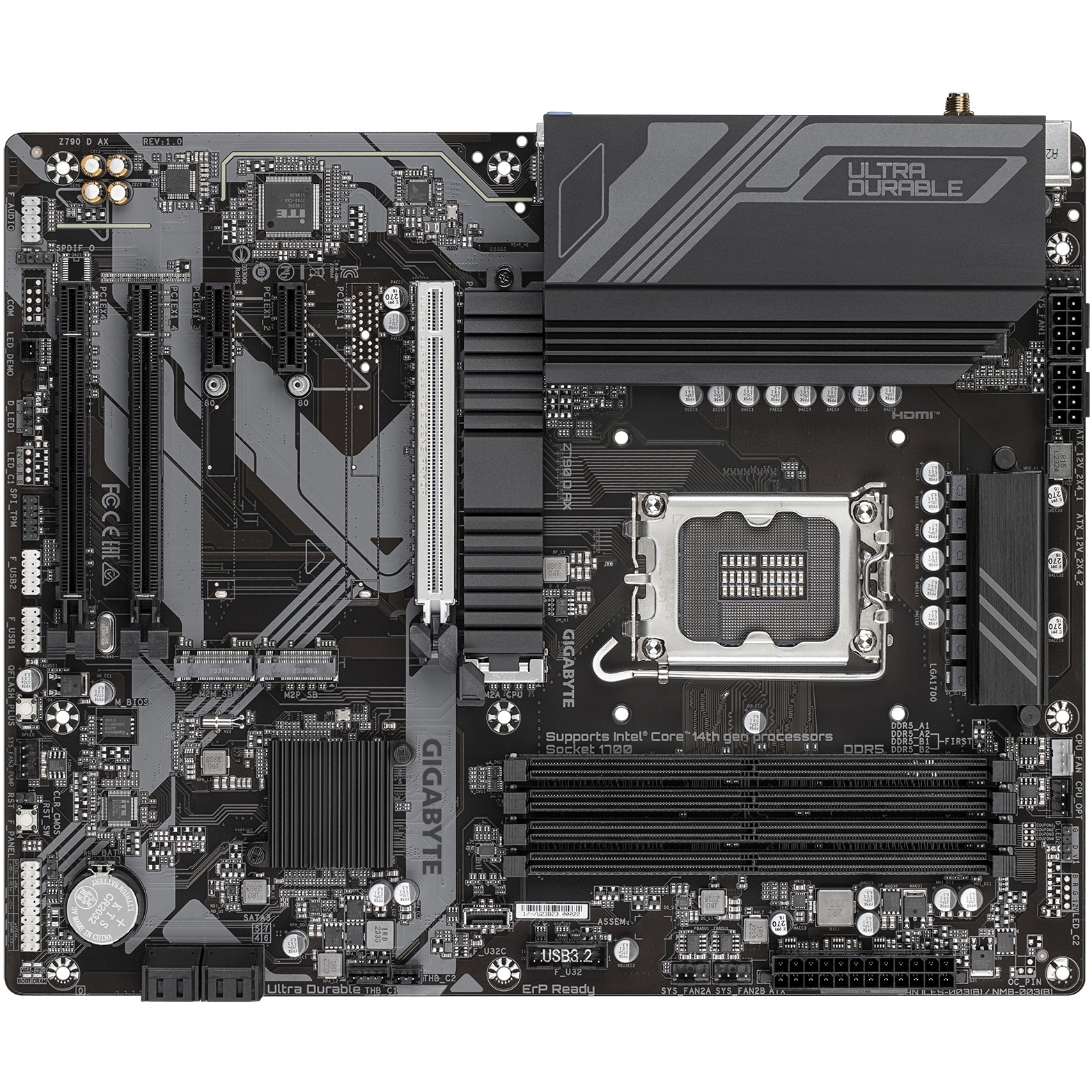

1700 Gigabyte Z790 D AX
Product code: 11197422 // MPN: Z790 D AX // EAN: 4719331860592
€212,55 (inc. VAT)
Available from 4 to 10 days (6 pcs available)
ASRock B760M Pro RS 1700 mATX HDMI/DP DDR5 retail
Code: 16644322
€141,05
Available from 4 to 10 daysElevate your computing experience with GIGABYTE's renowned motherboard series: AORUS. AERO. and GIGABYTE. Featuring innovative designs and advanced features. these boards offer exceptional performance and reliability. Whether you're a gamer. content creator. or professional. our series cater to your needs. ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Maximum internal memory supported by processor: 192 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4400.4800.5200.5400.5600.5800.6000.6200.6400.6600.6800.7000.7200.7400.7600 MHz
Supported memory clock speed (max): 7600 MHz
Maximum internal memory: 192 GB
Supported memory module capacities: 1GB. 2GB. 4GB. 8GB. 12GB. 16GB. 32GB. 48GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0. 1. 5. 10
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
Feature: HDCP
DirectX version: 12.0
Feature: Discrete graphics support
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Number of EATX power connectors: 2
Feature: CPU fan connector
Feature: EPS power connector (8-pin)
Feature: TPM connector
Thunderbolt headers: 2
Feature: 12V power connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Headphone outputs: 1
Feature: Microphone in
Feature: S/PDIF out port
WiFi-AP antenna jack: 2
USB connector type: USB Type-A. USB Type-C
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Bluetooth
Bluetooth version: 5.3
Features
Motherboard chipset: Intel Z790 Express
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Brown
PC health monitoring: Fan. Temperature. Voltage. Water cooling
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10 x64. Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Feature: Clear CMOS button
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 1.84 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Packaging content
Cables included: SATA
Feature: Batteries included
Feature: Antenna included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Technical details
Warranty period: 3 year(s)
Specifications
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 2 x Thunderbolt - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, Ultra Durable, AMD CrossFireX technology support, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, M.2 Thermal Guard, 12+1+1 Phase Power Design, RGB FUSION 2.0, DIY Friendly Design, GIGABYTE Smart Fan 6, GIGABYTE PerfDrive, MOSFET Heatsink |
| Miscellaneous | Miscellaneous |
| Software Included | Realtek Gaming LAN Bandwidth Control, Norton Internet Security (OEM Version) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| All in one: | |
| Brand: | Gigabyte |
| Gaming: |
