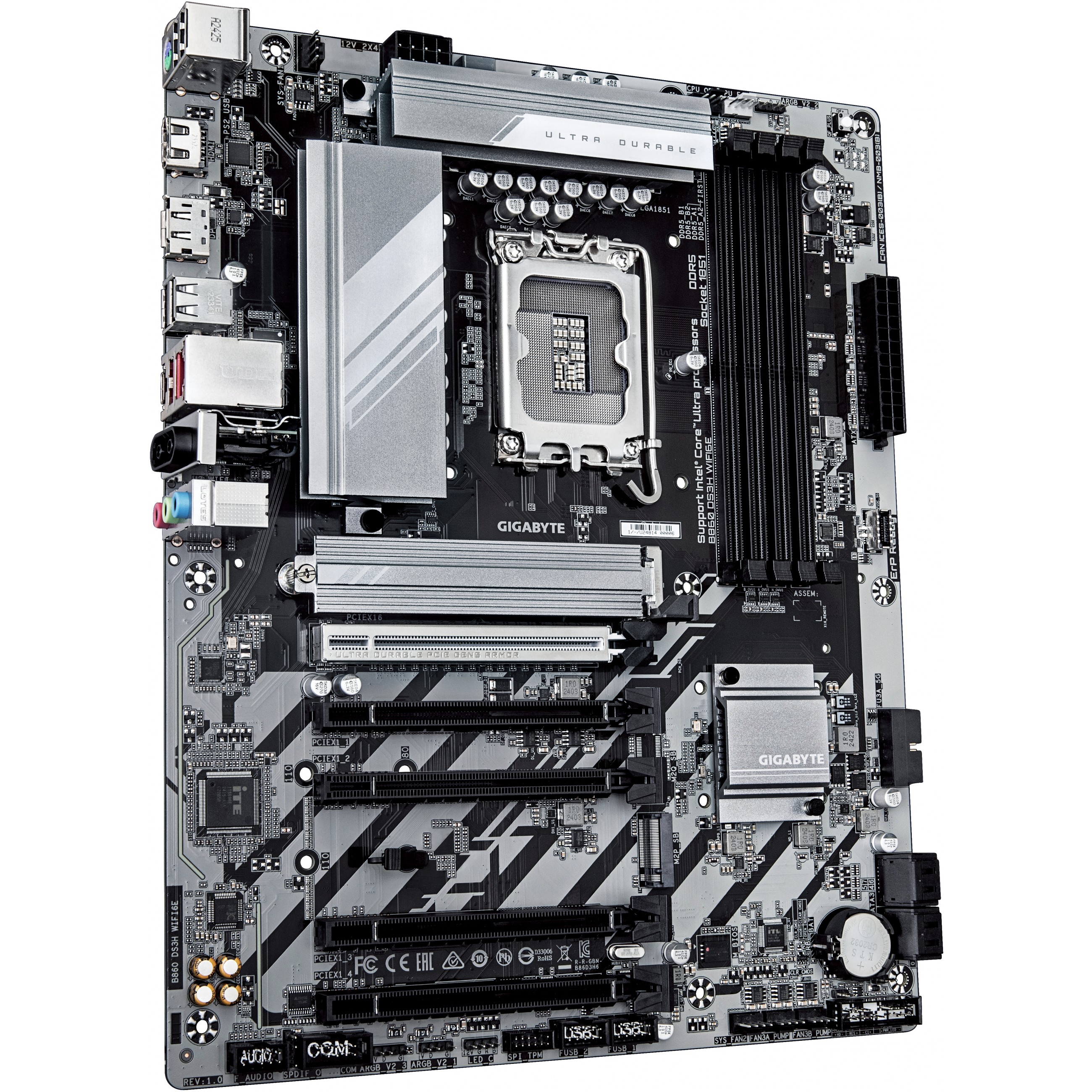

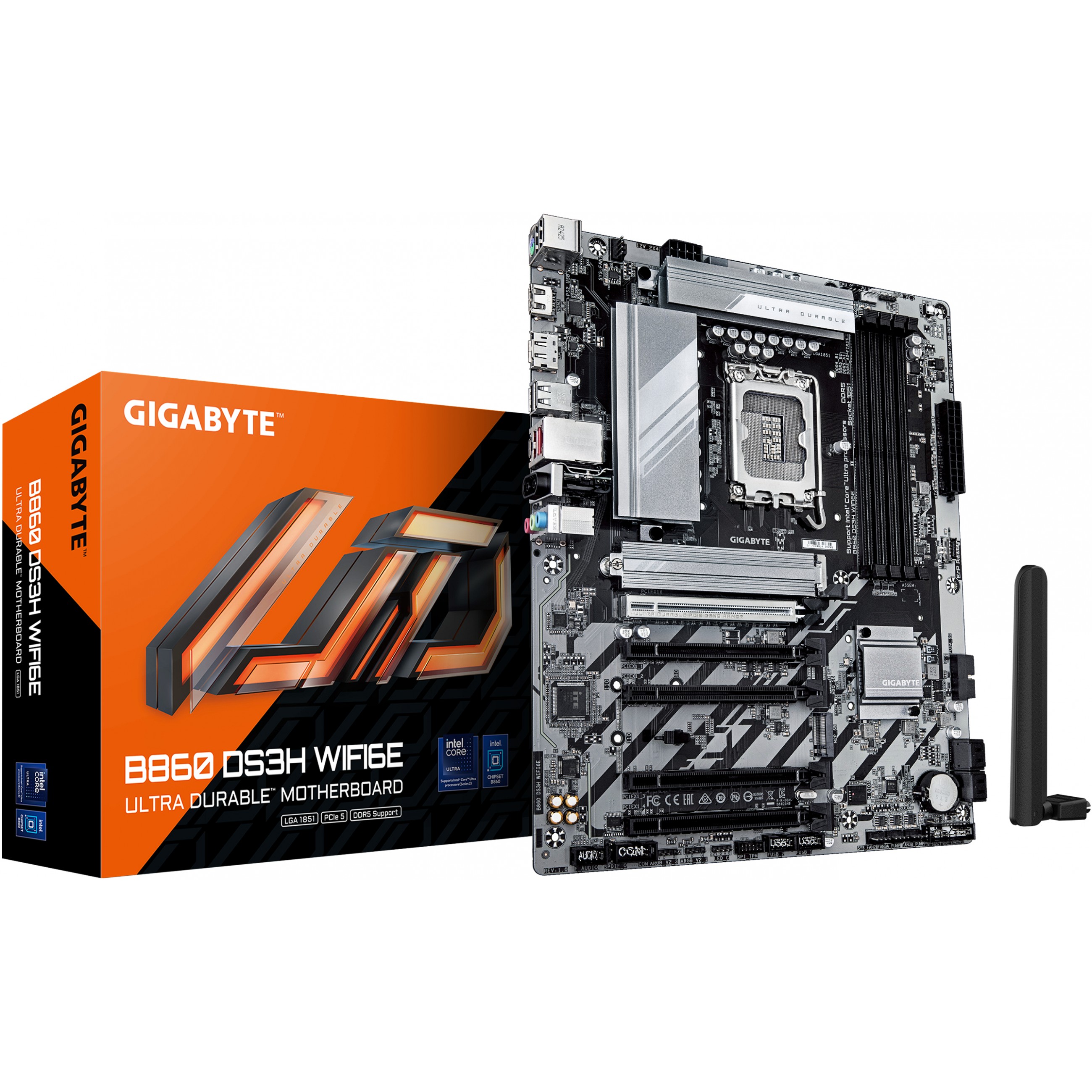

LGA1851 Gigabyte B860 DS3H WIFI6E
Product code: 11198622 // MPN: B860 DS3H WIFI6E // EAN: 4719331867515
€193,50 (inc. VAT)
Available from 4 to 10 days (18 pcs available)
Similar products
Specifications
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4533 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel AX211 |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 4 x PCIe 4.0 x1 2 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x HDMI 1 x DisplayPort 1 x PS/2 keyboard / mouse 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x aerial |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPDIF out - header 1 x SPI - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | 8+1+2 Phase Power Design, WIFI EZ-Plug, M.2 EZ Latch plus, DIY Friendly Design, M.2 EZ Latch click, pre-mounted I/O shield, GIGABYTE Smart Fan 6, Debug LED |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, Wi-Fi aerial, rubber pad |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| All in one: | |
| Gaming: |
