ACCESS POINTS

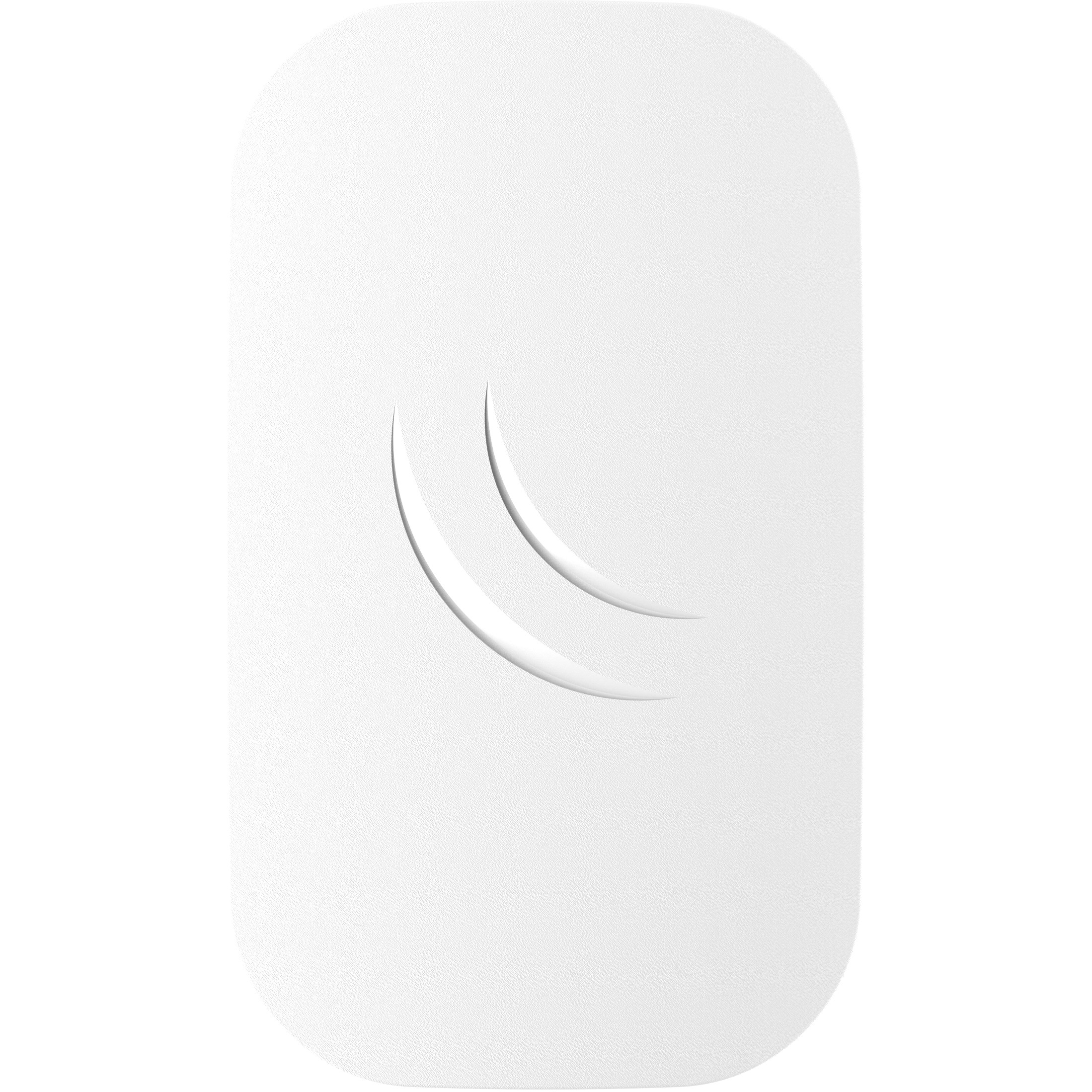

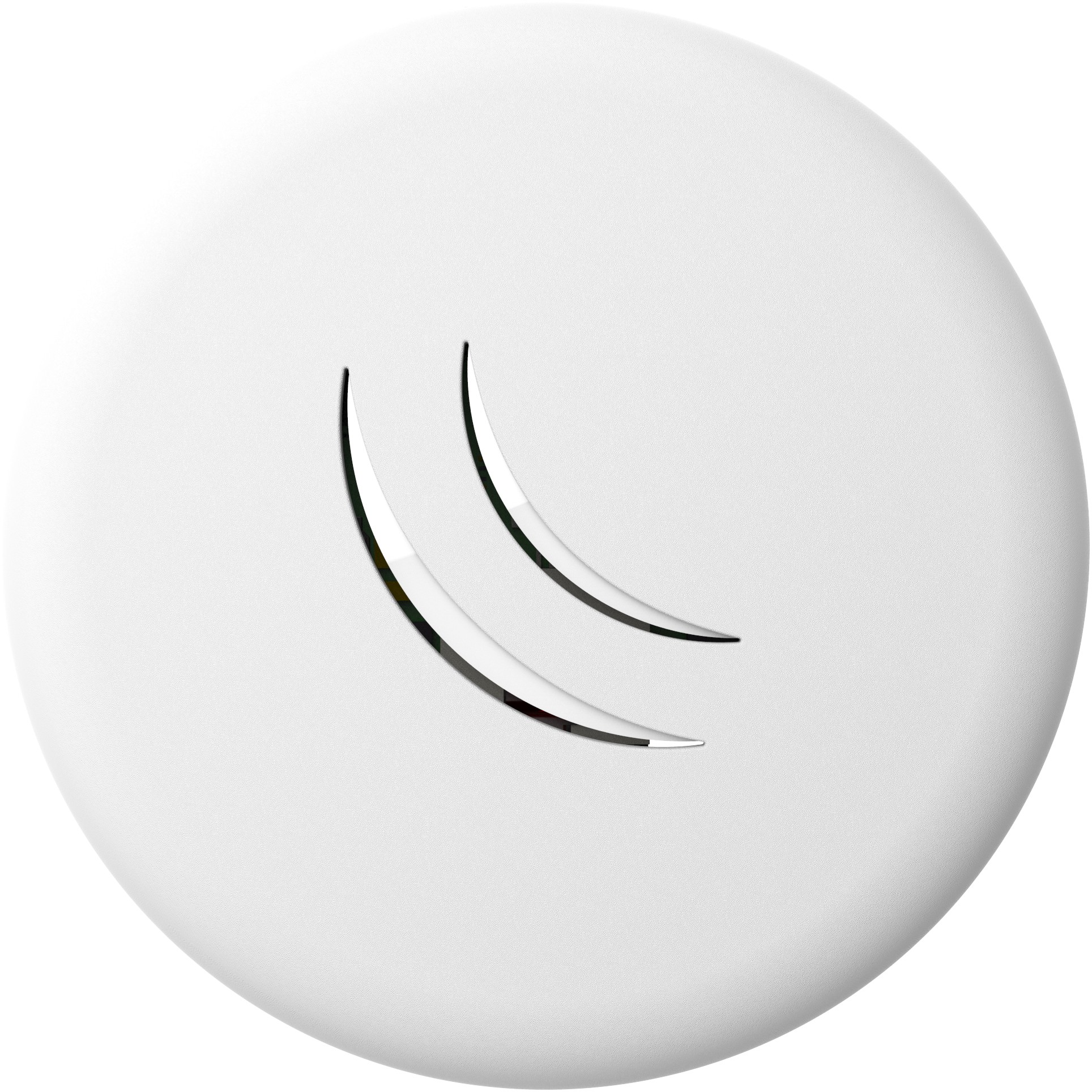

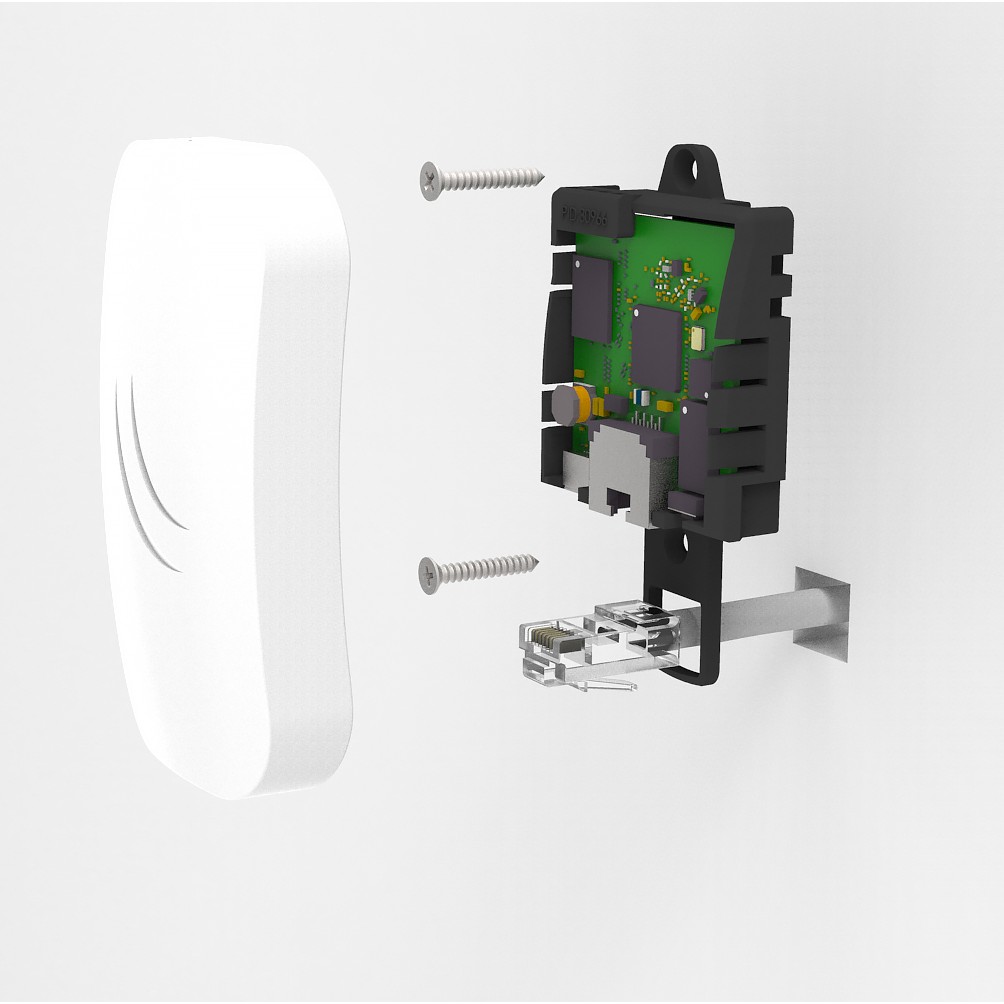

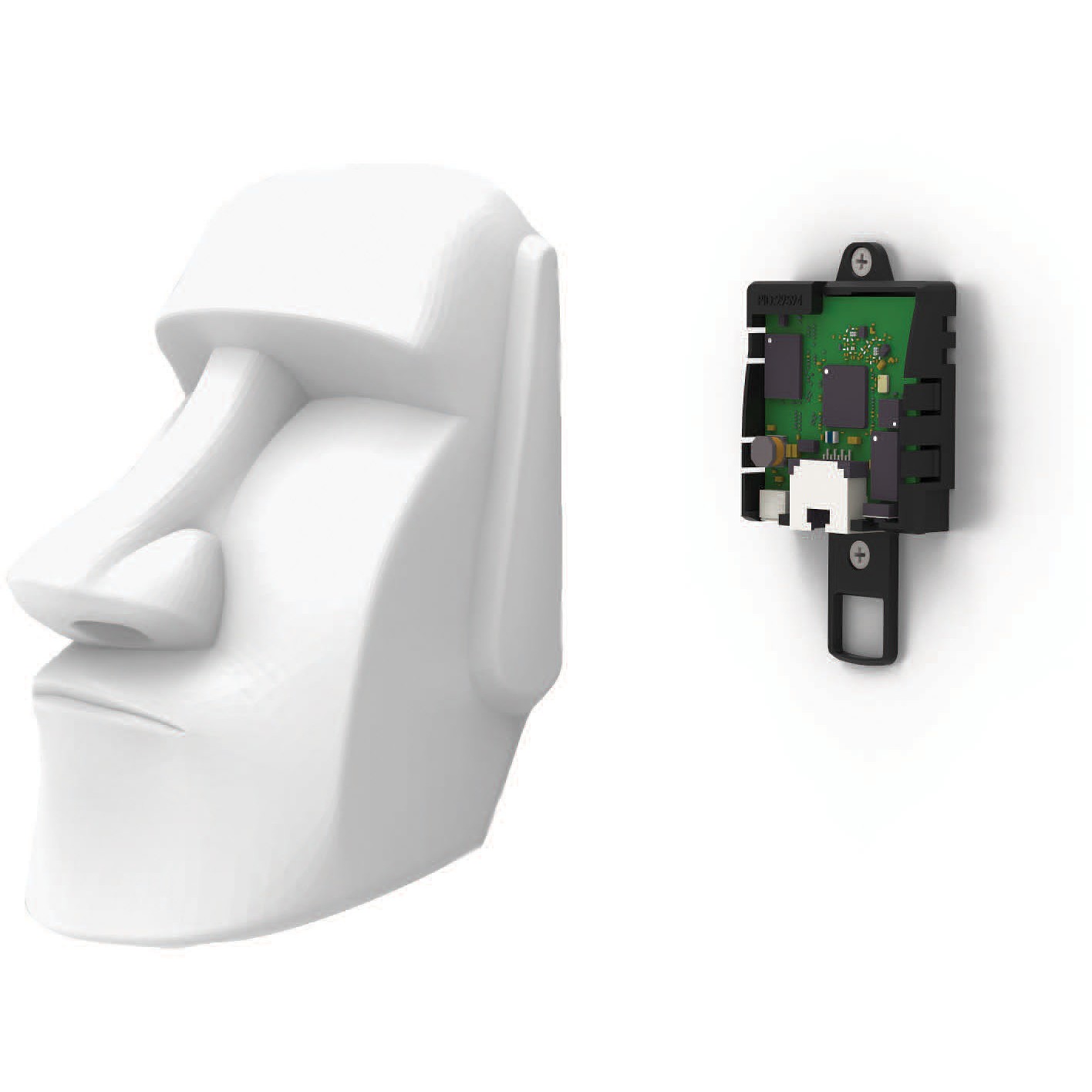

The cAP lite is a tiny access point device. perfect for public locations and hospitality businesses like hotels. airports. shopping malls etc. Included with the product are two different casings. which can easily be swapped out. or. if you really like to fit the design with the environment. we are providing 3D printer friendly design files.

The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager). allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.

Features
Feature: 2.4 GHz
Maximum data transfer rate: 54 Mbit/s
Ethernet LAN data rates: 10.100 Mbit/s
Networking standards: IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.3af. IEEE 802.3at
Receiver sensitivity: -96. -89. -93. -74. -71
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
USB connector type: Micro-USB
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 10 - 60 V
Output voltage: 24 V
Power consumption (max): 4 W
Design
Placement: Ceiling. Wall
Product colour: White
Feature: Reset button
Antenna
Antenna type: Internal
Antenna gain level (max): 1.5 dBi
Performance
Feature: Built-in processor
Flash memory: 16 MB
Internal memory: 64 MB
Operating system installed: RouterOS
Weight & dimensions
Width: 52 mm
Depth: 20 mm
Height: 88 mm
Operational conditions
Operating temperature (T-T): -40 - 70 °C
Logistics data
Harmonized System (HS) code: 85176990
