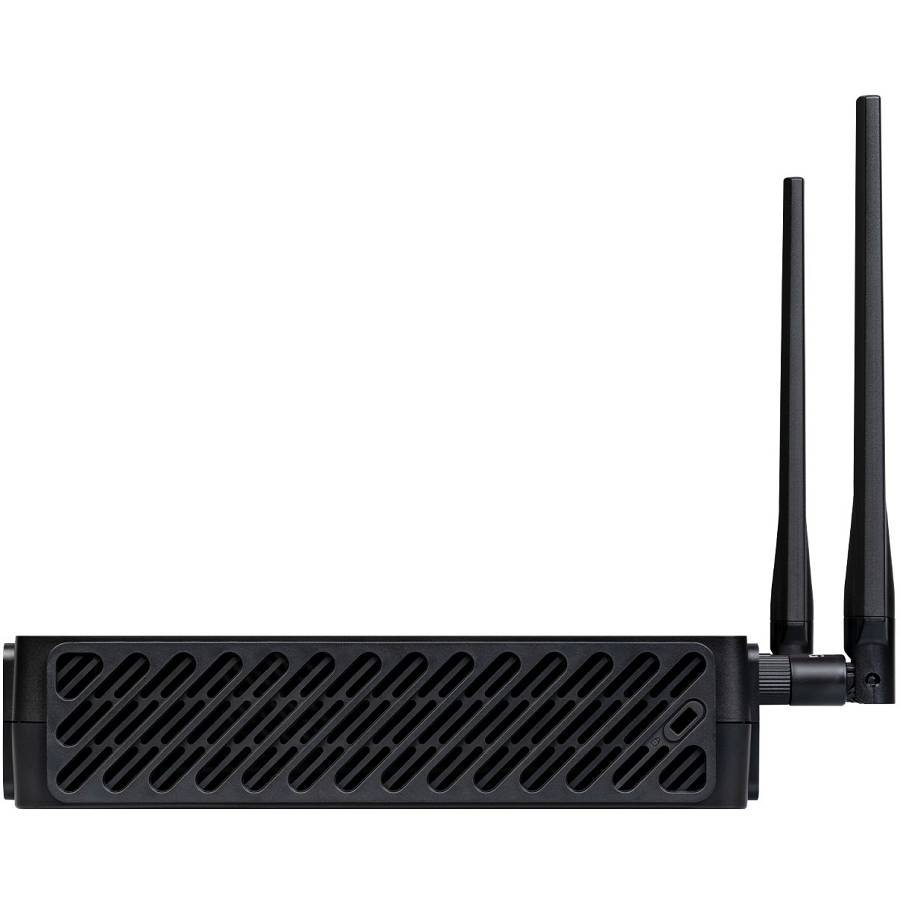

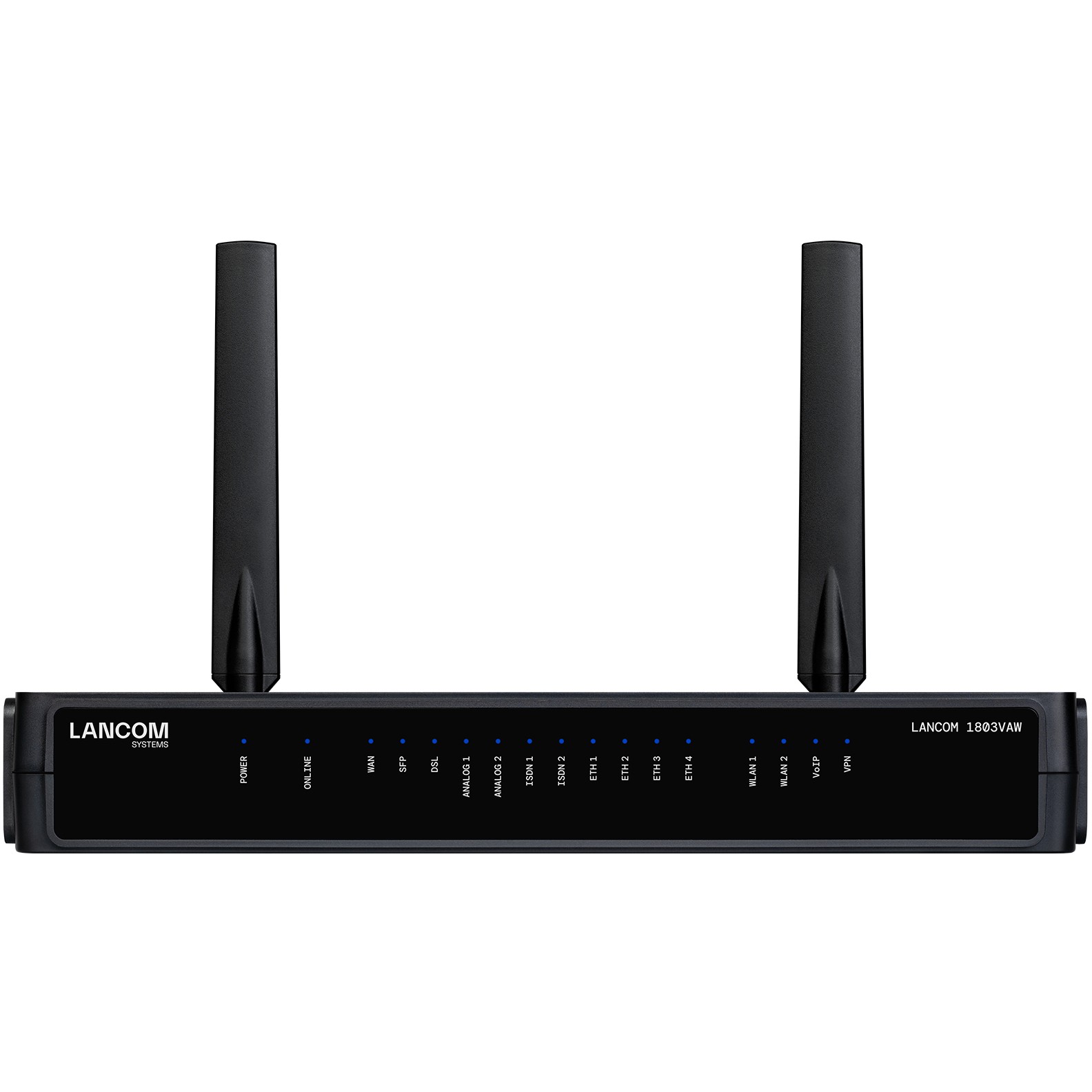

1803VAW (EU)

Product code: 11651522 // MPN: 62154 // EAN: 5707119014076

€1.482,75 (inc. VAT)

Available from 4 to 10 days (9 pcs available)

Add to wishlist

Router Ubiquiti UniFi Next-generation Gateway Max - UXG-Max

Code: 12919022

€240,40

Available from 4 to 10 days

Device Type	Wireless router - 4-port switch (integrated)
Enclosure Type	Desktop
Connectivity Technology	Wired, wireless
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band	2.4 GHz / 5 GHz
Capacity	VLAN IDs: 4096 VPN tunnels: 5
Network / Transport Protocol	L2TPv3, ARP, DHCP, IPv4, DHCPv6, LDRA, BOOTP, IPv6, HTTP, HTTPs, Bonjour, PPPoE, RTP, TFTP
Routing Protocol	GRE, RIP-2, BGP-4, OSPFv2, LISP
Remote Management Protocol	RADIUS, ICMP, NTP, SNMP 1, SNMP 2c, SNMP 3, TACACS+, SLAAC, Telnet
Encryption Algorithm	IKEv2, IKE, CRL, 4096-bit RSA, 1024-bit RSA, 128-bit AES-CBC, 192-bit AES-CBC, 2048-bit RSA, 256-bit AES-CBC, 3072-bit RSA, Chacha20-Poly 1305, ECDSA 256-bit, ECDSA 384-bit, ECDSA 512-bit, FIPS 140, MD5, SHA-1, SHA-256, SHA-384, SHA-512
Authentication Method	PAP, CHAP, MS-CHAP, MS-CHAP v.2, RADSEC, RADIUS, TACACS+, X.509 certificates, XAUTH authentication
Features	Firewall protection, NAT support, load balancing, IGMP snooping, MLD snooping, Syslog support, SPIF, packet filtering, SIP ALG, DiffServ support, E-mail alert, print server, EoGRE, DHCPv6 snooping, proxy ARP, LACP support, QoS, ToS, WIDS, CoA, reset button, URL blocker, IP spoofing, password protection, ARF, DNS client, DNS server, DNS relay, NTP client, NTP server, policy based routing, VRRP support, FirmSafe, realtime clock, SCEP, OCSP support, IPSec NAT-T, dynamic DNS client, 2-factor authentication, 1 fan, PPP
Compliant Standards	IEEE 802.1Q, IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x, IEEE 802.11r, IEEE 802.11w, UKCA
Communications	Communications
Type	DSL modem
Digital Signaling Protocol	VDSL, VDSL2, ADSL2+, ADSL
Protocols & Specifications	ITU G.993.2, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.5 Annex J, ITU G.992.5 Annex M, ITU G.993.2 Annex Q, ITU G.993.5, ITU G.992.1
IP Telephony	IP Telephony
VoIP Functionality	VoIP gateway
VoIP Protocols	SIP
Voice Codecs	G.711µ-law, G.711a-law, G.722, G.723, G.726, G.729, iLBC, Opus, AAC, ADPCM
Telephony Interfaces	2 phone (FXS), 2 line (ISDN BRI)
IP Telephony Features	Echo cancellation
Expansion / Connectivity	Expansion / Connectivity
Interfaces	LAN / DMZ / WAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 WAN: 2 x ISDN WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45/SFP Serial: 1 x 24 pin USB-C USB 2.0: 1 x 4 pin USB Type A Phone line: 2 x RJ-11 WAN: 1 x DSL - RJ-45
Aerial	Aerial
Aerial	External detachable
Antenna Qty	2
Power	Power
Power Device	External power adapter
Voltage Required	AC 230 V
Power Consumption Operational	17 Watt
Miscellaneous	Miscellaneous
Cables Included	1 x network cable - 3 m 1 x modem cable - 4.25 m 2 x RJ-11 to TAE adapter
Localisation	Europe
Dimensions & Weight	Dimensions & Weight
Width	29.3 cm
Depth	19 cm
Height	4.4 cm
Weight	815 g
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 95% (non-condensing)
