SWITCHES

Costeffective 24 Port Managed Gigabit Layer-2 Switch FANLESS for Desktop and 19" Rackinstallations

- 16 Port Gigabit non-blocking Switch Architeture
- support 10/100/1000Mbps and Duplexmodus (half/full) auto-detection
- support back-pressure (half duplex). flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
- VLAN "64 Static / Port-Based / Tagged Based
- Link Aggregation ( IEEE802.3ad LACP & Static Trunk)
- IGMP Snooping (v1/v2/v3)
- QoS (Port Based. Flow. 802.1p. IP-TOS. IP DSCP)
- Stormcontrol (Broadcast. Multicast. Unicast)
- FANLESS Solution
- 10/19" Brackets or Wall-Mount option

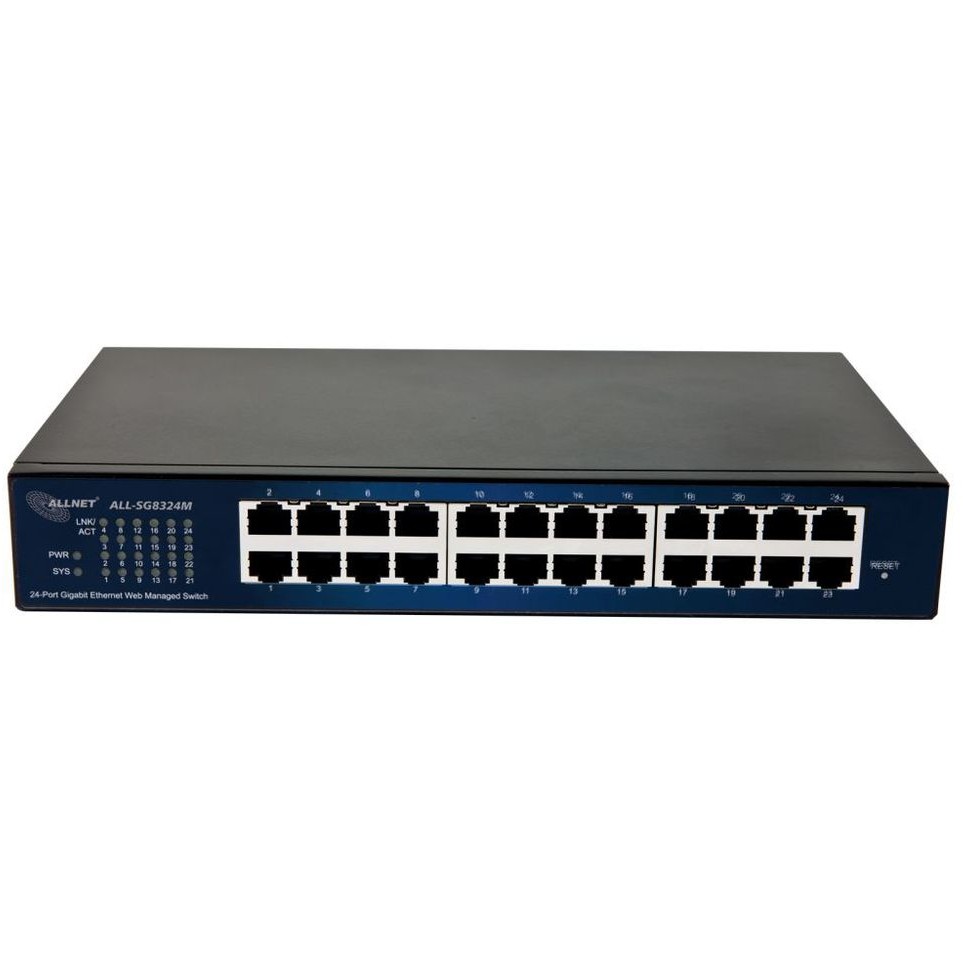

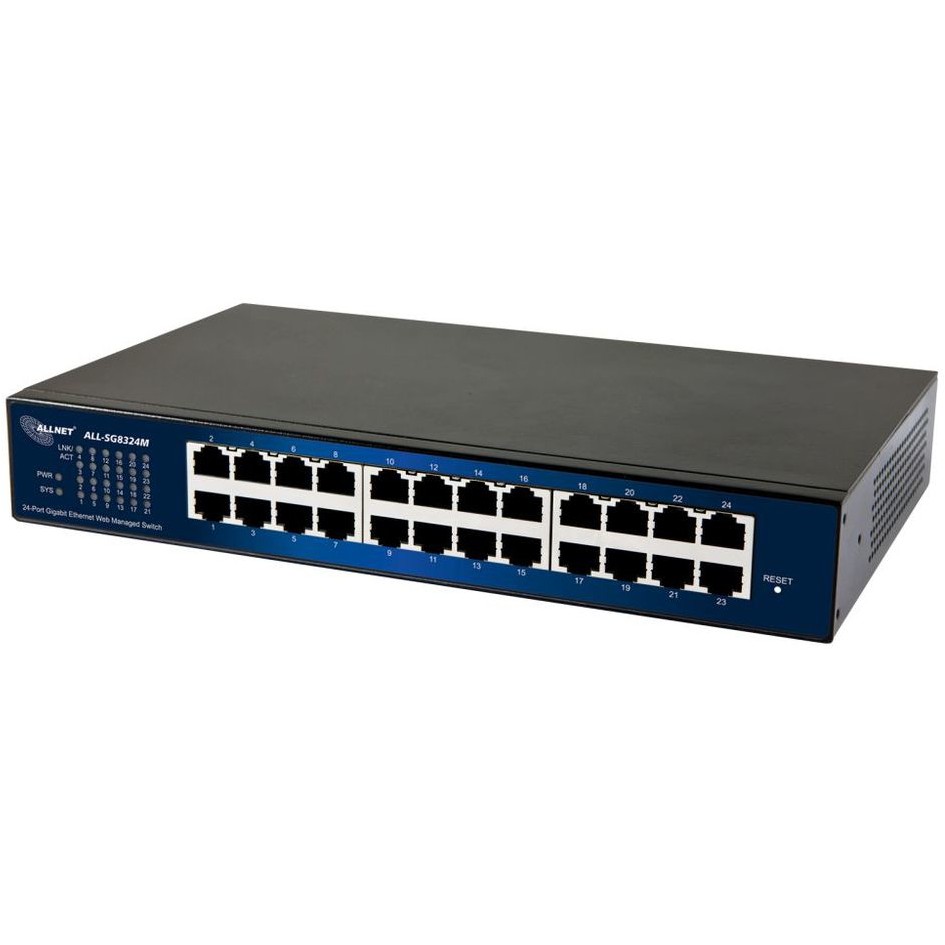

The ALL-SG8324M provides 24x 10/100/1000Mbps ports. The switch provides performance. QoS. advanced security strategies and rich layer 2 management features. This Gigabit managed switch is cost-effective for the ideal small and medium business solution.

ALL-SG8324M Switch have robust security and management features. The ALL-SG8324M Switch support a lot of features like Flow Control. Spanning Tree. VLAN. Link Aggregation IGMP Snooping & QoS. Anymore. the easy-to-use web management interfaces. along with CLI. SNMP. mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability. ALLNET managed Switch ALL-SG8324M provides you the ideal access-edge solution.

Secure Networking
The ALL-SG8324M switch provides IP-MAC-Port-VID Binding. Port Security. Storm control which protect against broadcast storms. ARP attacks. etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition. the Access Control Lists (ACL. L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address. IP address. TCP/UDP ports and even VLAN ID.

Advanced QoS features
To integrate voice. data and video service on one network. the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on different options like 8 Priority Queues. Class of Service. Queue Scheduling and Rate Limit. Voice and video are always clear. smooth and jitter free. In conjunction with the Voice VLAN the switch supporting. the voice applications will operate with much smoother performance.

Abundant Layer 2 features
For more application of layer 2 switches. ALL-SG8324M supports a complete lineup of layer 2 features. including 802.1Q tag VLAN. Port Mirroring. Spanning Tree STP/RSTP. Link Aggregation Control Protocol and 802.3x Flow Control function. Any more. the switch provides advanced features for network maintenance. Such as Loop Back Detection. Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features
ALL-SG8324M is easy to use and manage. It supports various user-friendly standard management features. such as intuitive web-based Graphical User Interface(GUI). either administration traffic can be protected through HTTPS encryptions. SNMP (v1/2) support enables the switch to be polled for valuable status information and send traps on abnormal events.

Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45
Power connector: DC-in jack
Network
Networking standards: IEEE 802.1ab. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T. 100BASE-T. 10GBASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Data transmission
Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Feature: Jumbo frames support
Security
DHCP features: DHCP client
Feature: IGMP snooping
Protocols
Management protocols: HTTP. HTTPS. SNMP. TELNET
Data link protocols: TFTP
Supported network protocols: DHCP
Design
Feature: Rack mounting
Product colour: Black
Feature: LED indicators
Safety: LVD. EN60950
Performance
Buffer size: 524.8 KB
Power
AC input voltage: 100 - 240 V
Power consumption (typical): 15 W
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): 10 - 90 °C
Weight & dimensions
Width: 267 mm
Depth: 162 mm
Height: 42 mm
Certificates
Certification: EMC. FCC. CE
