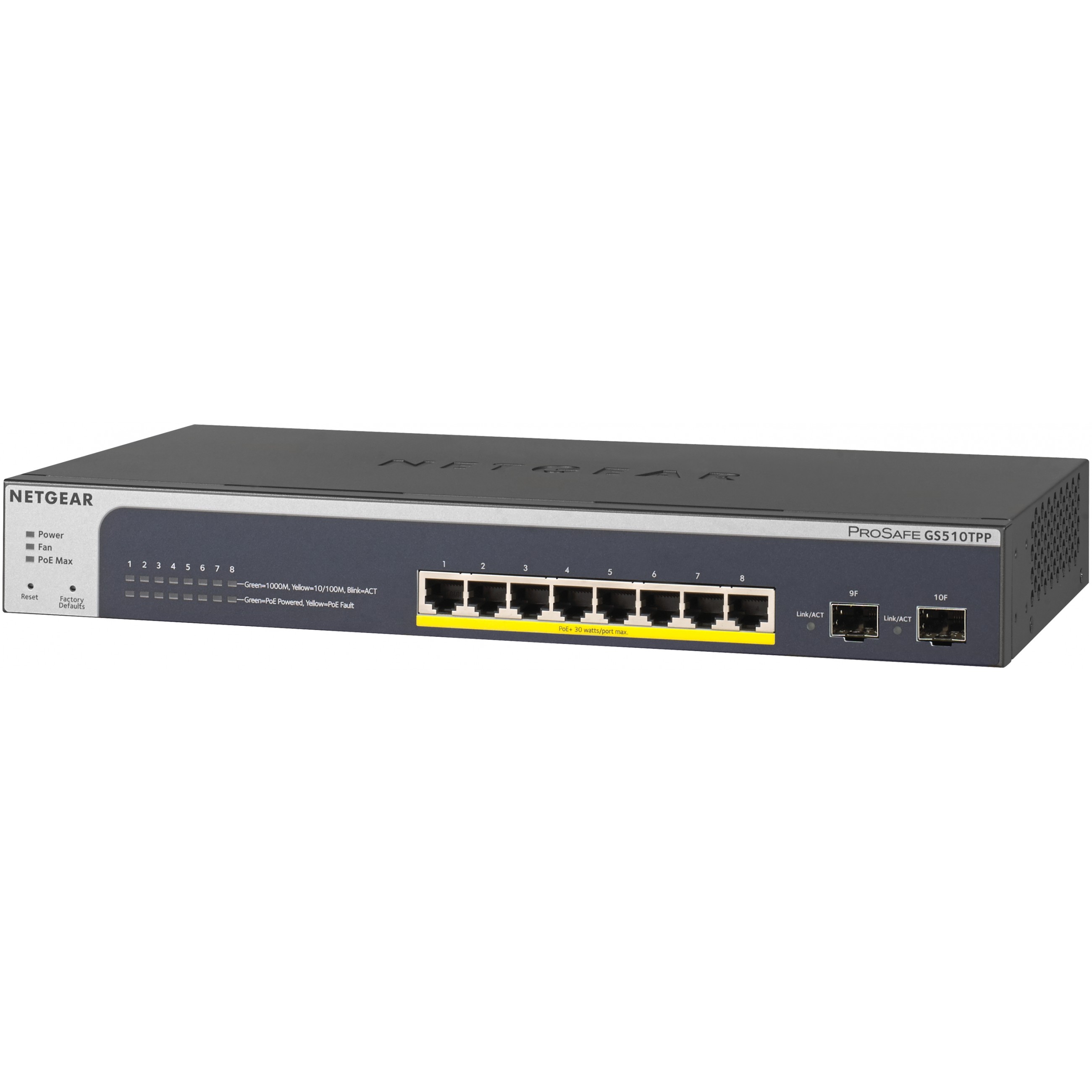

8P Netgear GS510TPP RM PoE+

Product code: 11691322 // MPN: GS510TPP-100EUS // EAN: 0606449119015

€481,90 (inc. VAT)

Available from 4 to 10 days (9 pcs available)

Add to wishlist

Switch 28x GE IGU-2872 4x2.5GbE. 16x1.25GbE SFP

Code: 11740922

€1.263,45

Available from 4 to 10 days

Device Type	Switch - 8 ports - L3 Lite - smart
Enclosure Type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	190 W
Performance	Fabric throughput: 20 Gbps Â¦ Packet forwarding rate: 14.88 Mpps
Capacity	Virtual interfaces (VLANs): 256 Â¦ ACL: 100 Â¦ IPv4 routes (static): 32 Â¦ IPv6 routes (static): 32 Â¦ IGMP snooping groups: 512 Â¦ Priority queues: 8 Â¦ Layer 3 multicast groups: 512
MAC Address Table Size	16000 entries
Jumbo Frame Support	9KB
Routing Protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Encryption Algorithm	TLS 1.0, SSL 3.0
Authentication Method	RADIUS, TACACS+
Features	Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Network Access Control (NAC), 802.1x authentication, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ICMP Router Discovery Protocol (IRDP), IGMP querier, 1 fan
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor	Cortex-A9: 400 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	Port transmission speed, power, link/activity, fan
Expansion / Connectivity	Expansion / Connectivity
Interfaces	8 x 1000Base-T RJ-45 PoE+ Â¦ 2 x 1000Base-X SFP
Power	Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50 - 60 Hz)
Power Consumption Operational	225 Watt
Miscellaneous	Miscellaneous
Included Accessories	4 foot pads
Rack Mounting Kit	Included
MTBF	1,509,979 hours
Compliant Standards	CISPR 22 Class A, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, AS/NZS 60950-1, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, AS/NZS CISPR22:2009+A1:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55022 Class A, FCC CFR47 Part 15 B Class A, ICES-003 issue 6 Class A, IEC 950, ANSI C63.4-2014, cUL 950, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Localisation	Europe
Dimensions & Weight	Dimensions & Weight
Width	32.8 cm
Depth	16.9 cm
Height	4.3 cm
Weight	1.83 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	NETGEAR lifetime warranty
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	50 Â°C
Humidity Range Operating	90% (non-condensing)
Min Storage Temperature	-20 Â°C
Max Storage Temperature	70 Â°C
