SWITCHES

Power & Value

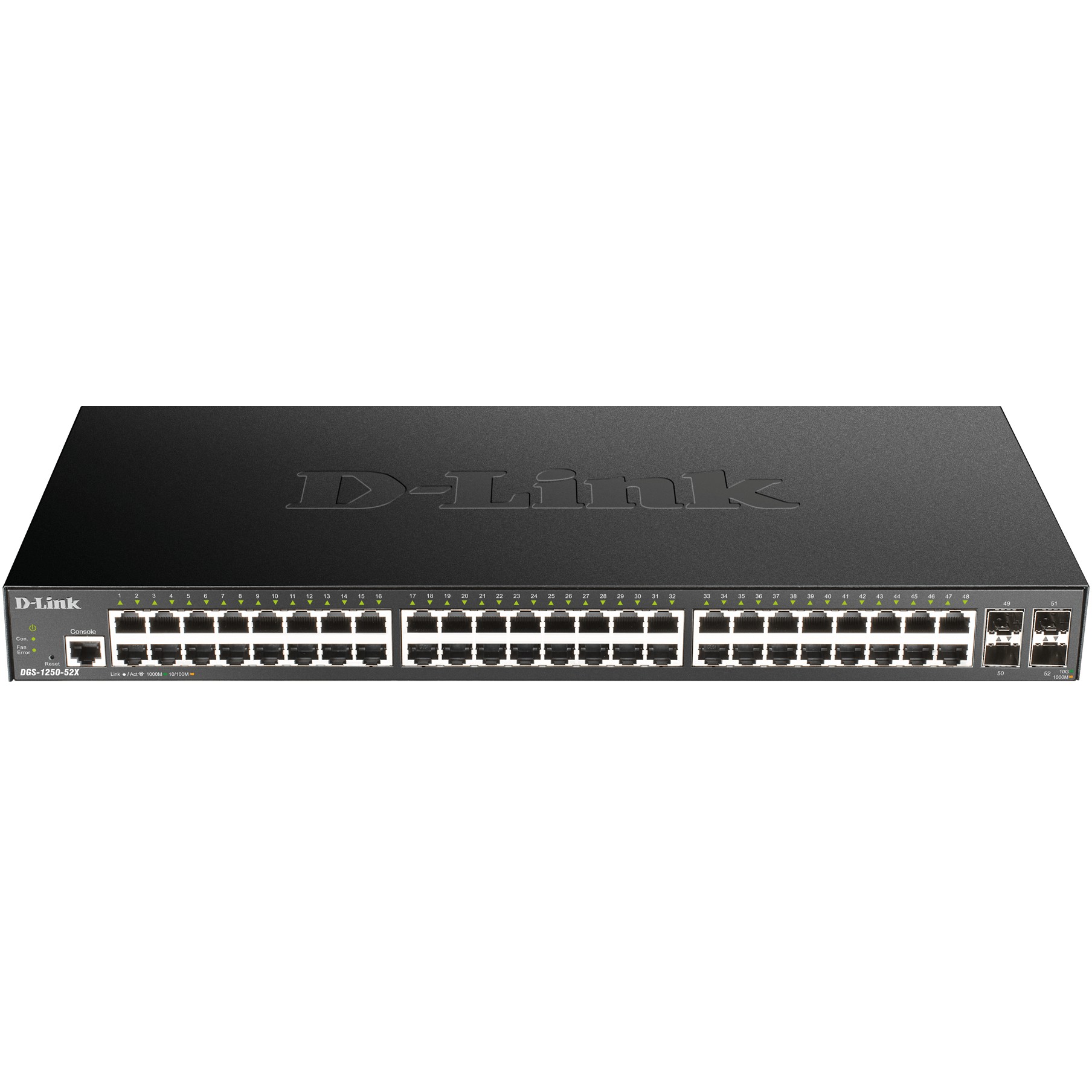

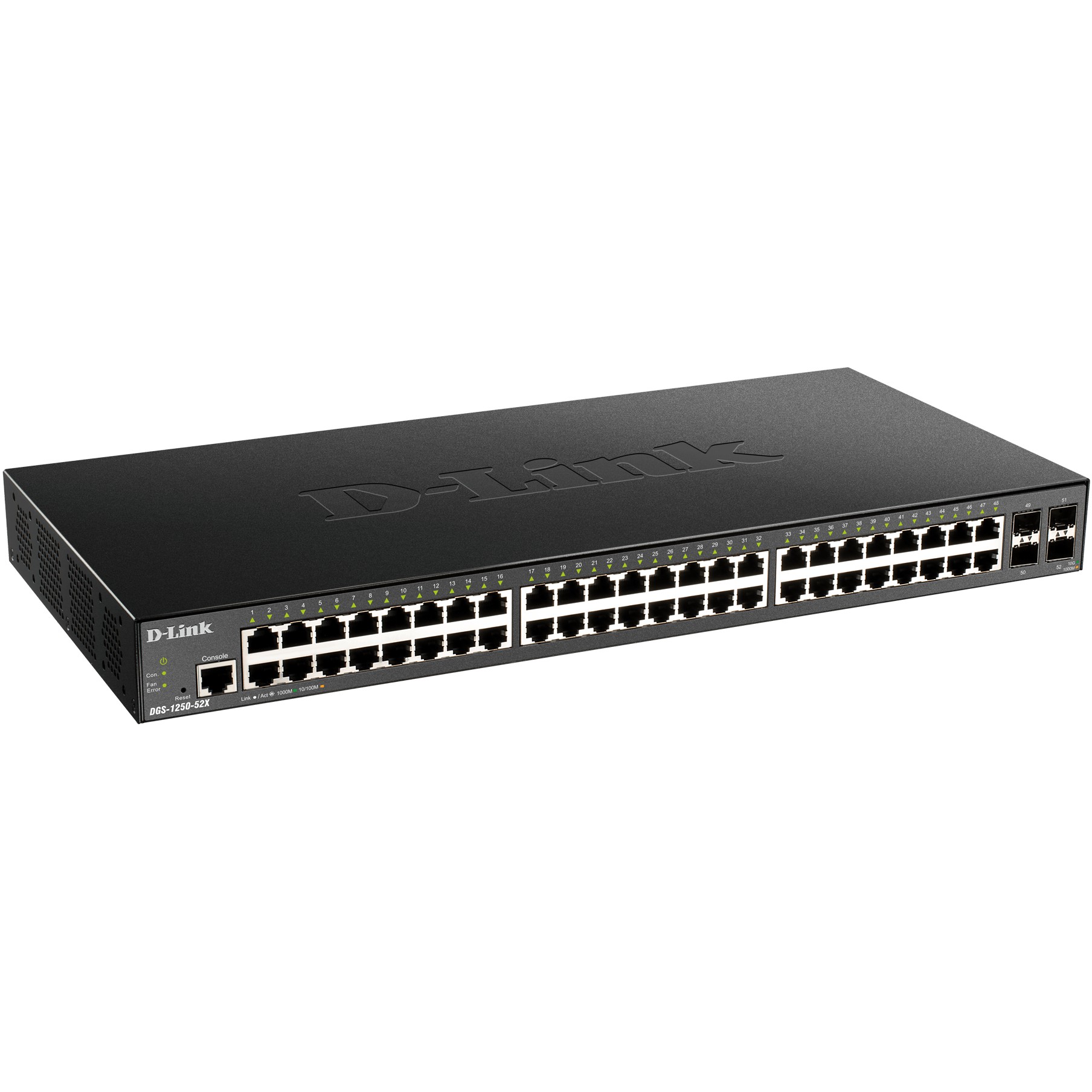

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI). multiple management interfaces. 11 Web languages. QoS enablement. and Advanced Layer-2 w/Lite Layer-3 features.

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports. with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.

Easy Maintenance. Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality. as well as a Console Port. all of which make it easier to configure. troubleshoot. and make other changes without interfering with network operation. while full Command Line Interface (CLI) functionality enables remote configuration. without the need for the Internet. And if a network issue ever does occur. the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.

Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode. which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network. increasing security and allowing Quality of Service (QoS) to be applied.

Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.

Management features
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45
Network
Feature: 10G support
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 4094
Optical fiber
Fiber ethernet cabling technology: 100BASE-FX. 1000BASE-LHX. 1000BASE-X. 1000BASE‑LX. 1000BASE‑SX. 1000BASE‑ZX
Data transmission
Switching capacity: 176 Gbit/s
Forwarding rate: 130.95 Mpps
MAC address table: 32000 entries
Feature: Static route
Number of static routes: 124
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 16 MB
Security
DHCP features: DHCP client. DHCP server. DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 768
Feature: IGMP snooping
Security algorithms: EAP. LEAP. MD5. PEAP. SSH. SSL/TLS. TTLS
Feature: Loop protection
Feature: IP-MAC-Port binding
Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Product colour: Black
LED indicators: Activity. Link. Power. Speed
Electromagnetic compatibility: CE A. VCCI A. FCC A. IC. BSMI
Performance
Memory type: DDR3-SDRAM
Internal memory: 2048 MB
Flash memory: 64 MB
Noise level: 50.7 dB
Mean time between failures (MTBF): 589984.72 h
Power
Feature: Power supply included
AC input voltage: 100 - 240 V
Power consumption (max): 51.2 W
Operational conditions
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 174.592 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 210 mm
Height: 44 mm
Weight: 3.01 kg
Packaging data
Package width: 351 mm
Package depth: 565 mm
Package height: 91 mm
Package weight: 4.28 kg
Certificates
Certification: CB. UL. BSMI. CCC
