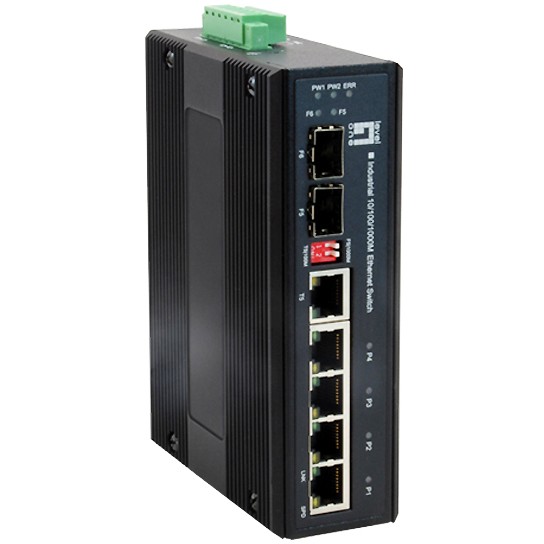

Switch 4x GE IES-0600 2xGSFP

Add to wishlist

Code: 22194722

Available from 4 to 10 days

Device Type	Switch - unmanaged
Enclosure Type	DIN rail mountable
Subtype	Gigabit Ethernet
Ports	4 x 10/100 + 1 x Gigabit SFP + 1 x combo Gigabit SFP
Performance	Forwarding performance: 1488000 pps Â¦ Backplane speed: 12 Gbps
MAC Address Table Size	1K entries
Jumbo Frame Support	10KB
Features	Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 1MB packet buffer
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Status Indicators	Link/activity
Expansion / Connectivity	Expansion / Connectivity
Interfaces	5 x 1000Base-T RJ-45 Â¦ 2 x 1000Base-X SFP
Power	Power
Voltage Required	DC 9 - 60 V
Miscellaneous	Miscellaneous
Compliant Standards	EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, EN 50121-4, IP30
Dimensions & Weight	Dimensions & Weight
Width	4 cm
Depth	10.5 cm
Height	3.8 cm
Weight	720 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	40 Â°C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	75 Â°C
Humidity Range Storage	5 - 95% (non-condensing)
