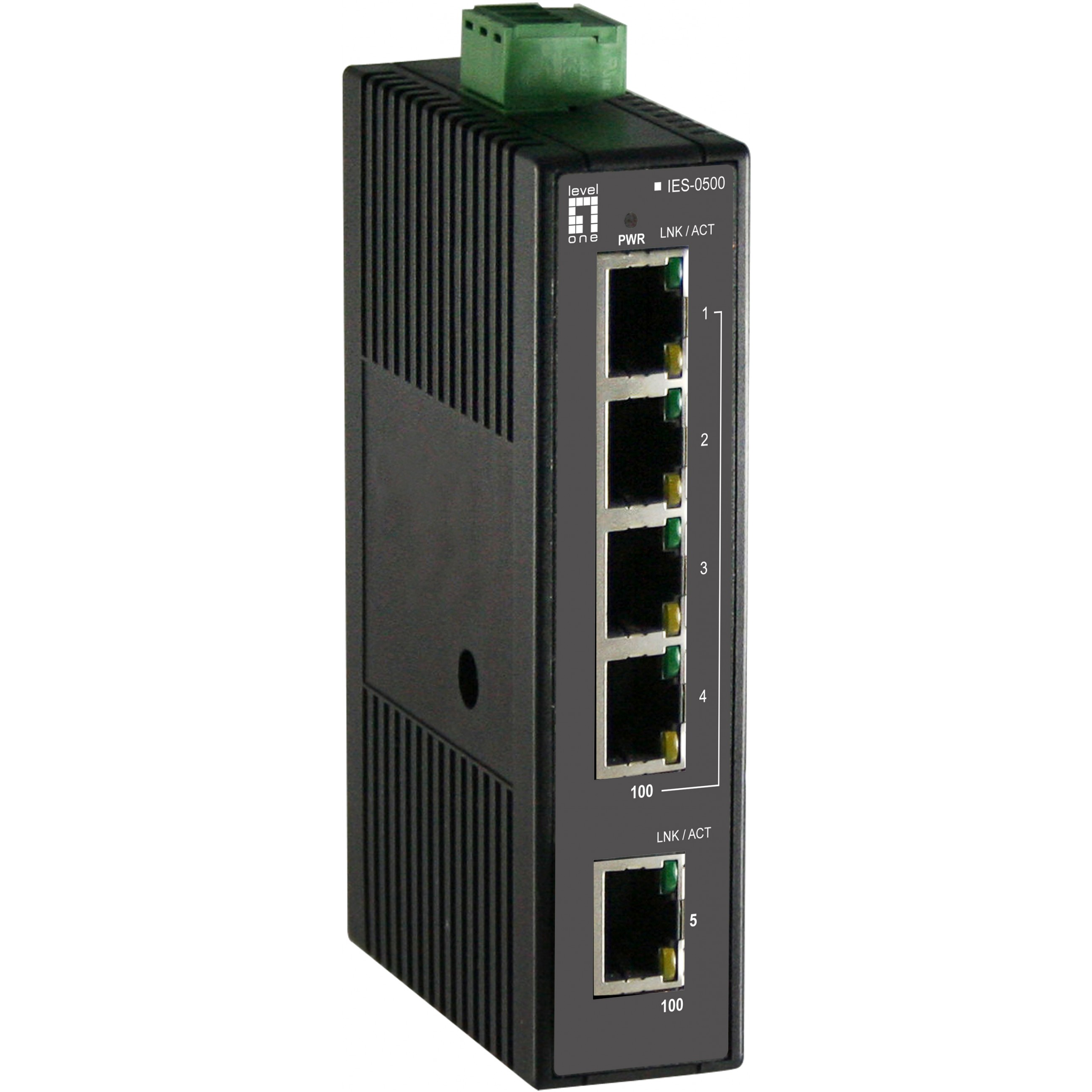

Switch 5x FE IES-0500

Product code: 11727422 // MPN: IES-0500 // EAN: 4015867181591

€135,90 (inc. VAT)

Available from 4 to 10 days (42 pcs available)

Add to wishlist

WAGO 852-1813/000-001 Lean-Managed-Switch 8 Port 1000Base-T 2-Slot 1000Base-SX/L

Code: 22548322

€1.327,65

Available from 4 to 10 days

Device Type	Switch - 5 ports - unmanaged
Enclosure Type	DIN rail mountable
Subtype	Fast Ethernet
Ports	5 x 10/100
Performance	Throughput: 148810 packets per second
MAC Address Table Size	2K entries
Features	Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, plastic housing, 384KB packet buffer
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Status Indicators	Port transmission speed, power, link/activity
Expansion / Connectivity	Expansion / Connectivity
Interfaces	5 x 100Base-TX RJ-45
Power	Power
Voltage Required	DC 12 - 48 V
Features	Power Polarity Reverse Protect, Overload Current Resetable Fuse
Miscellaneous	Miscellaneous
MTBF	191.53 years
Compliant Standards	Plug and Play, VCCI, ISO 9001, EN 61000-3-2, EN55022, EN 61000-3-3, UL 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, UL 60950-1, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IEC 60529 IP30
Software / System Requirements	Software / System Requirements
Software Included	Drivers & Utilities
Dimensions & Weight	Dimensions & Weight
Width	2.6 cm
Depth	7 cm
Height	11 cm
Weight	200 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-10 Â°C
Max Operating Temperature	60 Â°C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-25 Â°C
Max Storage Temperature	85 Â°C
