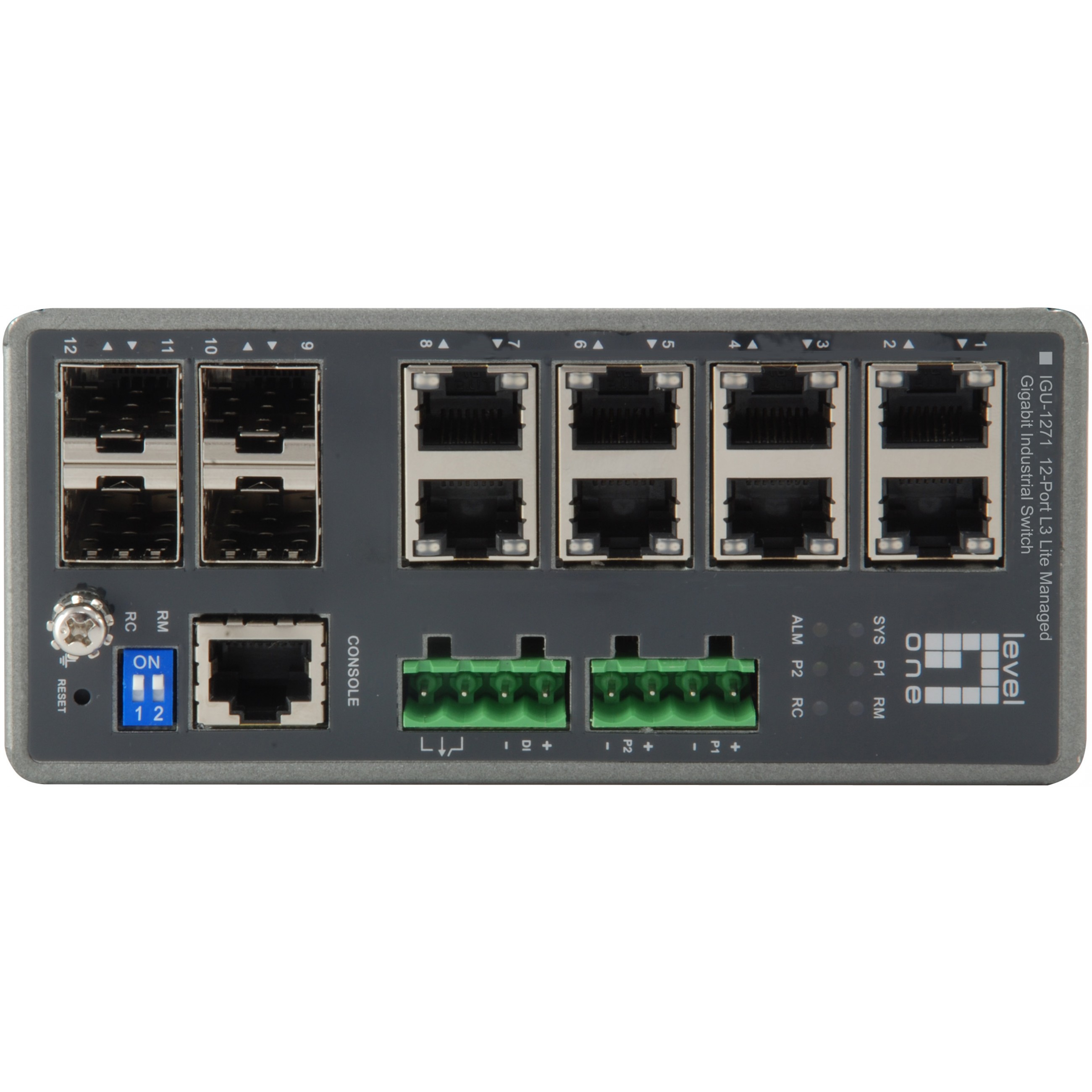

Switch 8x GE IGU-1271 4xGSFP 8xPoE
Product code: 11731422 // MPN: IGU-1271 // EAN: 4015867202661
€951,25 (inc. VAT)
Available from 4 to 10 days (3 pcs available)
Similar products
| Device Type | Switch - 12 ports - L3 Lite - Managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching bandwidth: 24 Gbps ¦ Packet forwarding rate: 17.856 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SMTP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | VLAN support, Syslog support, port mirroring, store and forward, MAC address filtering, IPv6 support, firmware upgradable, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, reset button, STP Root Guard, IPv4 support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, 500KB packet buffer, loop prevention, 802.1x authentication, Ethernet Ring Protection Switching (ERPS), Storm Control, IP source guard, MAC address authentication, Network Timing Protocol (NTP), LLDP-MED, BPDU Guard, Support Operations, Administration, and Maintenance (OAM) mechanism |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, ITU-T Y.1731 |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port status, power, system, alarm, ring master, coupling |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 4 x Gigabit LAN SFP ¦ 1 x console RJ-45 |
| Power | Power |
| Voltage Required | DC 12 - 48 V |
| Miscellaneous | Miscellaneous |
| Included Accessories | DIN-rail mounting kit |
| Cables Included | 1 x console cable |
| Compliant Standards | UL, CB, FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.2 cm |
| Depth | 13 cm |
| Height | 13.5 cm |
| Weight | 680 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Brand: | Level One |
