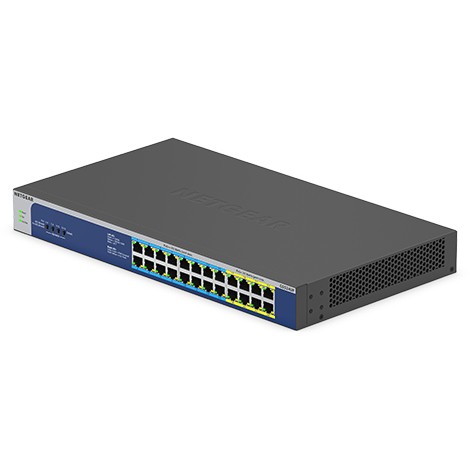

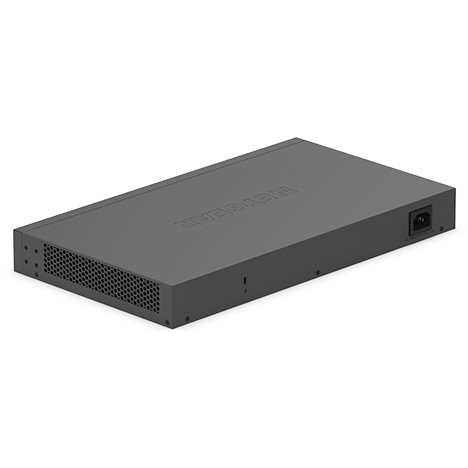

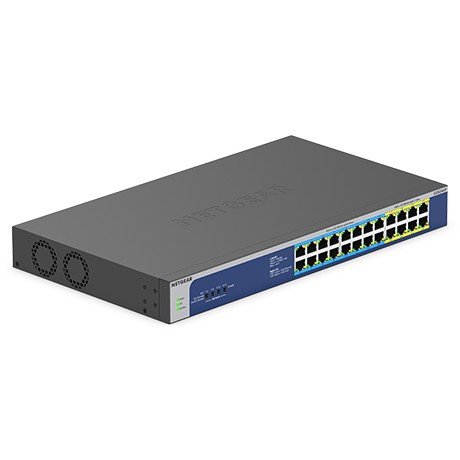

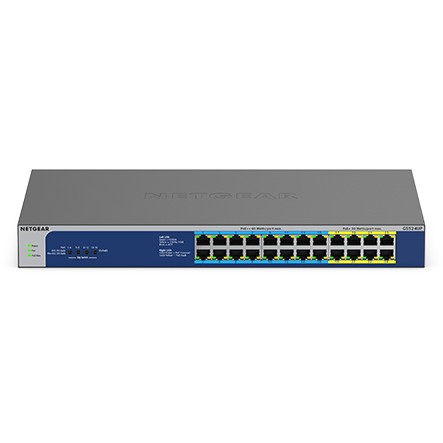

24-PORT GB UNMGD POE ++ SWITCH

Product code: 11759422 // MPN: GS524UP-100EUS // EAN: 0606449149777

€655,55 (inc. VAT)

Available from 4 to 10 days (25 pcs available)

Add to wishlist

PLANET Industrial L2+ 8-Port 10/100/1000T 802.3at PoE +

Code: 22917822

€895,40

Available from 4 to 10 days

Device Type	Switch - 24 ports - unmanaged
Enclosure Type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 16 x 10/100/1000 (PoE++)
Power Over Ethernet (PoE)	PoE++
PoE Budget	480 W
Performance	Non-blocking switching throughput: 48 Gbps ¦ Forwarding rate (1000Mbps): 1448000 packets per second ¦ Latency (64-byte packets): 12 µs
MAC Address Table Size	8K entries
Jumbo Frame Support	9216 bytes
Features	Auto-negotiation, auto-uplink (auto MDI/MDI-X), 192KB packet buffer, Class of Service (CoS), metal housing, DiffServ Code Point (DSCP) support, 2 fans, Weighted Round Robin (WRR)
Compliant Standards	IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Status Indicators	Power, PoE, link/activity, fan
Interfaces	24 x 10/100/1000 Base-T RJ-45 16 ports (PoE++)/8 ports (PoE+) - 60 W
Power Device	Internal power supply
Installed Qty	1
Voltage Required	AC 100 - 230 V (50/60 Hz)
Power Consumption Operational	578.8 Watt
Power Consumption Stand by	24.4 Watt
Included Accessories	Rubber feet
Rack Mounting Kit	Included
MTBF	809853.3 hours
Compliant Standards	Plug and Play, IEC 60950-1, BSMI CNS 14336-1, IEC 62368-1, EN 62368-1 Second Edition, UL 62368-1, EN60950-1 (2nd Edition), AS/NZS 62368.1
Localisation	Asia Pacific, United Kingdom, Europe
Width	39 cm
Depth	22 cm
Height	4.3 cm
Weight	3.1 kg
Service & Support	Limited warranty - lifetime
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	10 - 95% (non-condensing)
