M4250-8G2XF-POE+ 220W FULLY

Product code: 11764622 // MPN: GSM4210PX-100EUS // EAN: 0606449160222

€1.493,65 (inc. VAT)

Available from 4 to 10 days (5 pcs available)

Add to wishlist

Industrie Gigabit Ethernet Switch 4 Port RJ45 2 Port SFP für Hutschiene

Code: 21636022

€215,25

Available from 4 to 10 days

Device Type	Switch - 10 ports - L3 - Managed
Enclosure Type	Side to side airflow rack-mountable
Subtype	10 Gigabit Ethernet

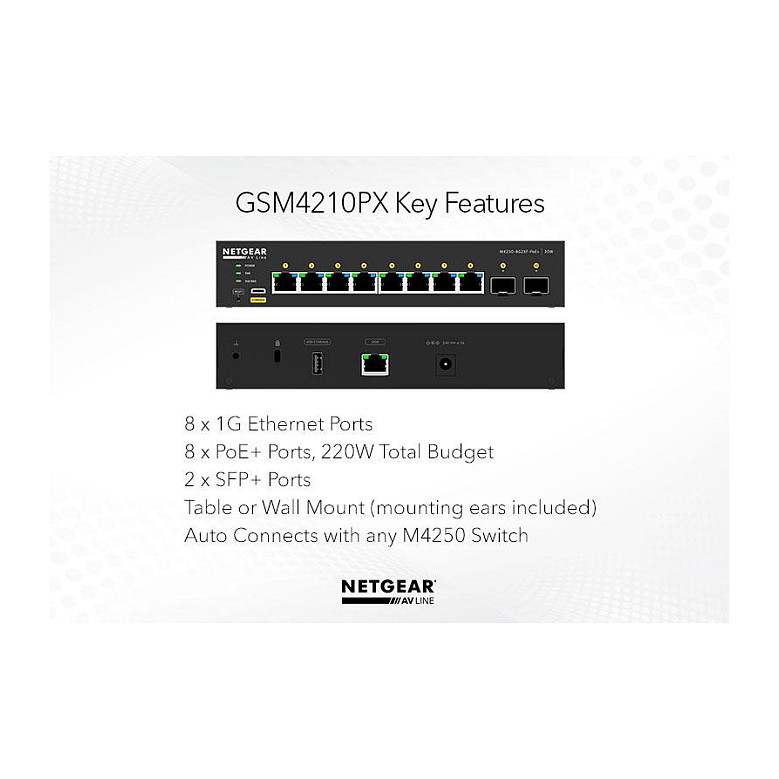

Ports	8 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	220 W
Performance	Switching capacity: 56 Gbps ¦ Throughput (64-byte packet size): 41.67 Mpps ¦ Latency (1 Gbps): < 2.14 µs ¦ Latency (10 Gbps): < 0.84 µs
Capacity	VLANs supported: 4093 ¦ ARP entries: 4000 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 128 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ MSTP instances: 16 ¦ PVST instances: 32
MAC Address Table Size	16K entries
Jumbo Frame Support	12KB
Routing Protocol	RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTPS, SSH, CLI, TACACS+, RADIUS
Encryption Algorithm	SSL 3.0, TLS 1.2
Features	VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), LACP support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, Precision Time Protocol (PTP), IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), Root Guard, LLDP-MED, Private VLAN, PoE timer, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG), IGMP support, MIB support, Mount Smart Phone (MTP)
Compliant Standards	IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Processor	X ARM A9: 1.25 GHz
RAM	2 GB
Flash Memory	256 MB
[Expansion / Connectivity]
Interfaces	8 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) ¦ 2 x 10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 1 x console (USB) Type C
[Power]
Power Device	External power adapter
Installed Qty	1
[Miscellaneous]
Included Accessories	Mounting brackets, foot pad set, 2 x SFP slot caps
Cables Included	USB-C to USB-A cable
Rack Mounting Kit	Included
Compliant Standards	CSA, BSMI, CB, CCC, KC, IEC 60950-1 Second Edition, EAC, RCM, IEC 62311, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN32 Class A, KN35 Class A, ISED, EN 55032:2015 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, EN 55035:2017, GOST 30804.3.2-2013, GOST 30804.3.3-2013, GB/T9254-2008 Class A, ANSI C63.4:2014, IEC 62368-1 Second Edition, ICES-003:2016 issue 7 Class A, GOST 30805.22-2013, GOST CISPR 24-2013
Localisation	Europe
[Dimensions & Weight]
Width	21 cm
Depth	14 cm
Height	4 cm
Weight	967 g
[Manufacturer Warranty]
Service & Support	Limited warranty - lifetime
[Environmental Parameters]
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	95% (non-condensing)
