SWITCHES

The DGS-1008D 8-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings. reduces heat. and a longer product life without sacrificing performance or functionality.

The DGS-1008D 8-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings. reduces heat. and a longer product life without sacrificing performance or functionality. DGS-1008D provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (Energy Star Level V qualified). minimised use of harmful substances (RoHS compliant). and recyclable packaging make this switch truly environmentally friendly.

Fast and Reliable Networking

The D-Link DGS-1008D 8-Port Gigabit Desktop Switch creates a blazing fast network for your office. as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008D also features QoS. which prioritises network traffic so that time-sensitive data is delivered efficiently. even during bursts of high data traffic. It’s stylish. easy-to-use. and comes IPv6-ready for a reliable network today and tomorrow.

Conserve Energy

The 8-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link. allowing the switch to save a substantial amount of power by cutting power usage for unused ports. It also adjusts the amount of power supplied to a port according to the length of the connected Ethernet cable.

Environmentally-friendly

The 8-Port Gigabit Desktop Switch was designed with the environment in mind. and is compliant with Energy Star Level V. as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimise the use of hazardous materials. and uses recyclable packaging that helps reduce waste. complying with the WEEE directive.

Management features
Switch type: Unmanaged
Switch layer: L2
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u
Feature: Full duplex
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: MAC address auto-learning supported
Data transmission
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 0.128 MB
Design
Product colour: Black
Housing material: Plastic
Feature: LED indicators
Performance
Mean time between failures (MTBF): 1142330 h
Power

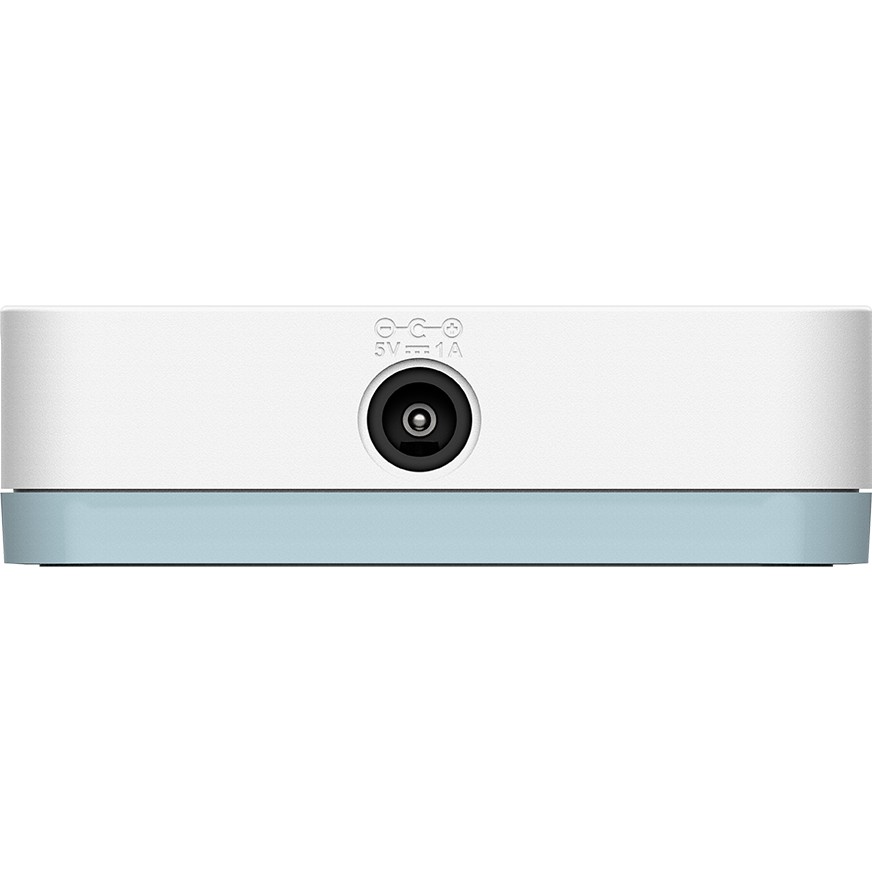

DC input voltage: 5 V
Input current: 1 A
Power consumption (max): 2.01 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 111 mm
Depth: 75 mm
Height: 30 mm
Weight: 80 g
Packaging content
Feature: Manual
Logistics data
Harmonized System (HS) code: 85176990
