RANGE EXTENDERS

What This Product Does
TP-LINK's TL-WA854RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”. With 300Mbps wireless N speeds. Range Extender button. miniature size and wall mounting design. extending a wireless network has never been easier.

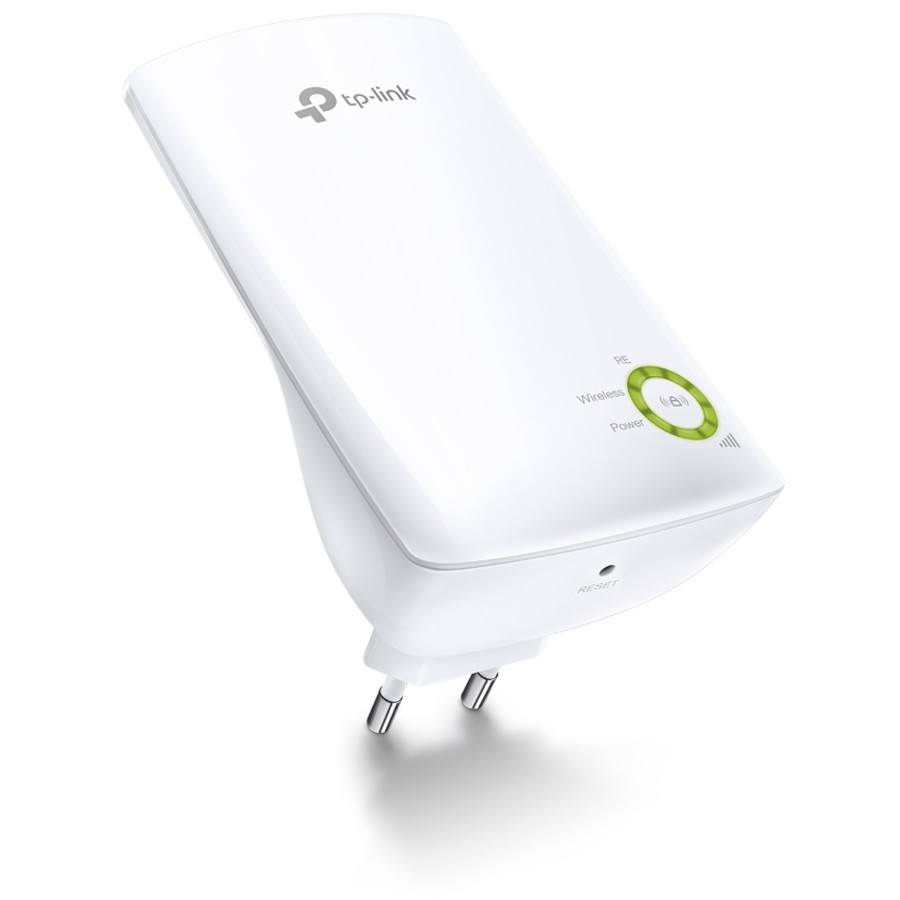

300Mbps Range Extender
The TL-WA854RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”. help users maintain an existing wireless network and vastly improve the network’s coverage. With 300Mbps wireless 802.11n speeds. it is ideal for smooth HD video. music streaming and online gaming.

Flexible Deployment
The device's miniature size and wall-mounted design make it easy to deploy and move flexibly. What's more. the TL-WA854RE's profile function remembers previously paired wireless networks. meaning there is no need to reset the device when changing the paired router.

Plug and Play
With no new wires or cables. within range of their existing wireless network. users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA854RE or vice versa. An additional push of the pair button can quickly establish an encrypted connection with client devices.

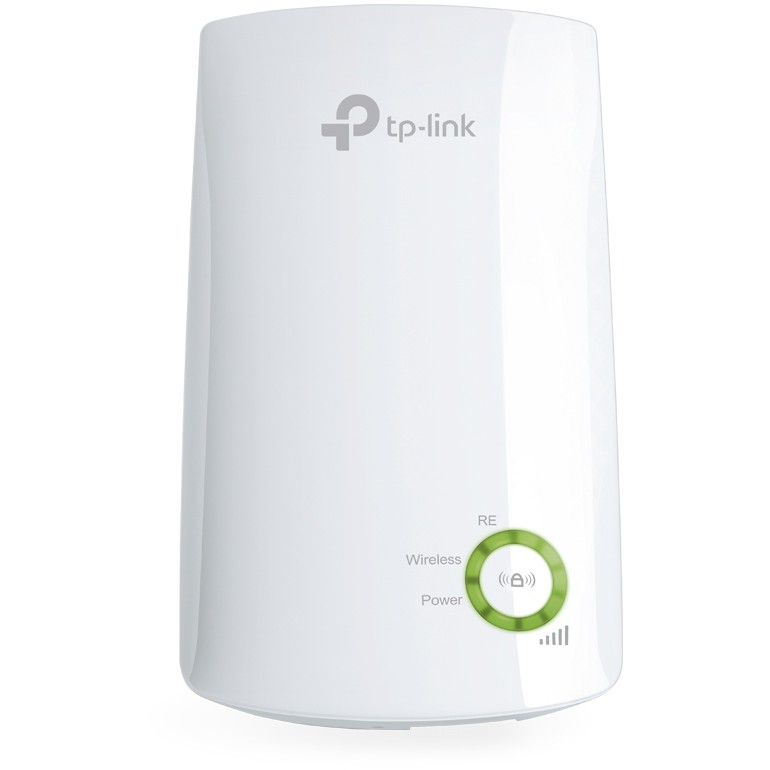

Smart Signal Indicator Light
5 signal lights represent the current signal strength that TL-WA854RE receives from existing router. which can help to find the right location to place the range extender so that the TL-WA854RE can achieve the best possible range and performance of the network.

Performance
Type: Network repeater
Data transfer rate: 300 Mbit/s
Ethernet LAN data rates: 10.100 Mbit/s
Feature: WPS push button
Feature: Windows operating systems supported
Feature: Mac operating systems supported
Feature: Linux operating systems supported
Antenna
Antennas quantity: 2
Antenna type: Internal
Transmitting power (CE): 15 dBm
Network
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11b. IEEE 802.11g. IEEE 802.11n
Feature: Wi-Fi
Wi-Fi standards: 802.11b. 802.11g. Wi-Fi 4 (802.11n)
Wi-Fi data rate (max): 300 Mbit/s
Wi-Fi band: Single-band (2.4 GHz)
Security algorithms: 64-bit WEP. 128-bit WEP. WPA-PSK. WPA2-PSK
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Design
Product colour: White
Feature: LED indicators
Quantity per pack: 1 pc(s)
Certification: CE. RoHS
Power
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 3.3 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 65.8 mm
Depth: 75.2 mm
Height: 110 mm
Packaging data
Package width: 156.5 mm
Package depth: 101.5 mm
Package height: 89 mm
Package weight: 180 g
Logistics data
Harmonized System (HS) code: 85176990
