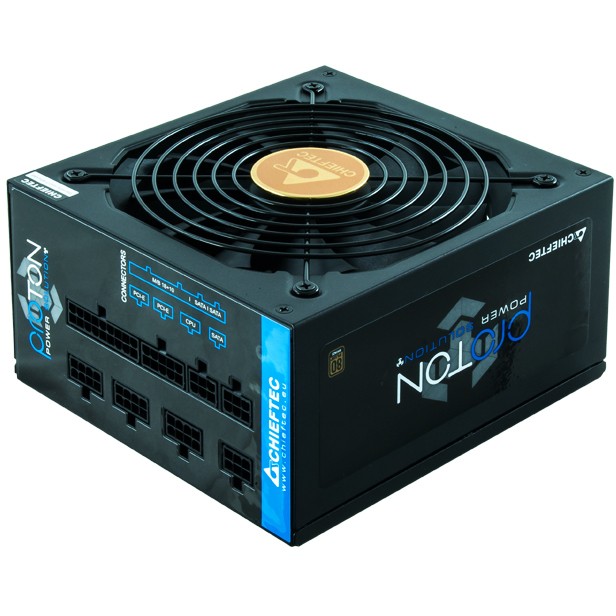

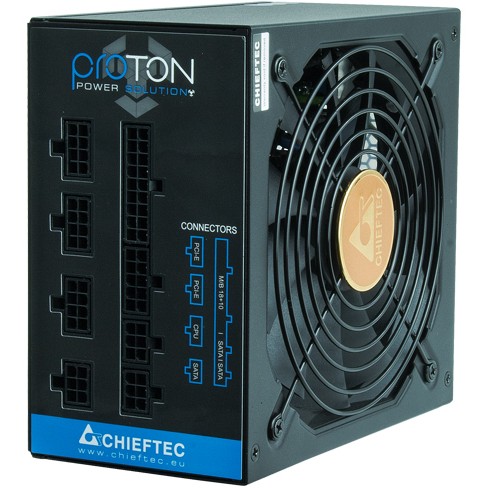

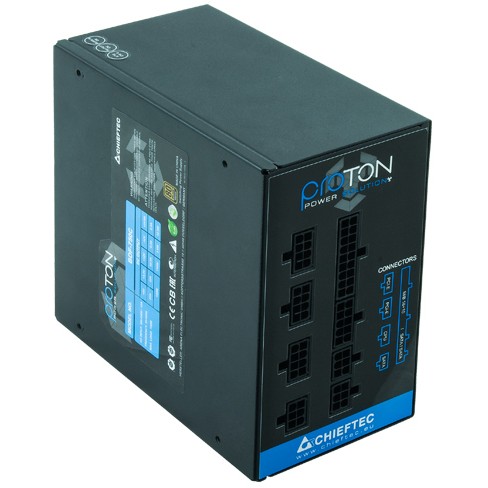

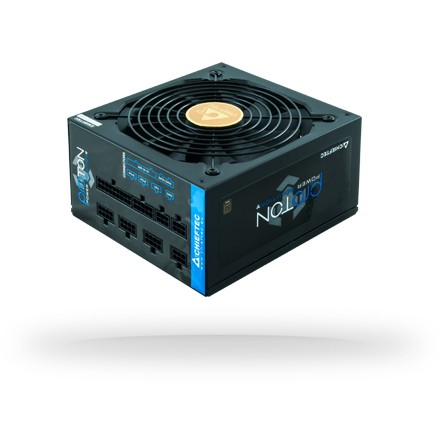

POWER SUPPLY (PSU)

With the PROTON Series. CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation. as well as a much higher efficiency and power stability. which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5.0 and higher requirements as stipulated by the EU.

Power
Total power: 650 W
AC input voltage: 115 - 230 V
AC input frequency: 50 - 60 Hz
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Max output current (+3.3V): 22 A
Max output current (+12V): 54.2 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 85%
Power protection features: Over current. Over voltage. Overheating. Overload. Short circuit. Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 4
Feature: CPU power connector (4+4 pin)
Feature: Floppy disk drive connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3
Design
Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Packaging data
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
Feature: Warranty card
