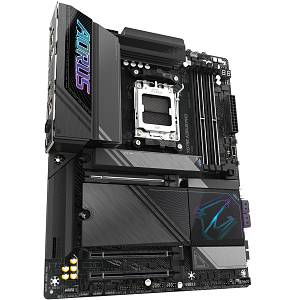

AM5 Gigabyte X870E AORUS PRO ATX
Product code: 12702522 // MPN: X870E AORUS PRO // EAN: 4719331864866
€400,50 (inc. VAT)
Available from 4 to 10 days (28 pcs available)
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS. AERO. and GIGABYTE. Featuring innovative designs and advanced features. these boards offer exceptional performance and reliability. Whether you're a gamer. content creator. or professional. our series cater to your needs. ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 256 GB
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400.4800.5600.6000.6400.6600.6666.6800.7000.7200.7800.8000.8200 MHz
Supported memory clock speed (max): 8200 MHz
Maximum internal memory: 256 GB
Supported memory module capacities: 1GB. 2GB. 4GB. 8GB. 12GB. 24GB. 32GB
Feature: Unbuffered memory
Maximum internal memory per slot: 64 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2. SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
Feature: RAID support
RAID levels: 0. 1. 10
Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 6
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 1
Feature: TPM connector
Number of water pump connectors: 2
Feature: RGB LED pin header
Number of RGB LED pin headers: 4

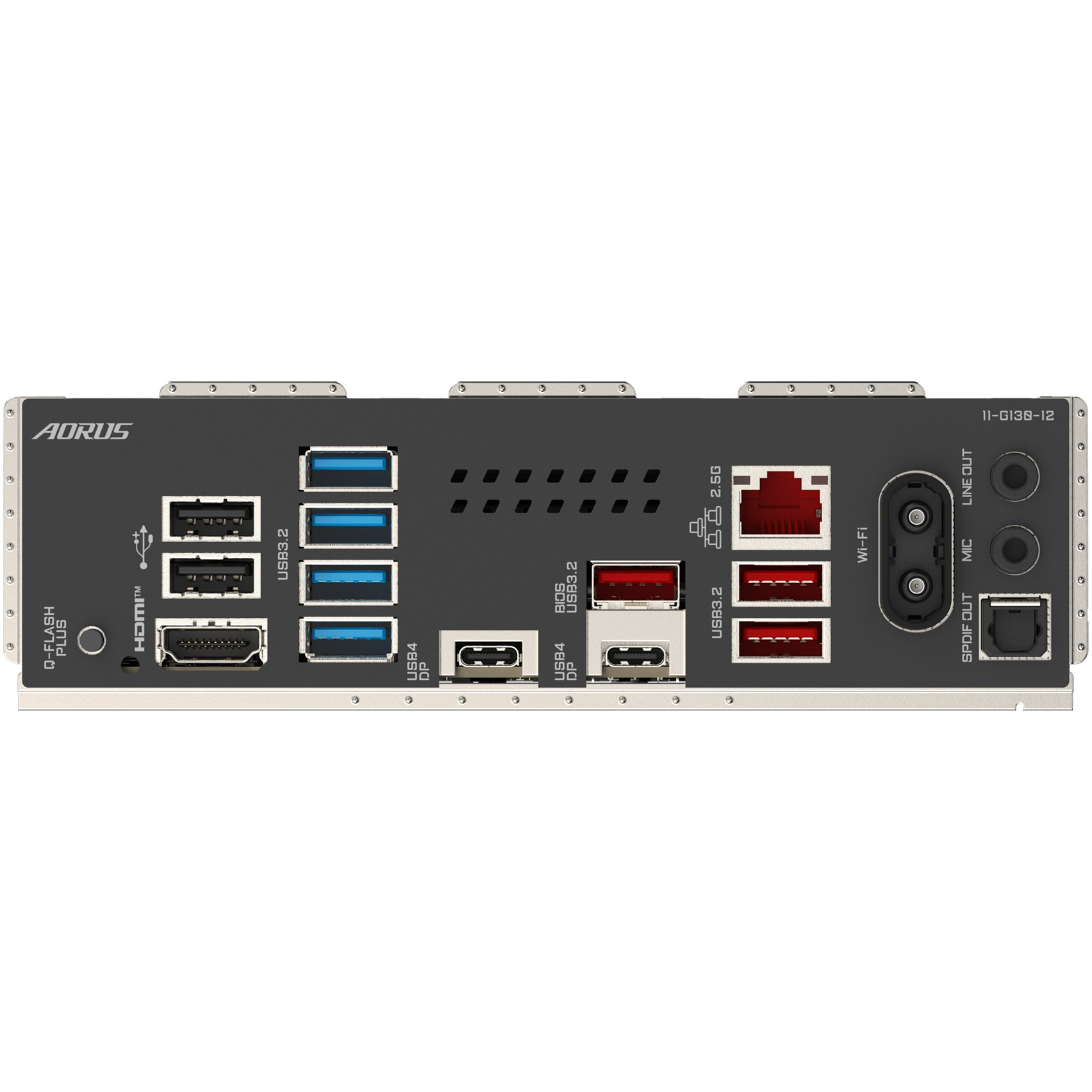

Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB4 Gen 2x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Microphone in
Feature: S/PDIF out port
WiFi-AP antenna jack: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Qualcomm QCNCM865
Feature: Bluetooth
Bluetooth version: 5.3
Features
Motherboard chipset: AMD X870E
Audio chip: Realtek ALC1220
Audio output channels: 7.1 channels
Product colour: Black
PC health monitoring: Fan. Temperature. Voltage
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x4 slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
4th M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Feature: Clear CMOS button
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 345 mm
Package depth: 294 mm
Package height: 80 mm
Package weight: 2.74 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Packaging content
Feature: Batteries included
Feature: Antenna included
Feature: Screws included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Other features
Weight: 2.4 kg
Technical details
Warranty period: 3 year(s)
Specifications
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2200 MHz, 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Qualcomm QCNCM865 |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out 2 x aerial 4 x USB 3.2 Gen 1 3 x USB 3.2 Gen 2 2 x USB4/DisplayPort 1 x HDMI 2 x USB 2.0 |
| Internal Interfaces | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection |
| Hardware Features | 16+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, VRM Thermal Armor Advanced, pre-mounted I/O shield, M.2 Thermal Guard L, M.2 Thermal Guard Ext., RGB FUSION 2.0, EZ Plug, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, Ultra Durable PCIe Armor, 80A Smart Power Stage |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Compliant Standards | HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Details | Box |
| Brand: | Gigabyte |
