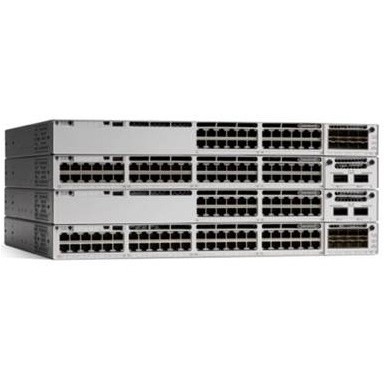

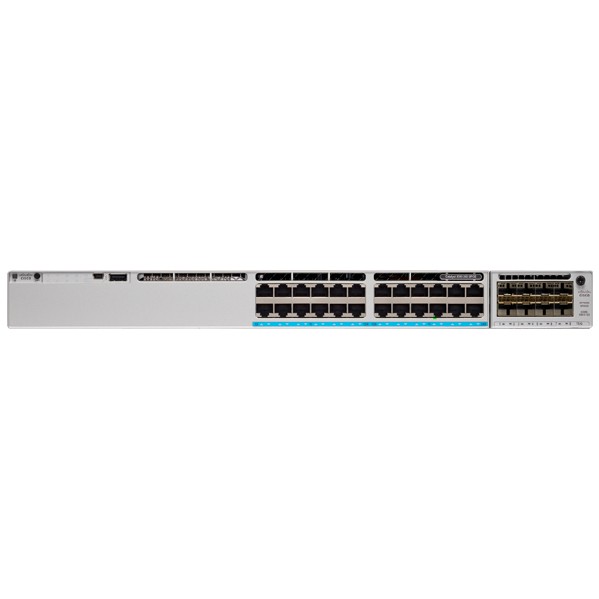

Cisco CATALYST 9300L 24P POE NETWORK

Product code: 12819222 // MPN: C9300L-24P-4X-A // EAN: 0889728174572

€7.799,70 (inc. VAT)

Available from 4 to 10 days (32 pcs available)

Add to wishlist

12P Allnet ALL-SG9312M-10G M

Code: 12661222

€641,95

Available from 4 to 10 days

Device Type	Switch - 24 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	505 W
Performance	Switching capacity: 128 Gbps Â¦ Stacking bandwidth: 320 Gbps Â¦ Switching capacity with stacking: 448 Gbps Â¦ Forwarding rate: 95.23 Mpps Â¦ Forwarding rate with stacking: 333.33 Mpps
Capacity	IPv4 routes: 32000 Â¦ IPv6 routes: 16000 Â¦ Multicast scale: 8000 Â¦ QoS scale entries: 5120 Â¦ ACL scale entries: 5120 Â¦ VLANs supported: 4094 Â¦ FNF entries: 64000 Â¦ Switched virtual interfaces (SVIs): 1000 Â¦ Packet buffer size: 16 MB Â¦ Virtual networks: 64
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Encryption Algorithm	128-bit AES, 256-bit AES
Features	Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
RAM	8 GB
Flash Memory	16 GB
Built-in Devices	RFID tag
Status Indicators	Status
Expansion / Connectivity	Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 Â¦ 4 x 10GBase-X SFP+ uplink Â¦ 1 x network stack device Â¦ 1 x management (LAN) RJ-45 Â¦ 1 x console Â¦ 1 x USB 2.0
Power	Power
Power Device	Internal power supply - hot-plug
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50 - 60 Hz)
Miscellaneous	Miscellaneous
MTBF	340,710 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04
Dimensions & Weight	Dimensions & Weight
Width	44.5 cm
Depth	4.4 cm
Height	48.8 cm
Weight	6.81 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Â¦ Technical support - consulting - 90 days
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-5 Â°C
Max Operating Temperature	45 Â°C
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	70 Â°C
Humidity Range Storage	5 - 90% (non-condensing)
