| Product Type |

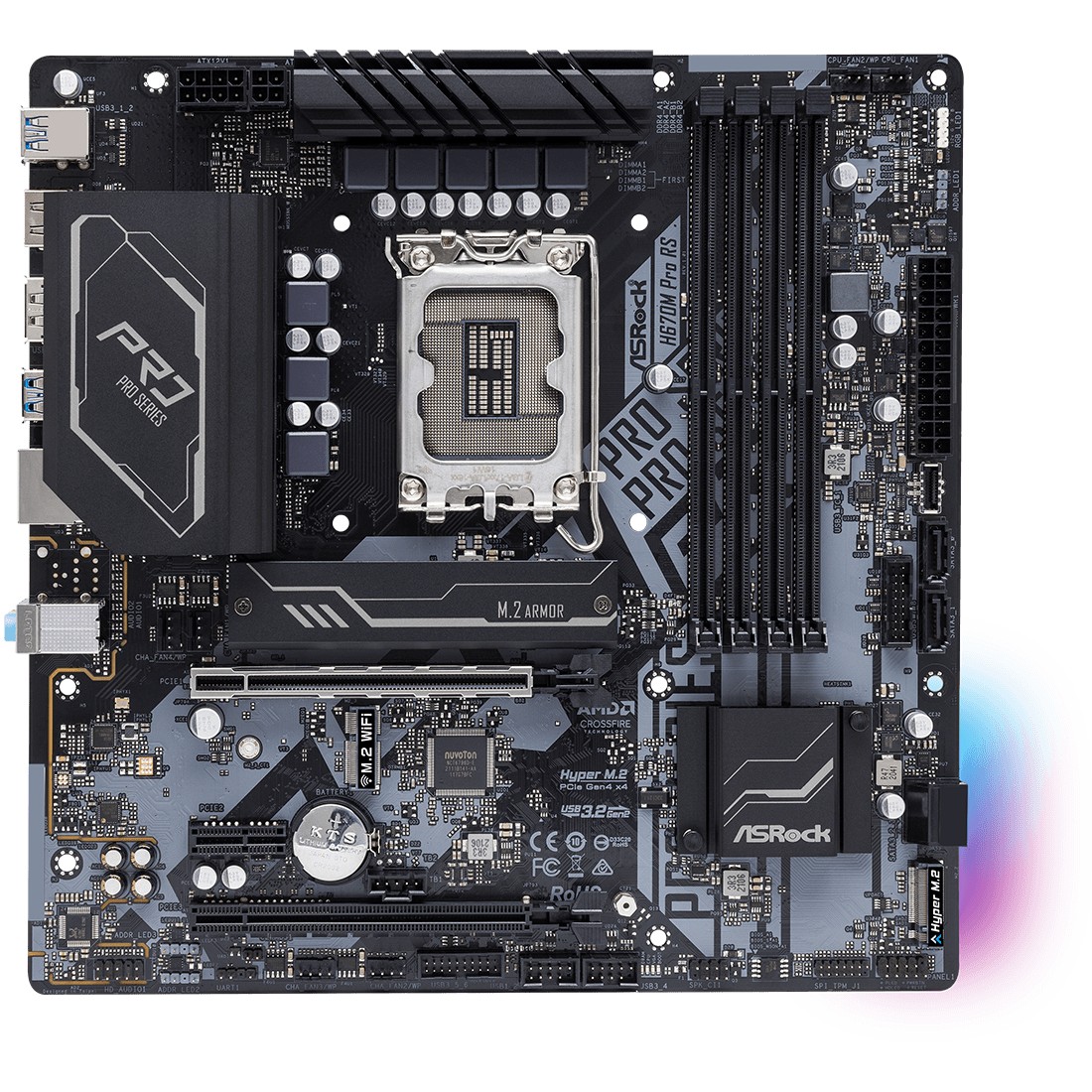

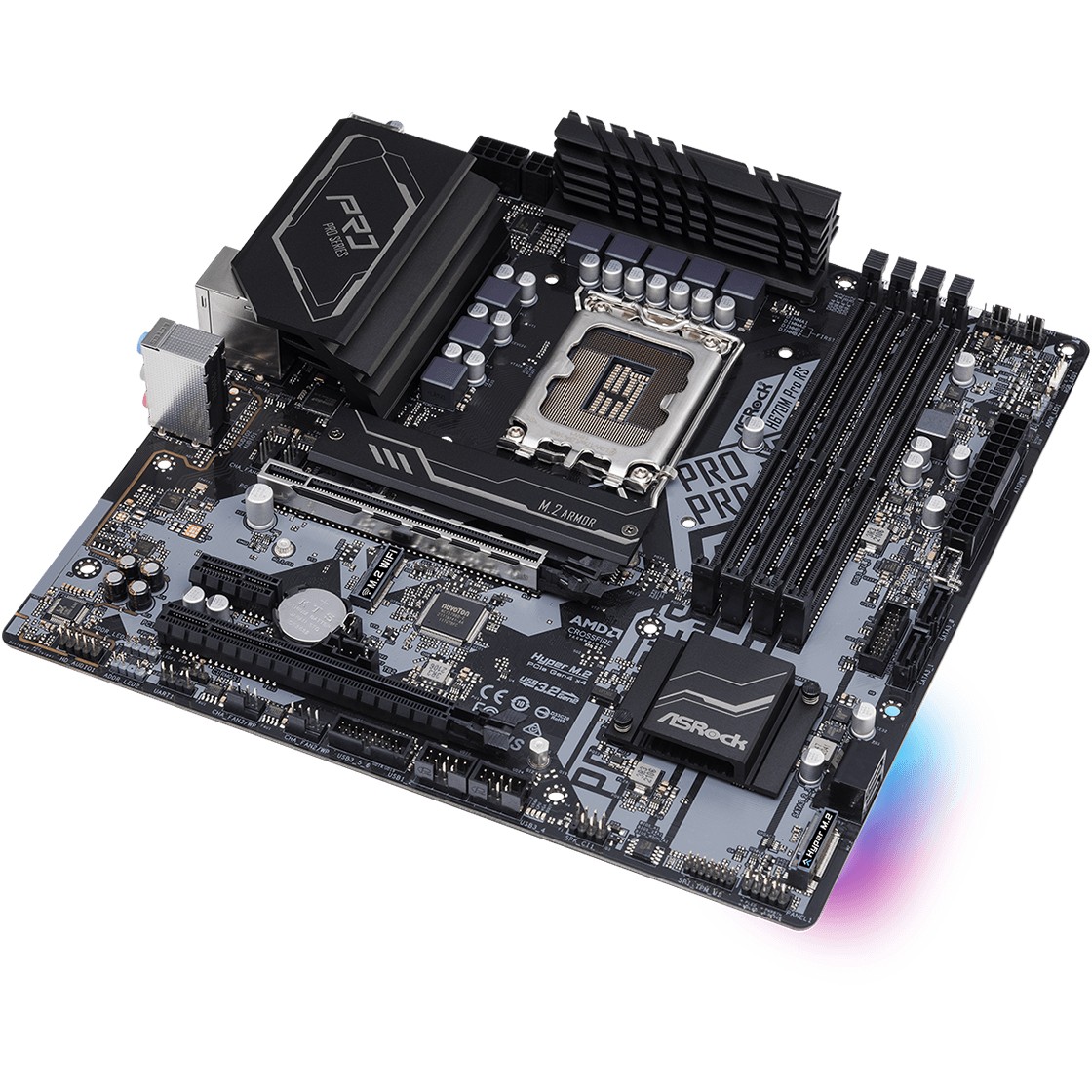

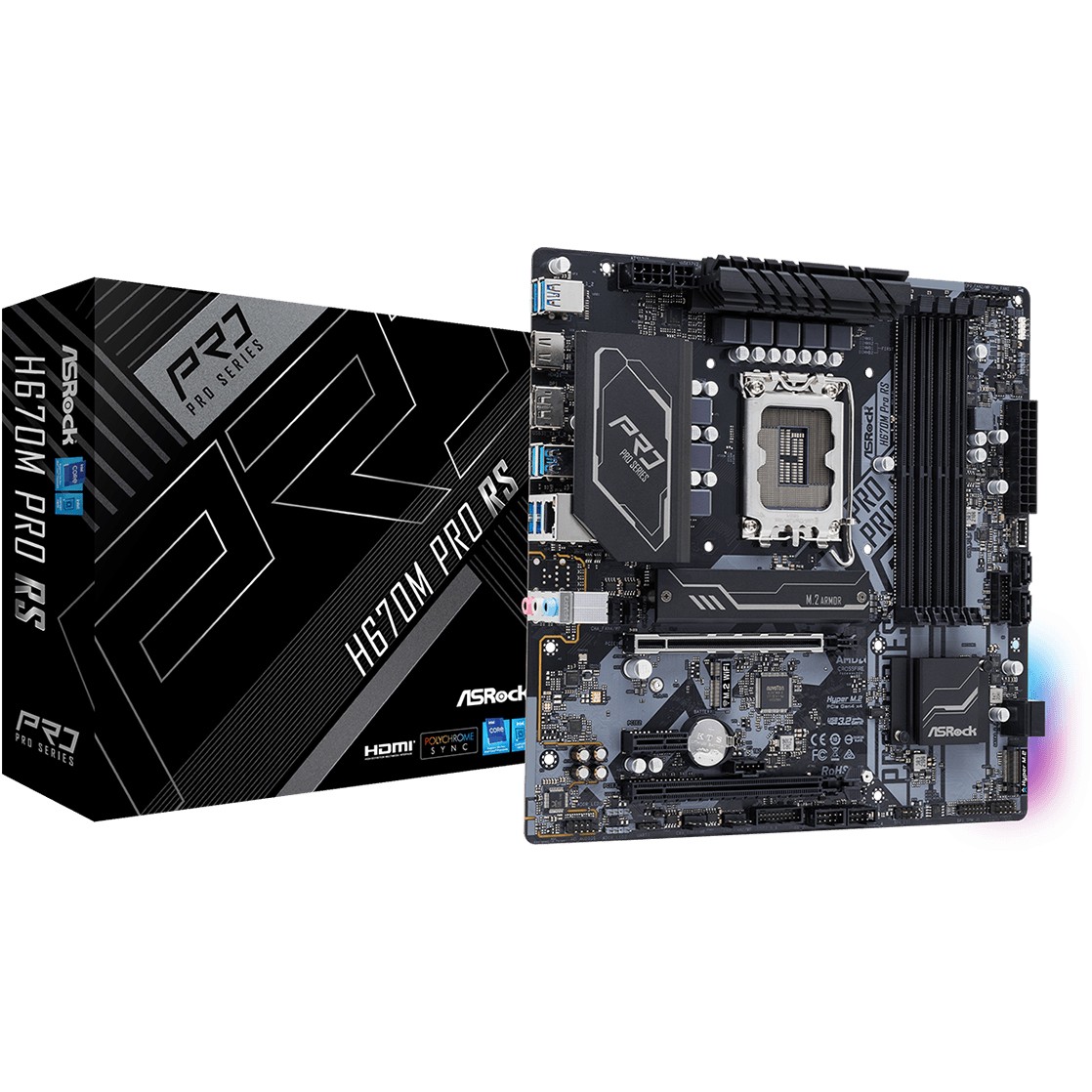

Motherboard - micro ATX |
| Chipset Type |
Intel H670 |
| Processor Socket |
LGA1700 Socket |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports 12th Generation Intel Core) |
| Supported RAM |
Supported RAM |
| Max Size |
128 GB |
| Technology |
DDR4 |
| Bus Clock |
4800 MHz (O.C.) |
| Supported RAM Integrity Check |
Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered |
Unbuffered |
| Features |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Audio |
Audio |
| Type |
HD Audio (8-channel) |
| Audio Codec |
Realtek ALC897 |
| Compliant Standards |
High Definition Audio |
| LAN |
LAN |
| Network Controller |
Intel I219V |
| Network Interfaces |
Gigabit Ethernet |
| Expansion / Connectivity |
Expansion / Connectivity |
| Expansion Slots |
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) ¦ 1 x PCIe 3.0 x16 (x4 mode) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces |
1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces |
4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x USB-C Gen 1 - header ¦ 4 x USB 2.0 - header |
| Power Connectors |
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features |
Features |
| BIOS Type |
AMI |
| BIOS Features |
Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| Hardware Monitoring |
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up |
Wake on LAN (WOL) |
| Hardware Features |
ASRock Instant Flash, 7 Phase Power Design, AMD CrossFireX technology support, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock USB 3.2 Gen2, Intel Hybrid Technology |
| Miscellaneous |
Miscellaneous |
| Included Accessories |
I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
| Cables Included |
2 x Serial ATA cable |
| Software Included |
Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN, ASRock Polychrome SYNC |
| Compliant Standards |
FCC, EuP Ready, ErP Ready |
| Width |
24.4 cm |
| Depth |
24.4 cm |
