| Product Type |

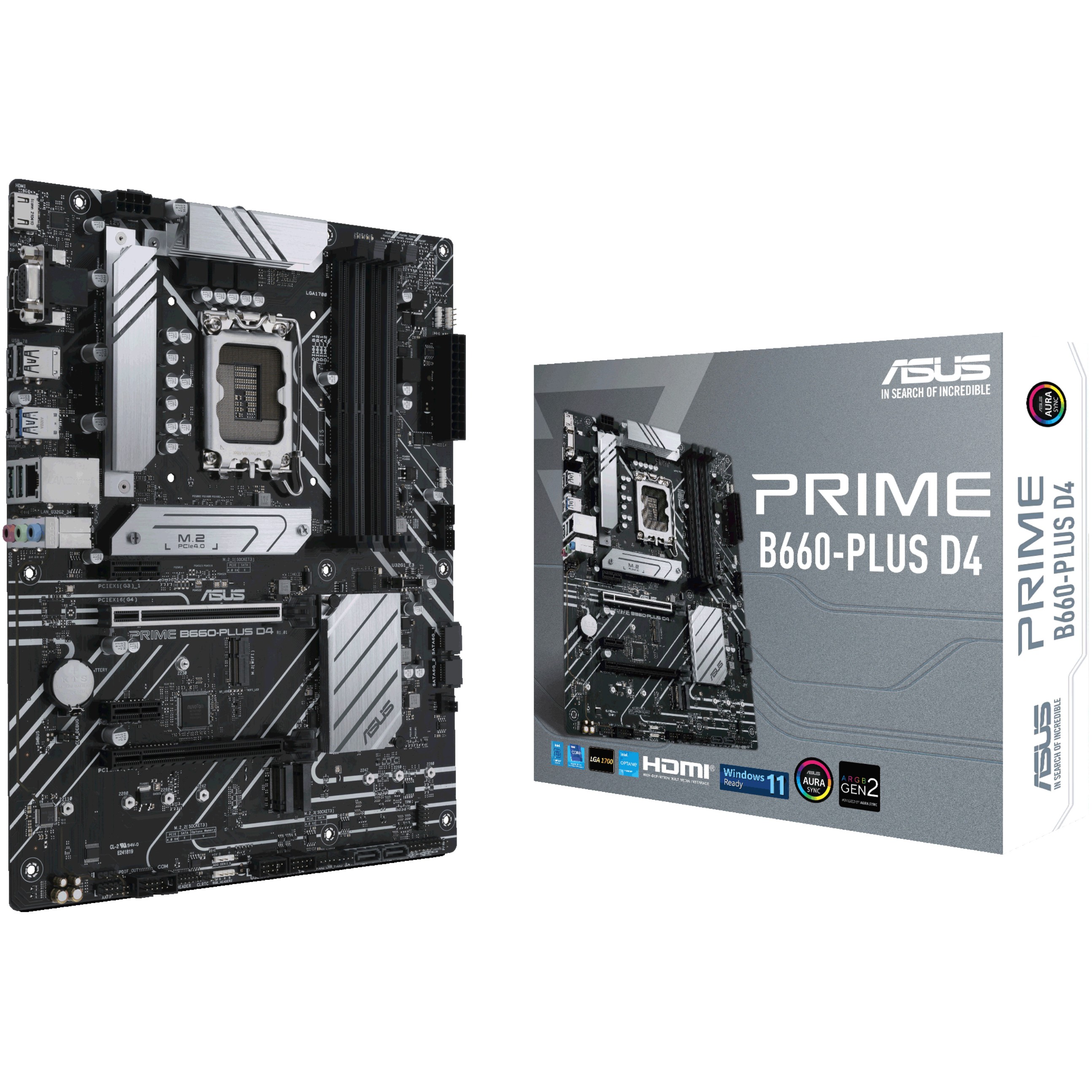

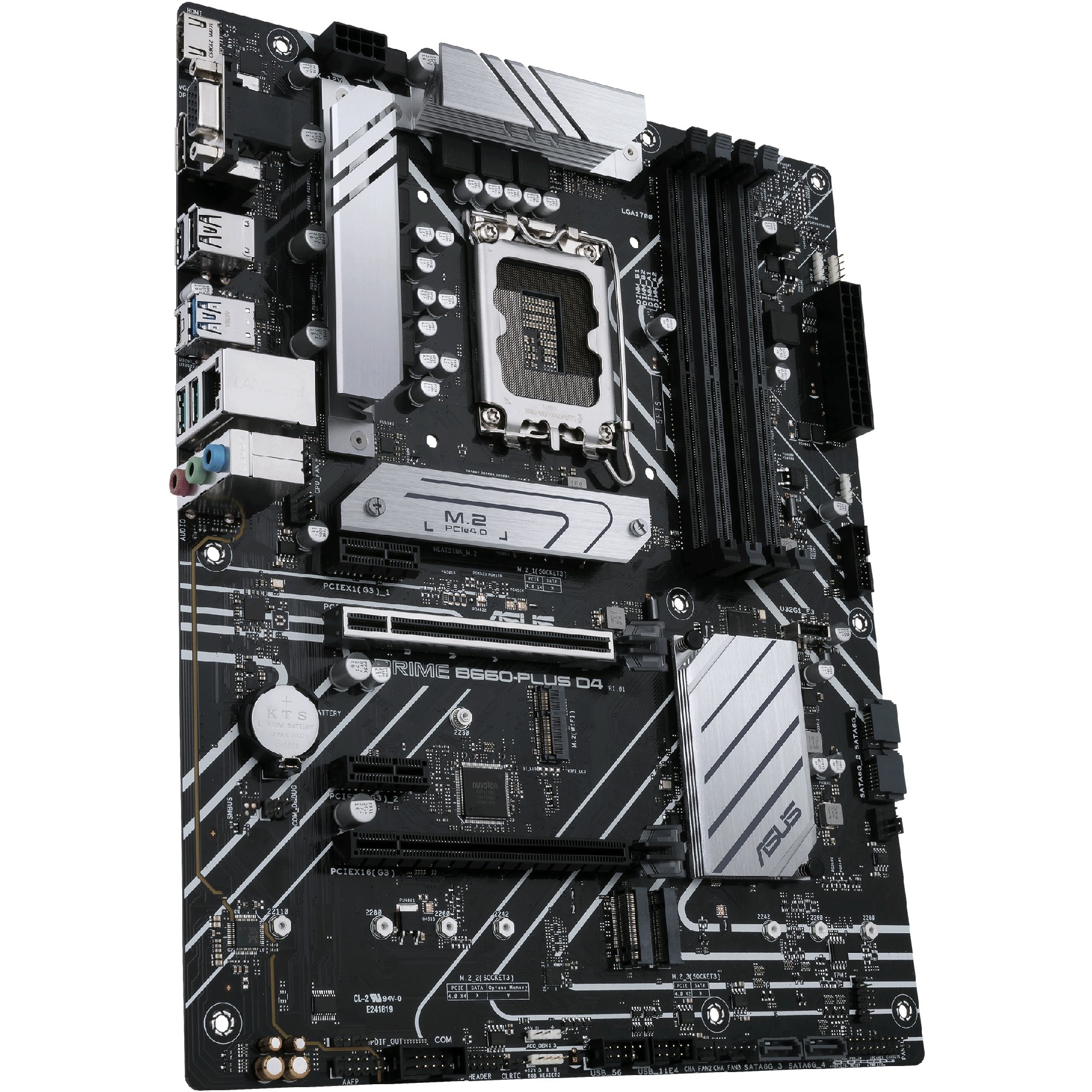

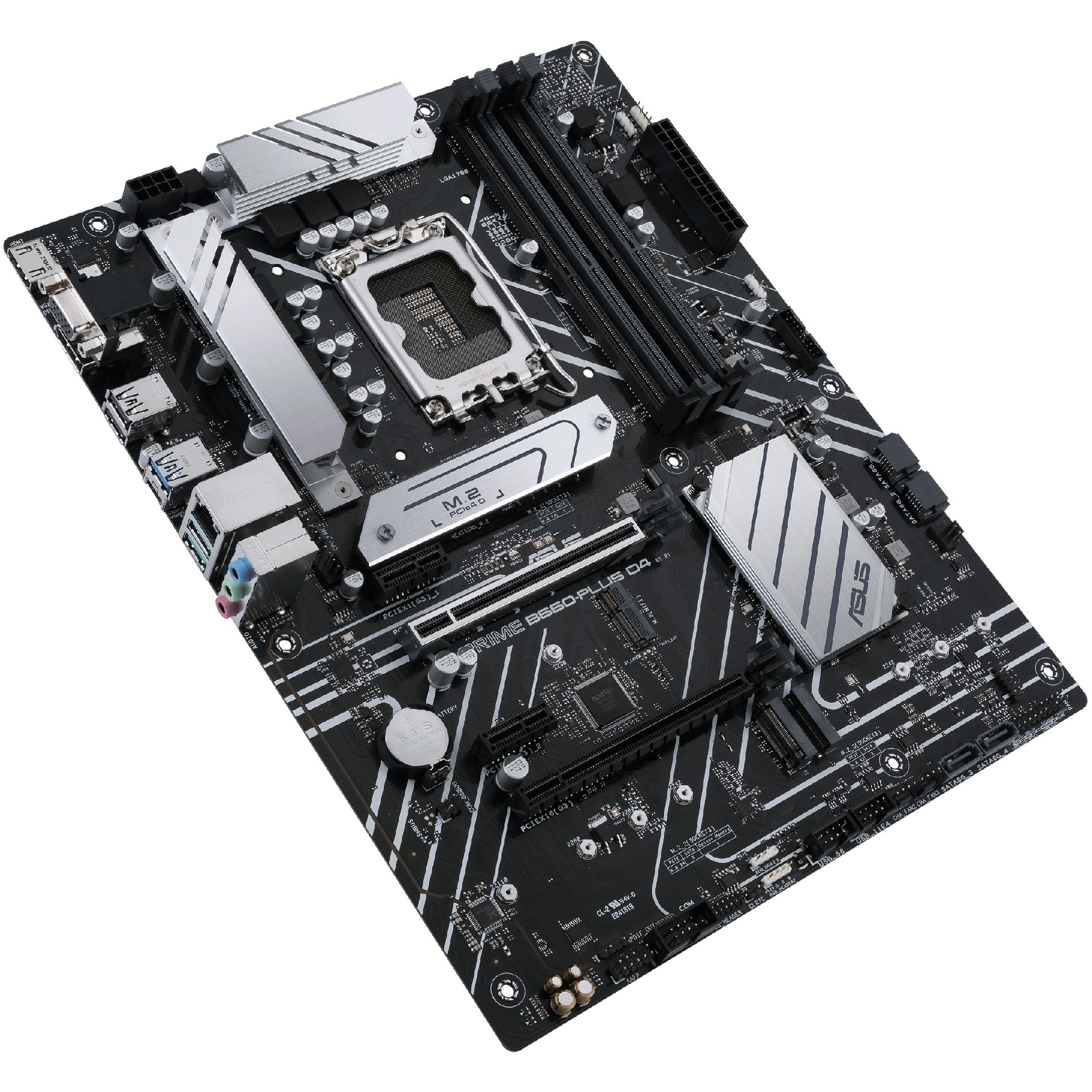

Motherboard - ATX |
| Chipset Type |
Intel B660 |
| Processor Socket |
LGA1700 Socket |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size |
128 GB |
| Technology |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.) |
| Supported RAM Integrity Check |
Non-ECC |
| Registered or Buffered |
Unbuffered |
| Features |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-channel) |
| Compliant Standards |
High Definition Audio |
| Network Interfaces |
2.5 Gigabit Ethernet |
| Expansion Slots |
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 |
| RAID Features |
Intel Rapid Storage Technology |
| Interfaces |
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
| Internal Interfaces |
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header |
| Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
| Hardware Features |
Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+ |
| Included Accessories |
I/O back plate, 3 x M.2 screws, 1 x M.2 rubber package |
| Cables Included |
2 x Serial ATA cable |
| Software Included |
Drivers & Utilities, ASUS CPU-Z, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator |
| Compliant Standards |
DisplayPort 1.4 |
| Width |
30.5 cm |
| Depth |
24.4 cm |
| Service & Support |
Limited warranty - 3 years |
