DIGITAL SIGNAGE

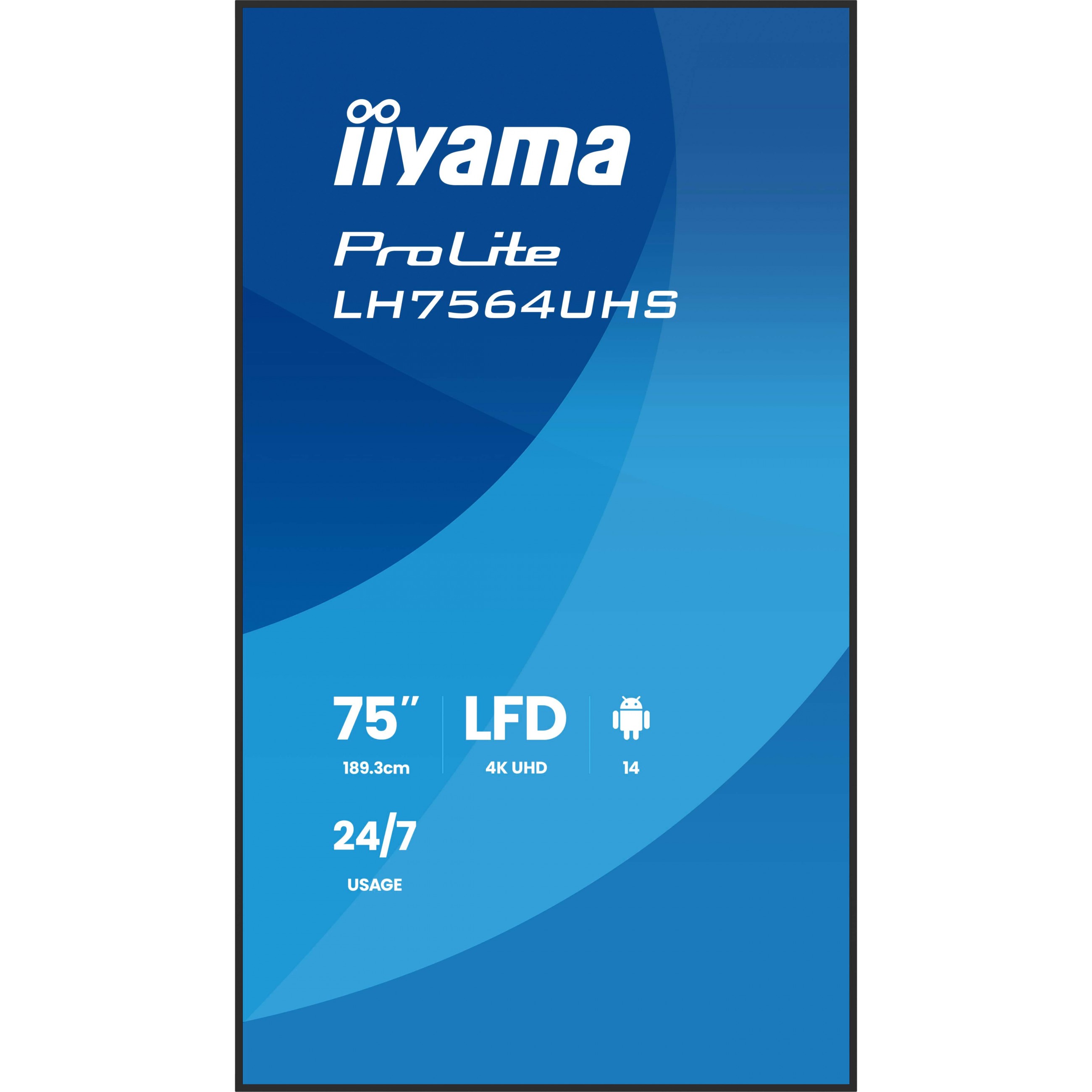

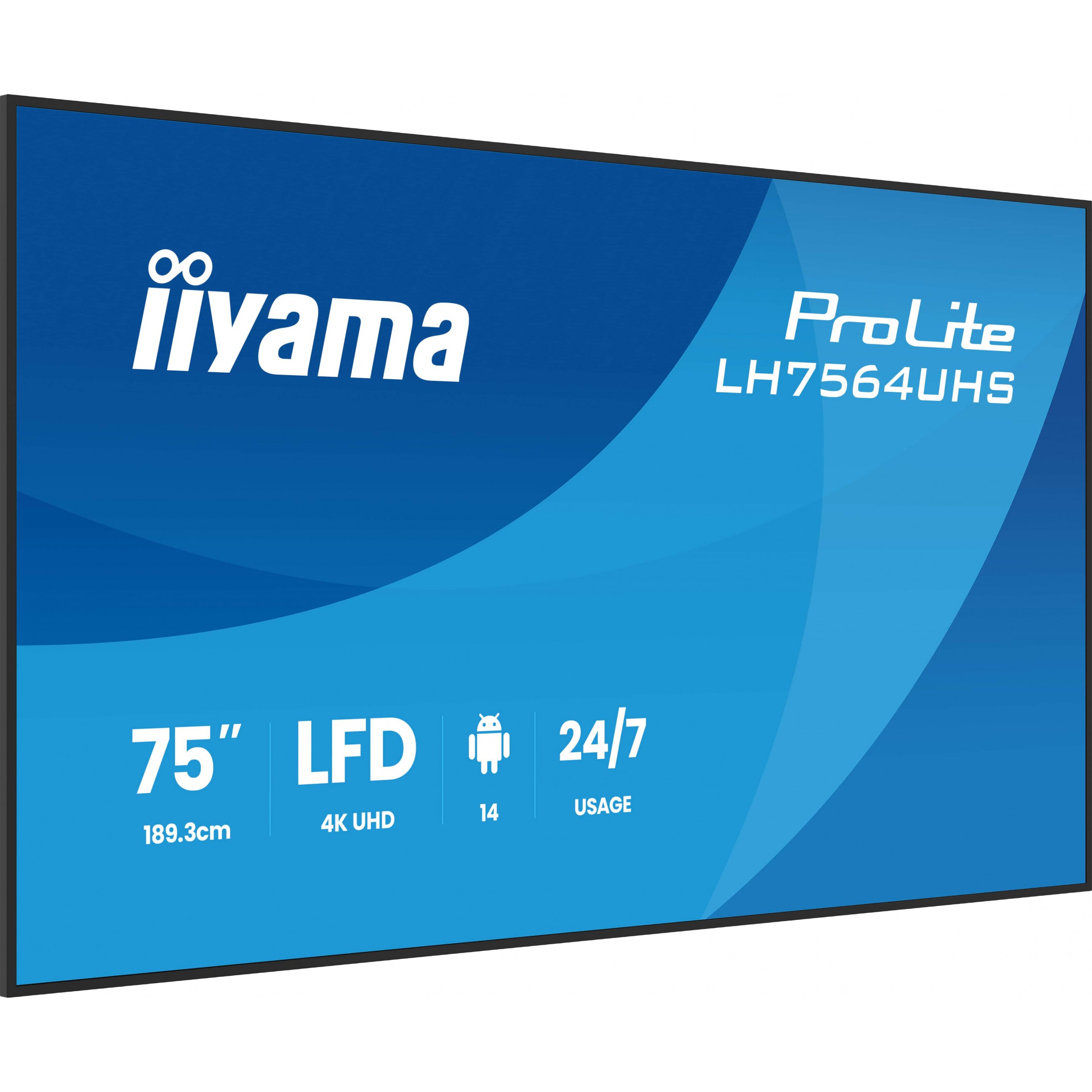

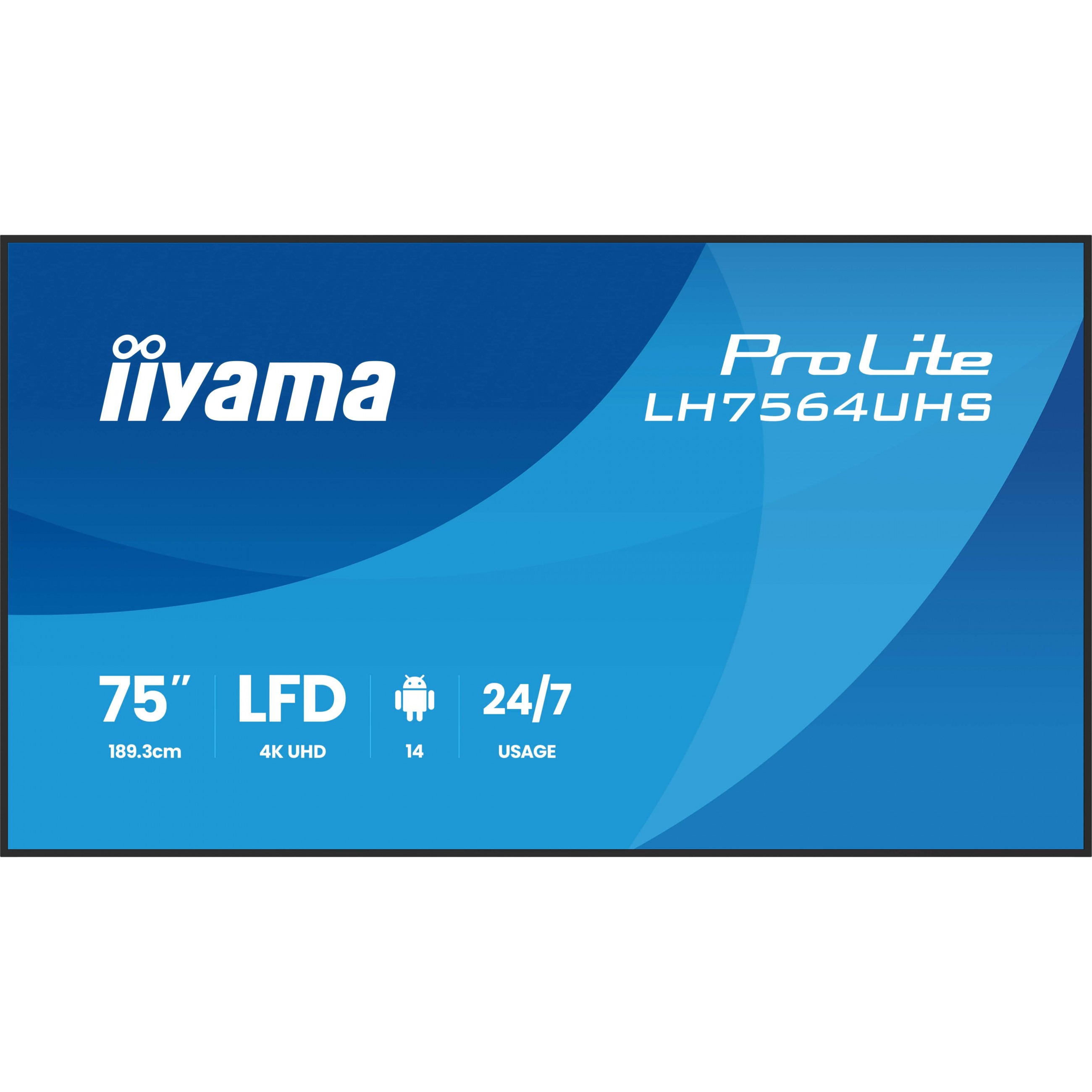

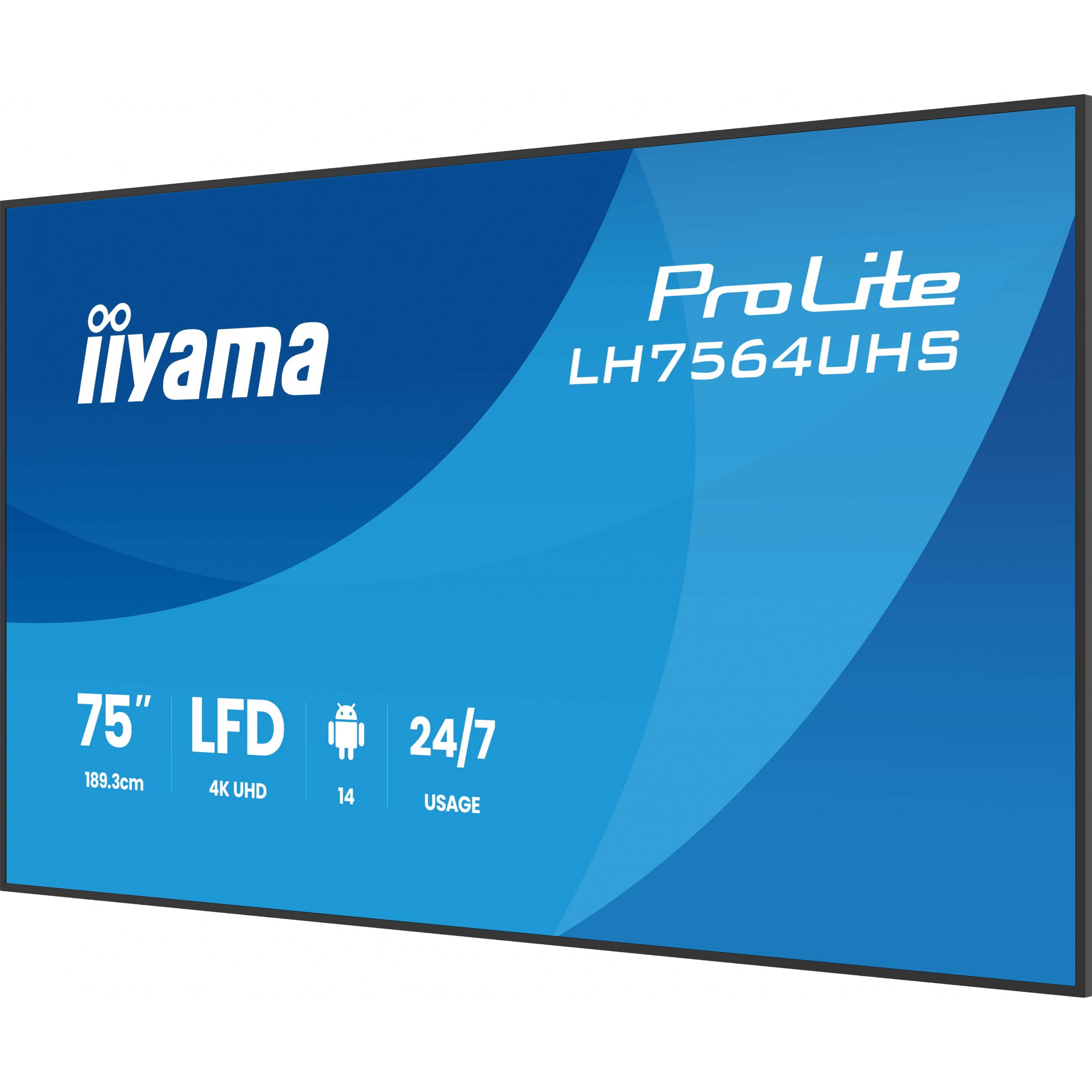

The ProLite LH7564UHS-B1AG is a 75" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS. iiSignage² (CMS). iiControl (DMS) and iiShare (Wireless Presentation). managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail. corporate. hospitality. or restaurant settings. this display ensures a captivating audience experience with its versatile design and high brightness.

Display
Panel type: VA
Display diagonal: 190.5 cm (75")
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.43 x 0.43 mm
Active display area (W x H): 1650.2 x 928.3 mm
Display diagonal (metric): 189.5 cm
Number of displays: 1
Horizontal scan range: 57 - 62 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

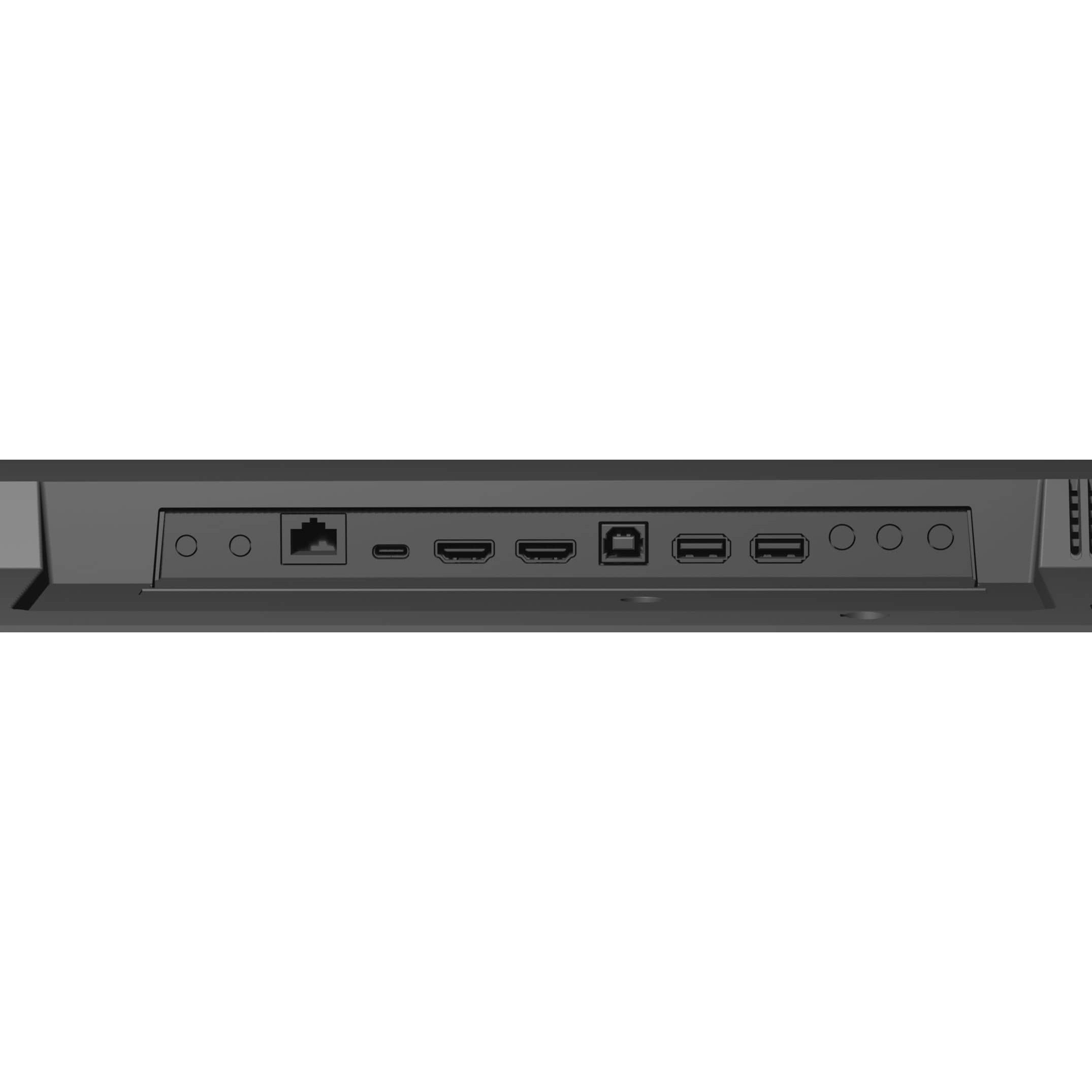

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Feature: RS-232C
Remote (IR) input: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor

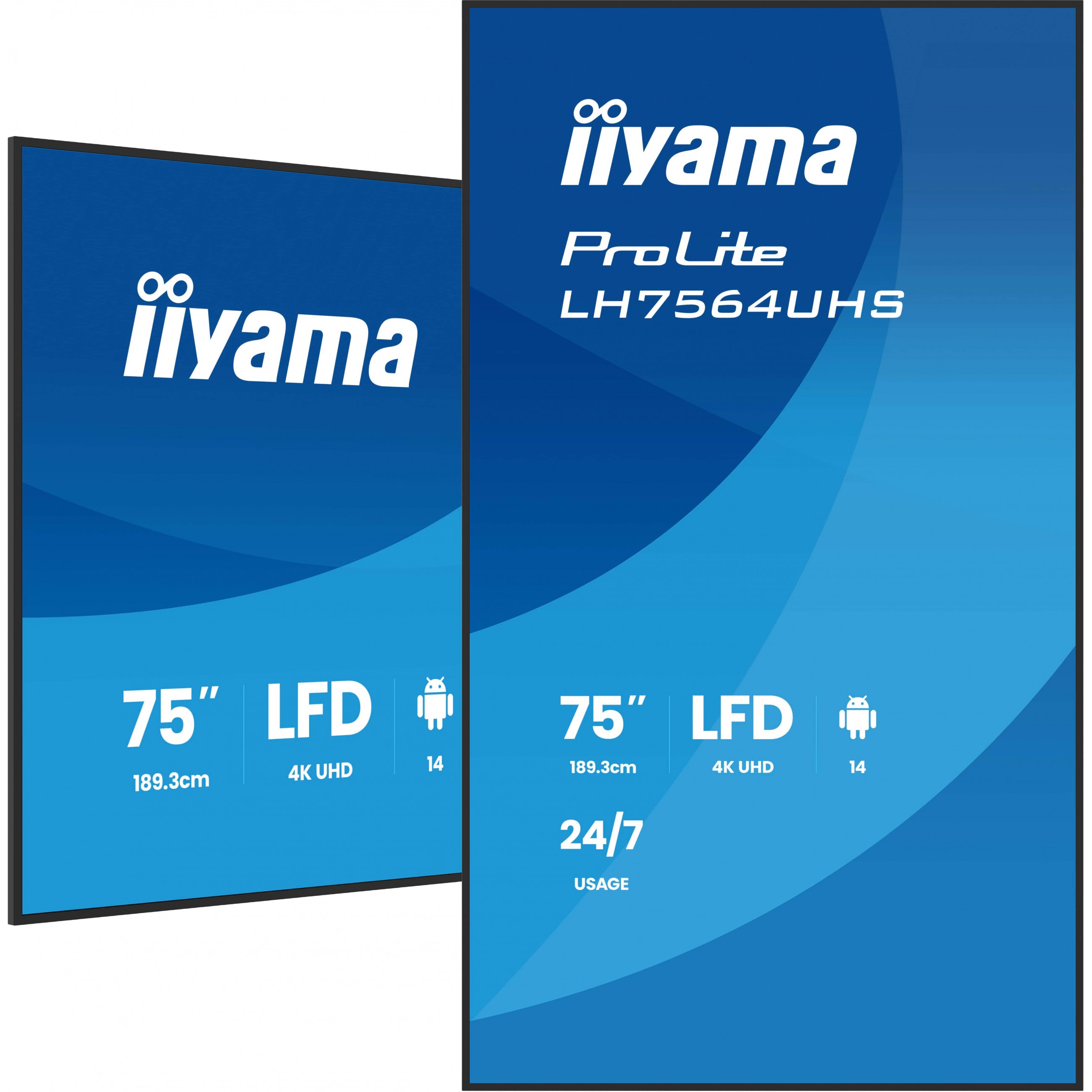

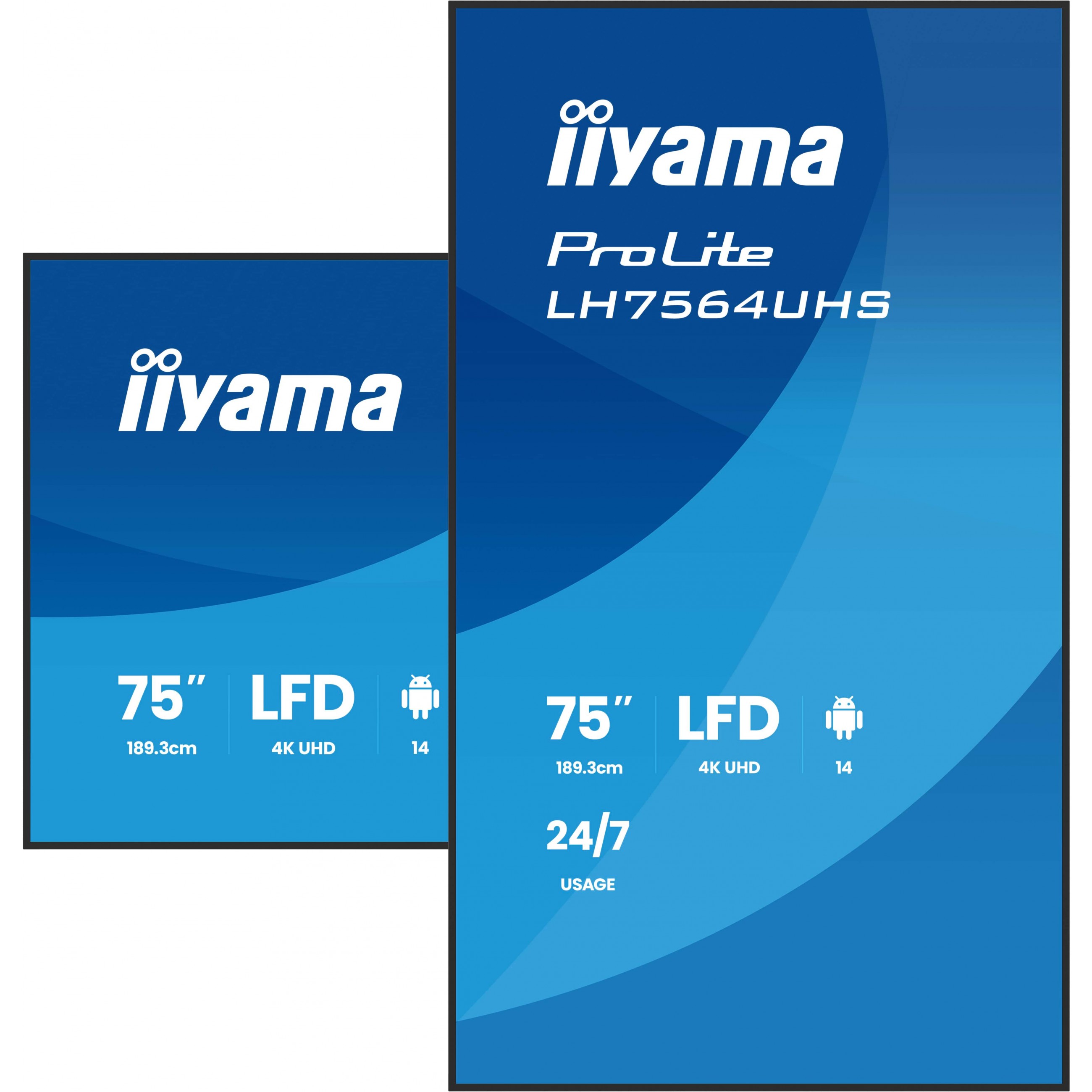

Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting

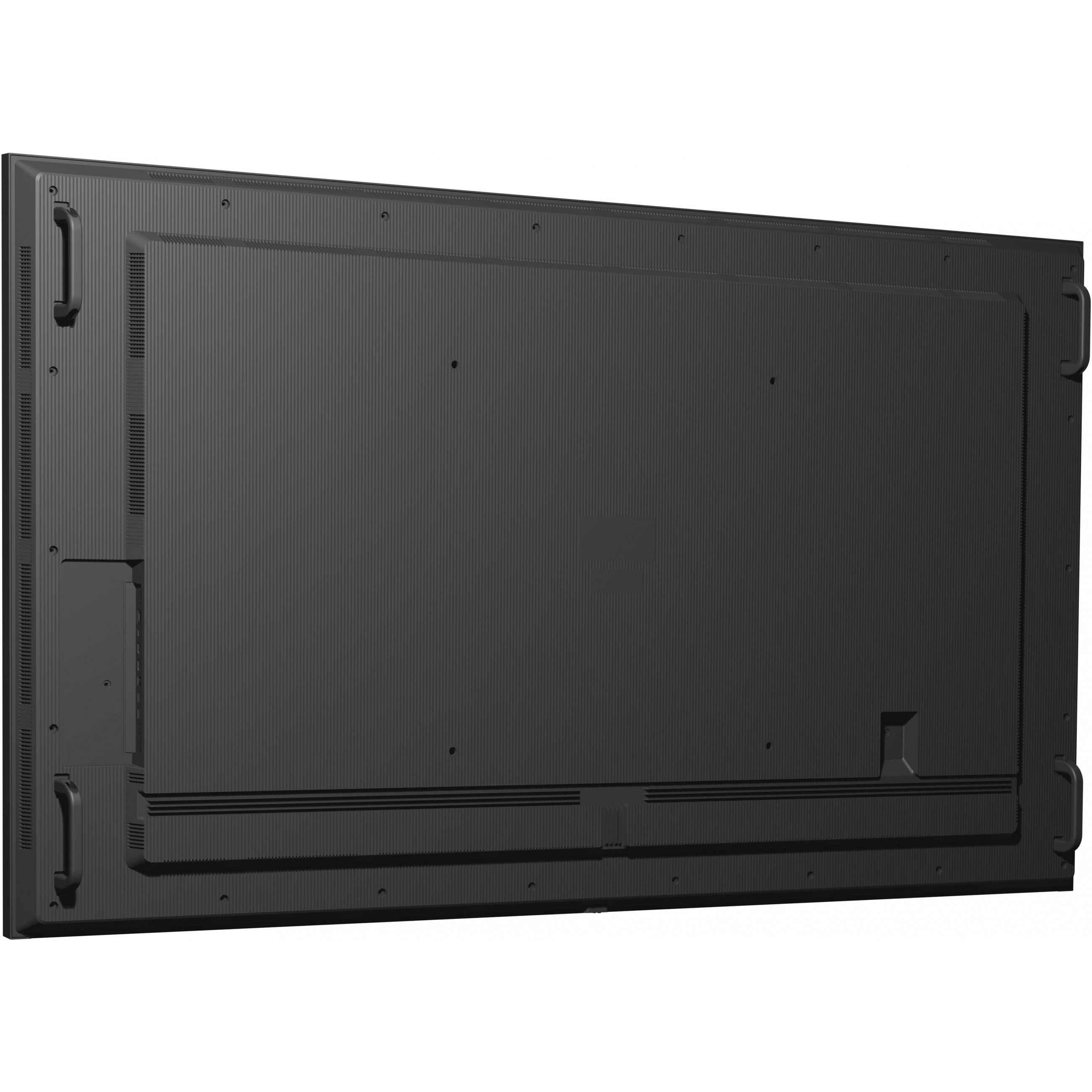

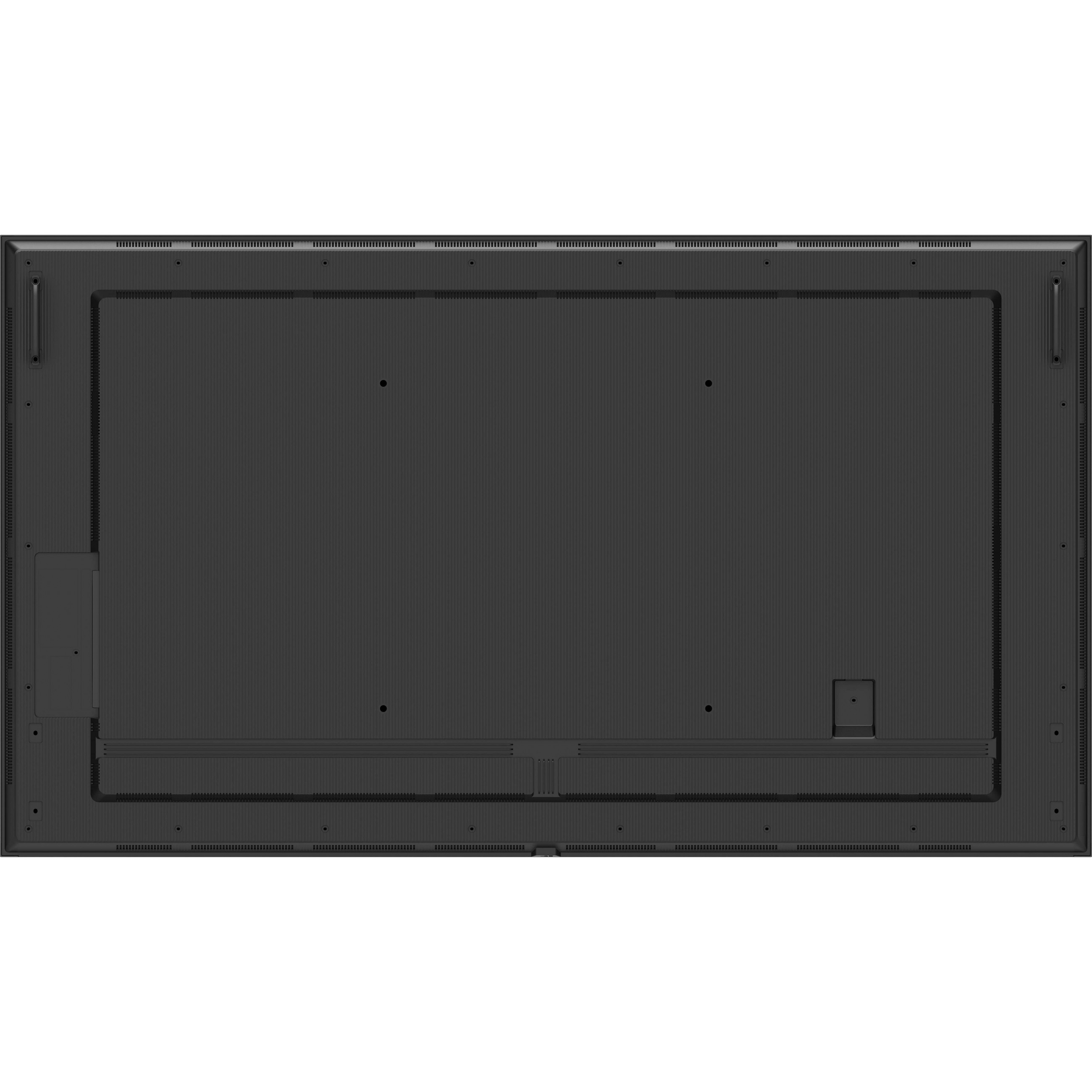

Panel mounting interface: 500 x 500 mm
Bezel width (bottom): 1.43 cm
Bezel width (side): 1.43 cm
Bezel width (top): 1.43 cm
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 15
On Screen Display (OSD) languages: Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Japanese. Polish. Russian. Slovenian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.0
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 219 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 219 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1679 mm
Display depth: 68.8 mm
Display height: 957.1 mm
Display weight: 27.7 kg
Packaging data
Package width: 1840 mm
Package depth: 177 mm
Package height: 1112 mm
Package weight: 39.1 kg
Packaging content
Feature: Remote control included

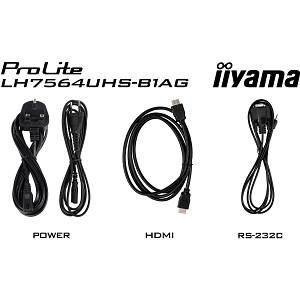

Cables included: HDMI. Power
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
