SERVERS

Classic 19" Rack with a lot of space for different drives

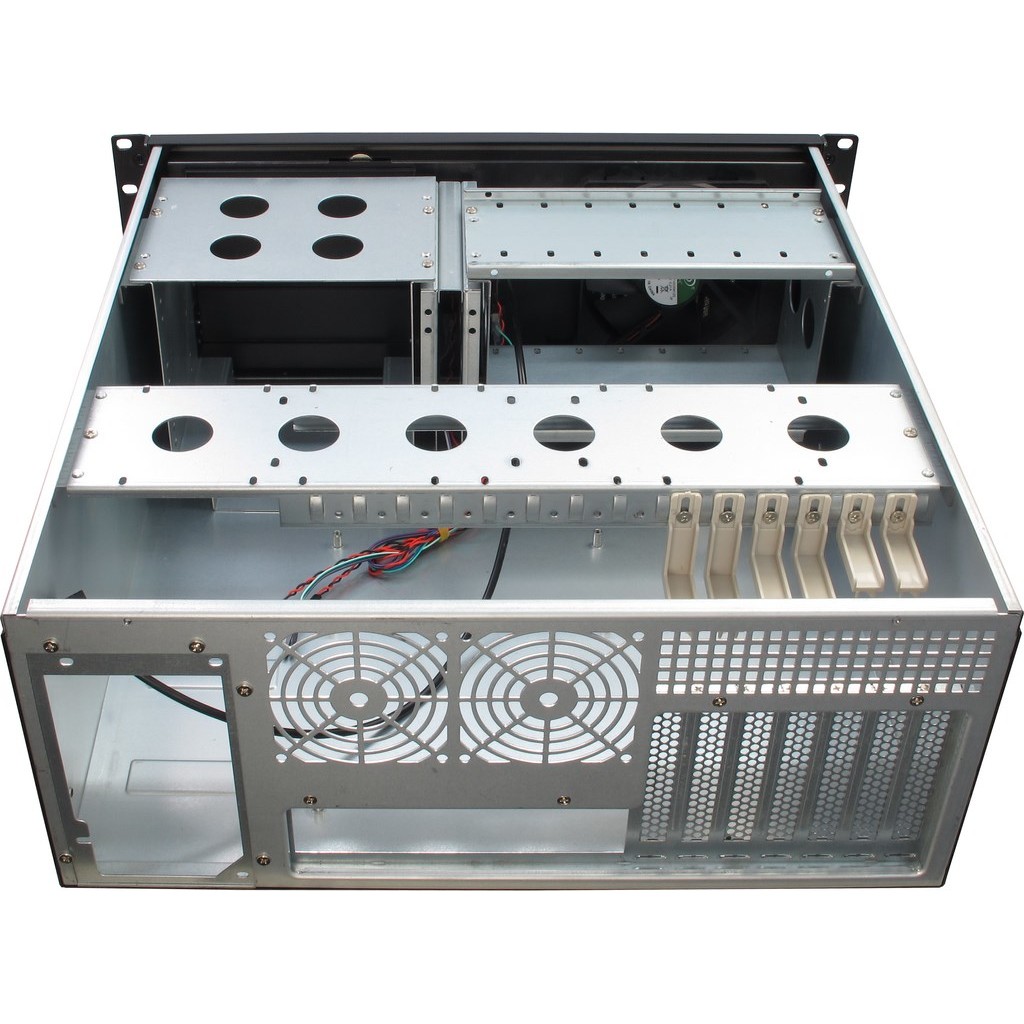

You can remove the HDD cages with a few steps for easy mounting of internal devices. You can mount 4 x 2.5" Hard drives on a crossbeam inside the case. The crossbeam is also equipped with Slot Card holders to ensure a safe usage. The lockable doors in front of the slots prevent. unauthorized access.

Design
Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX. micro ATX. Mini-ITX
Number of 3.5" bays: 8
Number of 5.25" bays: 3
Number of 2.5" bays: 5
Number of internal 3.5" bays: 8
Number of external 5.25" bays: 3
Feature: Rack mounting
Rack capacity: 4U
Feature: Reset button
LED indicators: Power. HDD
Certification: RoHS. CE
Ports & interfaces
USB 2.0 ports quantity: 2
Cooling
Front fans installed: 1x 120 mm
Number of front fans supported (max): 1
Front fans diameters supported: 120 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 80 mm
Storage
Supported HDD sizes: 2.5.3.5"
Weight & dimensions
Width: 485 mm
Depth: 483 mm
Height: 178 mm
Weight: 10 kg
Material thickness: 1.2 mm
Packaging data
Package width: 550 mm
Package depth: 590 mm
Package height: 270 mm
Logistics data
Harmonized System (HS) code: 84733080
