PC CASE

The View 390 Air Snow Mid Tower Chassis is an ATX case with a curved tempered glass side/top panel. a perforated front panel. rotational PCI-E slots. a GPU bracket and two CT120 rear fans. An optional 6" LCD Screen Kit is available for enhanced visuals.

View 390 Air Snow Mid Tower Chassis

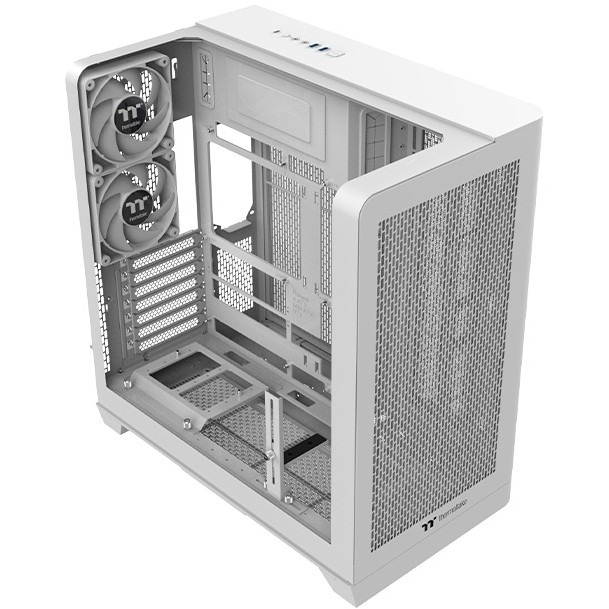

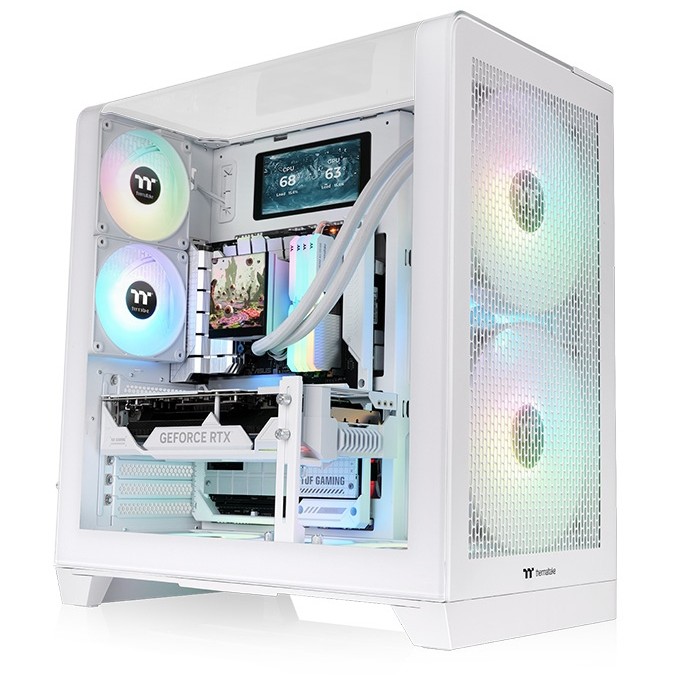

The View 390 Air Snow Mid Tower Chassis is an ATX case with a curved tempered glass side and top panel. a perforated front panel. rotational PCI-E slots. a GPU bracket and two CT120 rear fans. It can fit up to eleven 120mm fans. and supports a 360mm AIO radiator at the front or motherboard side. An optional 6" LCD Screen Kit can be added for real-time system information and enhanced visuals.

Compatible with Hidden-Connector Motherboards
Designed for next-gen builds. the View 390 Air Snow Mid Tower Chassis supports both standard and hidden-connector motherboards from ASUS. MSI. and GIGABYTE.

Curved Tempered Glass Side Panel
The View 390 Air Snow Mid Tower Chassis features a 4mm curved tempered glass side panel for a distinctive look.

Two CT120 PC Cooling Fans Pre-installed
The View 390 Air Snow Mid Tower Chassis features two 120mm PWM fans at the rear to provide good cooling performance.

Good Cooling Support
The View 390 Air Snow Mid Tower Chassis can support up to two 200mm fans at the front. up to eleven 120mm fans in total. and a 360mm AIO radiator at the front or the motherboard side. providing good cooling capability.

Display It Your Way
The rotatable PCI-E slots support both horizontal and vertical GPU mounting. An included GPU holder and riser cable bracket also help to support the GPU and prevent sagging.

Visually Pleasing. Totally Interactive
Maximize your View 390 Air’s visual effects by upgrading it with our LCD Screen Kit.

The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.

Personalize Your LCD Display
Through the TT RGB Plus. the 6‘’ LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles. and users can upload up to 20 custom images. Additionally. the display can show time and weather information. enhancing both visual appeal and customization options for your build.

Air Intake and Exhaust
Thanks to the perforated front panel and two CT120 rear fans. View 390 Air Snow Mid Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

We've Tested Everything. So You Don’t Have To
At Thermaltake. we always stress test our products under harsh conditions to ensure product quality. The View 390 Air Mid Tower Chassis products were tested at 100% full load for 30 minutes. with the most high-end CPU. GPU. and motherboard at the time of test. while paring with a consumer-style setup. allowing us to test how the chassis performs under real-world situations.

Massive Airflow & Incredible Performance
Thermal images taken during thermal testing. We can see that View 390 Air Snow guarantees good cooling performance and a low internal temperature while using the highest quality components.

Storage Support
The drive plate at the right chamber of the chassis supports up to two 3.5'' HDDs or up to three 2.5'' SSDs for storage expansion.

Good Dust Protection
There are removable filters at the right and the bottom of the chassis to protect the system.

Handy I/O Ports
Two USB 3.0. one USB 3.2 Gen 2 Type C. one reset button and HD Audio ports are placed on the top panel to grant direct access when needed.

Design
Material: SPCC. Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX. micro ATX. Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 1
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 42 cm
Maximum PSU length: 26 cm
Power supply
Supported power supply form factors: PS2
Ports & interfaces
Feature: Audio input
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Number of front fans supported (max): 3
Front fans diameters supported: 120.140.200 mm
Number of side fans supported (max): 3
Side fans diameters supported: 120 mm
Rear fans installed: 2x 120 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 120 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 120.140.240.280.360 mm
Side radiator sizes supported: 120.240.360 mm
Feature: Pulse-width modulation (PWM) support
Storage
Supported HDD sizes: 3.5"
SSD form factor: 2.5"
Packaging content
Feature: Manual
Weight & dimensions
Width: 287 mm
Depth: 485 mm
Height: 503 mm
