PC CASE

The CA200M from the ELITE SHARK series is a massive ATX full tower. This PC case stands out with its RGB highlights. state-of-the-art features and a gaming design based on simple elegance. The CA200M caters to the needs of hardware hobbyists and serious enthusiasts alike: It contains extensive room for fans and radiators. has both horizontal and vertical installation possibilities for graphics cards. plenty of clearance for a water cooling pump holder and. even after all that. still has enough room for large high-end hardware components.

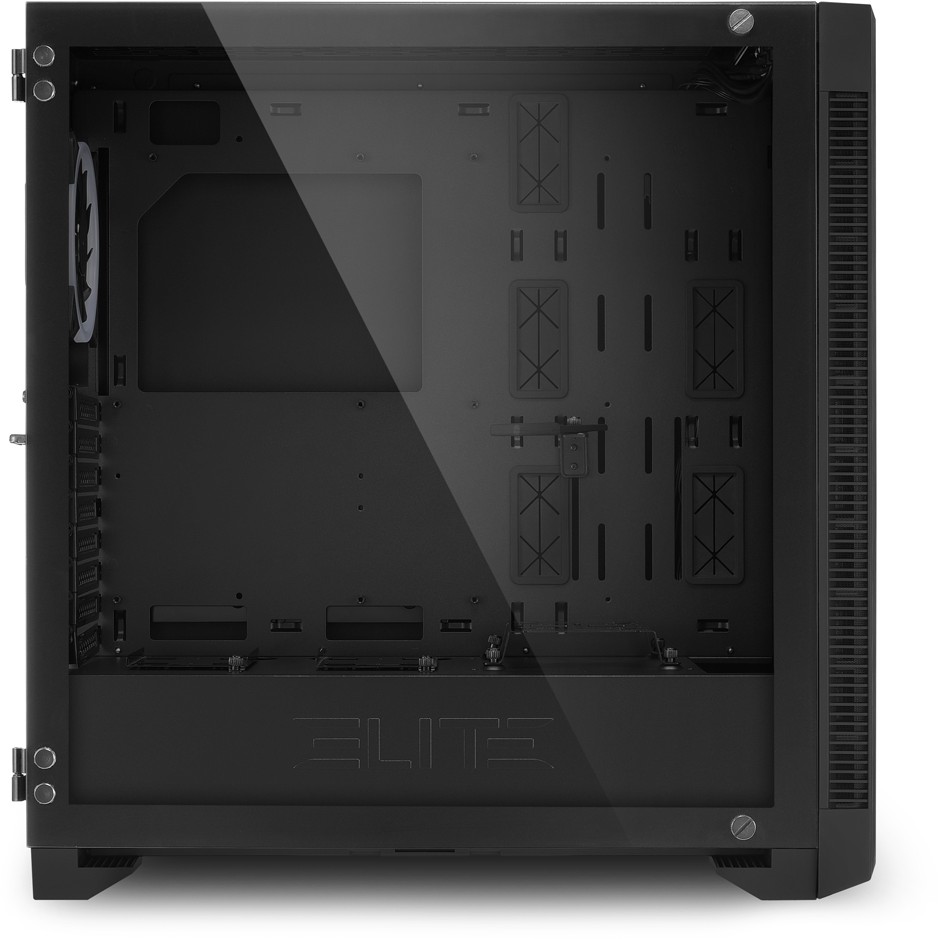

Grand Showroom. Strong Airflow. The inside workings of the case can be showcased through the large side panel made of tempered glass. The hinged side panel provides both quick access to the hardware and adds to the look of quality. The mesh element on the front panel combines practicality with elegance. allowing an enhanced rate of airflow thanks to its air-permeable structure. A large filter behind this ensures that the hardware always remains protected.

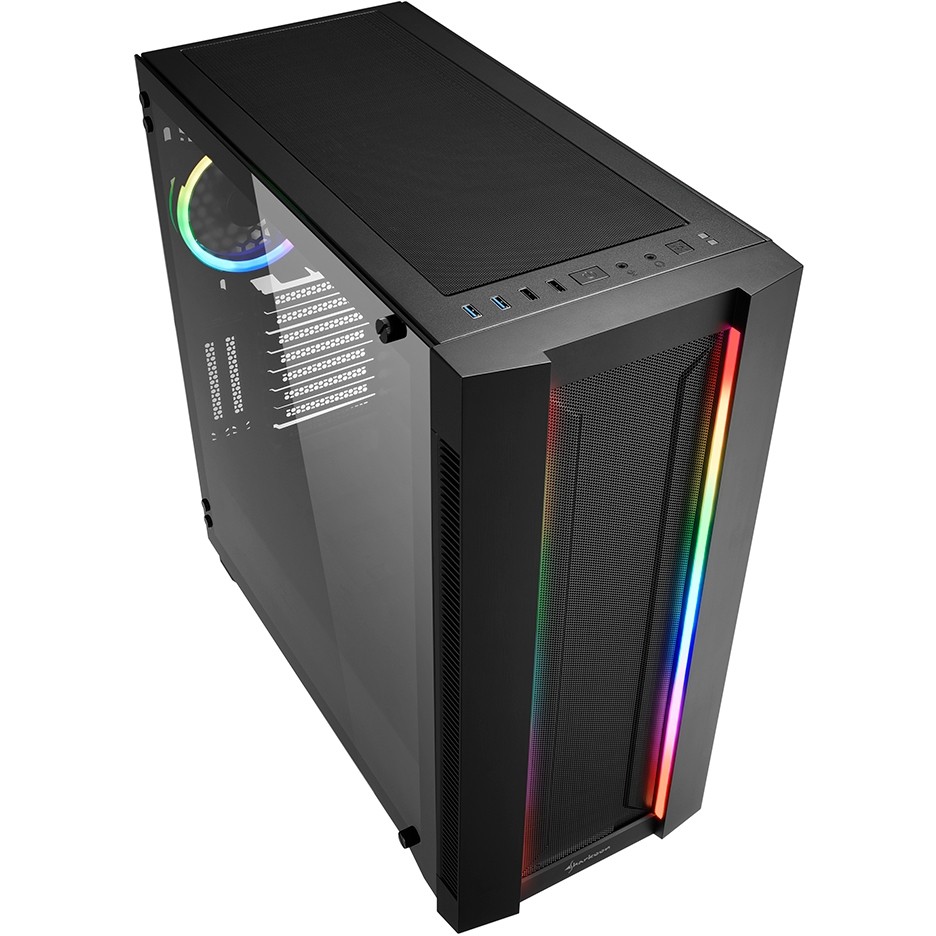

Subtle Color Accent. Apart from the two integrated LED strips on the front panel. the CA200M also has a pre-installed 120 mm fan with addressable LEDs on the rear panel. providing a subtle color accent. This. and up to six more LED components can be illuminated in 16.8 million colors via mainboards which have headers for addressable LEDs (pin configuration 5V-D-coded-G or 5V-D-G). If the mainboard is without this connection. the included RGB controller allows 20 preset lighting effects to be selected via the dedicated illumination switch on top of the case.

Ready for your Airflow. With double radiator support and locations for up to seven fans. the CA200M is more than ready for your individual airflow solution. The case will take a radiator of up to 420 mm at the front. while an additional radiator of up to 360 mm will fit under the top panel. A special mount as well as extra-long slots are provided for the reservoir and pump. All the openings for air intake are. of course. protected with removable dust filters.

No Compromises. With giant dimensions and a tidy layout inside. the CA200M ATX full tower offers a user-friendly design without any compromises for all hardware enthusiasts. Mainboards in E-ATX format fit in just as easily as long graphics cards up to 42.5 cm. CPU coolers up to 16.5 cm. power supplies up to 24 cm and the complete system cabling will all have room. In addition. up to four 3.5” hard drives and a maximum of seven SSDs can all be tidily installed.

Vertical Graphics Card Installation. Whether classic installation or vertical. the CA200M is entirely made for personal taste. A graphics card holder with a rubber surface can be easily installed via thumb screws and ensures that the horizontally installed graphics card does not sag. If more slots are required. two additional. vertical expansion slots available. If needed. an optional Vertical Graphics Card Kit for vertical installation of graphics cards is additionally available and can be purchased separately.

Design
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX. EATX. micro ATX. Mini-ITX. SSI CEB. SSI EEB
Number of 3.5" bays: 5
Number of 2.5" bays: 7
Number of expansion slots: 8
Feature: Side window
Feature: Illumination
Illumination colour: Blue. Green. Red
Feature: Cable management
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 42.5 cm
Maximum PSU length: 24 cm
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Number of front fans supported (max): 3
Front fans diameters supported: 120.140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120.140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Storage
Supported HDD sizes: 2.5.3.5"
Packaging content
Feature: Manual
Weight & dimensions
Width: 240 mm
Depth: 506 mm
Height: 517 mm
Weight: 11.5 kg
Logistics data
Harmonized System (HS) code: 84733080
