PC CASE

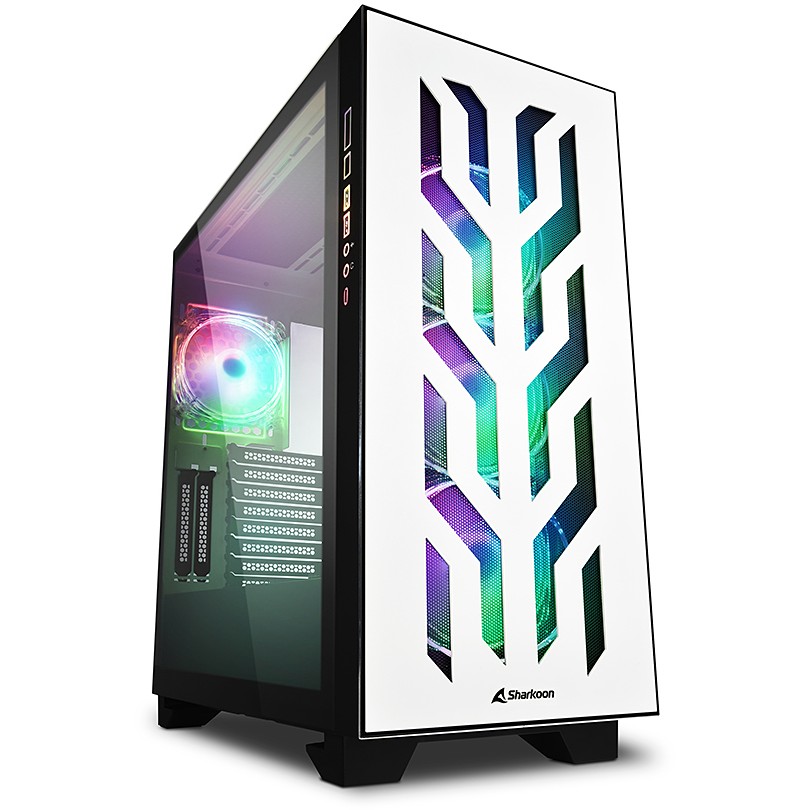

Futuristic front. noble design. and a sophisticated layout – that is the CA300T. The large. sturdy ATX tower from our ELITE SHARK series is aimed at ambitious PC enthusiasts and is equipped with a range novel features. Among these are a side-mounted RGB illuminated I/O panel. two tempered glass side panels. a hinged compartment for cabling as well as a three-layer top panel consisting of a ventilation opening. a magnetically attached dust filter and a perforated top cover. The steel front panel casts an imposing figure with its impressive angular patterns. which is highlighted in front by three highly luminous RGB LED fans. As expected within an ELITE SHARK case. there is also an enormous amount of space inside for powerful hardware and elaborate PC builds.

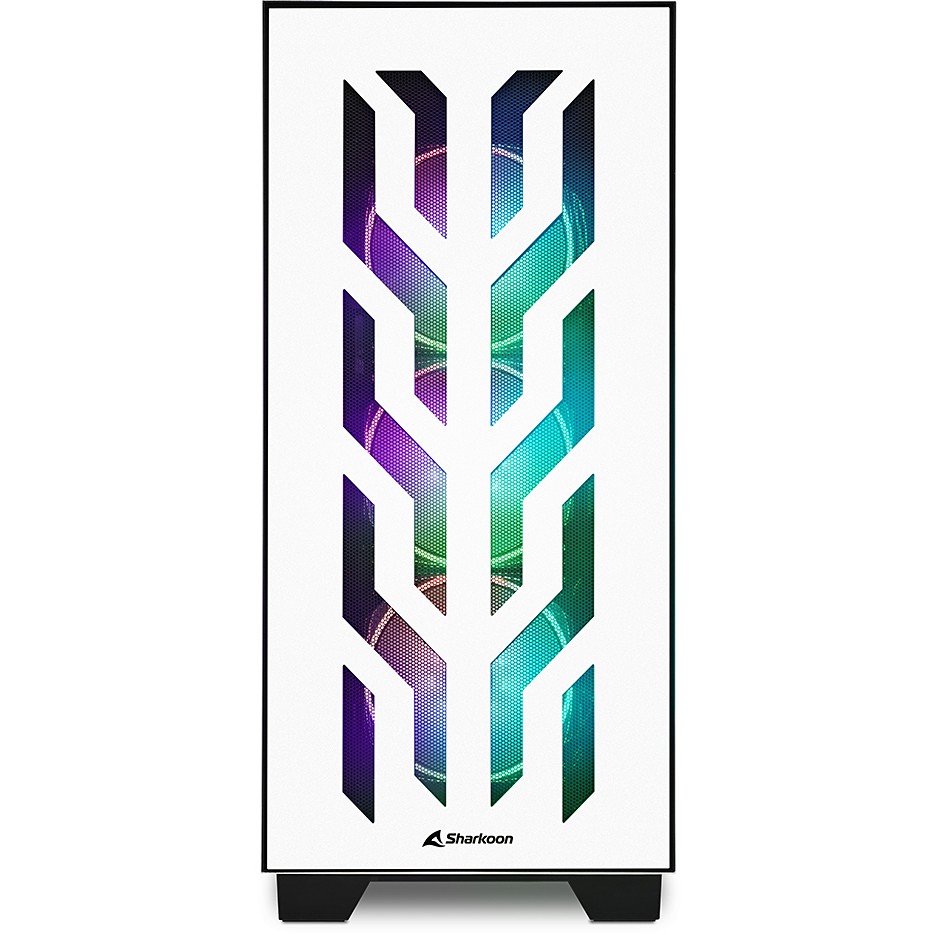

Elite. Steel Appearance. The expressive front panel with its pattern of geometrically designed openings. lends the PC case a futuristic style and makes the CA300T an immediate eye-catcher. In addition. the application of high-quality materials completes the impression of elegance: the top panel has been manufactured with solid metal and the steel front panel is set within a frame made of diamond-cut aluminium. The three RGB-LED fans provide colorful highlights and shine through the pattern of the front panel. An additional RGB LED fan on the rear panel adds more illumination to the inside of the case. Using the software of compatible mainboards containing a pinout of 5V-D-coded-G or 5V-D-G. the RGB LEDs in all the fans can be customized to display unique lighting effects.

RGB Illuminated I/O Control Panel. A special detail of the CA300T can be found on its already impressive front. Instead of positioning the I/O panel on the top of the case. as per common designs. we have placed it on the side. Buttons and connectors are now particularly easy to reach when the case is presented standing on a table. In addition to the usual audio and USB ports. we have also outfitted the CA300T case with a USB Type C port. The finishing touch is that the side positioned I/O panel is given its own RGB illumination.

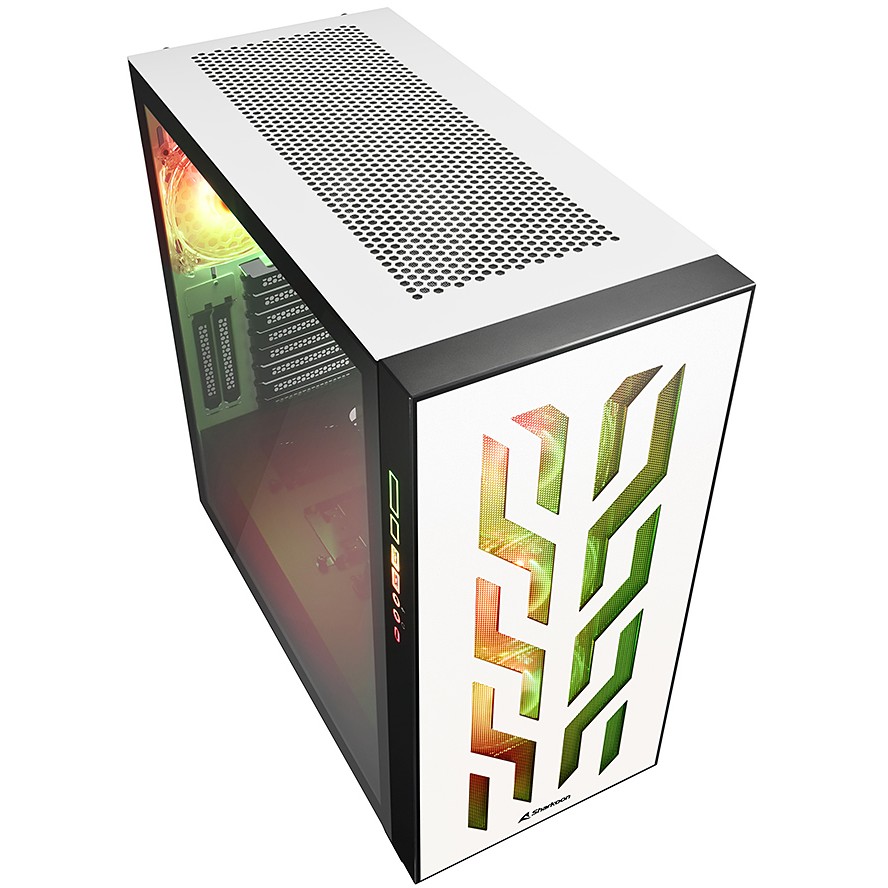

Constant Airflow for Full Power. Three pre-installed 120 mm RGB LED fans in the front and one in the rear provide the CA300T with a constant airflow. So that plenty of air can flow through the case. the front panel is equipped with a mesh grille. The top of the case even offers a complete opening with a perforated cover for fans and radiators. The three 120 mm RGB LED fans in the front can be replaced with larger 140 mm models. if desired. In addition. an up to 420 mm radiator in the front or an up to 360 mm radiator on the top can be installed inside the case.

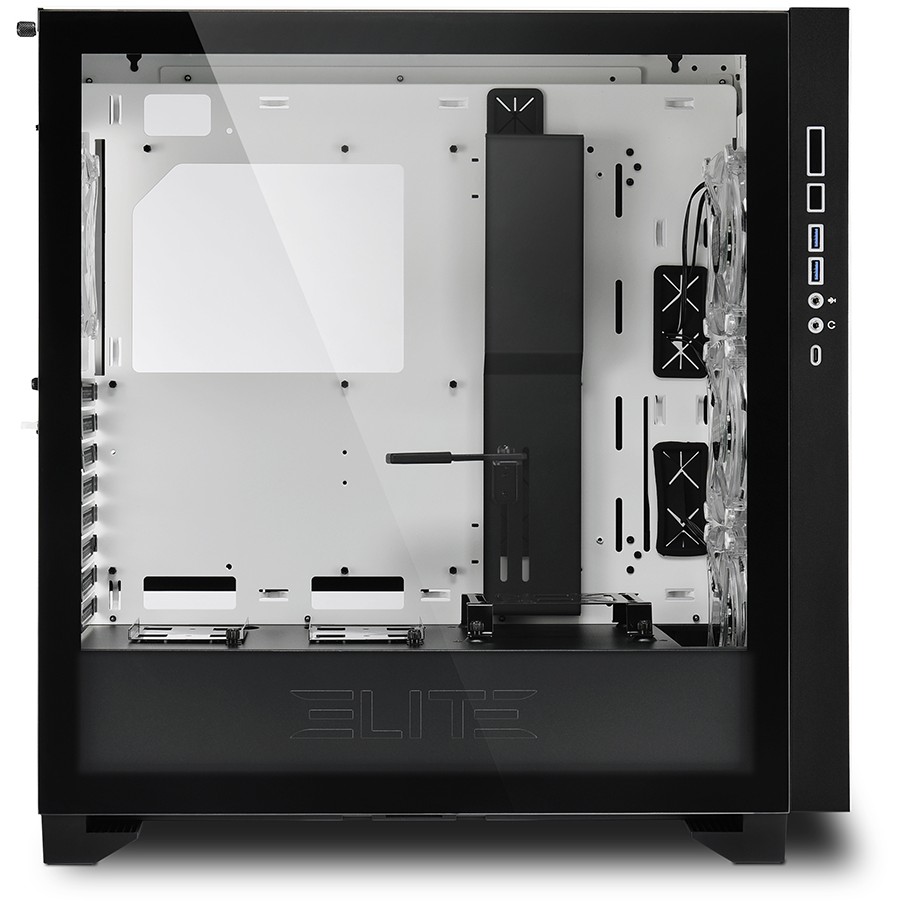

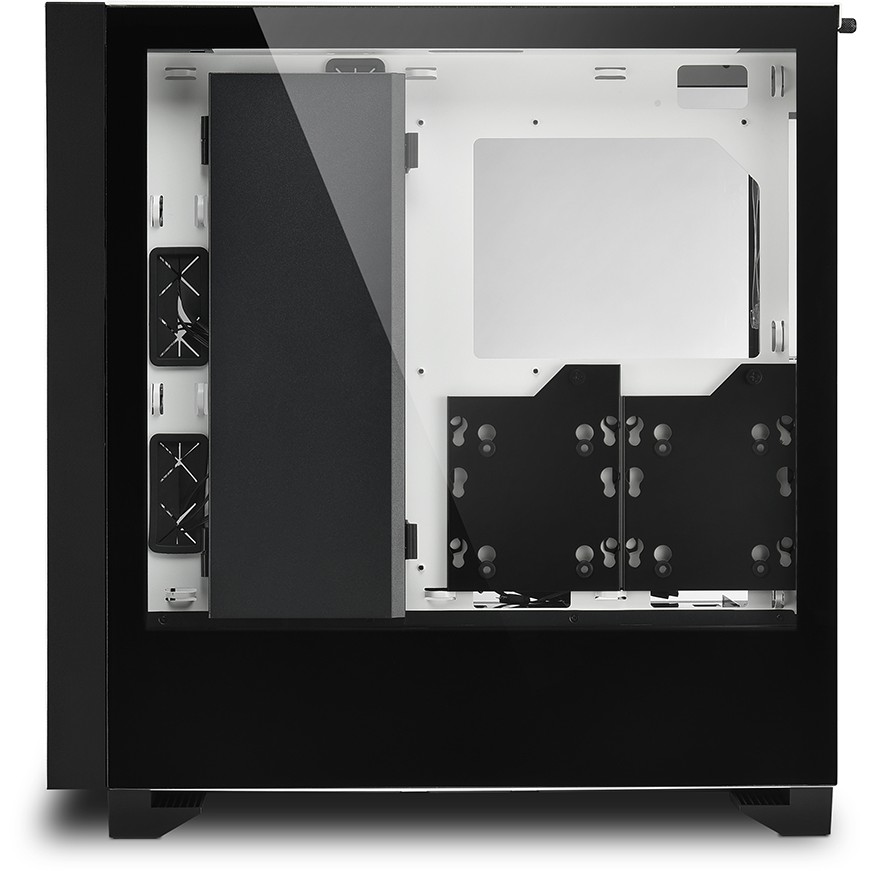

Stylish Showcase for Premium Components. Hardware which has been built into an ELITE SHARK case deserves to be seen. Therefore. we have outfitted the CA300T with two tempered glass side panels. The left side panel provides full insight into the interior of the case so that installed components can be perfectly displayed. With the right side panel. the lowest area of the tempered glass is tinted black so that the components inside the power supply tunnel do not distract from the overall visual effect of the case. SSDs with RGB elements or imposing HDDs come here into their own. Cable tangles don’t have a chance: Cabling can simply disappear inside a roomy cable compartment. which can be opened and closed. as well as behind a movable cable cover. In order to not have any unnecessary elements in the field of vision. the side panels are fitted without screws on their surface or at the back the case and are quickly and easily attached to the case frame in a few simple steps.

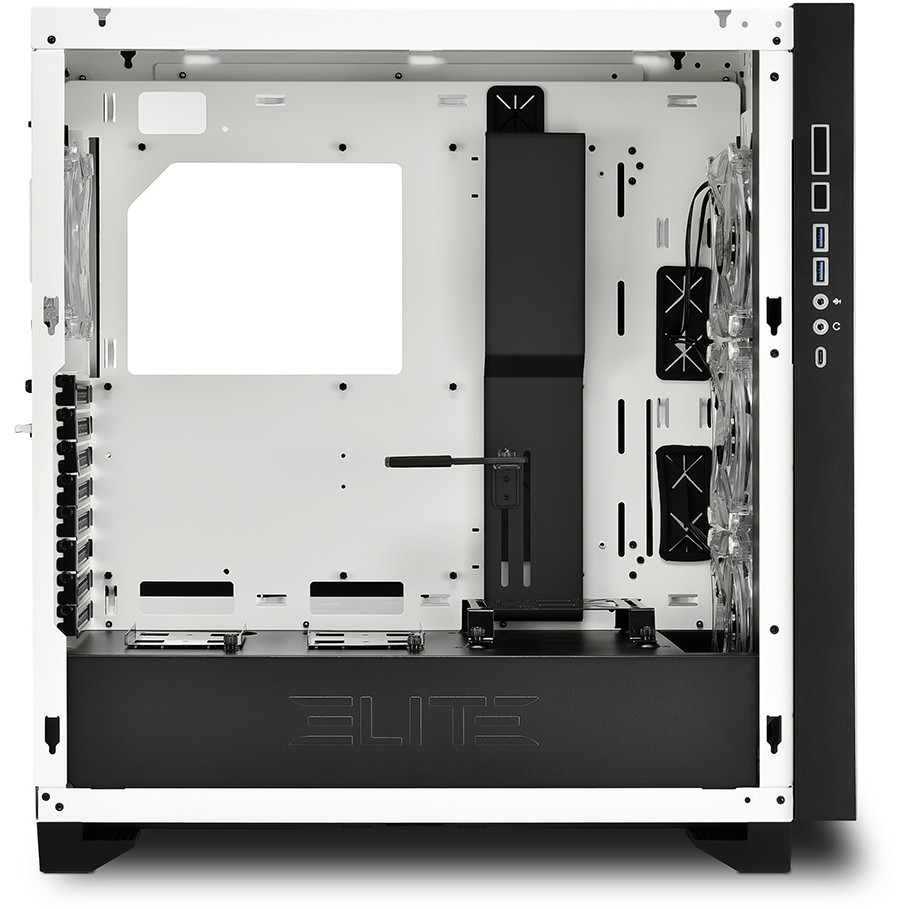

Large. Sturdy Tower with Plenty of Space. When it comes to enough room for high-quality PC builds. the CA300T makes no compromises. The interior is spacious and has a well-designed layout to support complex systems. Large graphics cards with a length up to 42.5 cm. power supplies up to 24 cm long. and CPU coolers with a height of 16.5 cm will all easily find space inside. Additionally. up to seven 2.5" or four 3.5" drives can be installed into the solid case.

Design
Form factor: Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX. EATX. micro ATX. Mini-ITX
Number of 3.5" bays: 4
Number of 2.5" bays: 7
Number of internal 3.5" bays: 4
Number of expansion slots: 8
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 42.5 cm
Maximum PSU length: 24 cm
Power supply
Power supply location: Bottom
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120.140 mm
Feature: Liquid cooling capability
Storage
Supported HDD sizes: 2.5.3.5"
Weight & dimensions
Width: 235 mm
Depth: 505 mm
Height: 520 mm
Weight: 14.7 kg
Logistics data
Harmonized System (HS) code: 84733080
