PC CASE

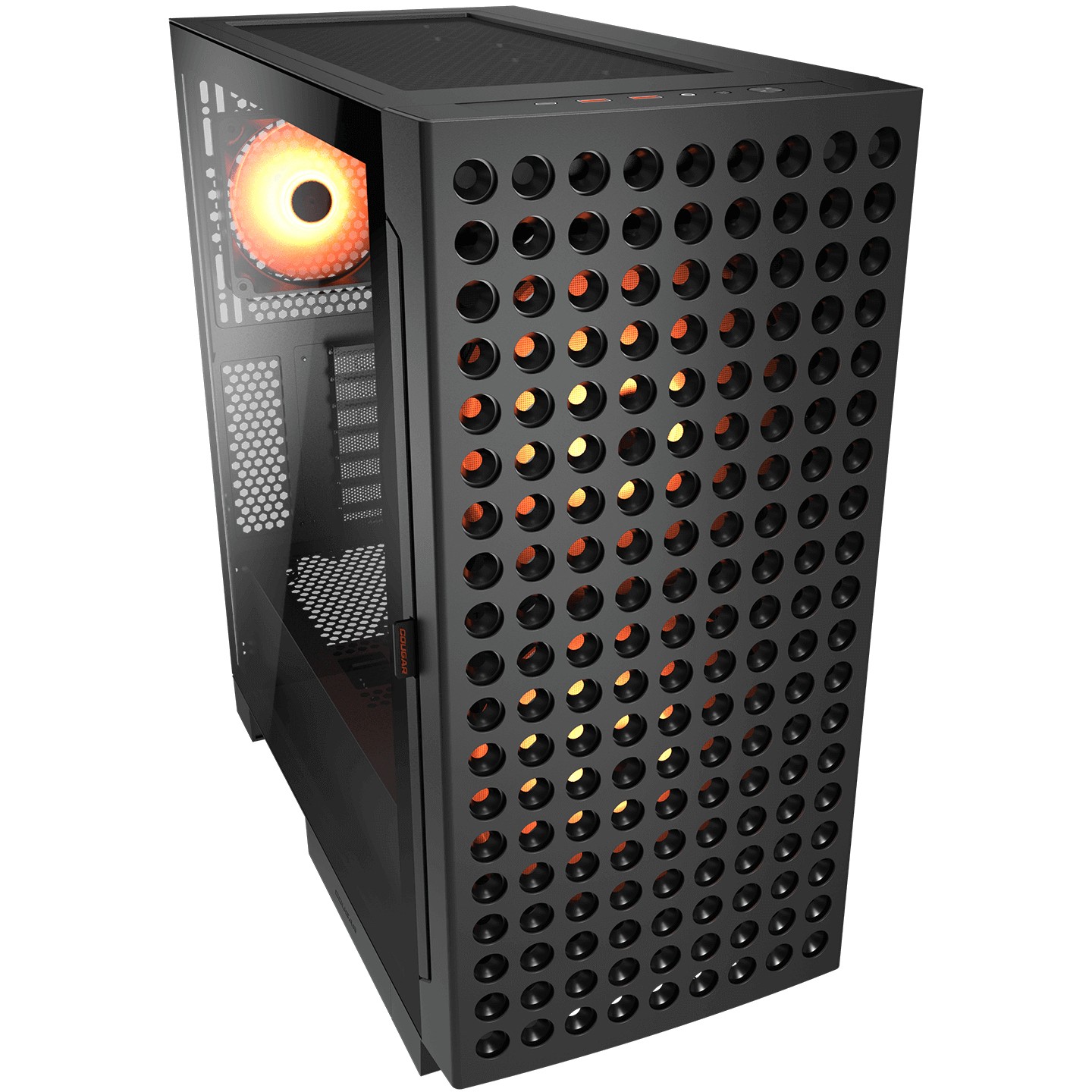

Green is the New CoolThe Airface ECO RGB is designed with a focus on eco-efficiency. Coned vents taper inwards from a wide opening. leveraging thermodynamic principles to make the most out of the airflow funneled through the front panel. Supplemented by dual 180mm PWM fans. maximizing cooling at no additional energy cost reduces both environmental impact and ecological footprint.

Features such as the quick-slide dust filter. removable top panel and detachable front bracket have been ported to the Airface ECO RGB from the Duoface Pro based on their proven strength. Constructive feedback has led to upgrades. including increased cable routing and new vertical GPU space for unobstructed cooling. Additionally. a modular front I/O allows for versatile placement options so that all your ports and buttons are easily accessed regardless of the case’s orientation.

Thermodynamic Cooling

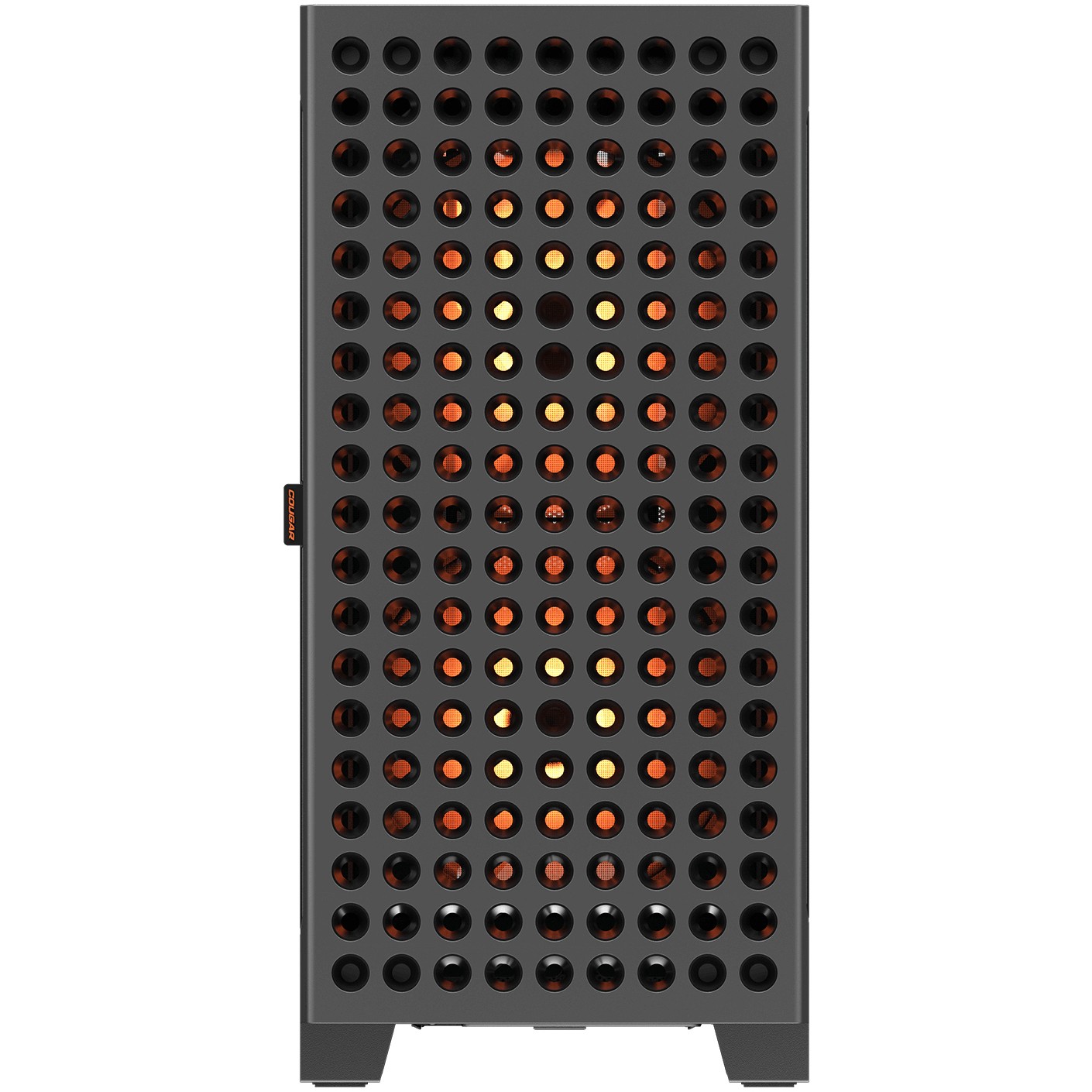

By tapering inwards from a wide opening. coned vents channel air more efficiently into the case. This smart design maintains a lower internal temperature at a reduced energy cost. pushing more air for less power.

Preinstalled Front 180mm PWM Cooling Fans
Two powerful 180mm PWM front cooling fans keep your system cool under heavy loads. These fans are preinstalled to provide optimal airflow right out of the box. with speeds that modulate according to your system’s needs. The Airface ECO RGB also comes with a preinstalled 120mm rear exhaust fan.

Full Protection from Dust
Filters on the three ventilated sides – front. top. bottom – effectively prevent dust from entering. keeping your components clean. The front quick slide dust filter pulls out without removing the front panel. making maintenance a breeze. and the addition of a rubber tag augments the ease of use by providing a better grip on the filter. The top side filter attaches magnetically while the bottom filter slides out for easy removal.

Easiest. Assembly. Ever.
The removable top panel simplifies access to the interior of your case. giving you extra space to make assembling your rig a breeze.

Modular Front I/O

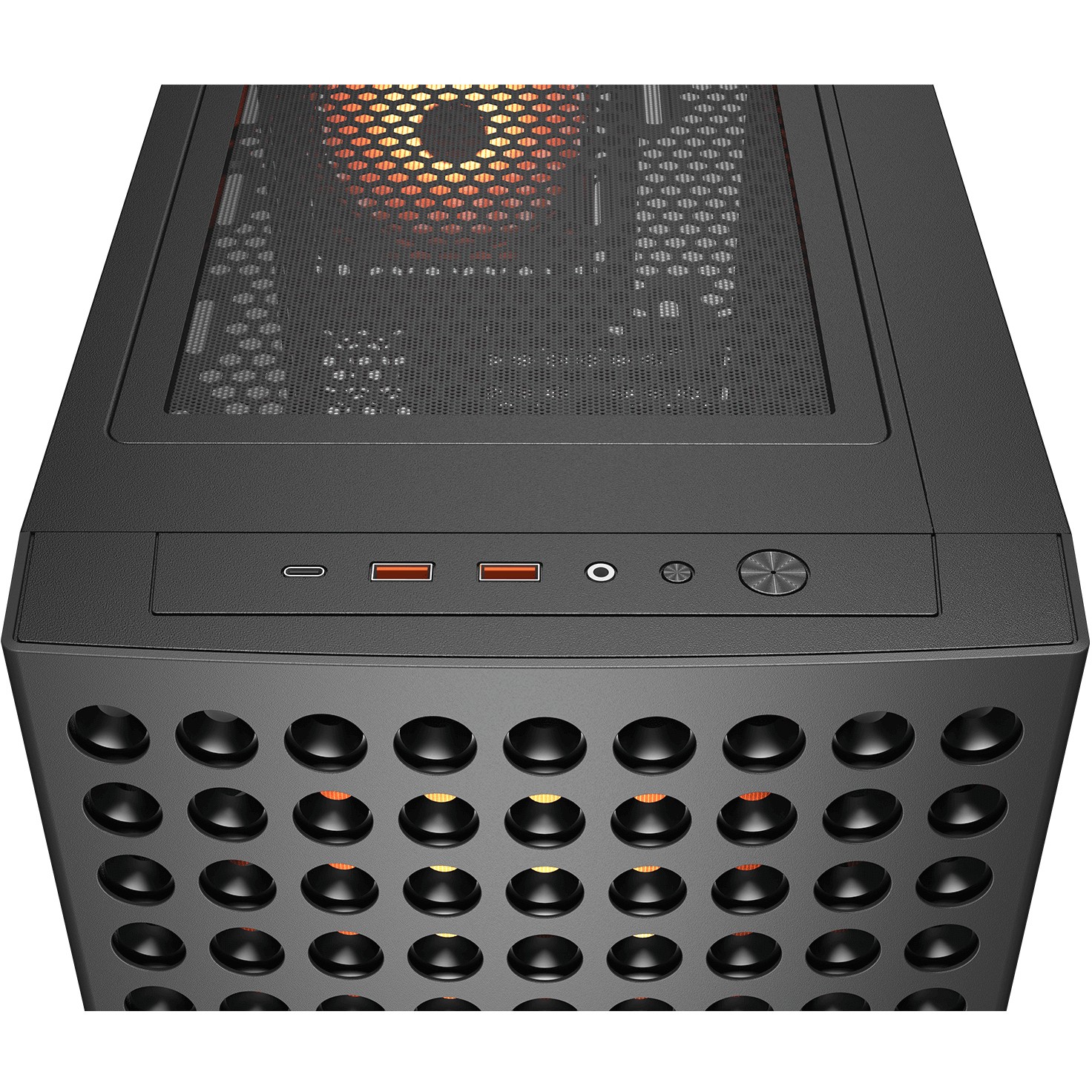

Whether you prefer your ports and buttons on the top or bottom. this feature allows you to position them wherever they are most convenient for you. This adaptability ensures that all your connections are easily accessible. no matter which way you orient your case. The Airface ECO RGB’s I/O panel includes 1 x USB-C 3.2 Gen 2. 2 x USB-A 3.0 ports. 4 pole headphone jack. RGB button.

Upgraded GPU Space
The Airface ECO RGB accommodates a maximum GPU length of 390mm. which can be set up both horizontally or vertically. Responding to user feedback. vertical GPU space has been upgraded for the Airface ECO RGB : this improvement provides more room for unobstructed airflow around the GPU.

Increased Cable Routing
Efficient cable management is crucial for both aesthetics and maintenance. Increased cable routing options allows you to keep your cables neatly organized and out of the way.

Synchronized Lighting
The built-in LED controller syncs with the motherboard for seamless system-wide lighting synchronization.

Drive Capacity
The Airface ECO RGB houses up to 2 x 2.5” SSD drives and 2 x 3.5” HDD drives.

Versatile Motherboard Compatibility
The Airface ECO RGB is compatible with Mini-ITX. Micro-ATX. ATX. CEB. and E-ATX motherboards. offering flexibility for various build configurations.

Design
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX. CEB. EATX. micro ATX. Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of expansion slots: 7

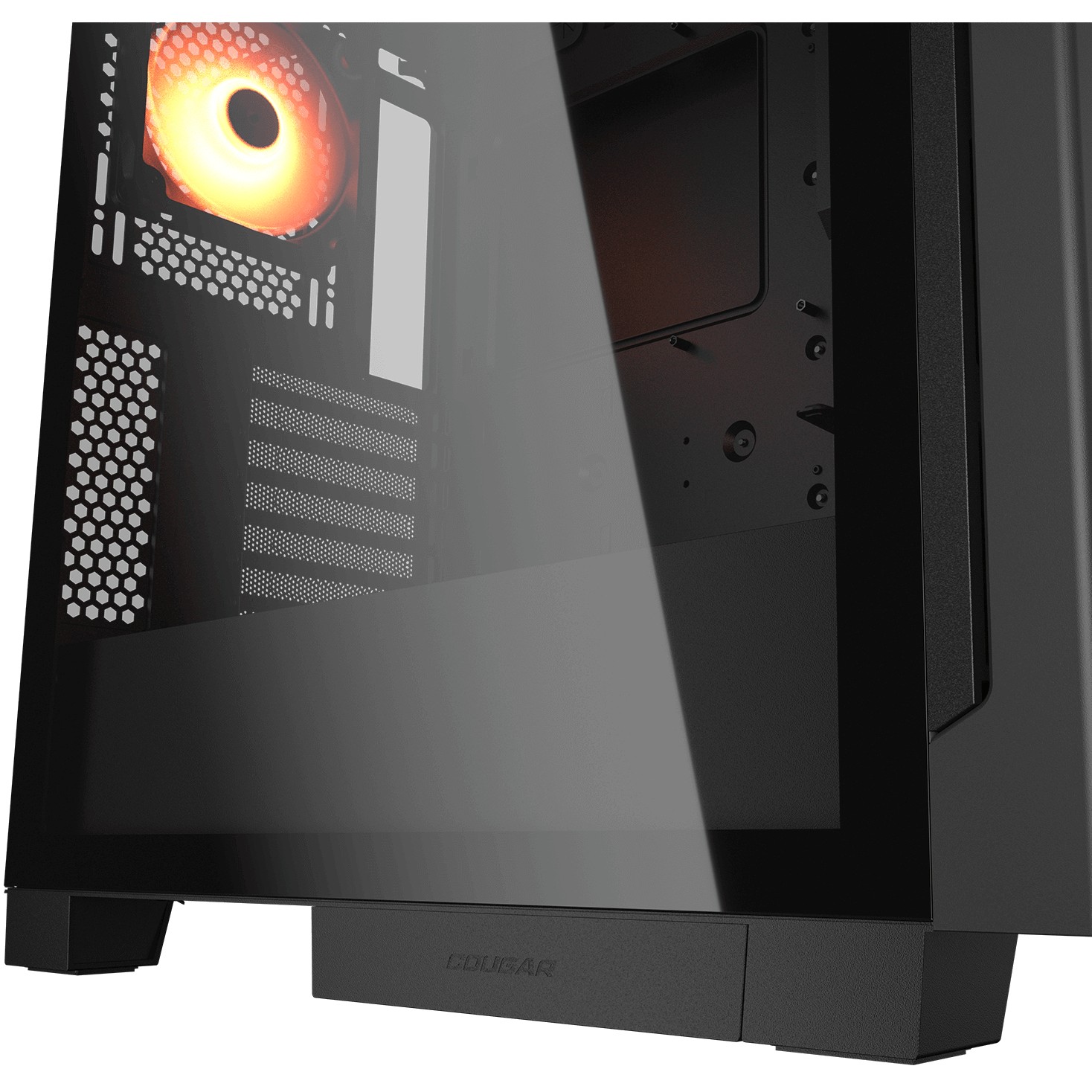

Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Feature: RGB control button
Feature: LED indicators
Maximum CPU cooler height: 19 cm
Maximum graphics card length: 39 cm
Maximum PSU length: 20 cm
Ports & interfaces
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
ARGB ports quantity: 2
Feature: Combo headphone/mic port
Cooling
Feature: Fan speed control
Front fans installed: 2x 180 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120.140.180 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120.140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120.140 mm
Fan speed: 300 - 1200 RPM
Feature: Liquid cooling capability
Front radiator sizes supported: 120.140.240.280.360 mm
Rear radiator sizes supported: 120.140 mm
Top radiator sizes supported: 120.140.240.280.360 mm
Storage
Supported HDD sizes: 2.5.3.5"
Weight & dimensions
Width: 240 mm
Depth: 480 mm
Height: 509 mm
Weight: 9.99 kg
Packaging data
Package width: 310 mm
Package depth: 585 mm
Package height: 586 mm
Package weight: 11.4 kg
