RACK ACCESSORIES

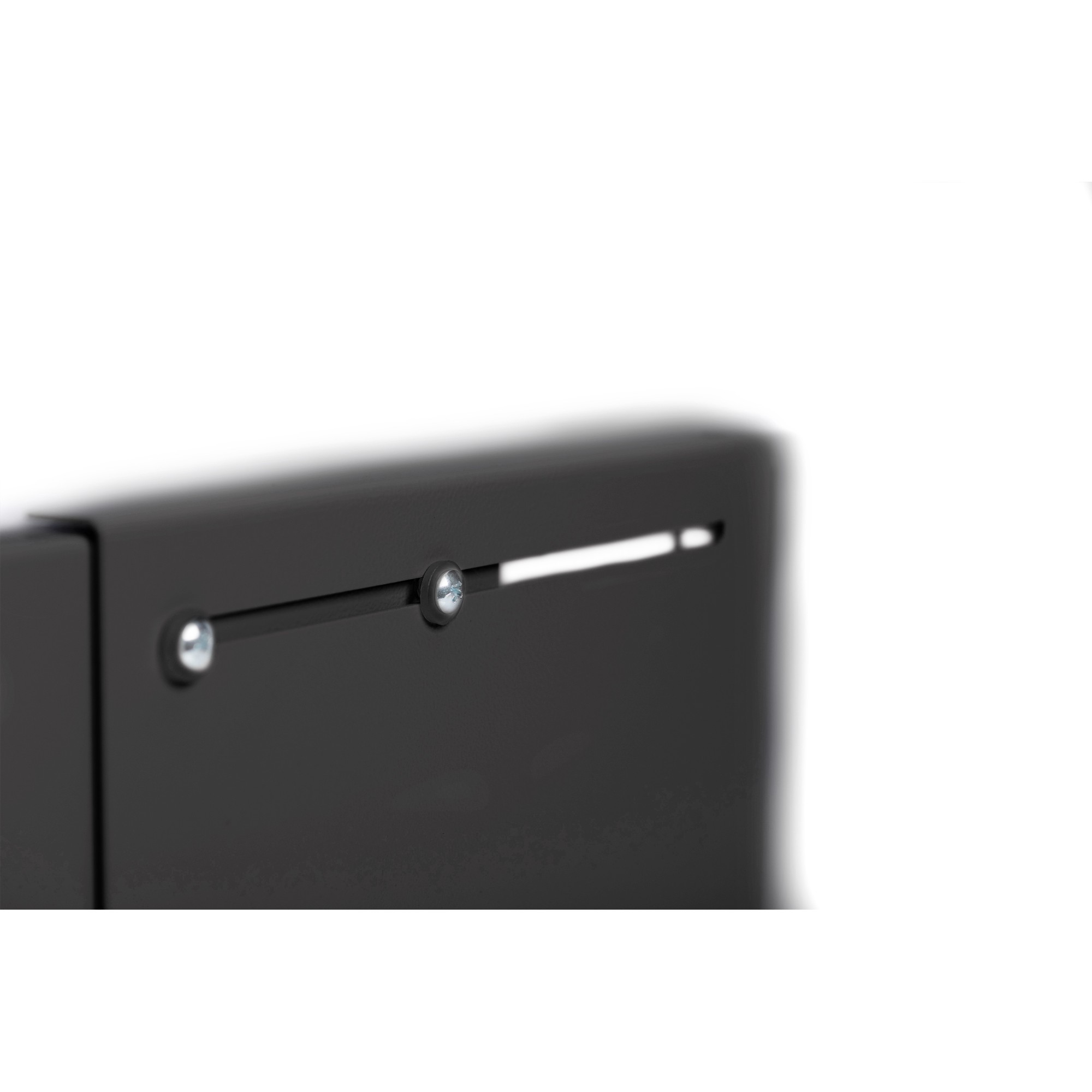

- adjustable depth

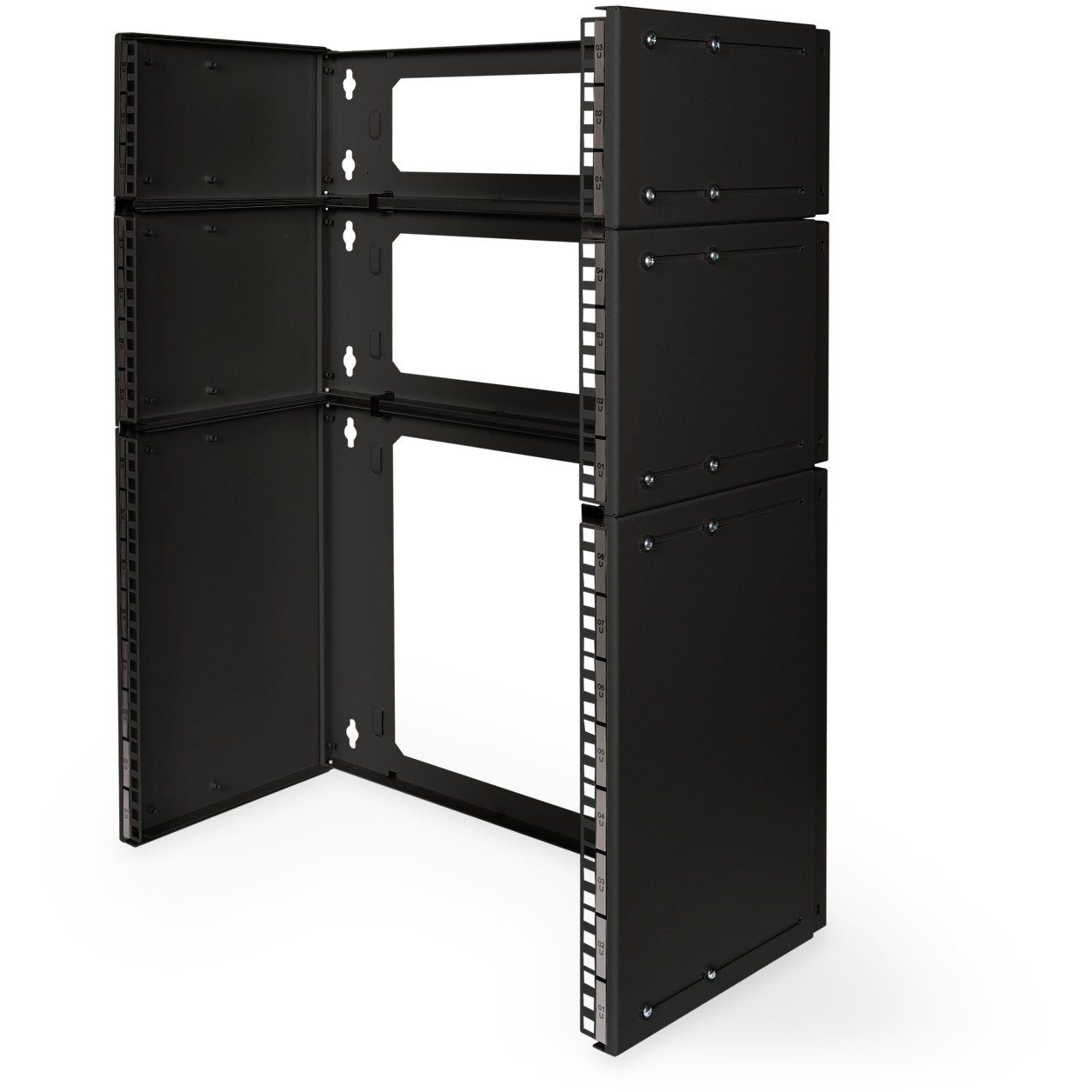

- stackable (fixing brackets included)
- Flat-pack delivery (folded)
- extensible with top-/base chassis (available seperately)
- rear side with cut-outs for cabling

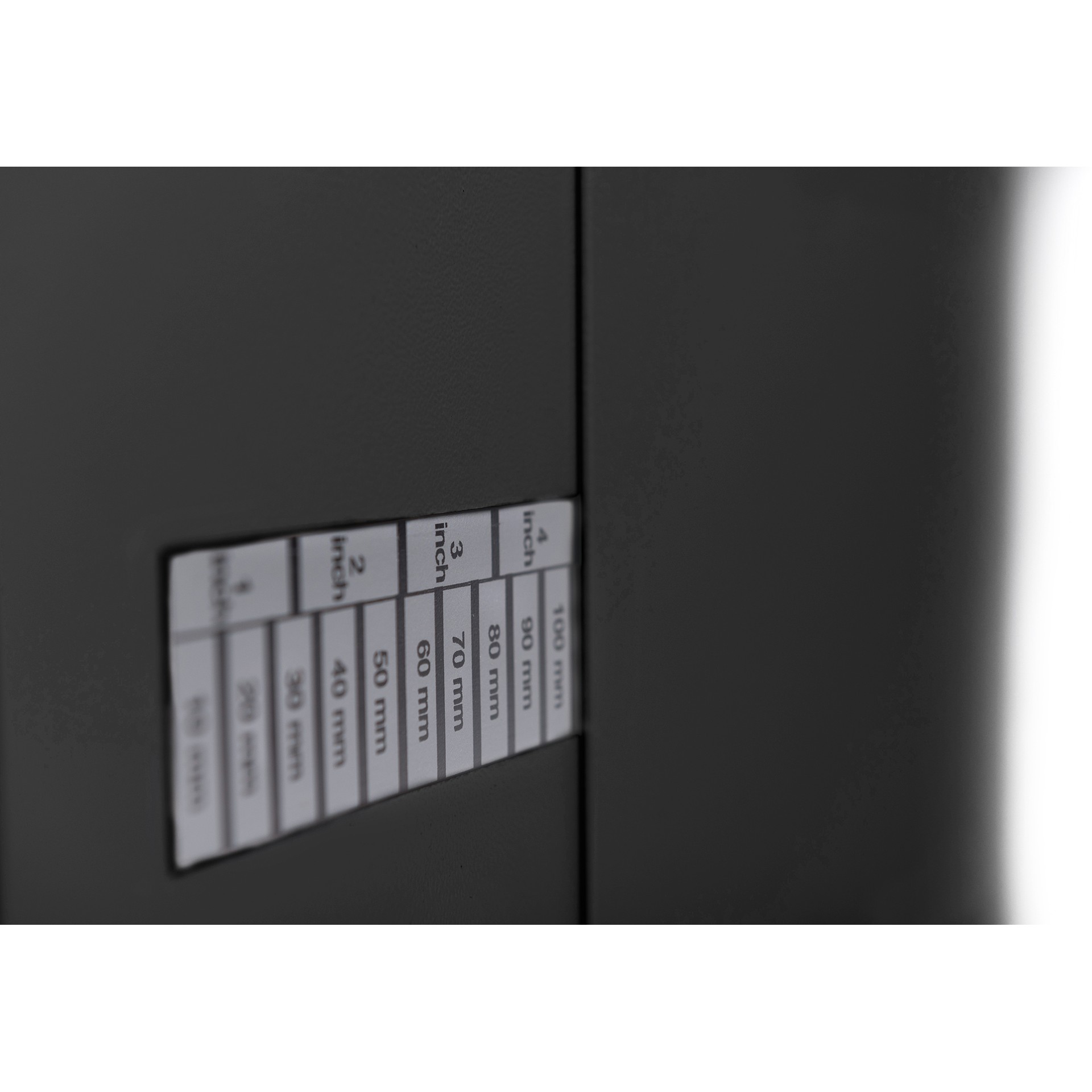

- height and depth indicators

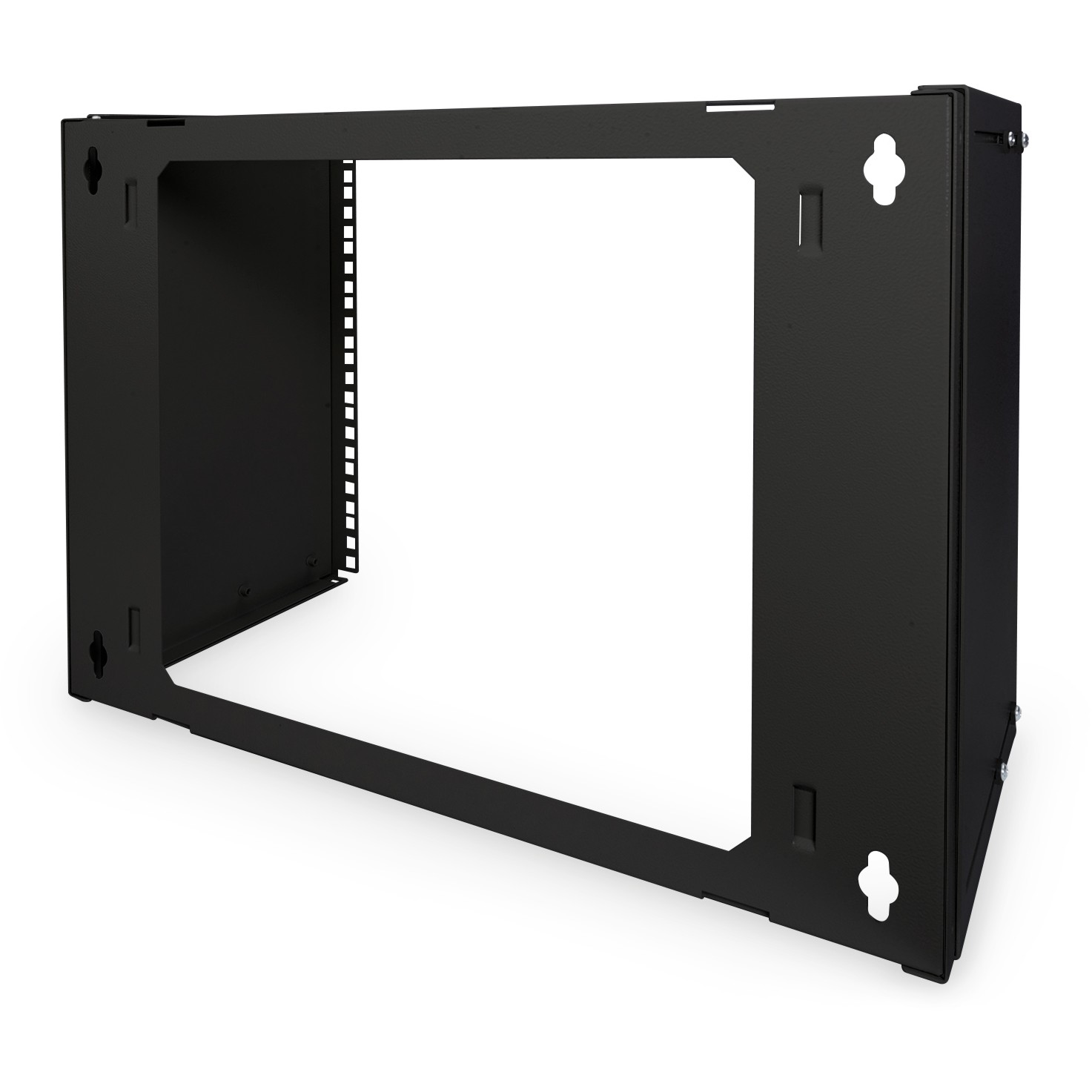

The Wall Mounting Patch Brackets for 483 mm (19”) installations are used for open mountings of 483 mm (19”) components. They are available in several height units to suit to your individual needs of space. The brackets are adjustable in depth (from 225 mm up to 399 mm) which makes the installation of larger components possible. The rear side has a big cut-out area that can be used to guide cables which come directly from the wall.

Features
Rack capacity: 4U
Type: Wall mounted rack
Maximum weight capacity: 15 kg
Product colour: Black
Feature: Side panels included
Weight & dimensions
Width: 505 mm
Packaging data
Package width: 530 mm
Package depth: 380 mm
Package volume: 8056 cm³
Package weight: 6.2 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: Turkey
Harmonized System (HS) code: 85381000
