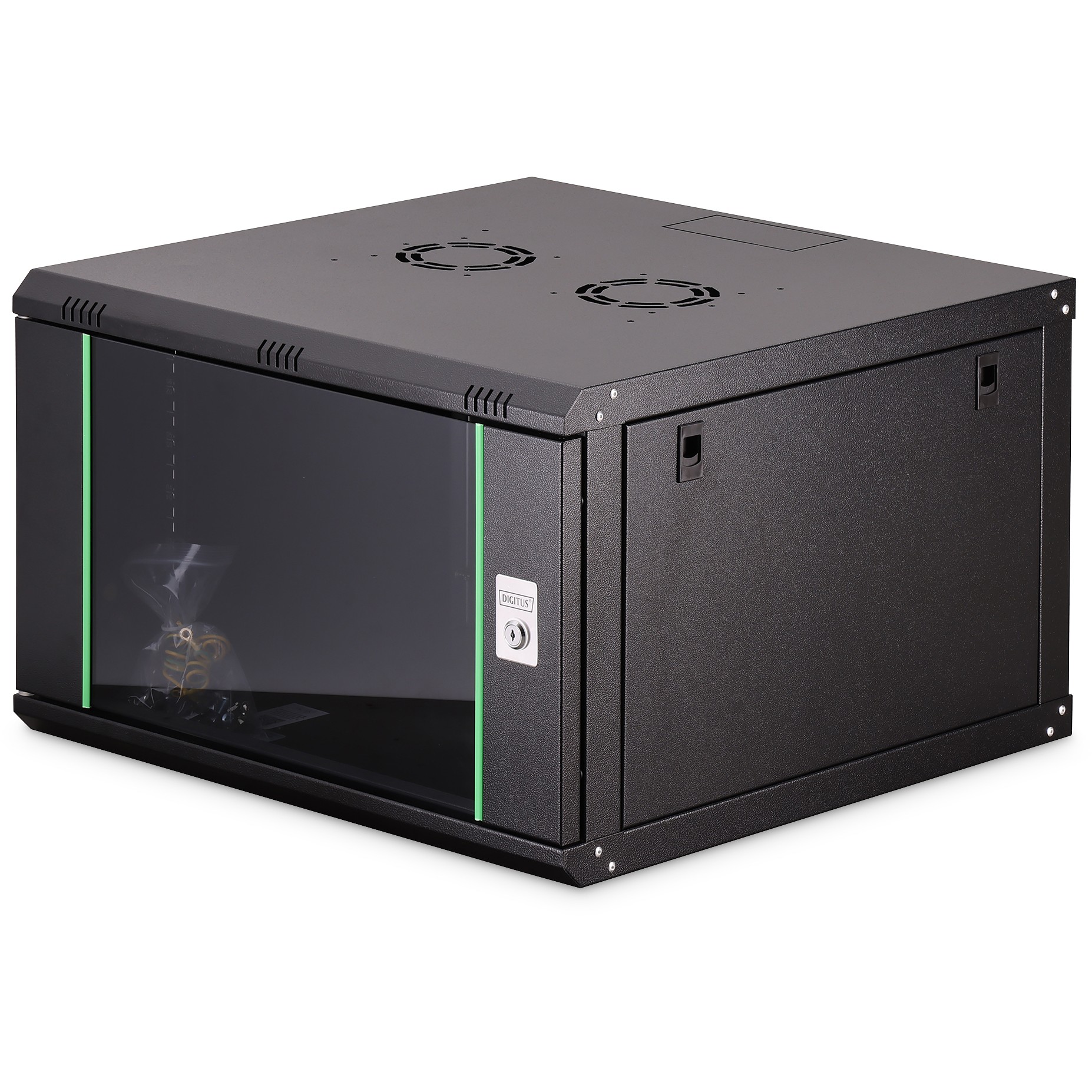

RACK CABINETS

- Optimized air ventilation and exhaustion

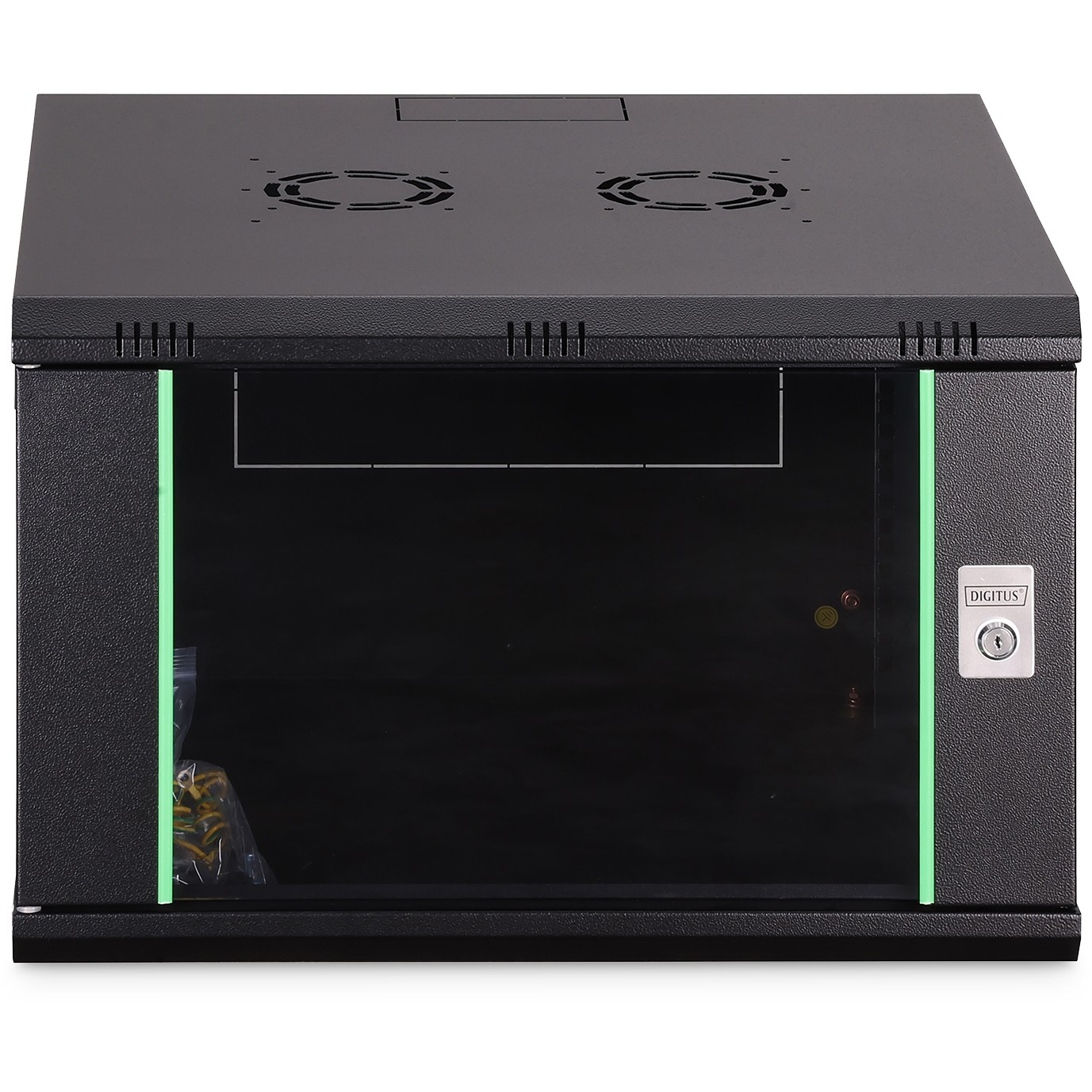

- Lockable glass door ensures safety

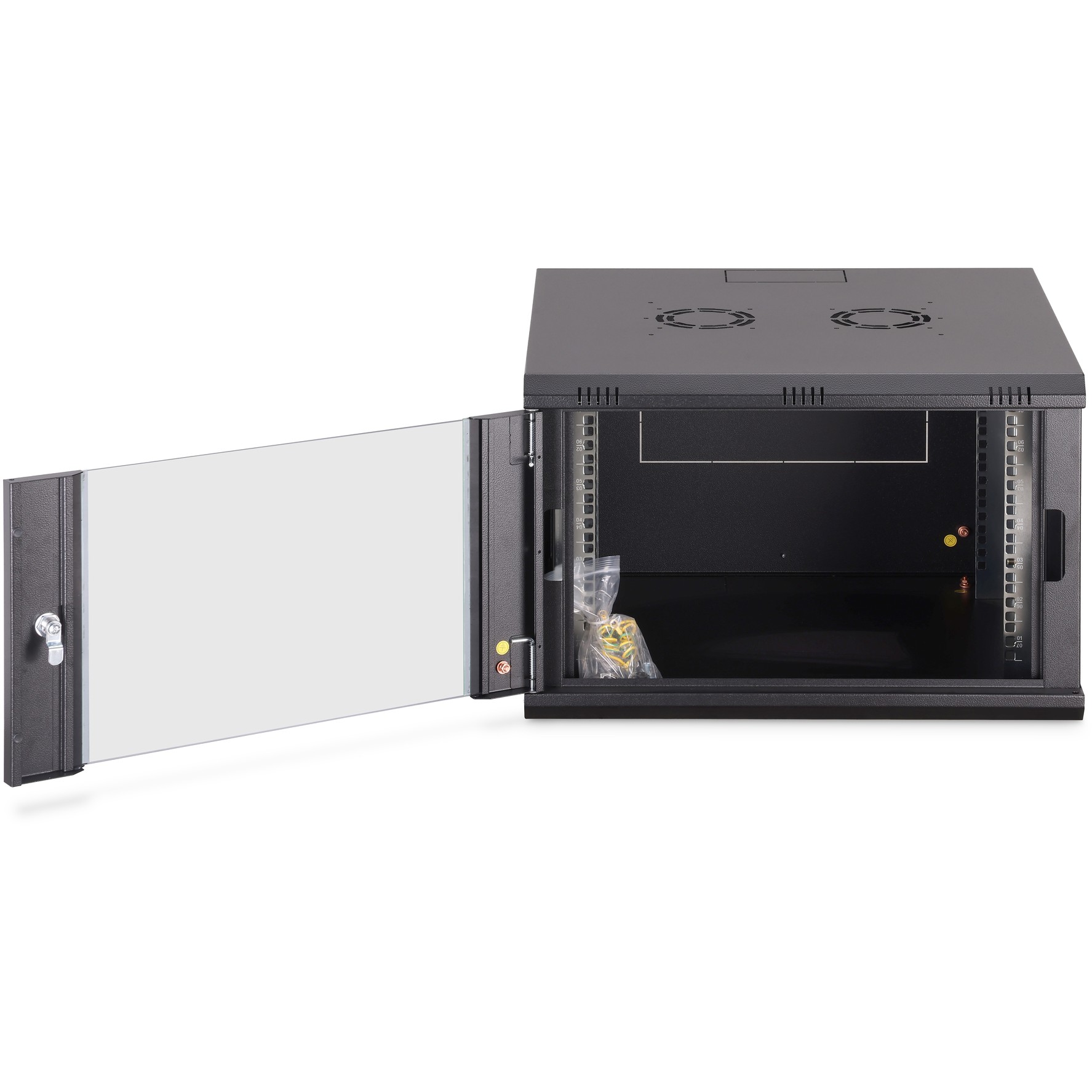

- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack. galvanized

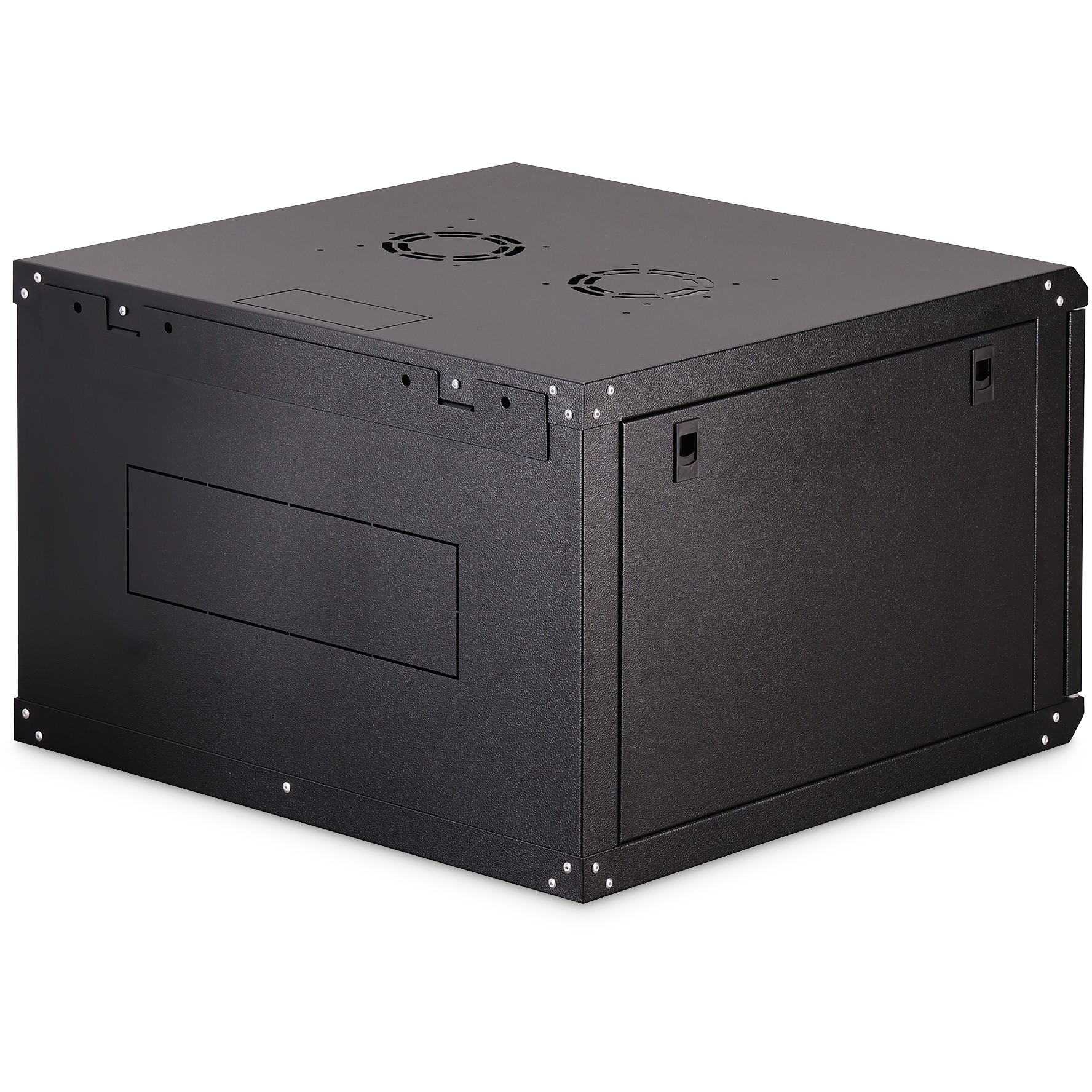

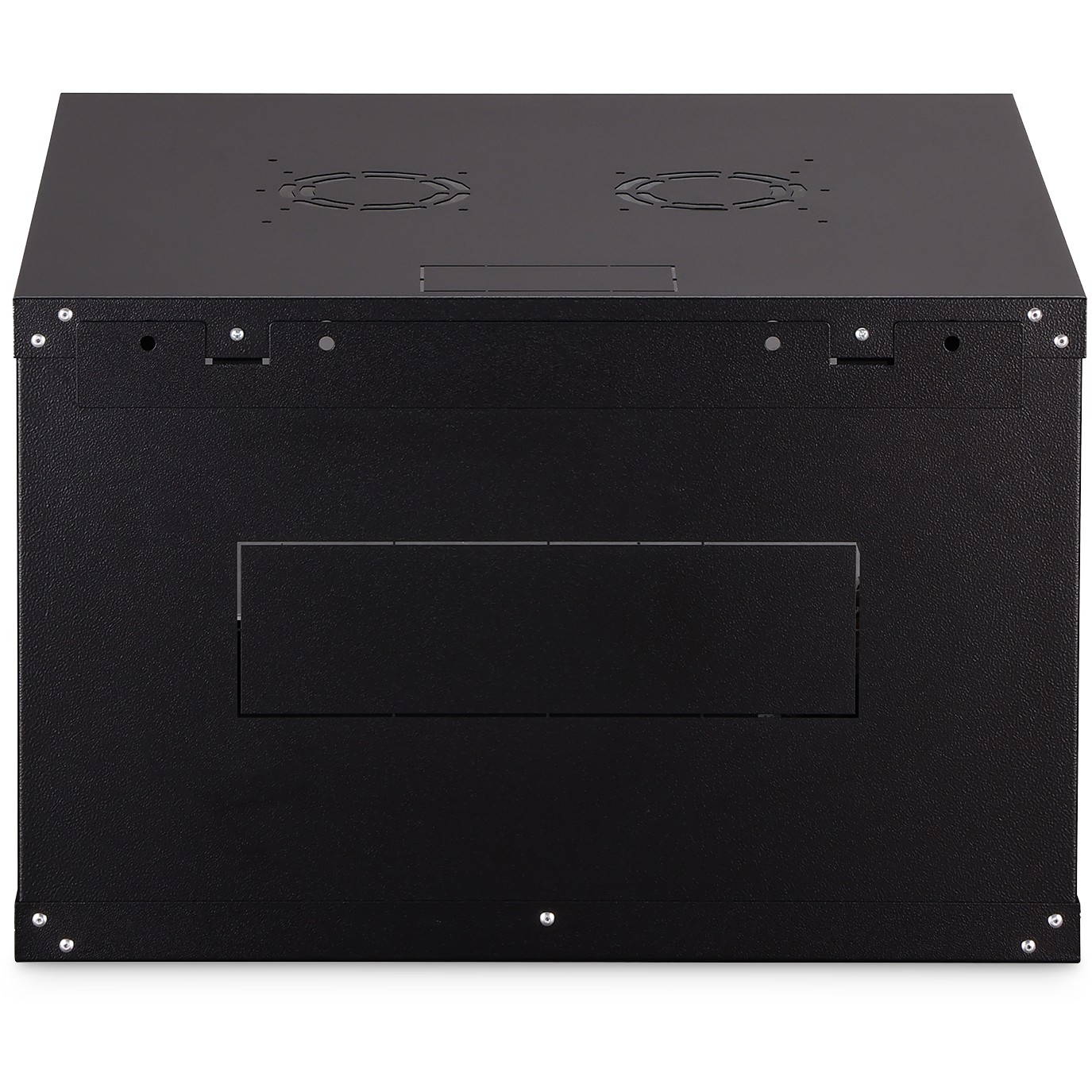

The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof. floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module. the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.

Features
Rack capacity: 7U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Steel
Front door construction: Glass
Side panel construction: Steel
Feature: Removable side panels
Feature: Side panels included

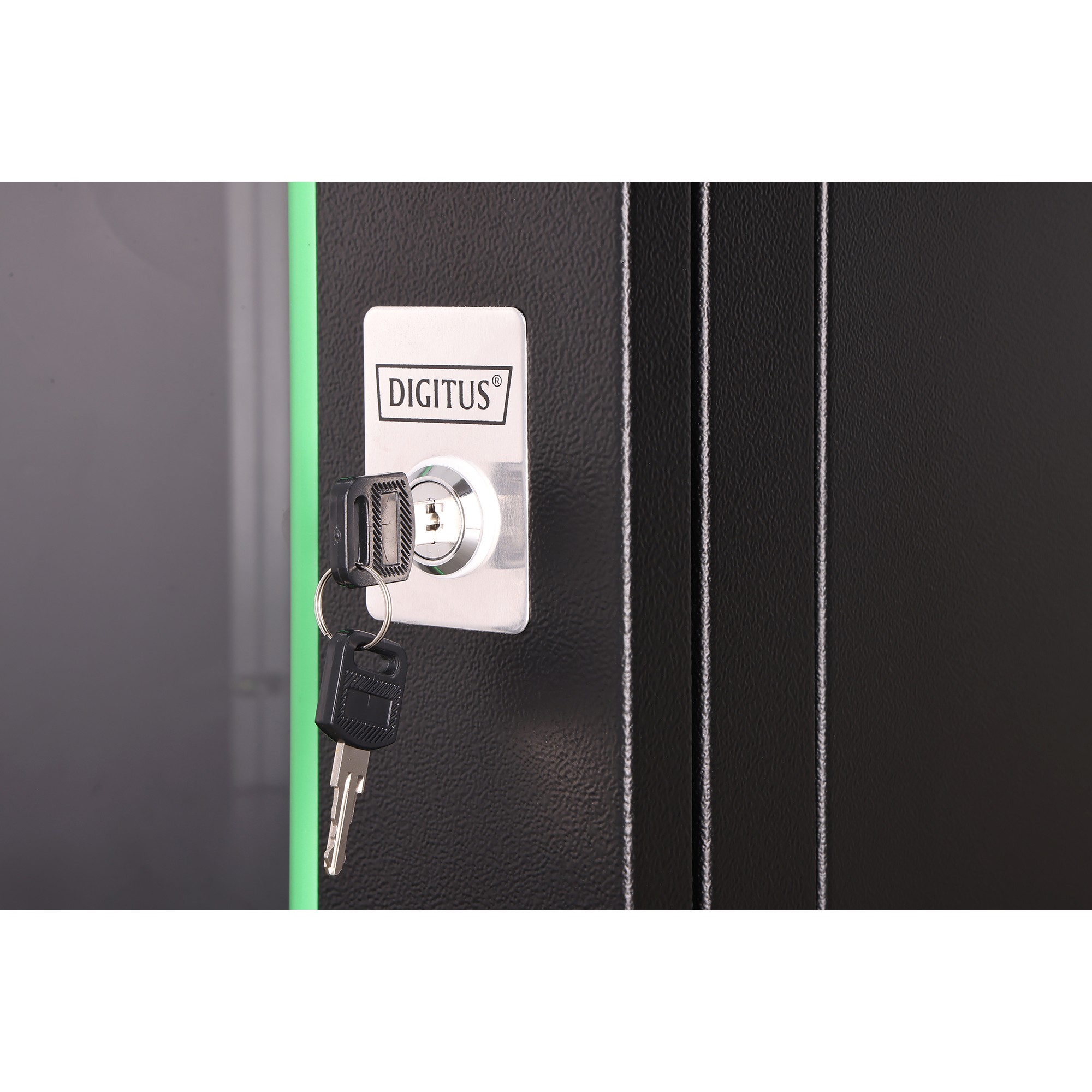

Feature: Key lock
Feature: Front door key lock
International Protection (IP) code: IP20
Weight & dimensions
Width: 600 mm
Depth: 600 mm
Height: 416 mm
Weight: 24 kg
Packaging data
Package width: 630 mm
Package depth: 430 mm
Package height: 480 mm
Package volume: 167958 cm³
Package weight: 18 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: China
Harmonized System (HS) code: 85381000
