CCTV CAMERAS & RECORDING

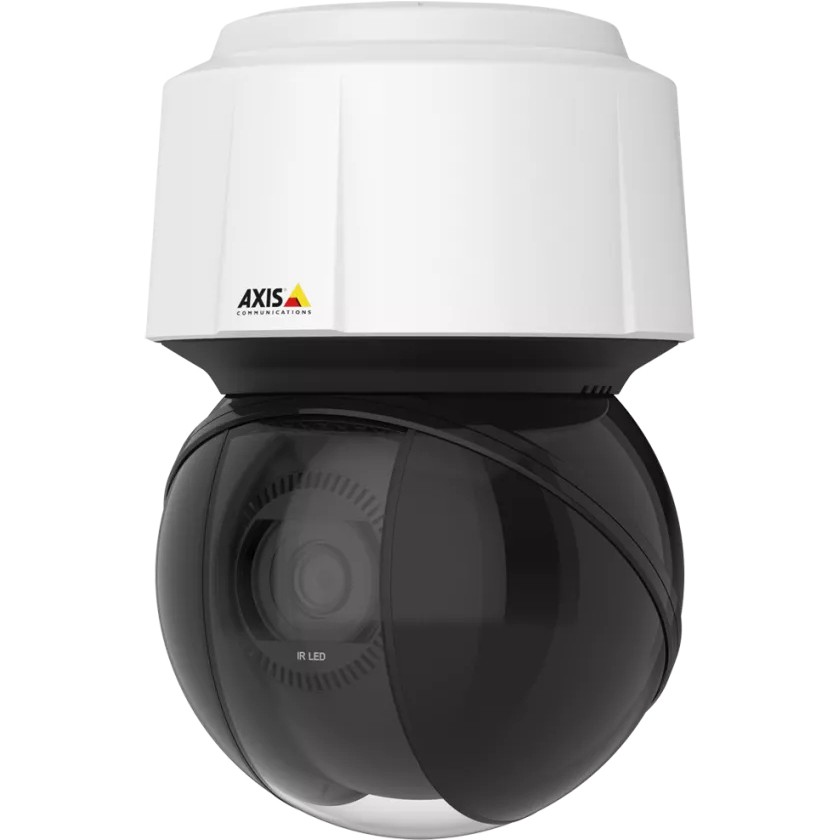

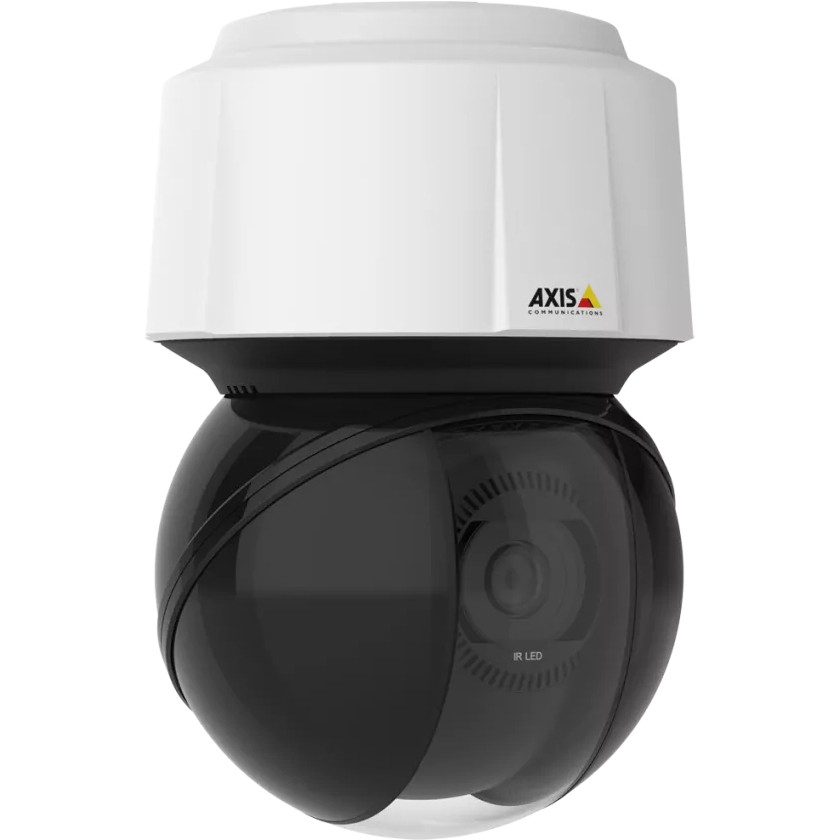

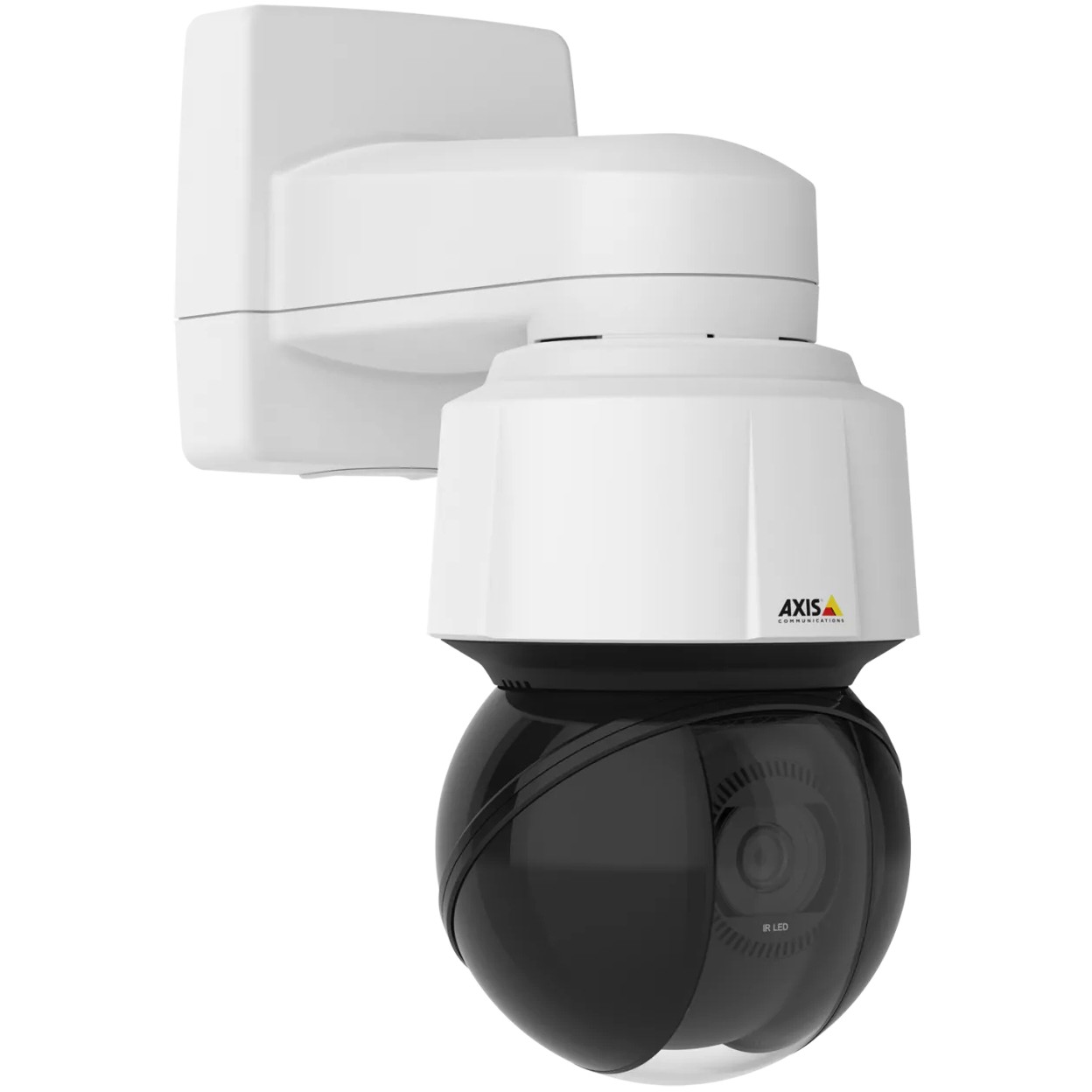

AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear. sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware. secure boot and TPM module. Plus. Axis Zipstream with support for H.264 and H.265.

Performance
Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Preset point
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Number of languages: 11
Languages support: Simplified Chinese. Traditional Chinese. German. English. Spanish. French. Italian. Japanese. Korean. Portuguese. Russian
Design
Form factor: Dome
Mounting type: Wall
Product colour: White
Housing material: Aluminium. Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK08
Camera
Lens viewing angle. horizontal: 58.3°
Lens viewing angle. vertical: 34.9°
Tilt angle range: -90 - 20°
Pan range: 0 - 360°
Camera shutter speed: 1/66500 - 2 s
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS
Lens system
Feature: Zoom capability
Optical zoom: 32x
Digital zoom: 12x
Number of lenses: 1
Night vision
Feature: Night vision
Night vision distance: 250 m
LED type: IR
Video
Maximum resolution: 1920 x 1080 pixels
Video compression formats: H.264. H.265. M-JPEG
Supported graphics resolutions: 320 x 180
Supported video modes: 1080p
Feature: Video recording
Frame rate: 60 fps
Feature: Video intelligence analytic
Feature: Video streaming
Feature: Text caption overlay
Audio
Audio system: 2-way
Audio input channels: 2.0 channels
Network
Feature: Ethernet LAN
Storage
Feature: Built-in HDD
HDD capacity: 1 GB
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash). MicroSDHC. MicroSDXC
Flash memory: 512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Security
Feature: IP address filtering
Security algorithms: EAP-TLS. HTTPS
Feature: HTTPS encryption
Alert notification type: E-mail. Snapshot alert message
Feature: Pixel counter
Power
Power source type: PoE
AC input voltage: 100 - 240 V
Power consumption (typical): 13.5 W
Power consumption (max): 74 W
Power consumption (Power over Ethernet (PoE)): 74 W
Operational conditions
Operating temperature (T-T): -50 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Height: 241 mm
Diameter: 16.5 cm
Weight: 3 kg
Packaging content
Number of cameras: 1
Logistics data
Harmonized System (HS) code: 85258900
