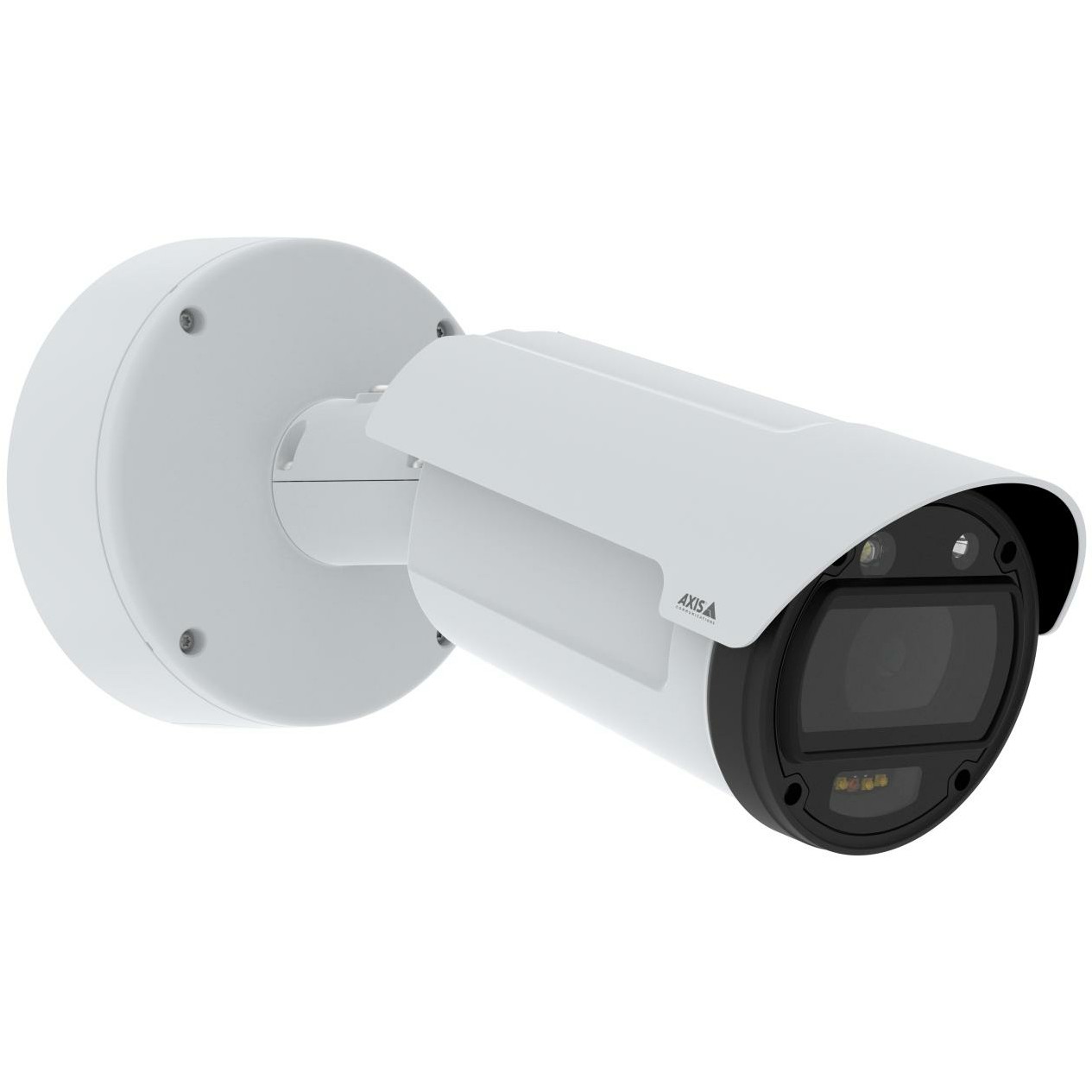

AXIS Q1808-LE Bullet Camera

This powerful camera delivers outstanding 4K and ultra-high light sensitivity. It’s available with a wide lens for open areas or a tele lens for surveillance from a distance. Plus. with PoE out you can connect and power an additional device.

Excellent forensic details and powerful performance

Featuring a 4/3” image sensor. AXIS Q1808-LE offers exceptional low-light performance. And. thanks to Lightfinder 2.0 it ensures true colors in almost complete darkness. In addition. a deep learning processing unit (DLPU) lets you run advanced features and powerful analytics on the edge. It offers improved processing and storage capabilities so you can collect and analyze even more data than before. Plus. it delivers valuable metadata facilitating fast. easy. and efficient forensic search capabilities in live or recorded video.

Great coverage in wide. open areas

With a wide (12 – 48 mm) Canon lens and 90°-21° horizontal field of view. AXIS Q1808-LE is perfect for surveillance in wide. open areas. It offers 4x zoom and outstanding light sensitivity to ensure excellent forensic details. Plus. white light IR LEDS (850 nm) let you switch to white light to deter unwanted activity.

Excellent details at great distances

With a tele (50 – 150 mm) Canon lens and 21°-7° horizontal field of view. AXIS Q1808-LE is perfect for great details at long distances. With an additional 3x zoom. it’s ideal for identification purposes. Plus. Optimized IR allows for surveillance in complete darkness up to 150 m (500 ft) without the need for extra lighting.

Enjoy big savings

Not only does this powerful camera deliver outstanding 4K details. but thanks to Zipstream H.264/ H.265. it also significantly reduces bandwidth and storage requirements. And. with storage profile enabled. you’ll enjoy the optimal level of Zipstream for your video storage - regardless of your VMS. Even at night. when images contain a high level of noise. this powerful camera ensures low bandwidth and great details. In addition. PoE out lets you connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation. For instance. you can easily connect a horn speaker. strobe siren. or even another camera. Furthermore. dynamic power mode reduces power demands by as much as 50% in certain temperature ranges.

Reliable and robust

AXIS Q1808-LE includes Axis Edge Vault. a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With supervised inputs. you’ll be notified if the connection is cut. Plus. it can be powered with DC power and PoE. and even if there’s a power outage. redundant DC power ensures a reliable power supply to safeguard your data. This robust. outdoor-ready camera is IP66-. IP67-. IK10- and NEMA 4X-rated and can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Plus. with premium Q-line functionality. it guarantees always-great image quality.



Performance
Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: UL/cUL. BIS. UKCA. CE. KC. EAC. VCCI. RCM
Design
Form factor: Bullet
Mounting type: Wall
Product colour: Black. White
Housing material: Aluminium. Glass
Protection features: Impact resistant
International Protection (IP) code: IP66. IP67
IK code: IK10
Camera
Minimum illumination: 0.004 lx
Angle of rotation: 360°
Lens viewing angle. horizontal: 90 - 21°
Lens viewing angle. vertical: 49 - 12°
Tilt angle range: 0 - 90°
Pan range: -180 - 180°
Camera pixel size: 4.63 µm
Camera shutter speed: 1/45500 - 2 s
Image sensor
Number of sensors: 1
Optical sensor size: 101.6 / 3 mm (4 / 3")
Sensor type: CMOS
Lens system
Feature: Zoom capability
Optical zoom: 4x
Number of lenses: 1
Focal length range: 12 - 48 mm
Focus: Motorized
Maximum aperture number: 4
Detect distance (wide): 426.9 m
Detect distance (tele): 1275.8 m
Observe distance (wide): 169.4 m
Observe distance (tele): 506.3 m
Recognize distance (wide): 85.4 m
Recognize distance (tele): 255.1 m
Identify distance (wide): 42.7 m
Identify distance (tele): 127.6 m
Closest focusing distance: 1.5 m
Night vision
Feature: Night vision
Night vision distance: 100 m
LED type: IR
Infra-red wavelength: 850 nm
Video
Maximum resolution: 3712 x 2784 pixels
Video formats supported: AVC. H.264. H.265. HEVC. M-JPEG. MPEG4
Supported graphics resolutions: 160 x 120. 160 x 90. 1280 x 800. 3840 x 2160
Frame rate: 60 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction. 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness. Contrast. Saturation. Sharpness
Feature: Privacy masking
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Variable Bit Rate (VBR)
Audio
Audio formats supported: AAC-LC. ADPCM. G.711. G.726. LPCM. PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB
Network
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet. Gigabit Ethernet
Networking standards: IEEE 802.1x. IEEE 802.3at. IEEE 802.3bt
Feature: Quality of Service (QoS) support
Streaming method: Multicast
Storage
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash). MicroSDHC. MicroSDXC
Flash memory: 8192 MB
ROM capacity: 2048 MB
Ports & interfaces
Feature: Microphone in
Feature: Terminal block port
Feature: DC-in jack
Security
Feature: Password protection
Security algorithms: SNMP
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Face detection. Human detection. Line crossing detection. Moving object. Vehicle detection
Feature: Pixel counter
Feature: Digest authentication
Management features
Feature: Remotely operated
Power
Power source type: PoE
Power consumption (typical): 14.9 W
Power consumption (max): 51 W
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Weight: 3.2 kg
Features
Feature: License plate recognition
Sustainability
Compliance certificates: REACH. RoHS
Packaging content
Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Manual
Other features
Doesn't contain: PVC/BFR
