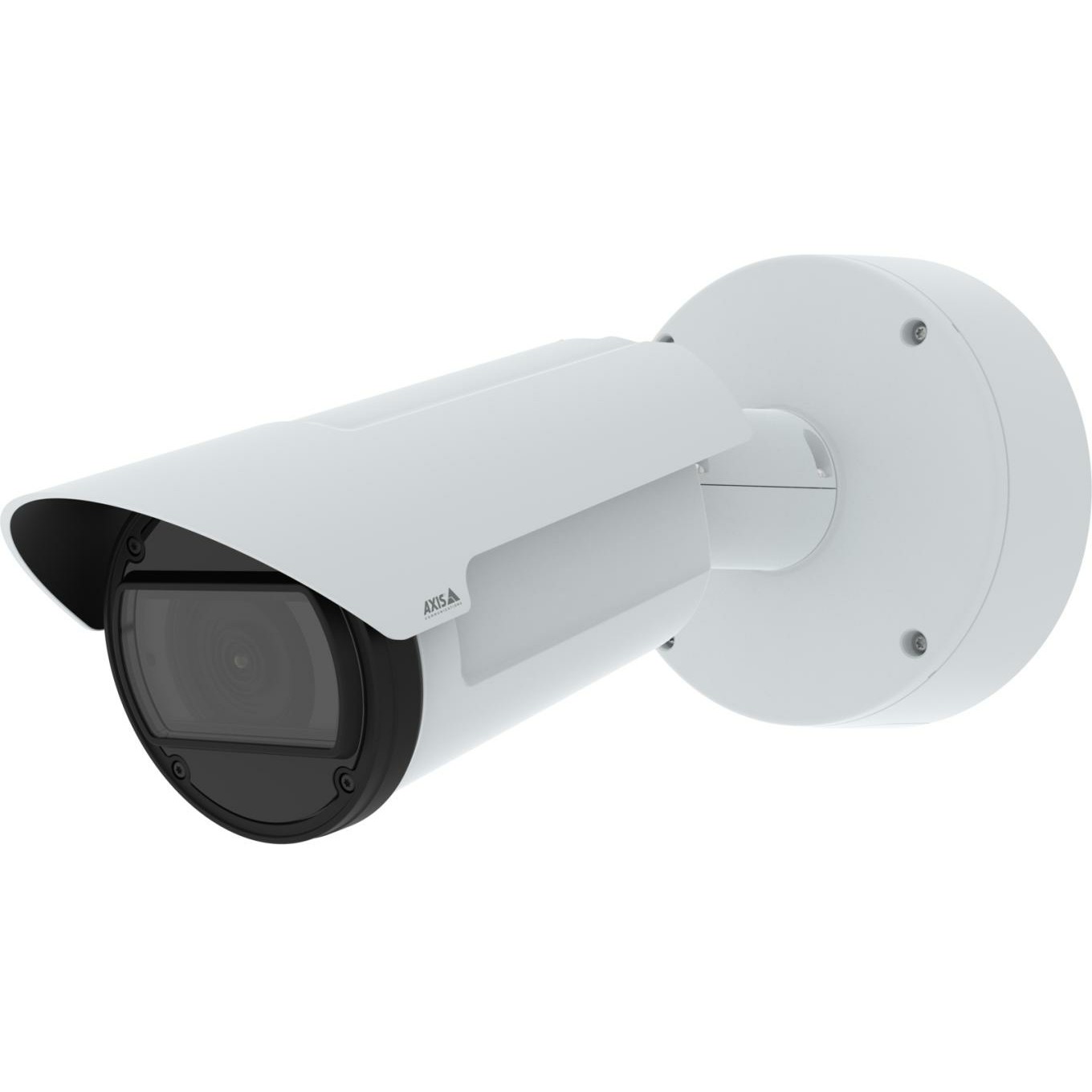

AXIS Q1805-LE Bullet Camera

This high-performance bullet camera offers 2 MP image quality with 32x optical zoom for great details at any distance. Plus. a deep learning processing unit enables unique opportunities for analytics based on deep learning.

First-class at any distance

With 32x optical zoom. AXIS Q1805-LE can be mounted much further from the scene and still deliver outstanding image quality. With OptimizedIR. you’ll enjoy sharp and clear footage in complete darkness up to 100 m (328 ft) without the need for extra lighting. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And. with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene. Furthermore. electronic image stabilization (EIS) ensures stable images despite vibration.

Cost-effective and secure

This easy-to-install camera features IDC network connectors as well as a spacious back box for secure cable management. With PoE out. it can power other devices such as speakers and strobe sirens. Plus. edge-to-edge technology allows speaker pairing. Thanks to Axis Zipstream with H.264/H.265. it significantly reduces bandwidth and storage requirements. Enclosed in a robust aluminum casing. this impact-resistant camera can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Additionally. Axis Edge Vault. a hardware-based cybersecurity platform safeguards the device and protects sensitive information from unauthorized access. Plus. it offers secure key storage with FIPS 140-2 level 2 certification.

Deep learning analytics

Built on ARTPEC-8. AXIS Q1805-LE features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before - on the edge. It also delivers valuable metadata facilitating fast. easy. and efficient forensic search capabilities. Thanks to AXIS Object Analytics it’s possible to detect and classify moving objects. Furthermore. with support for ACAP version 4. you can add tailor-made applications based on deep learning on the edge available from Axis and our partners.







Performance
Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: UL/cUL. BIS. UKCA. CE. KC. EAC. VCCI. RCM
Design
Form factor: Bullet
Mounting type: Wall
Product colour: Black. White
Housing material: Aluminium. Glass
Protection features: Impact resistant
International Protection (IP) code: IP66. IP67
IK code: IK10
Camera
Minimum illumination: 0.01 lx
Angle of rotation: 360°
Lens viewing angle. horizontal: 60 - 2.3°
Lens viewing angle. vertical: 39 - 1.3°
Tilt angle range: 0 - 90°
Pan range: -180 - 180°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/111000 - 2 s
Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Lens system
Feature: Zoom capability
Optical zoom: 32x
Number of lenses: 1
Focal length range: 4.3 - 137 mm
Maximum aperture number: 4
Minimum aperture number: 1.4
Detect distance (wide): 60.5 m
Detect distance (tele): 1884.2 m
Observe distance (wide): 24 m
Observe distance (tele): 747.7 m
Recognize distance (wide): 12.1 m
Recognize distance (tele): 376.8 m
Identify distance (wide): 6 m
Identify distance (tele): 188.4 m
Closest focusing distance: 1.2 m
Night vision
Feature: Night vision
Night vision distance: 100 m
LED type: IR
Infra-red wavelength: 850 nm
Video
Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: AVC. H.264. H.265. HEVC. M-JPEG. MPEG4
Supported graphics resolutions: 160 x 120. 320 x 180. 1400 x 1050 (SXGA+). 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Frame rate: 90 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction. 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness. Contrast. Saturation. Sharpness
Feature: Privacy masking
Feature: Text caption overlay
Feature: Image stabilizer
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Audio
Audio formats supported: AAC-LC. ADPCM. G.711. G.726. LPCM. PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB
Feature: Audio detection
Network
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet. Gigabit Ethernet
Networking standards: IEEE 802.1x. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt
Streaming method: Multicast
Storage
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash). MicroSDHC. MicroSDXC
Flash memory: 8192 MB
ROM capacity: 2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: Terminal block port
Feature: DC-in jack
Security
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Human detection. Line crossing detection. Moving object. Vehicle detection
Feature: Pixel counter
Feature: Digest authentication
Management features
Feature: Remotely operated
Power
Power source type: PoE
Power consumption (typical): 12.6 W
Power consumption (max): 51 W
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 183 mm
Depth: 411 mm
Height: 183 mm
Weight: 3.2 kg
Sustainability
Compliance certificates: REACH. RoHS
Packaging content
Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Manual
Other features
Doesn't contain: PVC/BFR
