CCTV CAMERAS & RECORDING

Ideal for wide-area surveillance. this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption. it ensures sustainable surveillance with lower operating costs.

Wide area surveillance with high-quality overview - 24/7

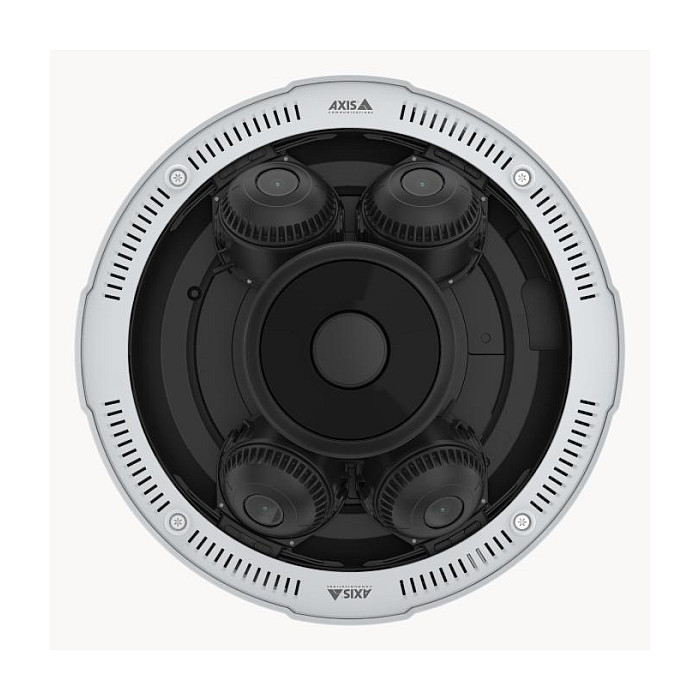

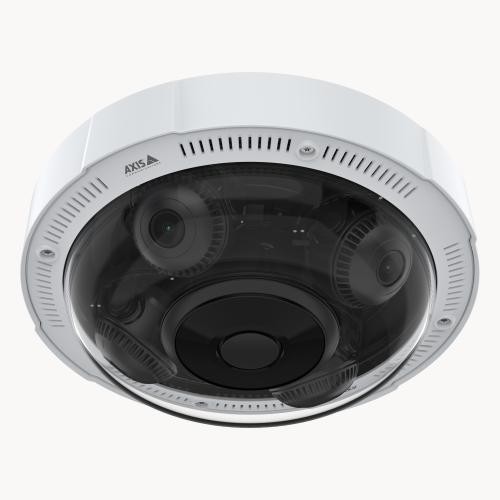

AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in. detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So. you’ll enjoy clear. reflection-free footage and excellent image quality even in low light or complete darkness. Plus. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore. it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles. for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.

Brilliant Design

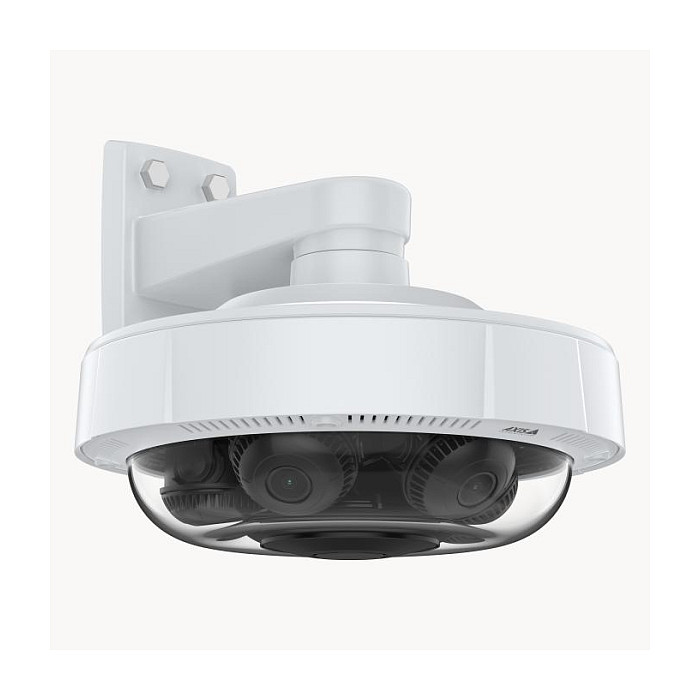

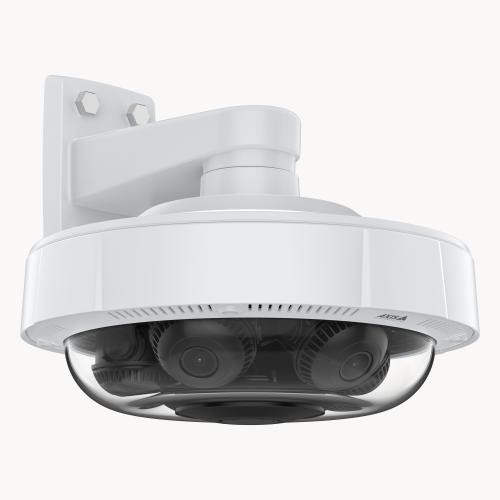

This compact camera offers various mounting options. For instance. it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners. it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield. it’s protected against rain. snow. and sunlight—ideal for outdoor wall mounting. In addition. all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus. each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted. so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.

Cost-efficient and secure
With four camera heads in one camera. AXIS P3737-PLE ensures fast. accurate. and cost-effective installation. That’s because there’s only one camera to install. one cable to draw. one IP address. and one video management software (VMS) license. Plus. it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities. it eliminates the need for hands-on fine-tuning. Furthermore. Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault. a hardware-based cybersecurity platform. safeguards the device and protects sensitive information from unauthorized access.

Deep learning analytics
Built on ARTPEC-8. this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus. it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast. easy. and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics. it can detect and classify people and vehicles. Furthermore. with support for ACAP version 4. you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.

Performance
Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Remote viewing
Design
Form factor: Dome
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP66. IP67
IK code: IK09
Camera
Feature: Camera pan control
Minimum illumination: 0 lx
Angle of rotation: 100°
Lens viewing angle. horizontal: 99 -37°
Lens viewing angle. vertical: 77 -28°
Lens viewing angle. diagonal: 134 -47°
Tilt angle range: 25 - 95°
Pan range: -90 - 90°
Camera pixel size: 2 µm
Image sensor
Number of sensors: 4
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS
Panoramic camera
Maximum resolution (panoramic camera): 2592 x 1944 pixels
Focal length range (panoramic camera): 3.17 - 8.12 mm
Lens system
Feature: Zoom capability
Number of lenses: 4
Feature: Auto focus
Night vision
Feature: Night vision
LED type: IR
Video
Maximum resolution: 2688 x 1944 pixels
Total megapixels: 5 MP
Video compression formats: H.264. H.265. M-JPEG
Feature: Video recording
Frame rate: 30 fps
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x
Storage
Flash memory: 8192 MB
ROM capacity: 4096 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Security
Siren noise level: 55 dB
Feature: Active tampering alarm
Feature: HTTPS encryption
Management features
Feature: Remotely operated
Power
Power source type: PoE
Operational conditions
Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Weight & dimensions
Weight: 2 kg
Sustainability
Feature: Sustainability compliance
Packaging content
Number of cameras: 1
