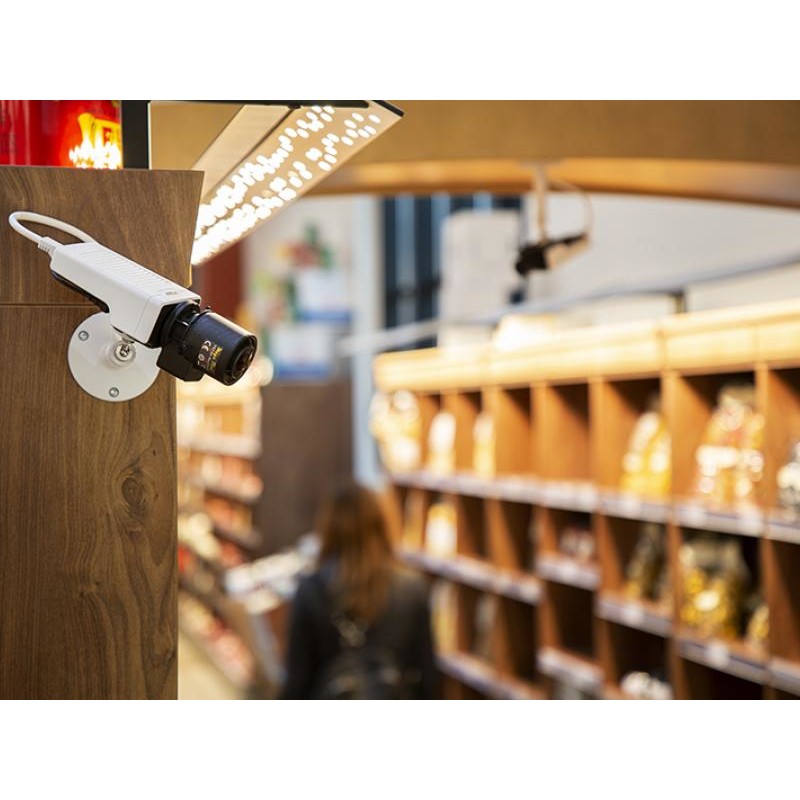

Axis Netzwerkkamera Box-Typ Mini M1137 MKII 5MP
Product code: 14624322 // MPN: 02484-001 // EAN: 7331021078215
€884,85 (inc. VAT)
Available from 4 to 10 days (15 pcs available)
Similar products
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Box |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 6.4 cm |
| Depth | 7 cm |
| Height | 17.9 cm |
| Weight | 165 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Minimum Illumination | 0.17 lux - colour - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE |
| Digital Video Capture Resolution | 160 x 120, 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| RAM | 1024 MB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, NAS-Ready, notification picture to E-mail, active tampering alarm, digital PTZ function, password protection, Variable Bitrate (VBR), Audio Detection, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, digest authentication, Line Crossing Detection, Vehicle Detection, Forensic WDR, IP address filtering, exposure zone, HTTPs encryption, human detection, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), video aspect ratio conversion, TLS encryption protocol, text overlay, user access log, brute force delay protection, Machine learning processing unit (MLPU), ONVIF (Profile M) support, Axis Edge Vault |
| Image Sensor | Image Sensor |
| Type | 5 MP PS RGB CMOS 1/2.7" |
| Lens Construction | Lens Construction |
| Type | CS-mount - vari-focal |
| Optical Zoom | 4.6 x |
| Focal Length | 2.8 mm - 13 mm |
| Lens Iris | F/1.4 auto iris (DC) |
| Horizontal Field of View (degree) | 24 - 112 |
| Vertical Field of View (degree) | 19 - 82 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Stand |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 50581, NEMA TS-2, NMB-3 Class A, RCM, CAN ICES-3 Class A, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, CAN/CSA C22.2 No. 60950-22, NIST SP500-267, IEC/EN 62262 IK10, KS C 9832 Class A, KS C 9835 |
| Colour | White, NCS S 1002-B |
| Power | Power |
| Power Requirements | DC 10 - 28 V / PoE Class 3 |
| Power Device | 7.2 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 80% (non-condensing) |
| All in one: | |
| Brand: | Axis |
| Gaming: |
