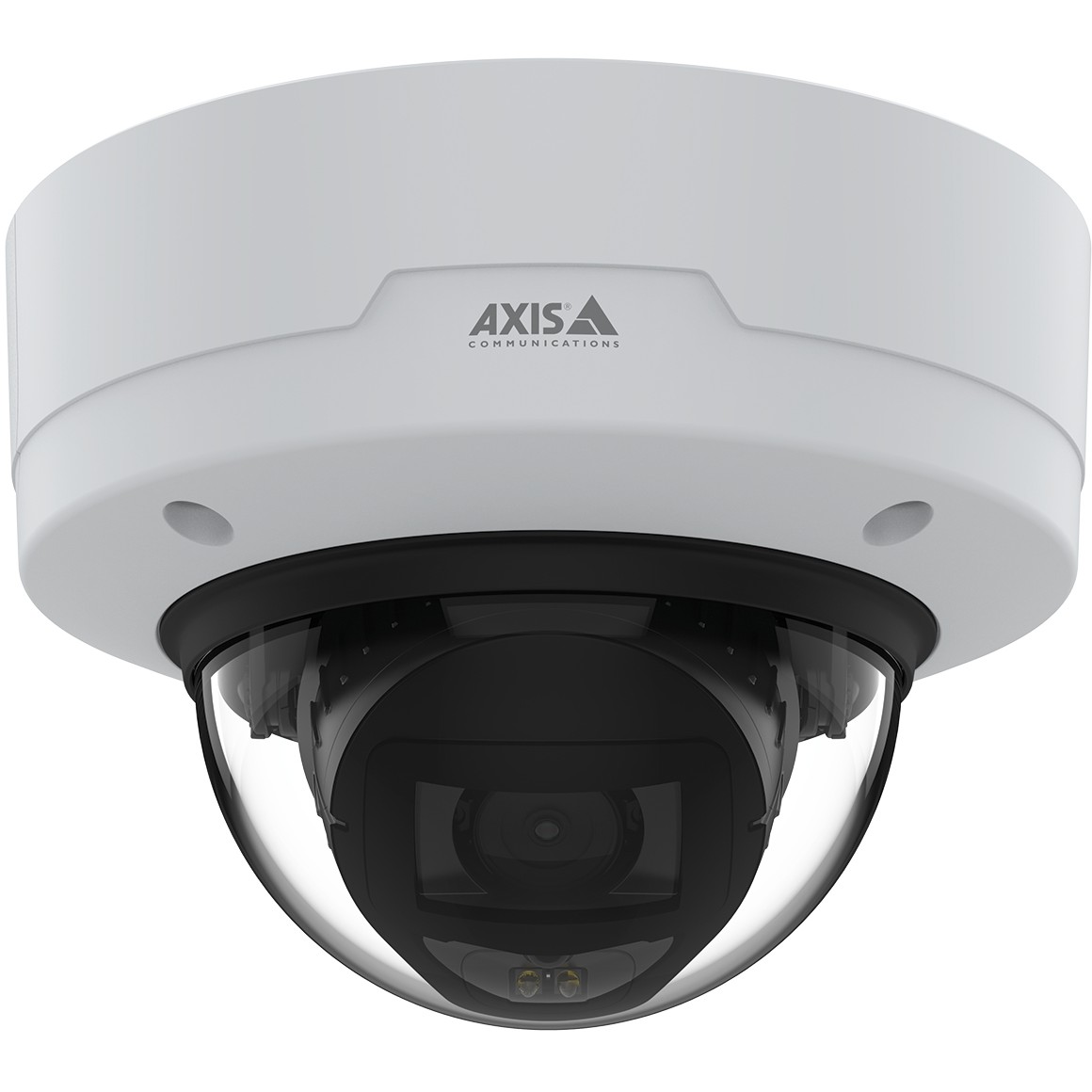

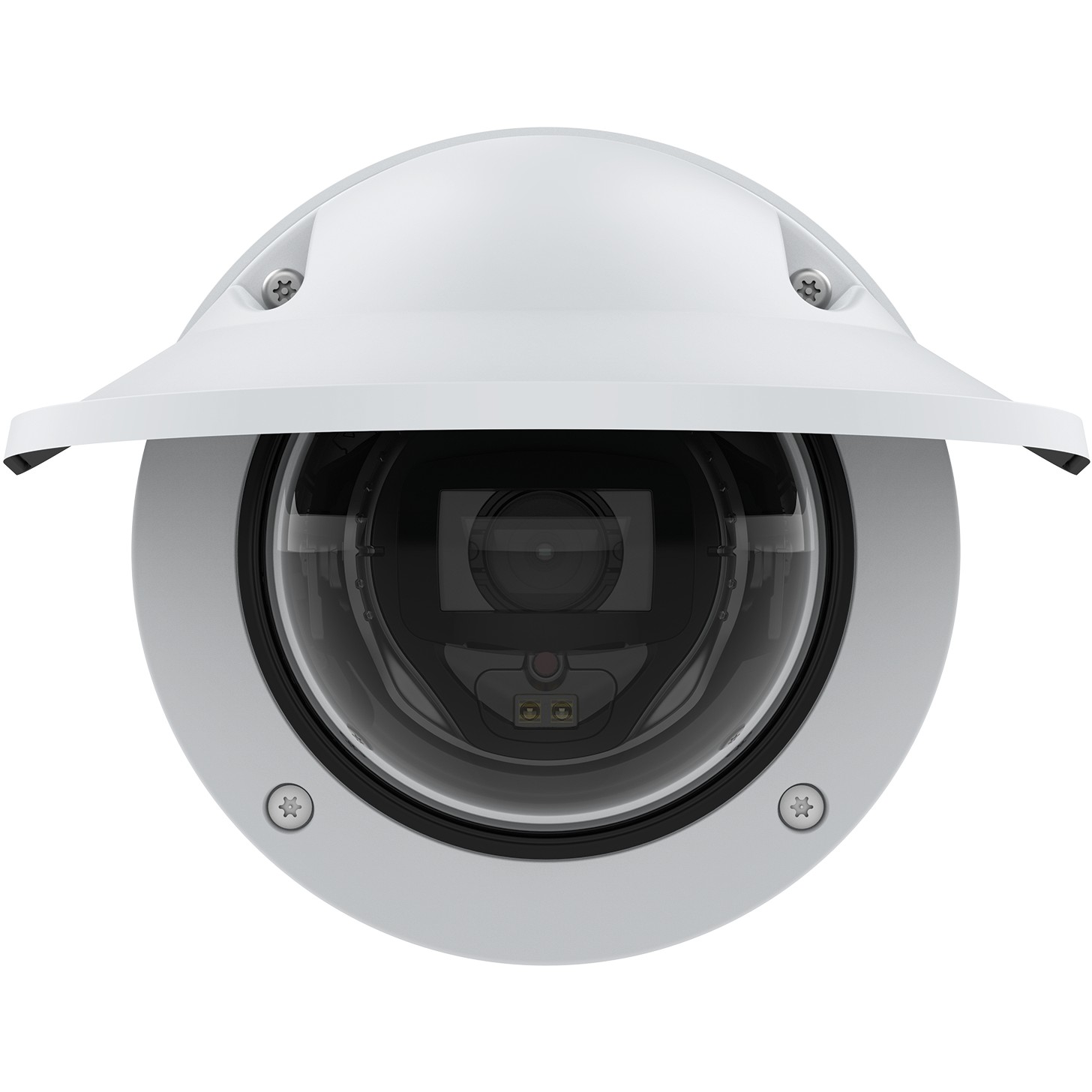

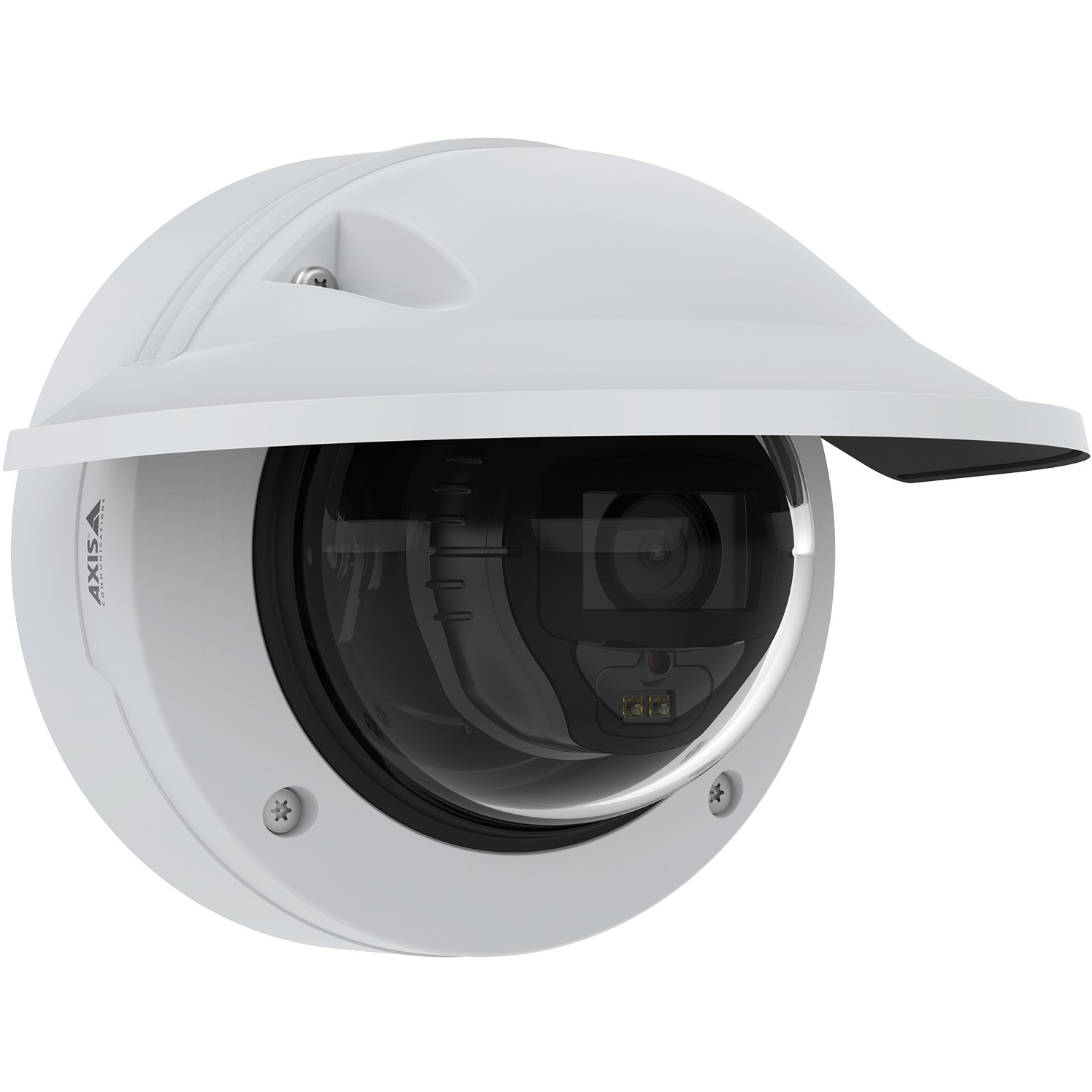

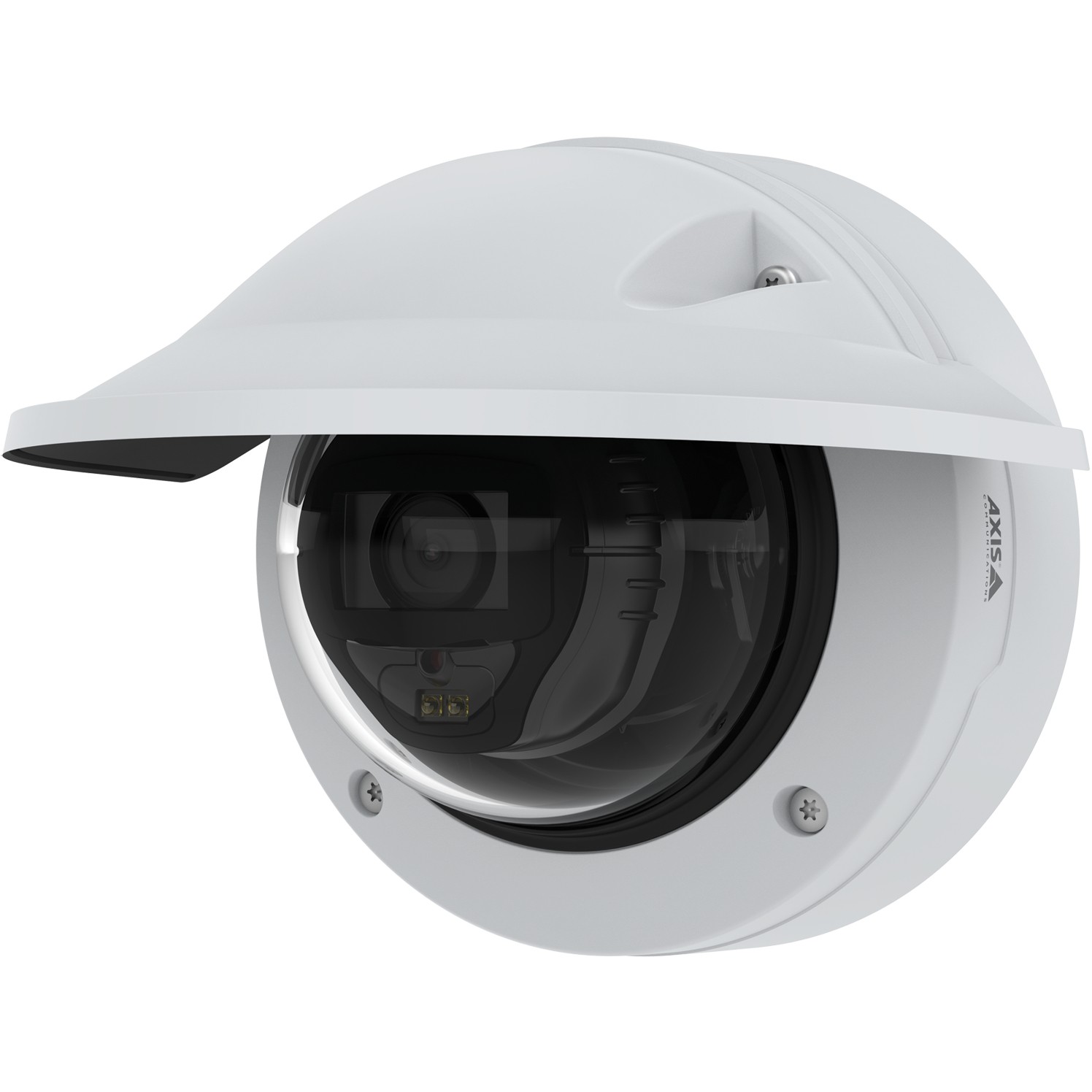

Featuring Lightfinder 2.0. Forensic WDR. and OptimizedIR. AXIS P3268-LVE delivers excellent image quality under any light conditions. Based on the latest Axis system-on-chip (SoC). it includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics. it offers detection and classification of humans. vehicles. and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity. you can integrate equipment and extend the value of your system. Furthermore. this robust. IK10-rated. outdoor-ready camera includes built-in cybersecurity to help prevent unauthorized access and safeguard your system.

Performance
Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 12
Languages support: Simplified Chinese. Traditional Chinese. German. English. Spanish. French. Italian. Japanese. Korean. Polish. Portuguese. Russian
Design
Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10
Camera
Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.14 lx
Angle of rotation: 190°
Tilt angle range: -10 - 80°
Pan range: -190 - 190°
Camera shutter speed: 1/8500 - 1/5 s
Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS
Lens system
Feature: Zoom capability
Number of lenses: 1
Focal length range: 4.3–8.6
Normal focusing range: 0.5 m
Night vision
Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm
Video
Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264. H.265
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Brightness. Contrast. Saturation. Sharpness
Feature: Flip & mirror
Feature: Privacy masking
Feature: Text caption overlay
Bit rate control: Variable Bit Rate (VBR)
Feature: Smart IR
Audio
Feature: Audio detection
Network
Feature: Ethernet LAN
Networking standards: IEEE 802.1x. IEEE 802.3af. IEEE 802.3at
Feature: Quality of Service (QoS) support
Storage
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash). MicroSDHC. MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port
Security
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Alert notification type: E-mail
Power
Power source type: PoE
Power consumption (typical): 5.5 W
Power consumption (max): 11.2 W
Operational conditions
Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Height: 107 mm
Diameter: 14.9 cm
Weight: 900 g
Packaging content
Number of cameras: 1
Feature: Drilling template included
Feature: Manual
