CCTV CAMERAS & RECORDING

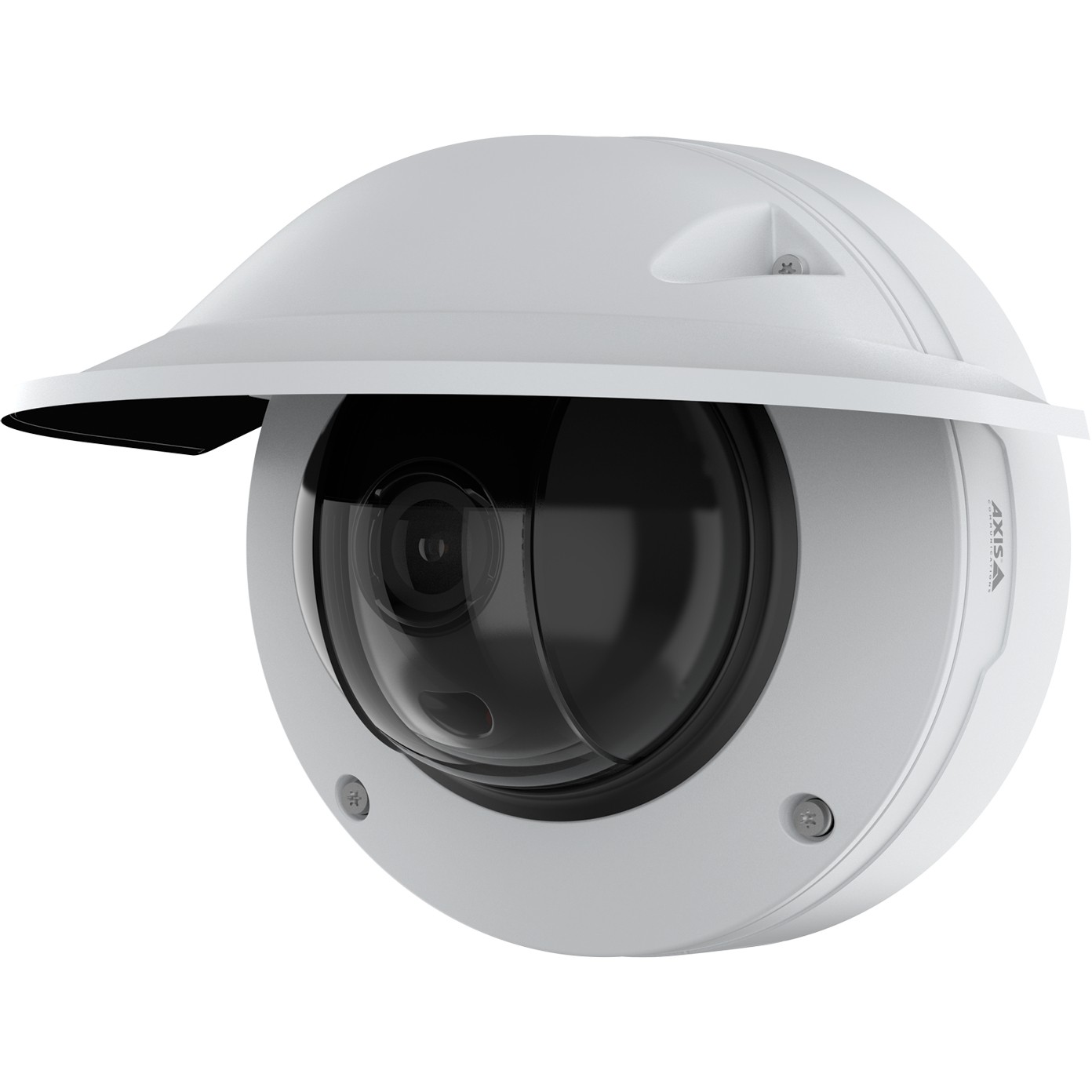

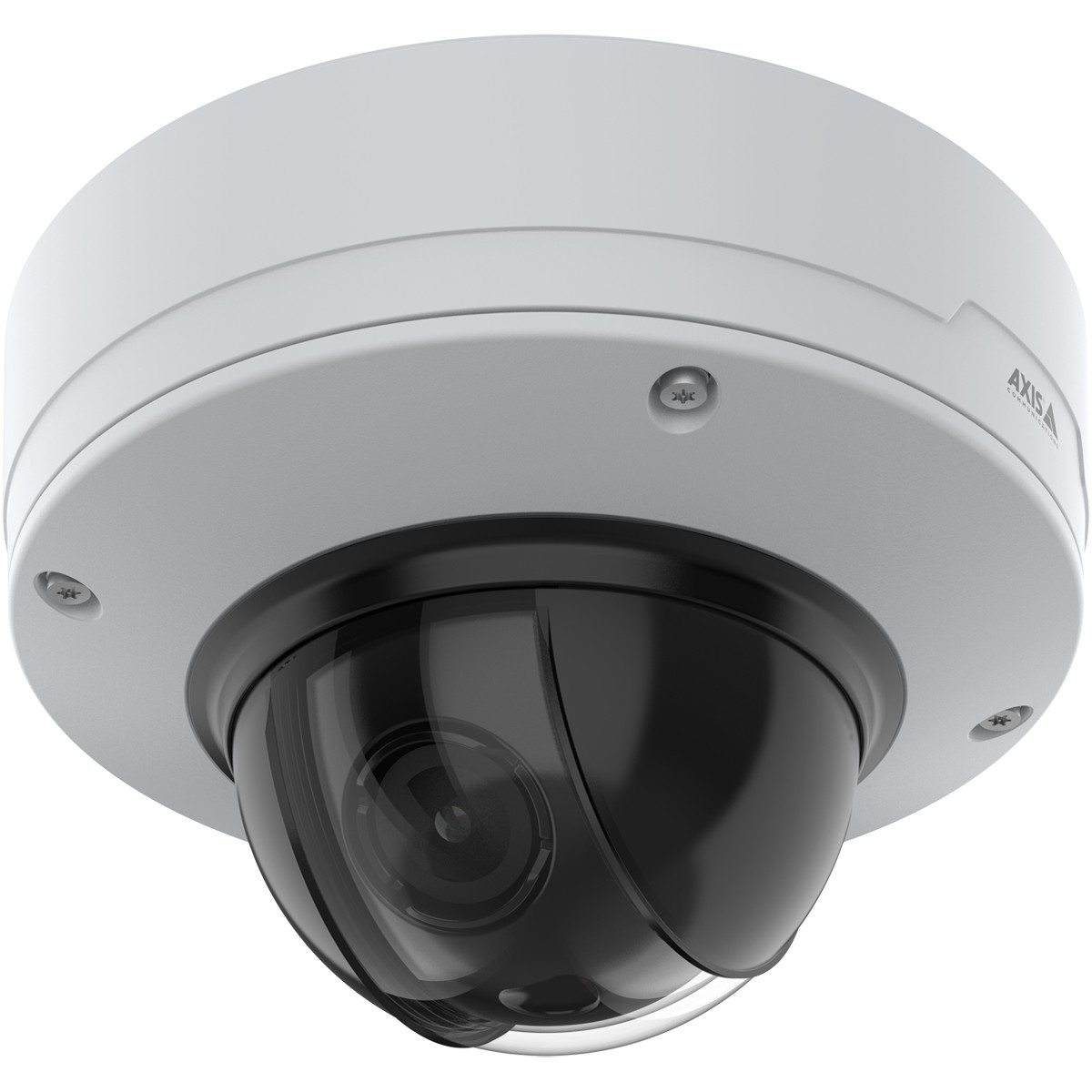

With superior 4K resolution. Lightfinder 2.0. Forensic WDR. and OptimizedIR. AXIS Q3538-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring clear. sharp video every time. Built on ARTPEC-8. it offers advanced features and powerful applications based on deep learning. For instance. AXIS Object Analytics comes preinstalled offering highly nuanced object classification. Enclosed in a metal casing. this robust camera features redundant power. sensors for intrusion- and shock detection. and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).

Performance
Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 12
Languages support: Simplified Chinese. Traditional Chinese. German. English. Spanish. French. Italian. Japanese. Korean. Polish. Portuguese. Russian
Design
Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP66
IK code: IK10+
Feature: Weatherproof
Camera
Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.07 lx
Tilt angle range: -43 - 80°
Camera shutter speed: 1/66500 - 2 s
Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Feature: Progressive scan
Sensor type: CMOS
Lens system
Feature: Zoom capability
Number of lenses: 1
Focal length range: 6.2 - 12.9 mm
Night vision
Feature: Night vision
LED type: IR
Video
Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264. H.265
Feature: Video recording
Frame rate: 60 fps
Feature: Video streaming
Image quality adjustment: Brightness. Contrast. Saturation. Sharpness
Feature: Privacy masking
Audio
Audio formats supported: AAC-LC. G.711. G.726. OPUS
Feature: Built-in microphone
Feature: Audio detection
Network
Feature: Ethernet LAN
Networking standards: IEEE 802.3at
Feature: Quality of Service (QoS) support
Storage
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash). MicroSDHC. MicroSDXC
Flash memory: 8194 MB
Internal memory: 2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Security
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Alert notification type: E-mail
Feature: Pixel counter
Feature: Human and vehicle targets classification
Power
Power source type: PoE
Power consumption (typical): 9 W
Power consumption (max): 23 W
Operational conditions
Operating temperature (T-T): -50 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Height: 124 mm
Diameter: 18.3 cm
Weight: 2.1 kg
Packaging content
Number of cameras: 1
Feature: Mounting kit
Feature: Mounting brackets included
Feature: Drilling template included
Feature: Manual
