CCTV CAMERAS & RECORDING

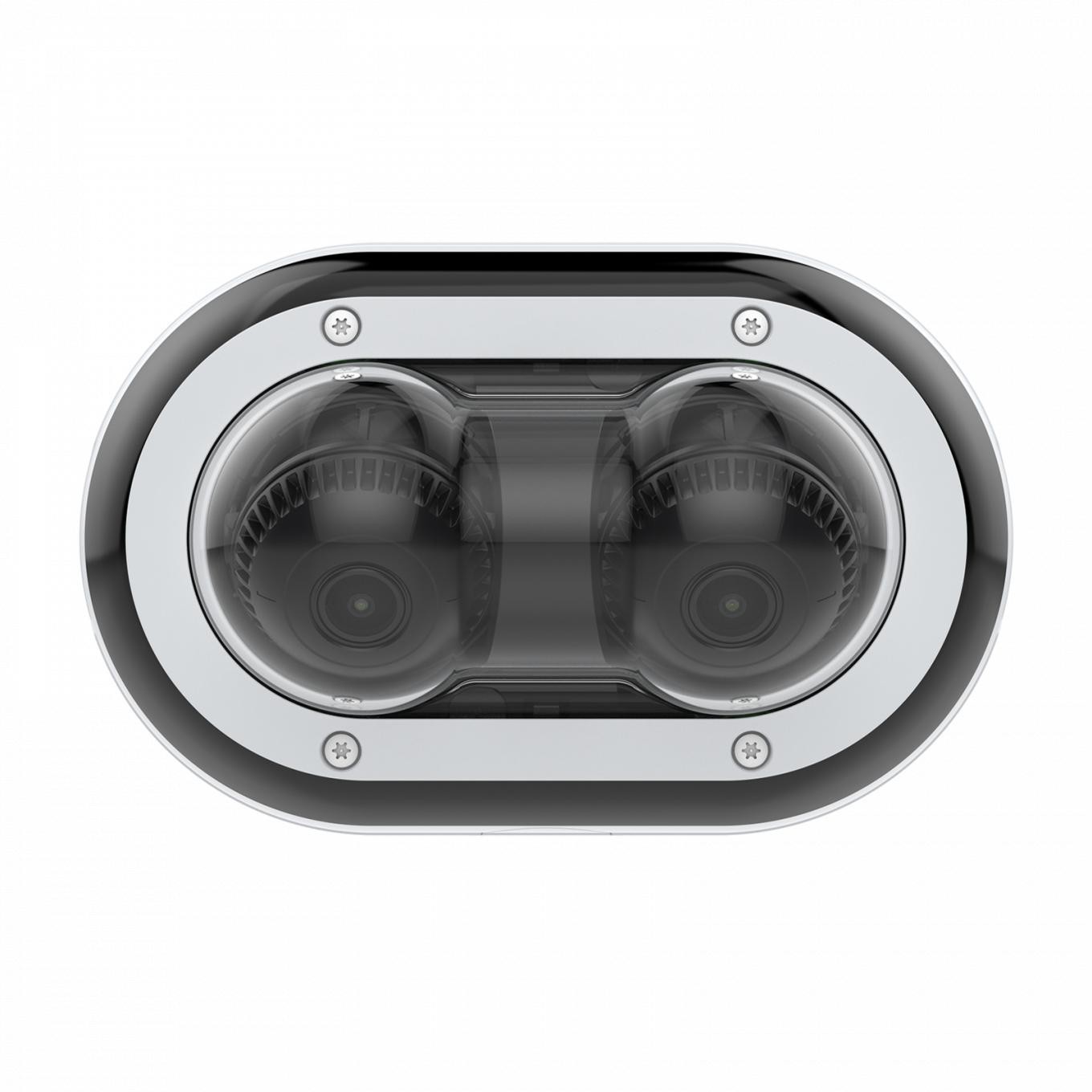

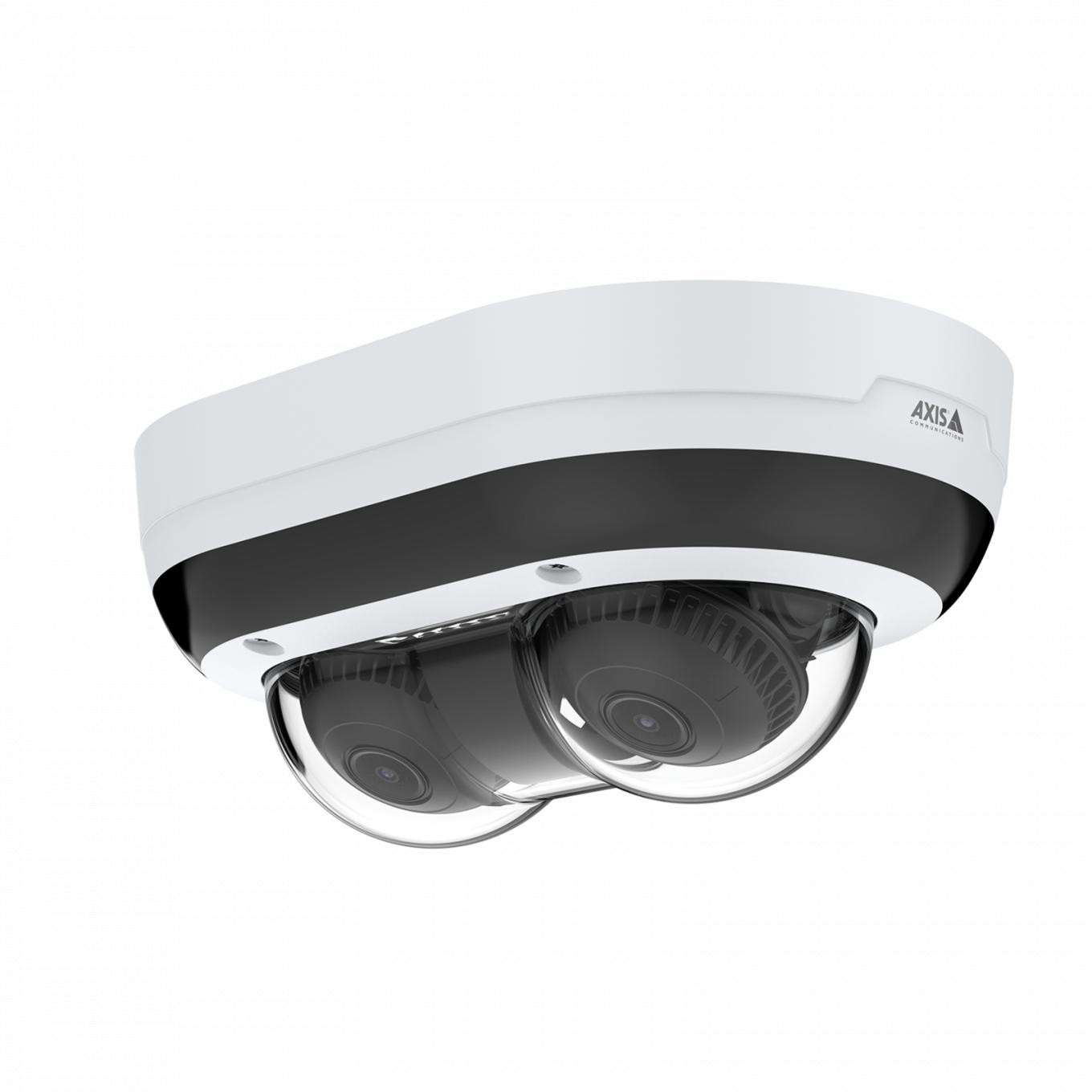

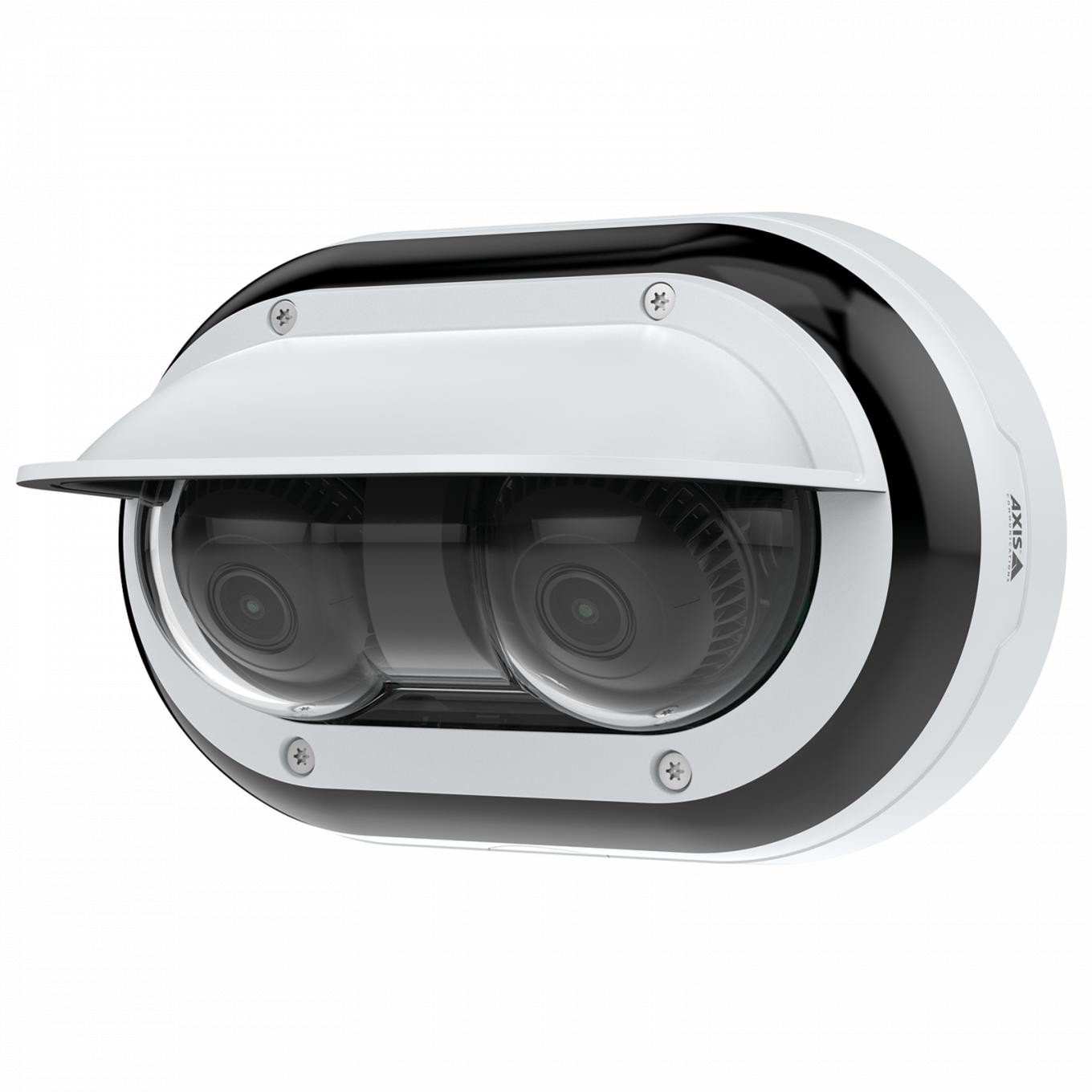

This dual-sensor. multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp. clear images in challenging or poor light conditions. Built on ARTPEC-8. this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus. it delivers valuable metadata facilitating fast. easy. and efficient forensic search capabilities in live or recorded video. And. with flexible positioning of both varifocal camera heads plus. remote zoom and focus capabilities. it ensures fast and cost-effective installation.

Performance
Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Design
Form factor: Bulb
Mounting type: Ceiling/wall
Product colour: Black. White
International Protection (IP) code: IP66. IP67
IK code: IK10
Camera
Angle of rotation: 170°
Lens viewing angle. horizontal: 98 - 36°
Lens viewing angle. vertical: 69 - 27°
Lens viewing angle. diagonal: 133 - 46°
Tilt angle range: -75 - 75°
Pan range: -100 - 110°
Camera shutter speed: 1/33500 - 1/5 s
Image sensor
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS
Panoramic camera
Sensor type (panoramic camera): CMOS
Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7")
Camera shutter speed (panoramic camera): 1/33500 - 1/5 s
Minimum illumination (panoramic camera): 0.19 lx
Focal length range (panoramic camera): 3.26 - 8.12 mm
Lens system
Feature: Zoom capability
Number of lenses: 1
Focal length range: 3.26 - 8.12 mm
Feature: Auto focus
Night vision
Feature: Night vision
LED type: IR
Video
Maximum resolution: 2592 x 1944 pixels
Total megapixels: 2.5 MP
Video compression formats: H.264. H.265. M-JPEG
Supported graphics resolutions: 2560 x 1440. 2592 x 1944
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Brightness. Contrast. Sharpness
Feature: Privacy masking
Audio
Feature: Built-in speaker(s)
Audio system: 2-way
Audio codecs: 24bit LPCM. AAC-LC 8/16/32/44.1/48 kHz. G.711 PCM 8 kHz. G.726 ADPCM 8 kHz. Opus 8/16/48 kHz
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x. IEEE 802.3at
Feature: Quality of Service (QoS) support
Feature: Live view
Storage
Feature: Card reader integrated
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Security
Feature: Password protection
Feature: IP address filtering
Security algorithms: HTTPS
Power
Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 7.9 W
Operational conditions
Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 133 mm
Depth: 208 mm
Height: 88 mm
Weight: 975 g
Packaging content
Number of cameras: 2
Other features
Doesn't contain: BFR. PVC
