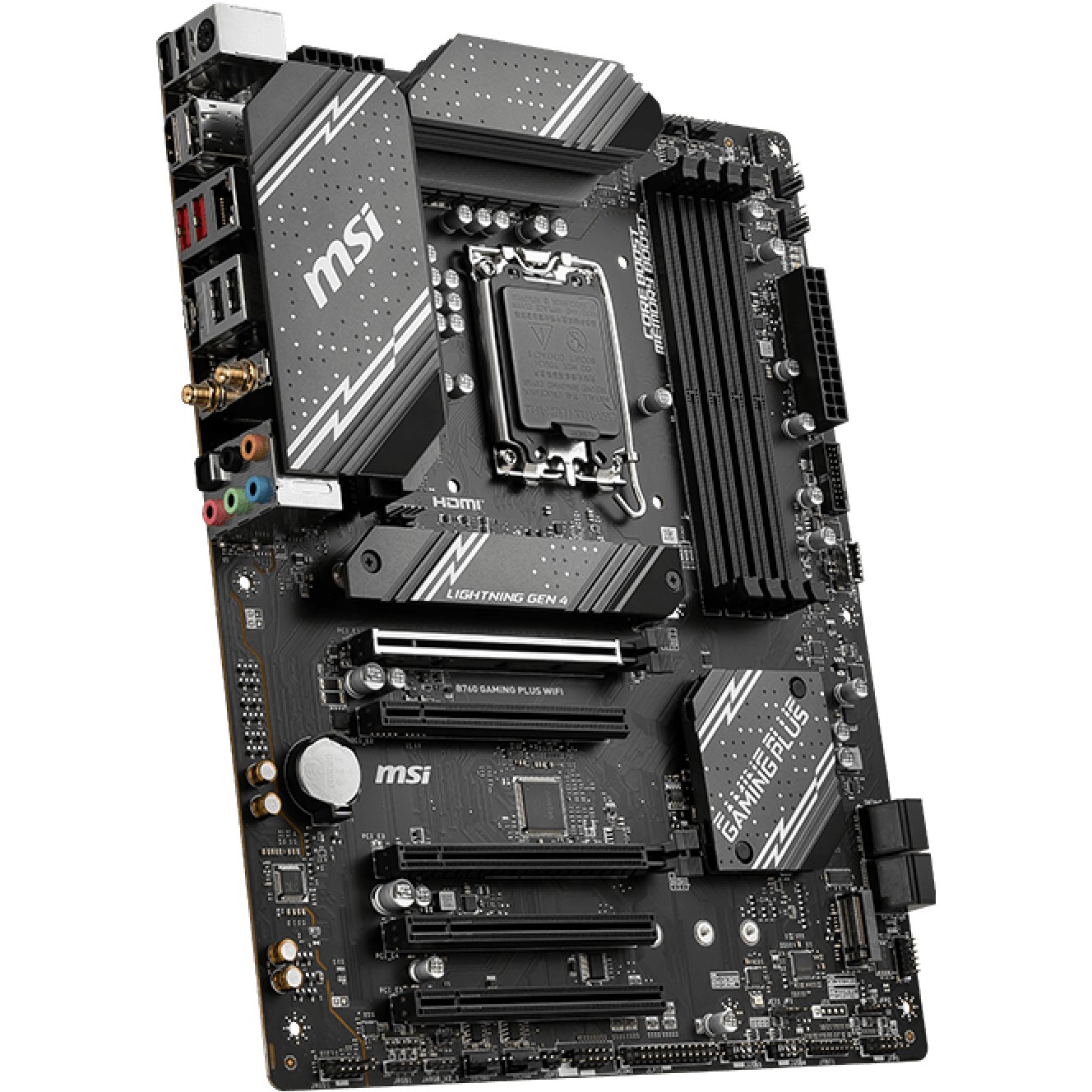

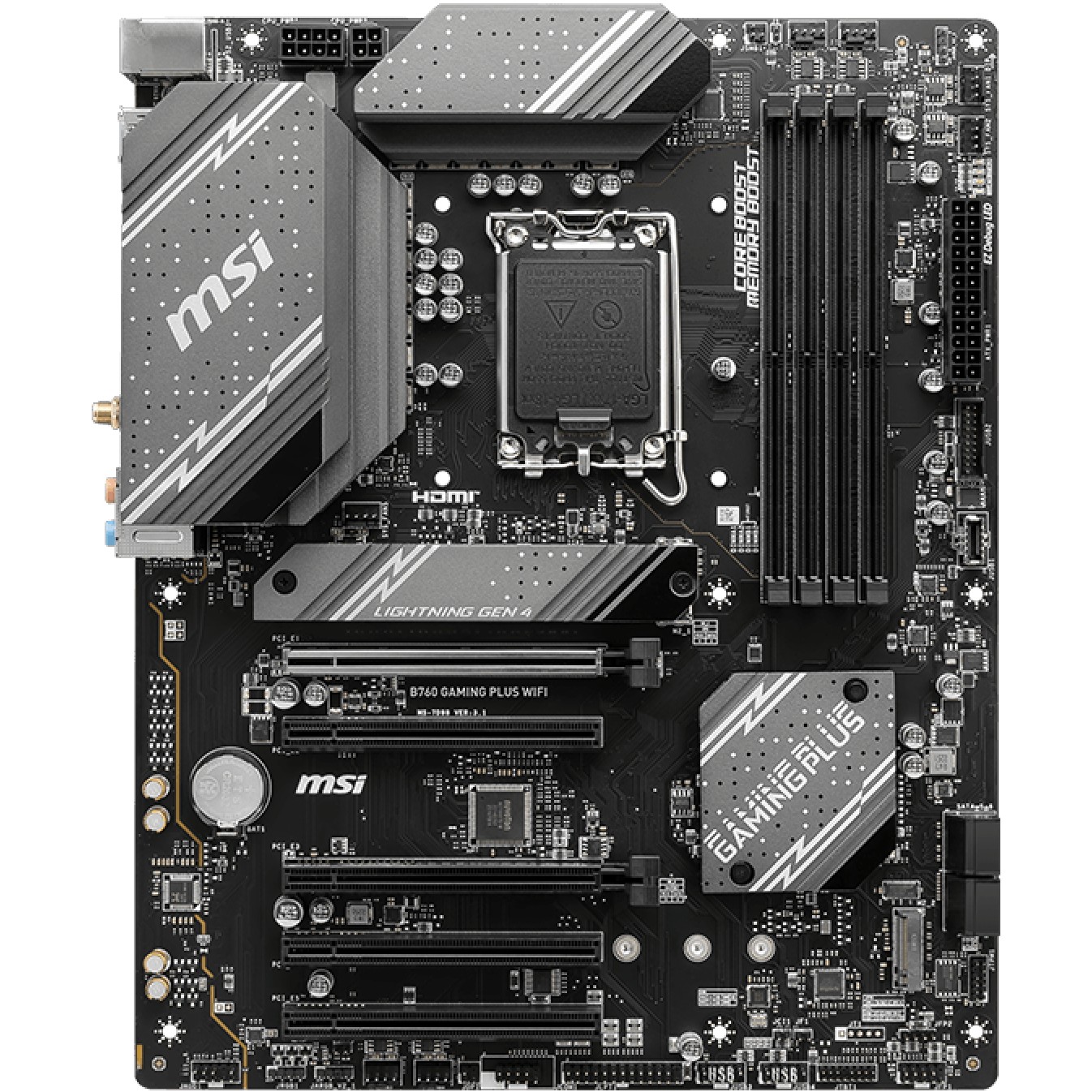

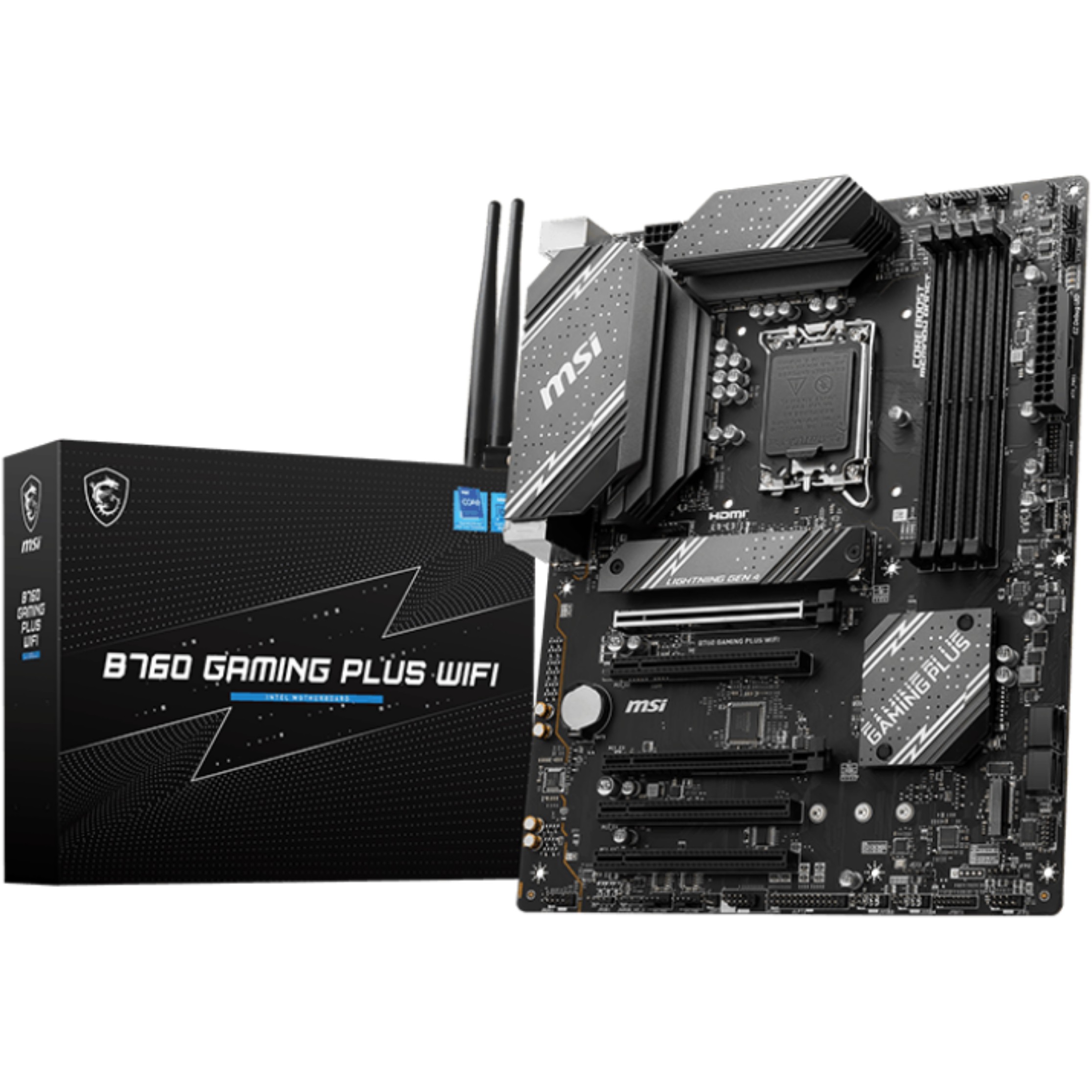

1700 MSI PRO B760 Gaming Plus WIFI
Product code: 15096722 // MPN: 7D98-007R // EAN: 4711377086561
€175,60 (inc. VAT)
Available from 4 to 10 days (33 pcs available)
Similar products
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 3 x PCIe 3.0 x16 (x1 mode) 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |

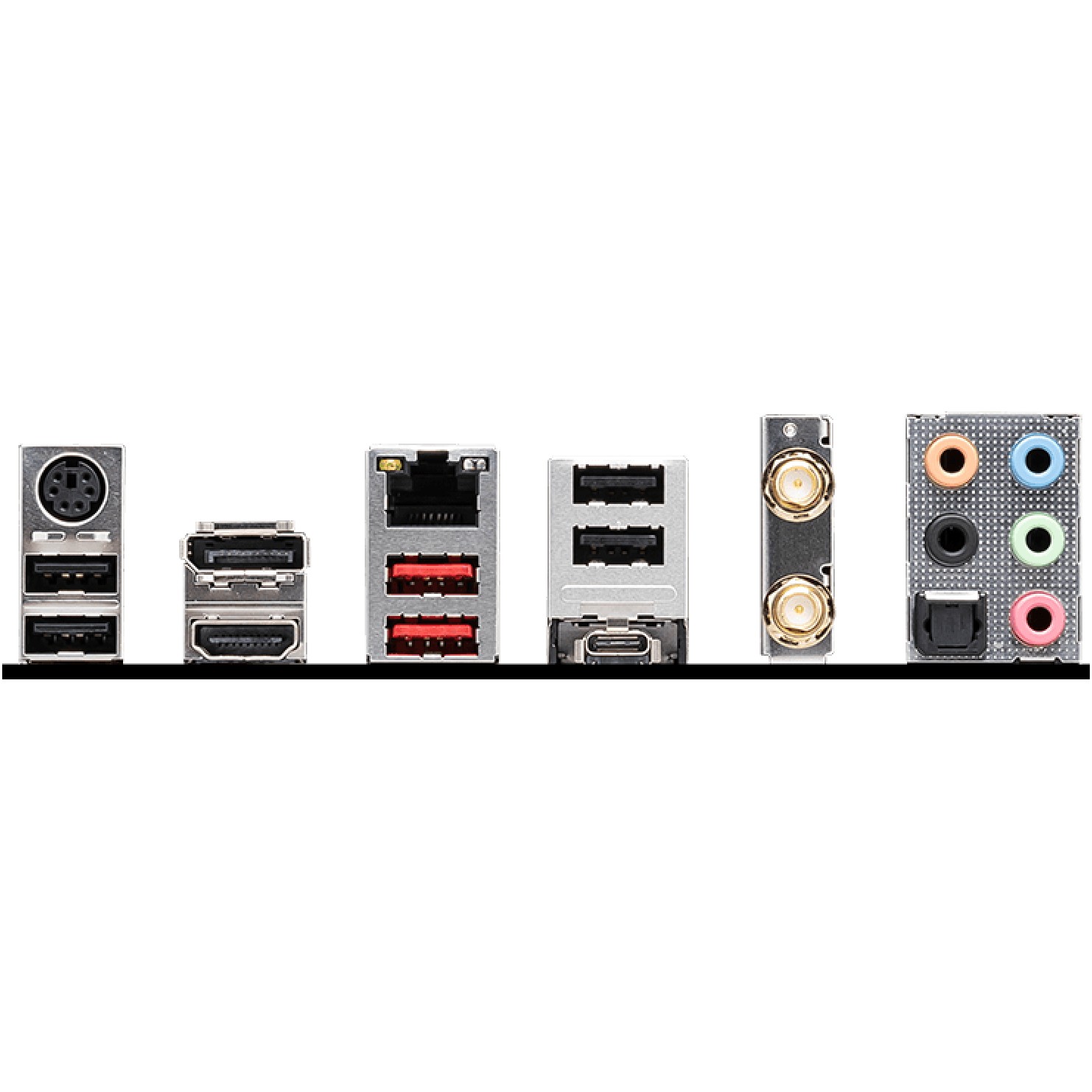

| Interfaces | 1 x HDMI 1 x DisplayPort 4 x USB 2.0 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 2 x aerial 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 1 x SPDIF out PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x serial - header 1 x Thunderbolt - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Features | MSI ClickBIOS 5, M-Flash |
| Hardware Features | Water Pump Header, chassis intrusion detection, Extended Heatsink Design, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost, MSI Audio Boost, Digital PWM, MSI Steel Armor, 6 Layer PCB, 2oz Copper PCB, 12+1+1 Phase Power Design, DIY Friendly Design, Surface Mount Technology (SMT) |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, Wi-Fi aerial, m.2 screw / standoff sets |
| Cables Included | 1 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), MSI Center, Norton 360 Deluxe (60 days trial) |
| Compliant Standards | DisplayPort 1.4, WEEE, FCC Part 15 Class B, JIS C 0950 |
| Width | 30.48 cm |
| Depth | 24.348 cm |
| All in one: | |
| Brand: | MSI |
| Gaming: |
