COMPONENTS FOR SERVERS

Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen™ 3. AMD Ryzen™ 5
Maximum number of SMP processors: 1
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 3600.5200 MHz
Supported memory clock speed (max): 5200 MHz
Maximum internal memory: 32 GB
Storage controllers
Supported storage drive interfaces: M.2. SATA III
Feature: RAID support
RAID levels: 0. 1. 10
Graphics
On-board graphics card model: Aspeed AST2600
Internal I/O
Number of SATA III connectors: 4
Feature: ATX Power connector (24-pin)
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector

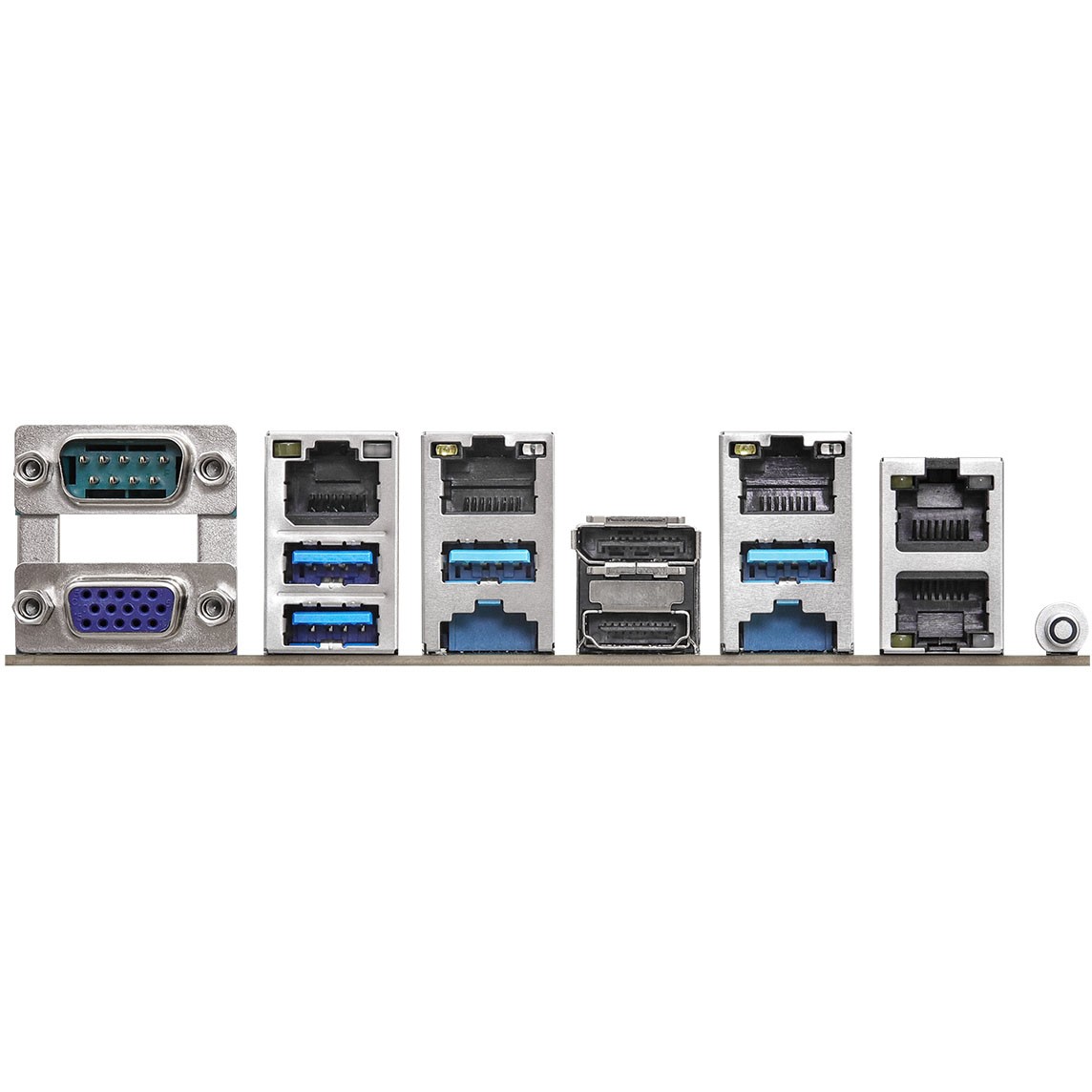

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 4
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Serial ports quantity: 1
Network
Feature: Ethernet LAN
Features
Motherboard chipset: AMD B650 Express
PC health monitoring: CPU. Fan. Voltage
Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
Feature: Clear CMOS jumper
System Management BIOS (SMBIOS) version: 3.5
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 243.8 mm
Depth: 243.8 mm
