COMPONENTS FOR SERVERS

Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 1700
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC
Storage controllers
Supported storage drive interfaces: M.2. SlimSAS
Feature: RAID support
RAID levels: 0. 1. 5. 10
Internal I/O
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 5
Feature: ATX Power connector (24-pin)
Peripheral (Molex) power connectors (4-pin): 1
Feature: TPM connector

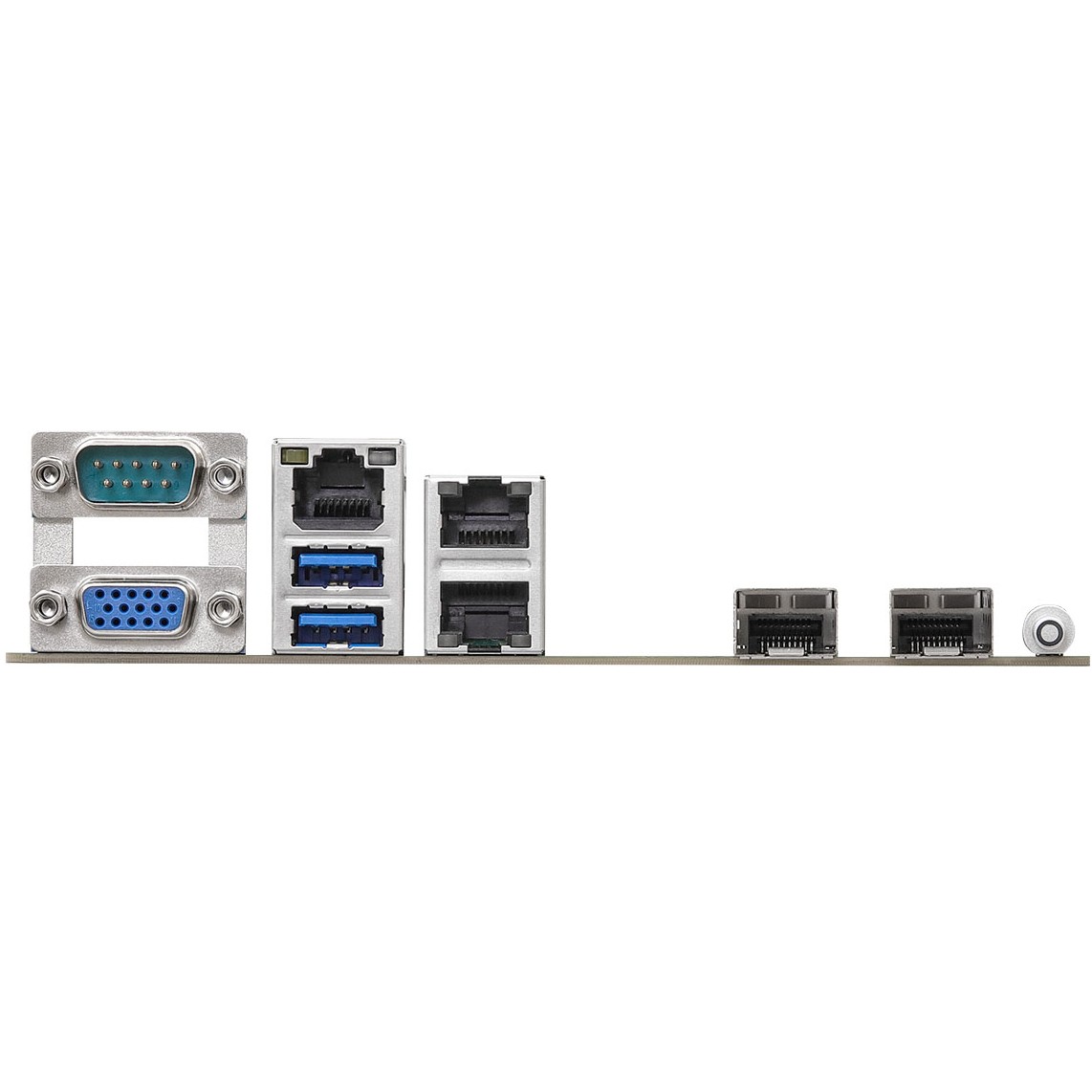

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
Network
Feature: Ethernet LAN
Features
Motherboard chipset: Intel C262
PC health monitoring: CPU. Fan
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
BIOS
BIOS type: AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.8
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 244 mm
Depth: 244 mm
